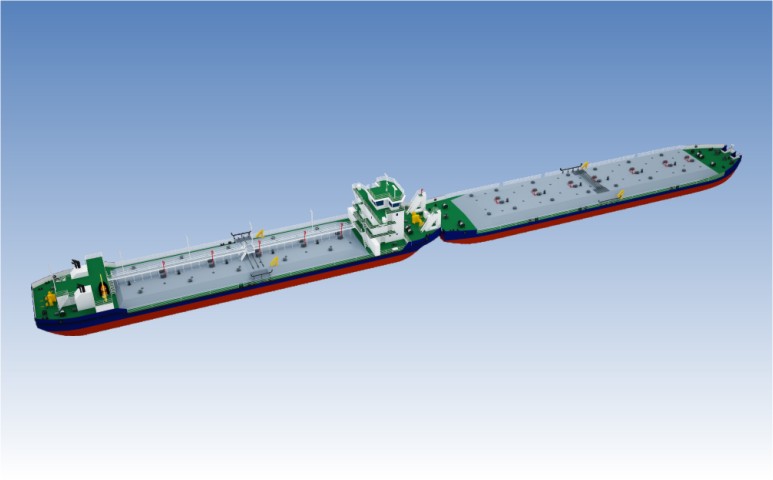

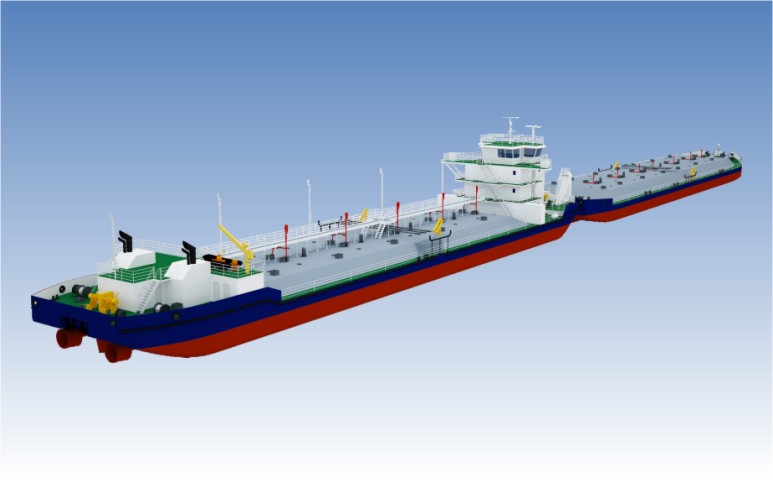

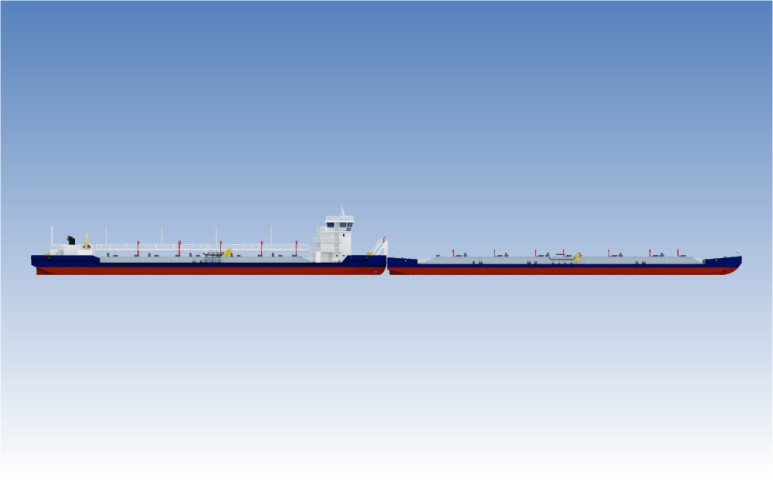

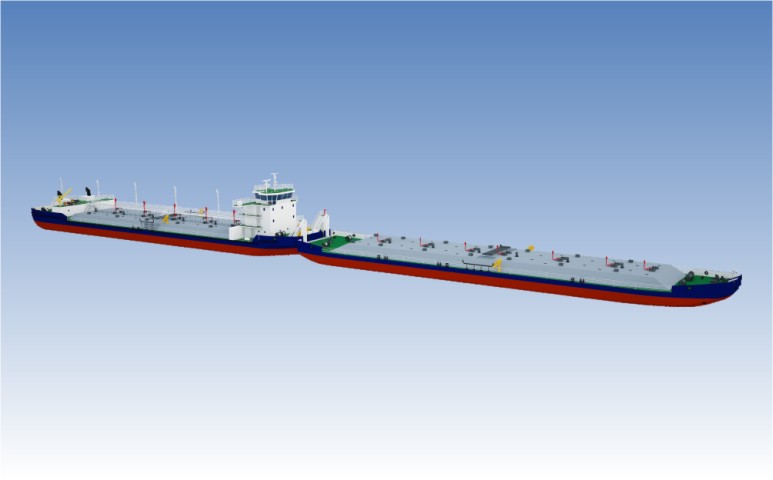

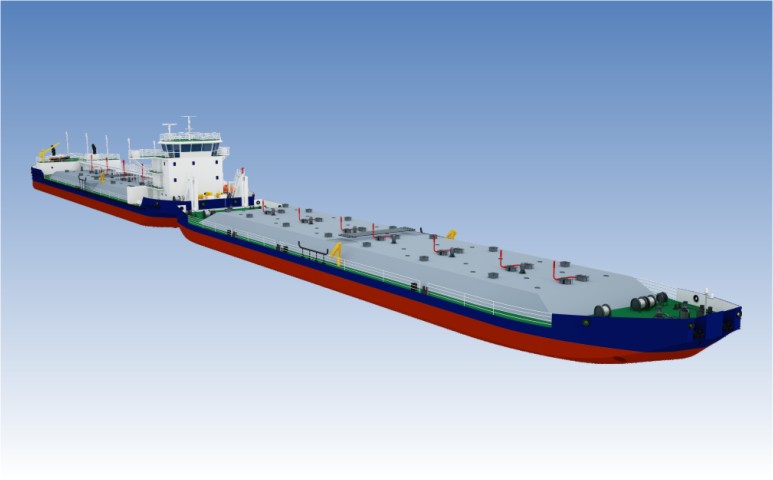

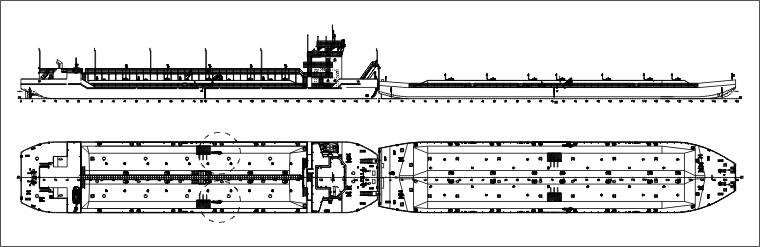

TUG-BARGE TRAIN CONSISTING OF RT63 AND ROB21 PROJECTS
Shallow-draft oil-cargo integrated vessel







							Purpose - carriage of liquid cargoes with flash-point >60°C and operation in tug-barge combination.
Characteristics of vessels see RT63 and ROB21
| # | Name | Value |
|---|---|---|
| 1. | Main dimensions | |
| Length overall, m | 170.40 | |
| Breadth overall, m | 17.20 | |
| Breadth on DWL, m | 17.0 | |
| 2. | Draught on DWL, m | 1.80 |
| 3. | Deadweight in river at draught d = 1.40 / 1.60 / 1.80 / 2.0 / 2.15 / 2.35 m (about), t  |
	2008 / 2566 / 3111 / 3656 / 4067 / 4619 |
| 4. | Cargo tanks capacity, m³ | 5692 |
| 5. | RRR class of tanker-pusher |   O 2.0 (ice 20) A |

| 6. | RRR class of barge |   R 1.2 (ice 20) |

| 7. | ME power, kW | 2 x 746 |
| 8. | Crew / berth, pers. | 8 / 10 |
 O 2.0 (ice 20) A
