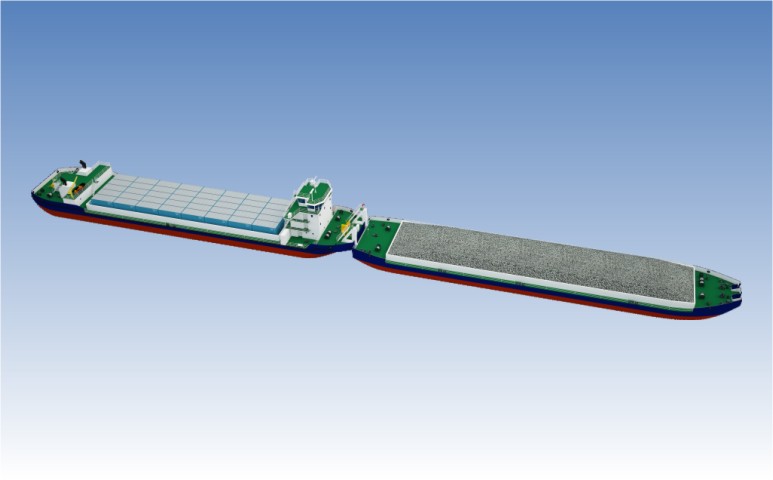

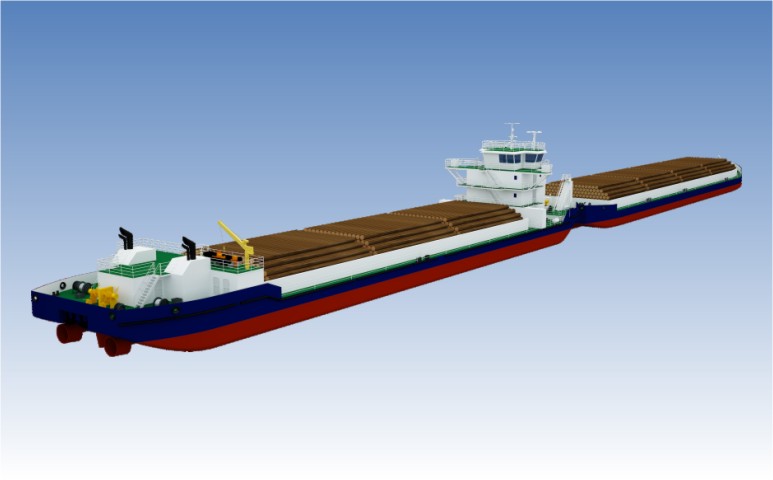

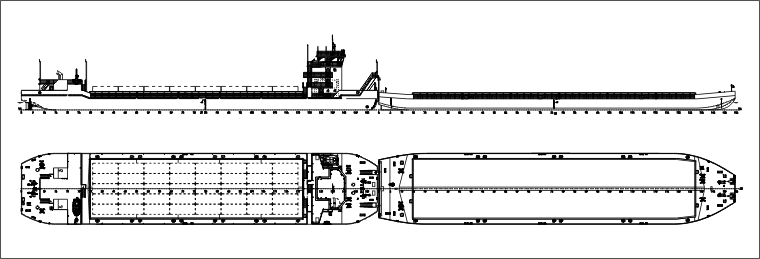

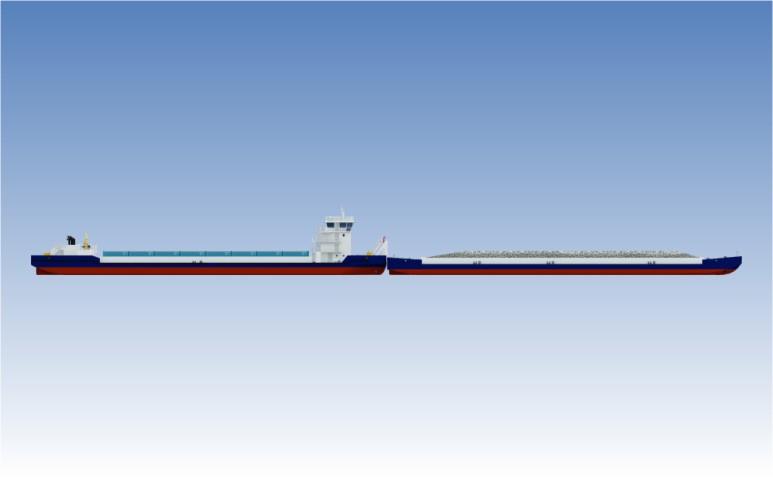

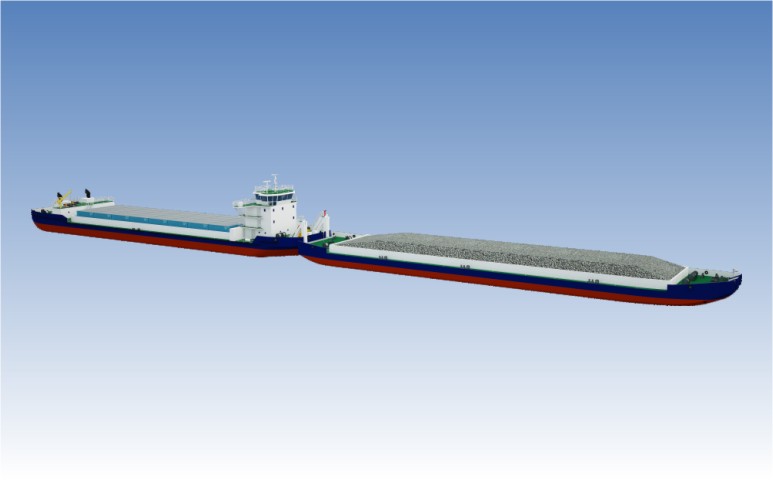

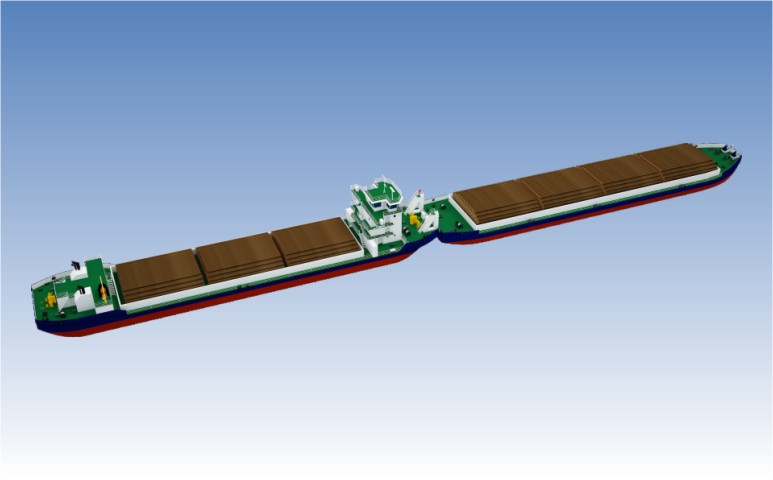

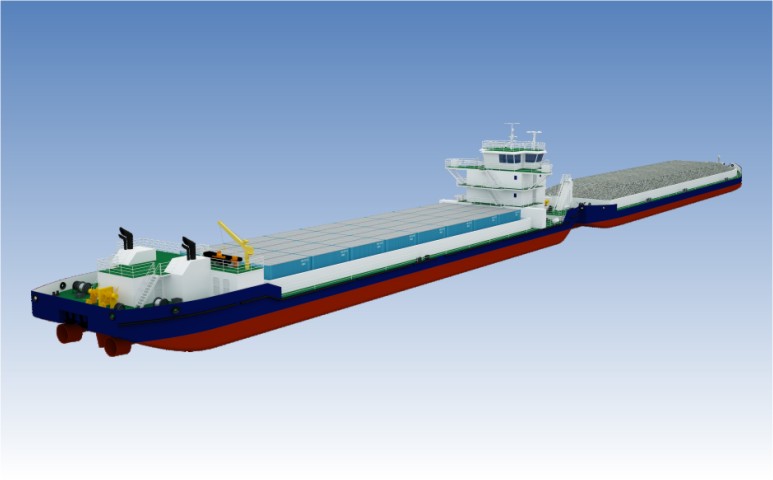

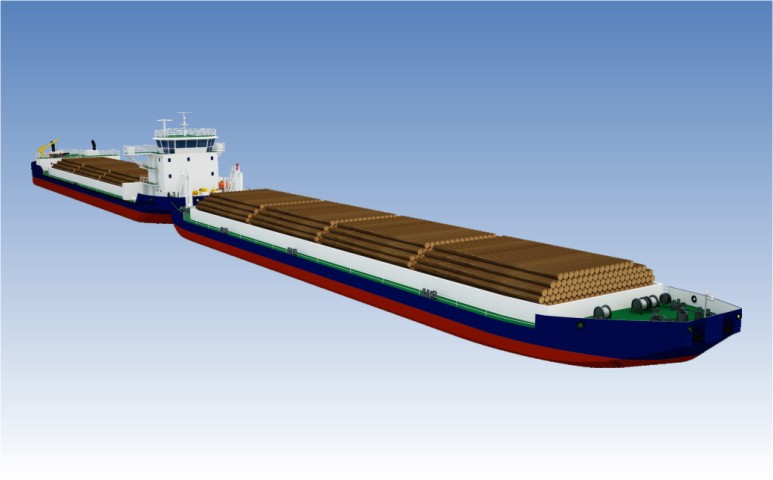

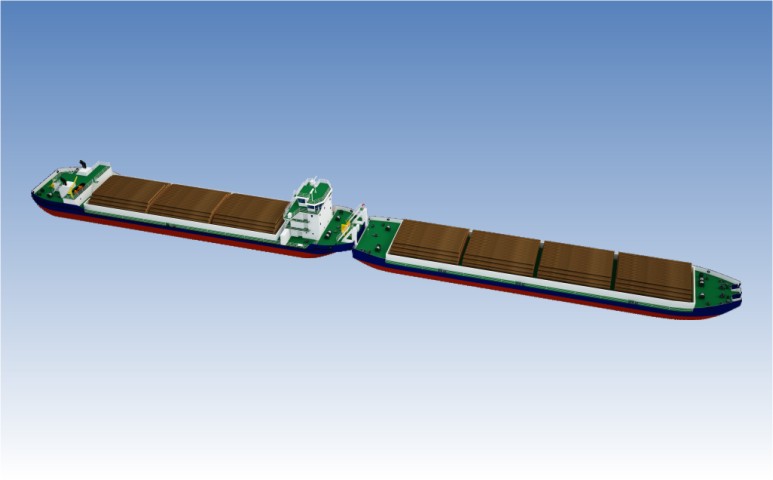

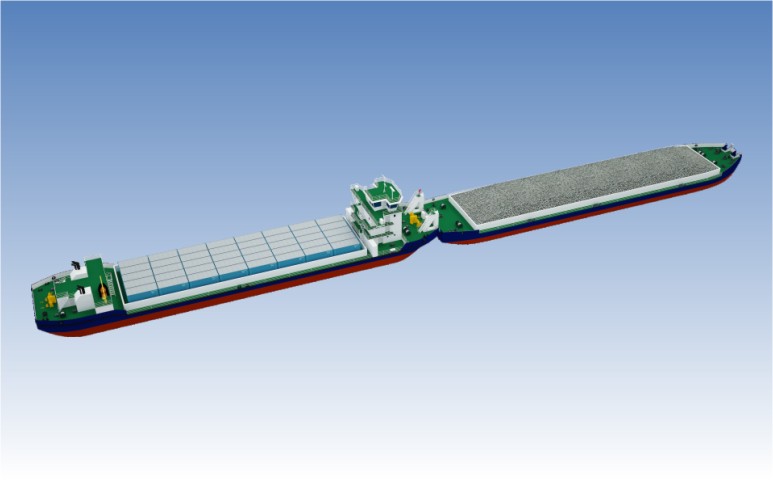

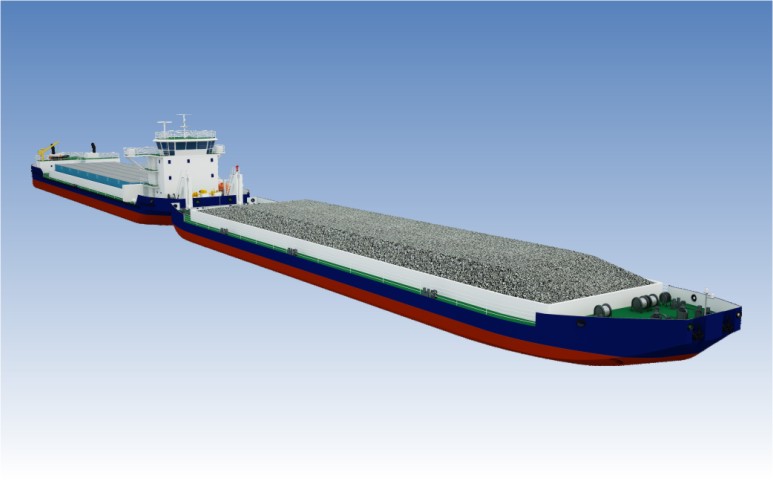

INTEGRATED VESSEL OF RD63-RDB21 PROJECTS
4788 DWT total shallow-draft dry-cargo integrated vessel











Purpose - carrying of the general and the bulk cargoes which are not afraid of influence of an environment, including 20 and 40 foot containers of the international standard, metal and metal products, a wood, logs and saw-timbers, coal, building materials, large-sized cargoes, and also pushing of dry-cargo and tank barges on internal waterways.
Characteristics of vessels see RD63 and RDB21.
# | Name | Value |
---|---|---|
1. | Main dimensions | |
Length overall, m | 170.40 | |
Breadth overall, m | 17.20 | |
Breadth by DWL, m | 17.0 | |
2. | Draught on DWL, m | 1.80 |
3. | Deadweight at draught d = 1.40 / 1.60 / 1.80 / 2.0 / 2.15 / 2.35 m in river (about), t |
2195 / 2736 / 3280 / 3825 / 4236 / 4788 |
4. | Cargo bunker capacity (about), m³ | 2362 |
5. | RRR class of ship-pusher | ![]() |
6. | RRR class of barge | ![]() |
7. | ME power, kW | 2 x 746 |
8. | Crew / berth, pers. | 8 / 10 |
