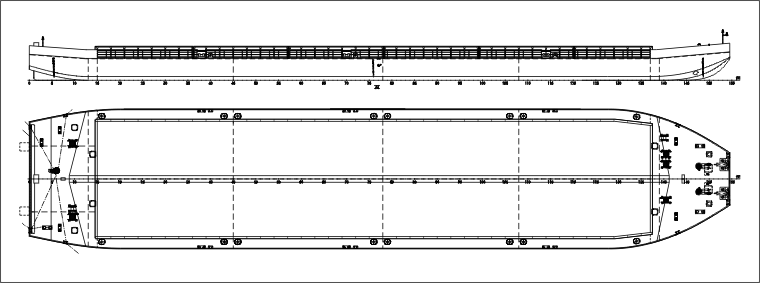

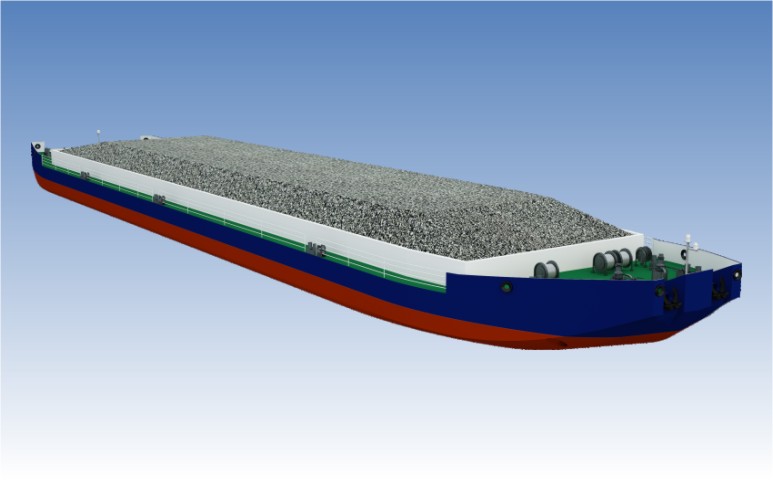

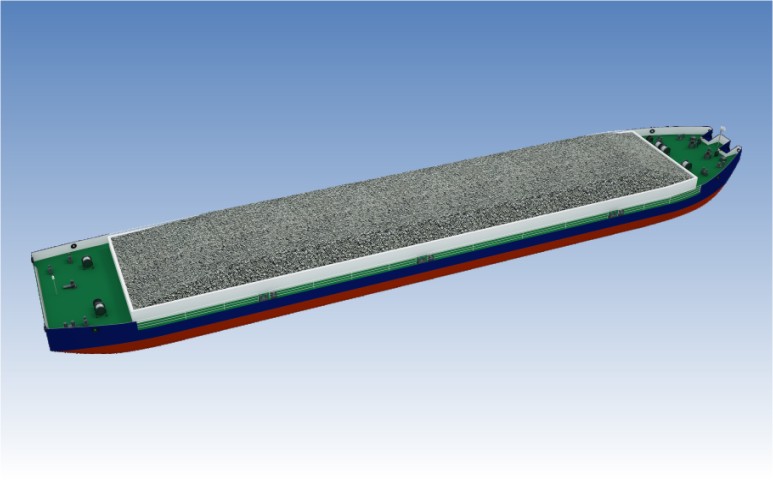

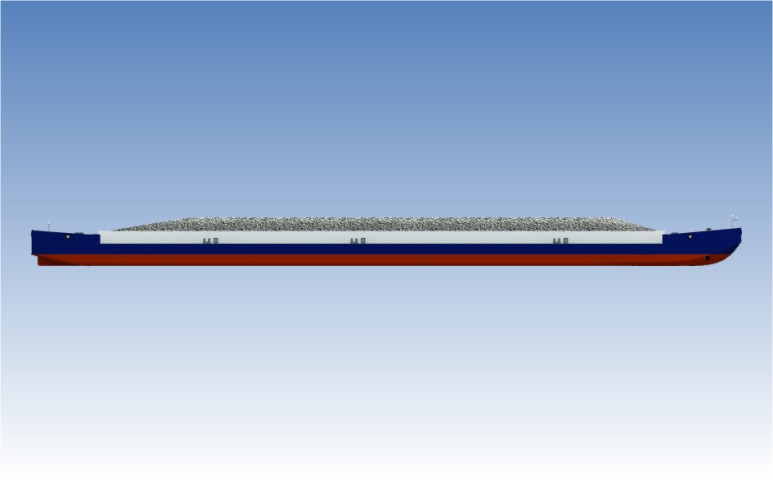

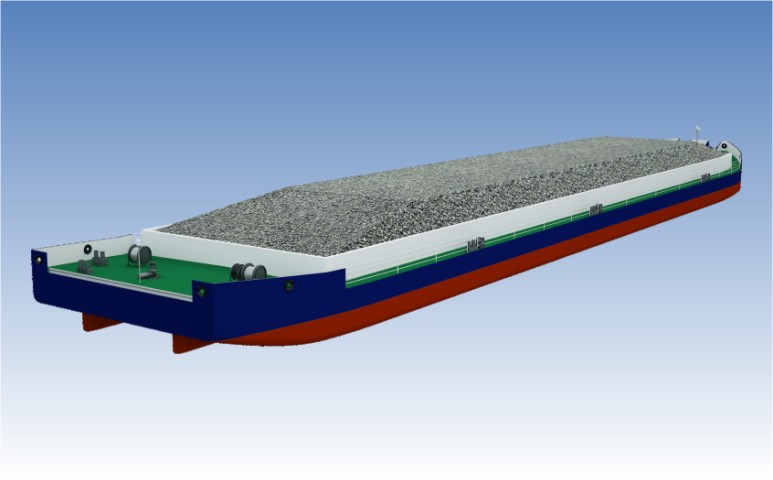

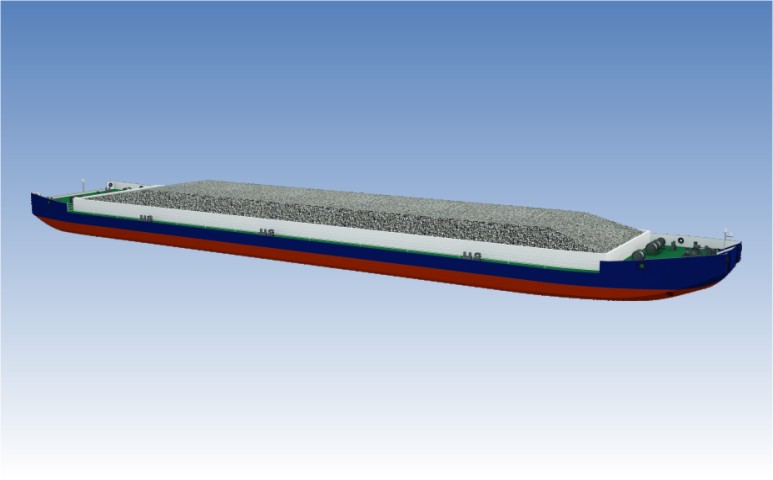

PROJECT RDB21

2650 DWT small draught non-self-propelled open-deck multipurpose river vessel




Purpose - carrying general and bulk cargoes, which can be wet, including, TEU and FEU containers of international standard, steel, timber, coil, large-dimension and heavy-weight cargoes.




# Name Value
1. Main dimensions
Length overall by hull, m 85.0
Length by DWL, m 84.40
Breadth by hull, m 17.20
Breadth by DWL, m 17.0
Depth, m 2.60
L x B x H 85.0 x 17.20 x 2.60 = 3 801
2. Draught on DWL, m 1.80
3. Deadweight at draught
d = 1.40 /1.6 / 1.8 / 2.0 / 2.15 / 2.35 m in river (about), t
1348 / 1622 / 1896 / 2170 / 2375 / 2650
4. Cargo bunker capacity
(to level of upper plate coaming) (about), m³
1325.0
5. Area of cargo deck of bunker (about), m² 937.0
6. Maximum unit loads on cargo deck
from uniformly distributed load, t/m²
5.0
7. RRR class R 1.2 (ice 20)
8. Bow thruster, kW 1 x 55
9. GT 1280
