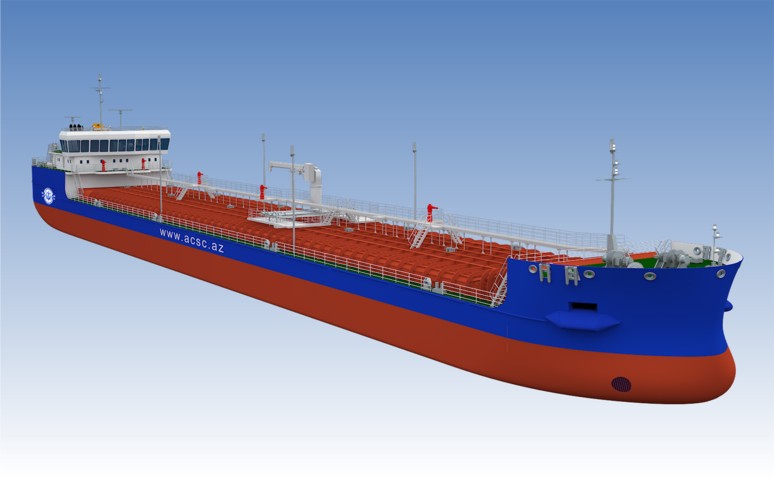

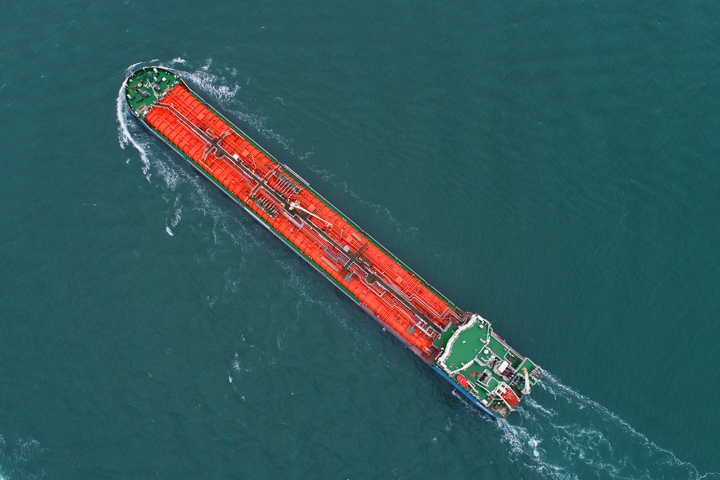

PROJECT RST12C

7875 / 5447 DWT chemical - product tanker

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 7 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17

Purpose - sea and mixed (river-sea) carrying of crude oil and petroleum products with density up to 1.015 t/m³, including gasoline without restrictions for flash-point, with ensuring temperature of carrying cargo up to 50°C.

  1. Methyl alcohol;
  2. Ethyl tert-butyl ether;
  3. Ethylene glycol;
  4. Methyl tert-butyl ether;
  5. Acetone;
  6. Ethyl alcohol;
  7. Isopropyl alcohol;
  8. Cacium lignosulphonate solution;
  9. Ethyl acetate;
  10. Hexane (all isomers);
  11. Octanol (all isomers);
  12. Sodium hydroxide solution;
  13. Toluene;
  14. Urea/ammonium nitrate solution;
  15. Xylenes;
  16. Diethylene glycol.

Simultaneous carriage 2 sorts of cargo is provided.

Nominations:
 RINA - Royal Institution of Naval Architects


Laying of the keel Laid down Delivery Years of construction
1 1 2 2017-


# Name Value
1. Main dimensions
Length overall, m 141.0
Length between PP, m 137.10
Breadth overall, m 16.98
Breadth scantlings, m 16.90
Depth, m 6.0
L x B x H 141.0 x 16.98 x 6.0 = 14 365
2. Draught (at sea (at SWL) / in river), m 4.54 / 3.60
3. Deadweight (at sea (at SWL) / in river), t 7875 / 5447
4. Endurance (at sea / river), days 20 / 12
5. Number of tanks (cargo / slop) 8 (6 / 2)
6. Cargo tanks capacity
(including slop tanks), m³		 9190
7. Number of manifolds / sorts of cargo 2 manifolds / 2 sorts
8. Cargo pumps, m³/h 6 x 200
9. Cargo heating coils
10. Tank wash system and cleaning
of washing liquid		 slop tank's pump output 80 m³/h
11. RS class KM Ice1 R2-RSN(4.5) AUT1-ICS VCS
ECO-S OMBO Oil tanker/Chemical tanker type 2 (ESP)
12. ME power, kW 2 x 1200
13. Rudder and propeller complex 2 rudderpropellers
14. Bow thruster, kW 230
15. Auxiliary engines:
diesel-generators, kW 3 x 350
emergency / harbor diesel-generator, kW 1 x 150
16. Thermal boilers, t/h 2 x 2.5
17. Crew / berth, pers. 12 / 14 + pilot
18. Speed (at draft d = 4.54  and 100% MCR), knots 10.0
