PROJECT TG19

3560 kW multipurpose tug

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 8

Purpose:

  1. towing vessels and floating objects in marine conditions;
  2. performing auxiliary operations in the port water area;
  3. participation in oil spill response operations as an auxiliary vehicle for the delivery of LARN equipment;
  4. participation in oil spill response and spill response operations as a bonding agent when installing booms outside the spill spot (the vessel is not provided for in the spot itself);
  5. assisting in extinguishing fires on floating and coastal objects accessible from the sea;
  6. transportation of general cargo on deck with loading and unloading by port facilities or ship crane;
  7. escort operations.

# Name Value
1. Main dimension
Length overall, m 37.70
Length between PP, m 33.60
Breadth overall, m 12.90
Breadth, m 12.10
Depth, m 5.70
L x B x H 37.10 x 12.90 x 5.70 = 2 728
2. SWL draught, m 3.60
3. Overall draught, m 5.20
4. Displacement, t 835
5. Endurance, days 9.5
6. Emphasis on the forward course, t 55.0
7. Towing winch, t 30
8. Traction effort of the escort winch, t 40
9. Cargo crane hydraulic crane-manipulator
with a carrying capacity of 2.17 tons with a boom of 8 m
and 1.6 tons with a boom of 10.2 m

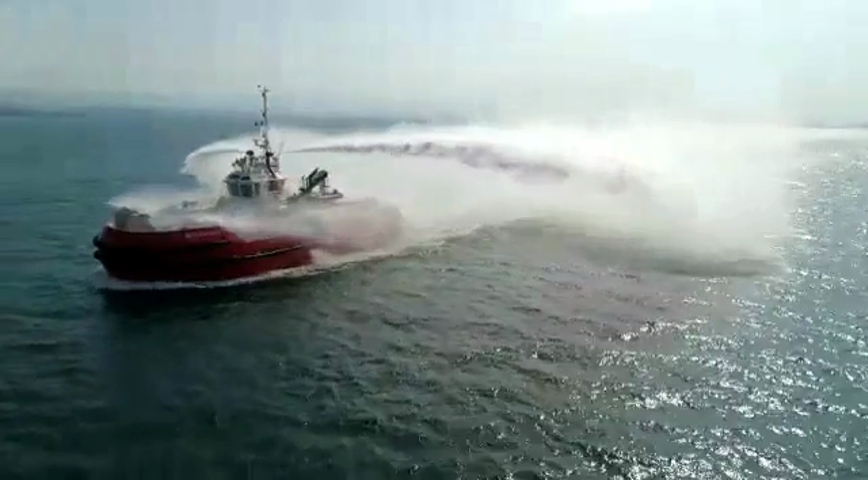

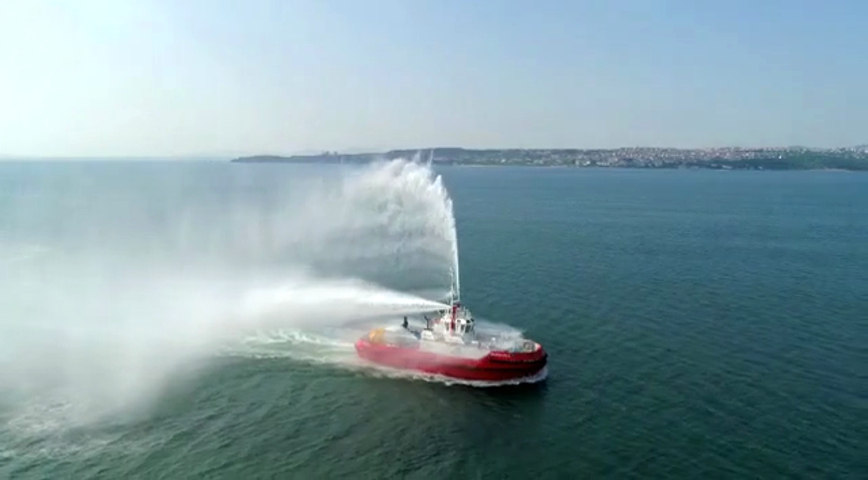

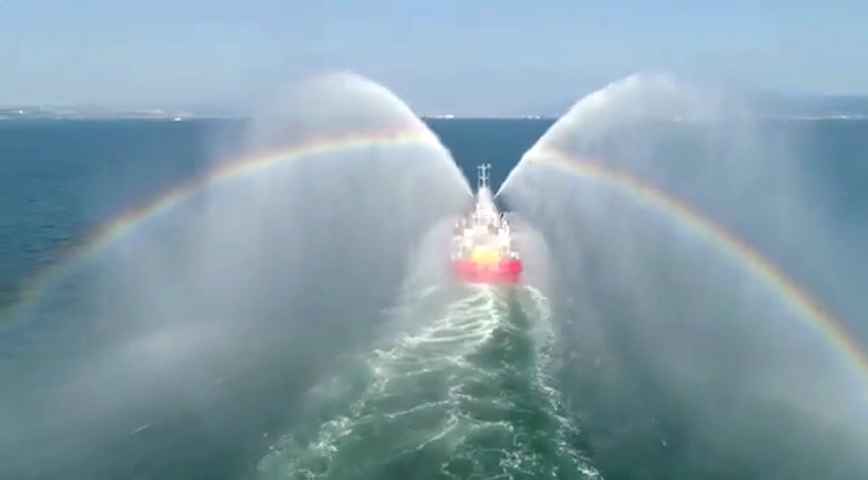

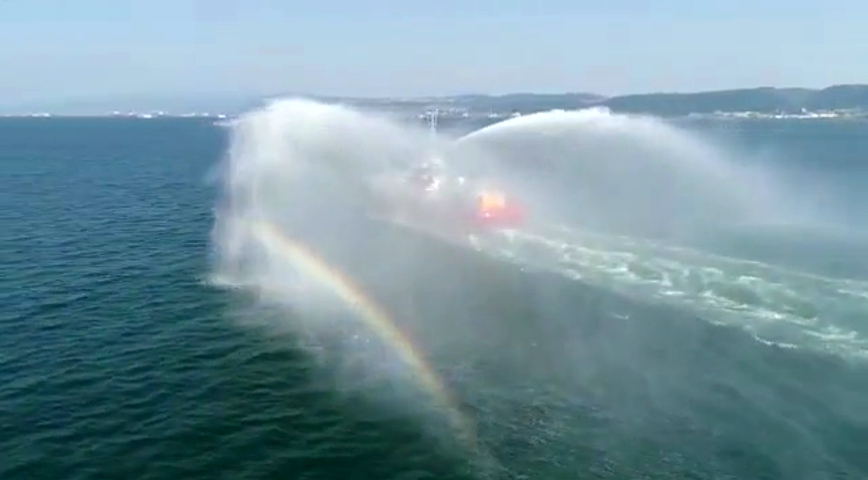

10. Special water / foam fire extinguishing system:
frother pump, MPa 1.6
special diesel driven fire pump 1500 m³/h; 1.3 MPa
fire monitors water / foam 2 x 600/150 m³/h
(length > 100 m, height 45 m)
11. Water curtain system 70 l/min per 1 m curtain length
12. RS class KM ° Arc 4 R1 AUT1-C FF3WS
Oil recovery ship (> 60°C) Escort tug
13. ME power, kW 2 x 1825
14. Rudder and propeller complex 2 x Rudderpropellers
15. Auxiliary diesel-generators, kW 2 x 160
16. Crew / berth, pers 12 / 12
17. Front speed with 100% MDM, knots 12.0
18. Speed in reverse at 100% MDM, knots 11.0
19. Gross tonnage 564
