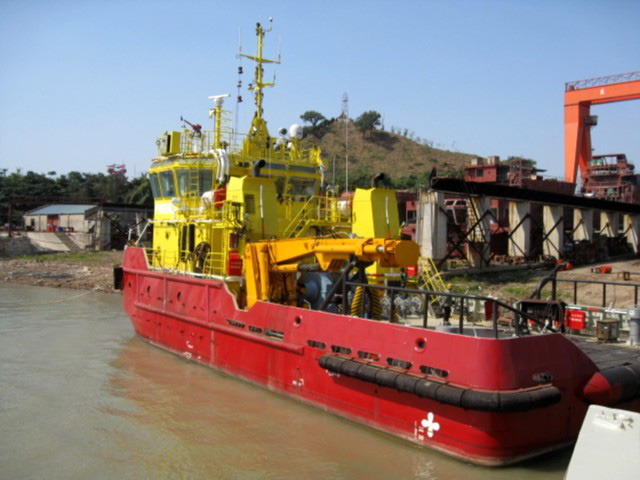

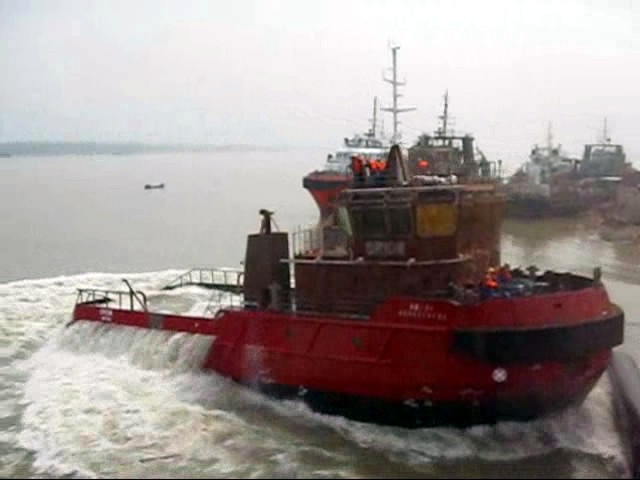

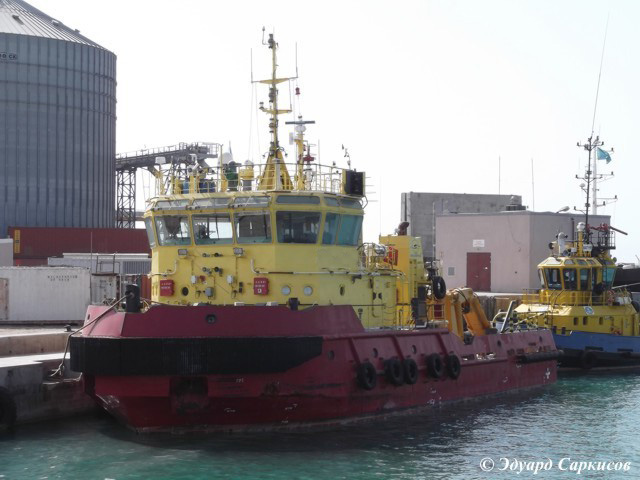

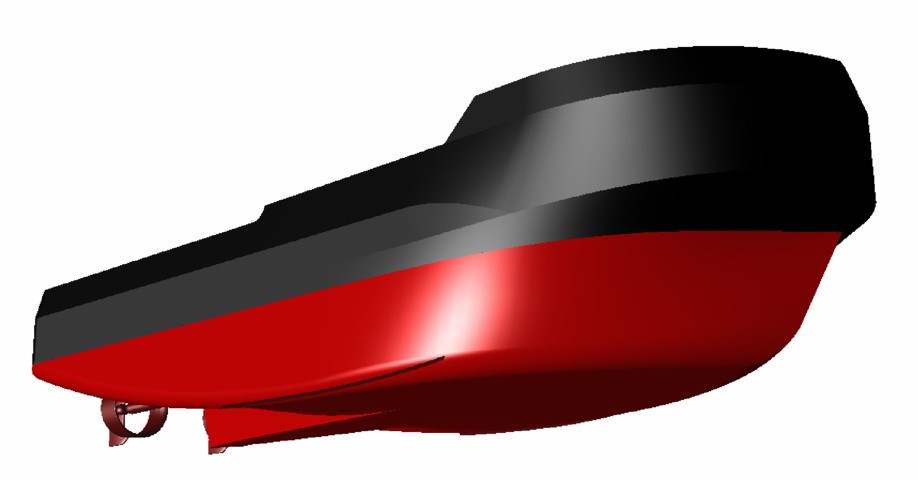

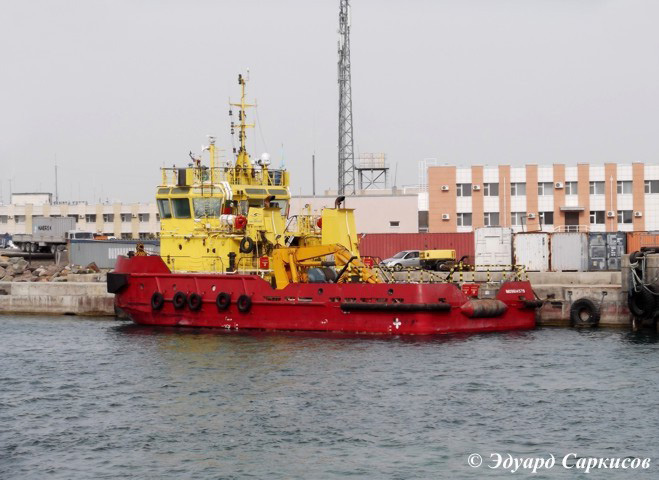

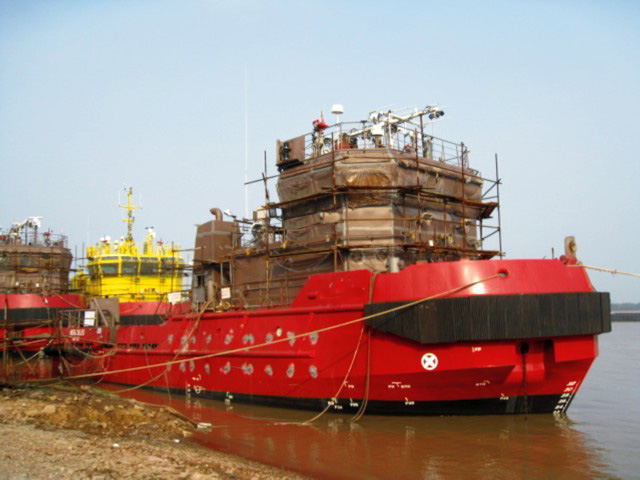

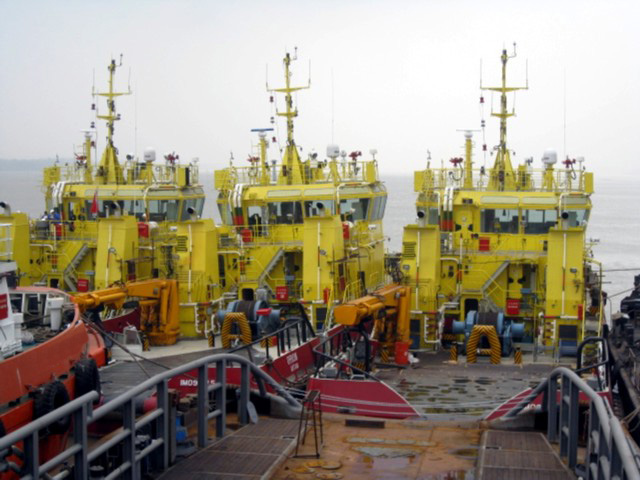

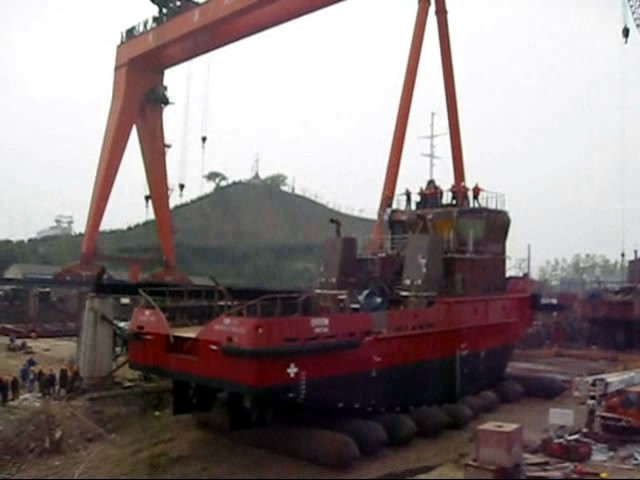

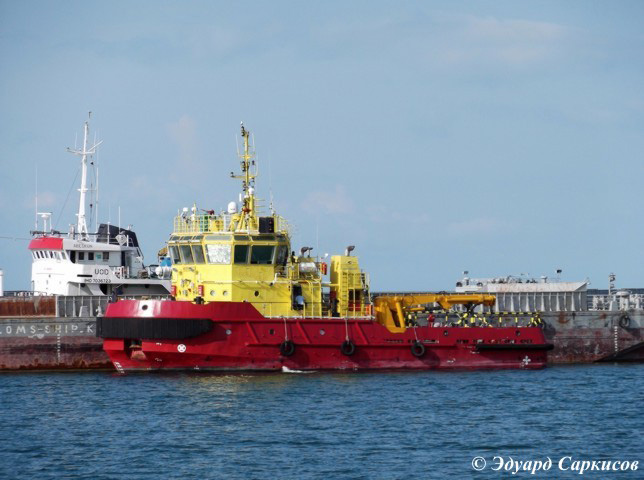

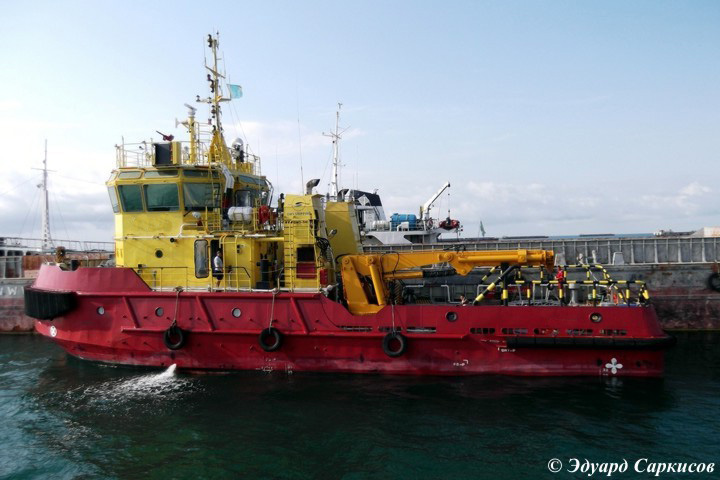

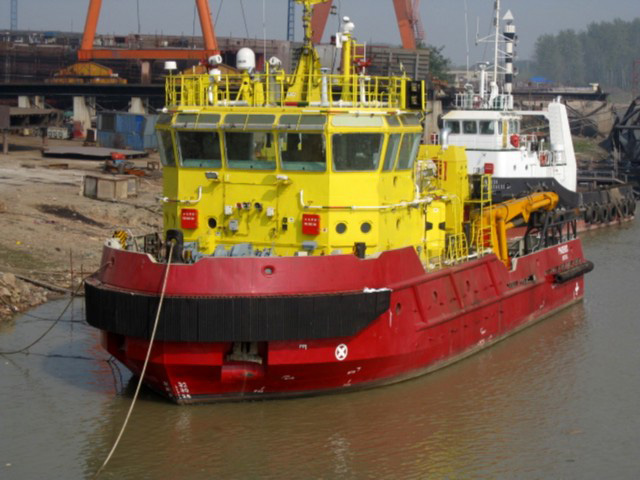

PROJECT TG05

1600 kW power shallow-draught tug-supplier for Caspian Sea

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18 Thumbnail 19 Thumbnail 20 Thumbnail 21 Thumbnail 22

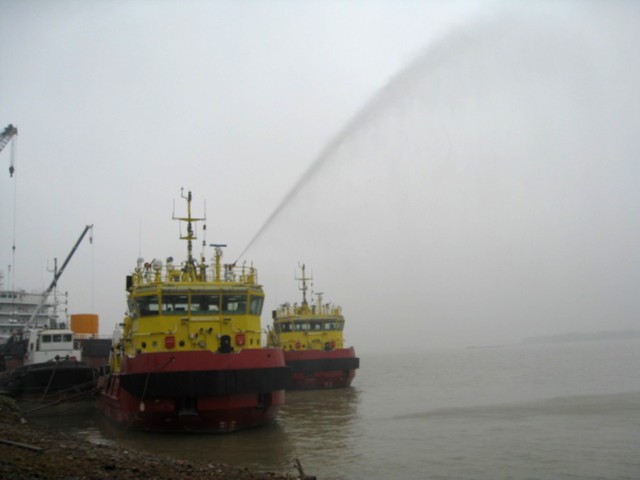

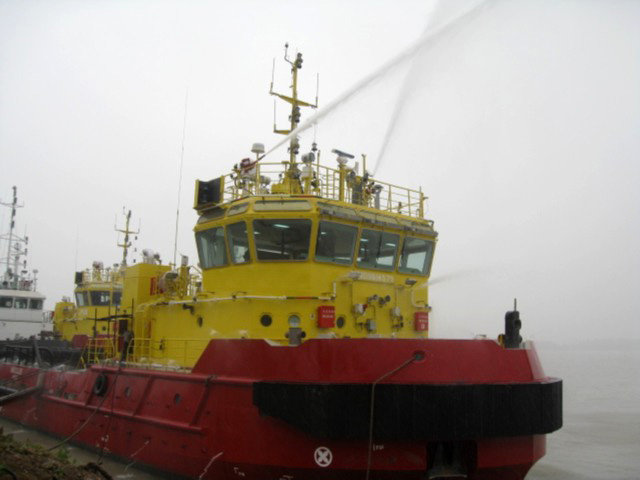

Purpose - towing at open sea conditions, in a port or on a road, is fitted to extinguishing of fires on other ships, buoyant and coast structures, the cargoes can be carried on main deck of aft.

# Name Value
1. Main dimension
Length overall, m 19.80
Length, m 18.0
Breadth overall, m 7.50
Breadth loadline, m 7.40
Middle depth, m 4.40
Least depth, m 3.70
1. Main dimension
Length overall, m 30.72
Length between PP, m 26.80
Breadth overall, m 11.55
Breadth, m 10.60
Depth, m 4.50
L x B x H 30.72 x 11.55 x 4.50 = 1 597
Air draft from WL at draught d = 2.90 m, m 10.60
2. Draught, m 2.30 - 2.90
3. Displacement, t 428.34
4. Endurance, days 10
5. Bollard pull, t 24
6. RS class KM ° Ice2 RI AUT3-C FF3WS Tug
7. ME power, kW 2 x 800

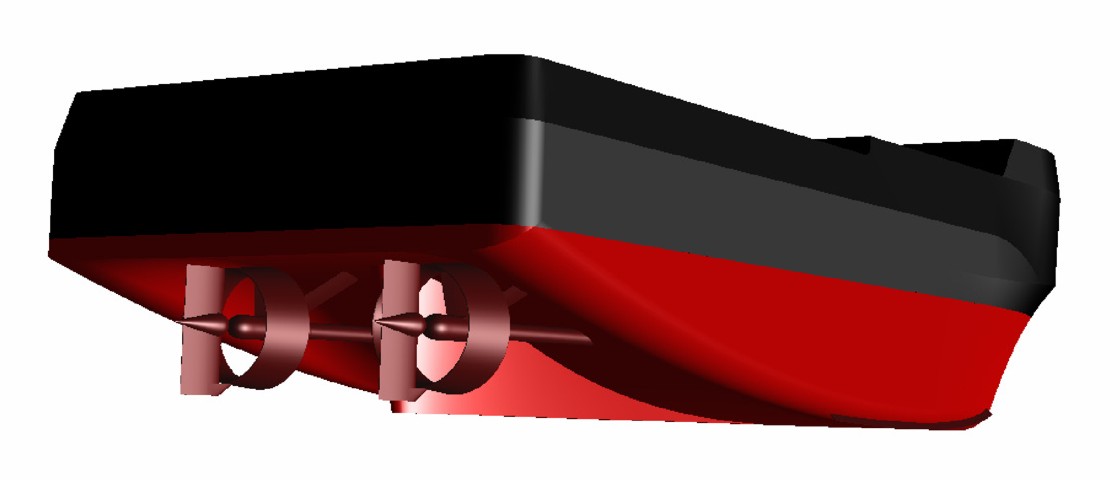

8. Rudder and propeller complex 2 x CPP Ø = 1.9 m in rotary nozzle (with stabilizer)
9. Bow thruster, kW 1 x 200
10. Auxiliary engines:
diesel-generator, kW 1 x 130
shaft generators, kW 2 x 250
11. Crew / berth, pers. 8 / 10
12. Speed, knots 10
13. Gross tonnage 414
