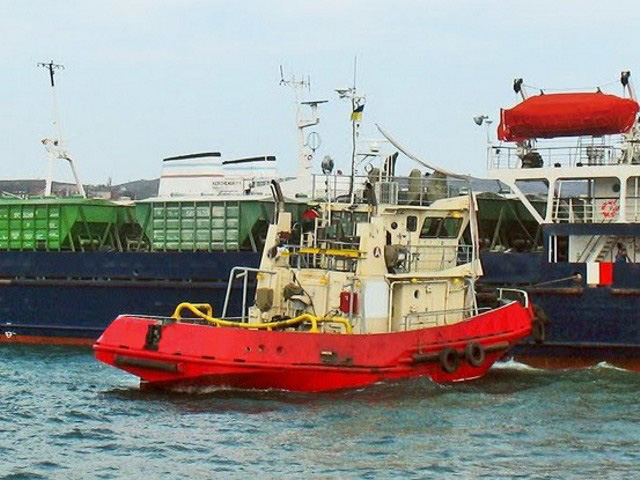

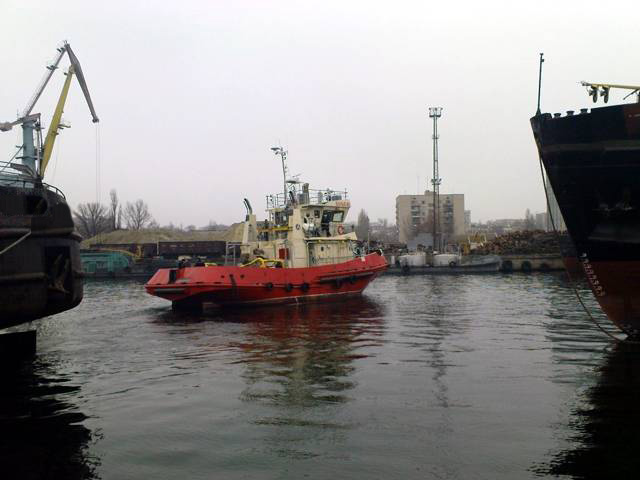

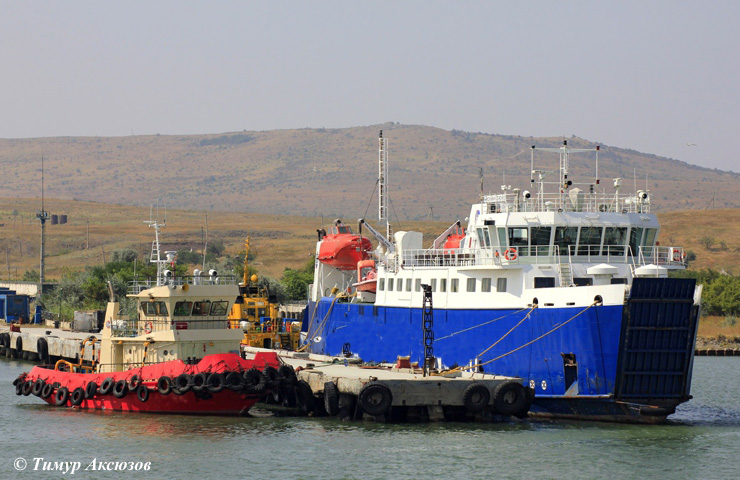

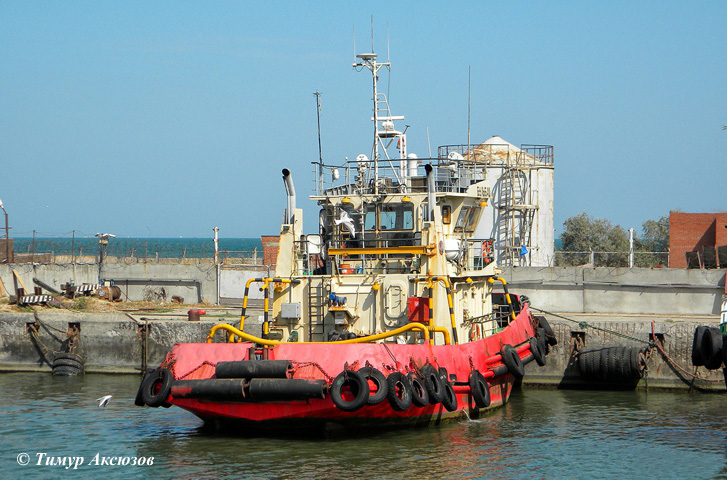

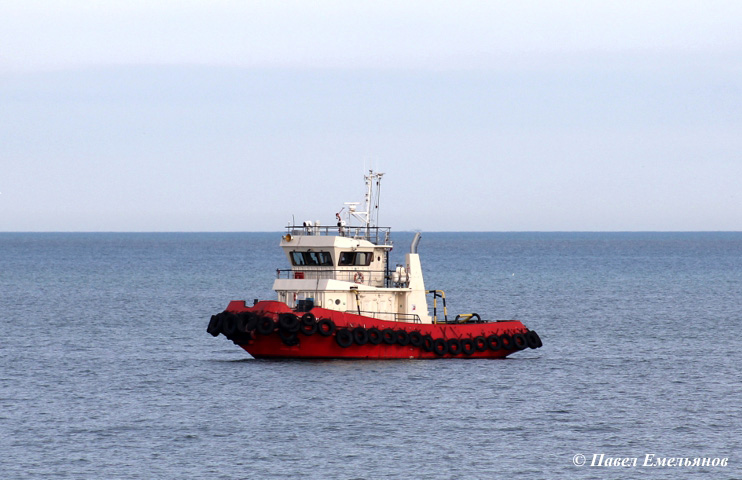

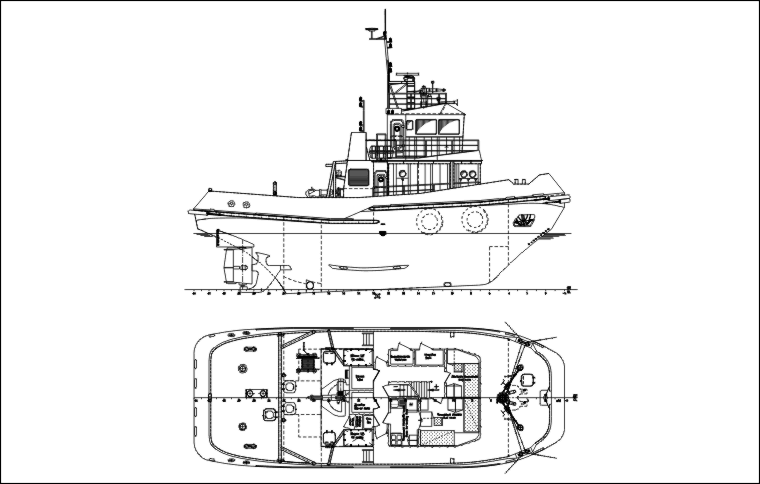

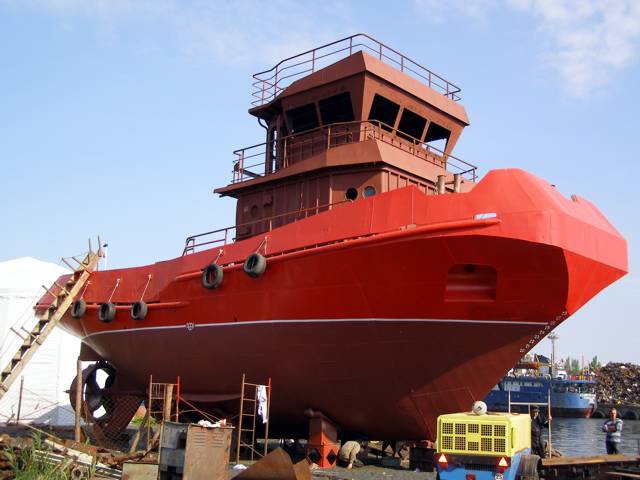

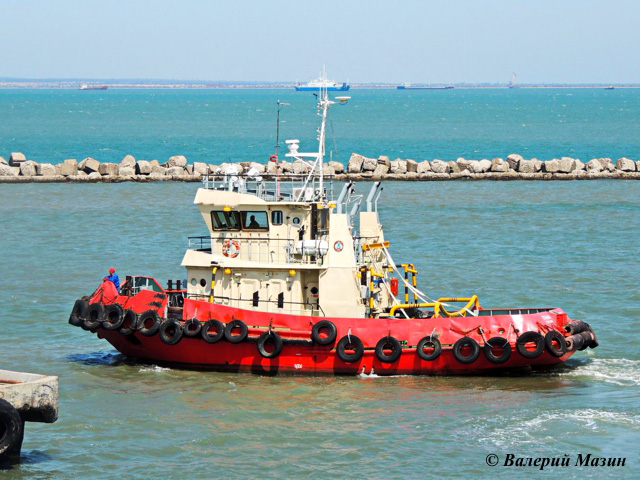

PROJECT TG03

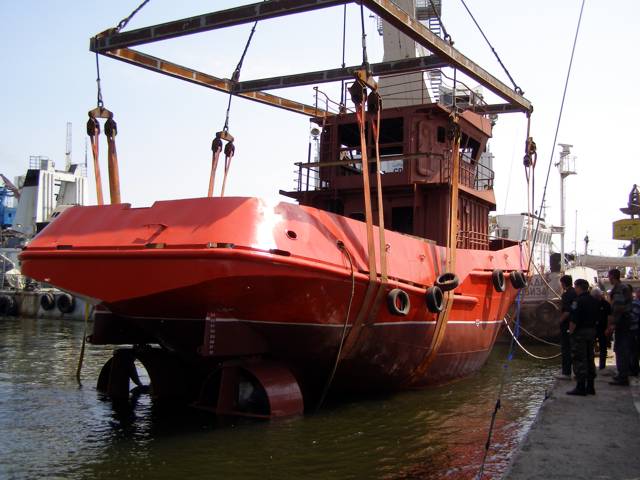

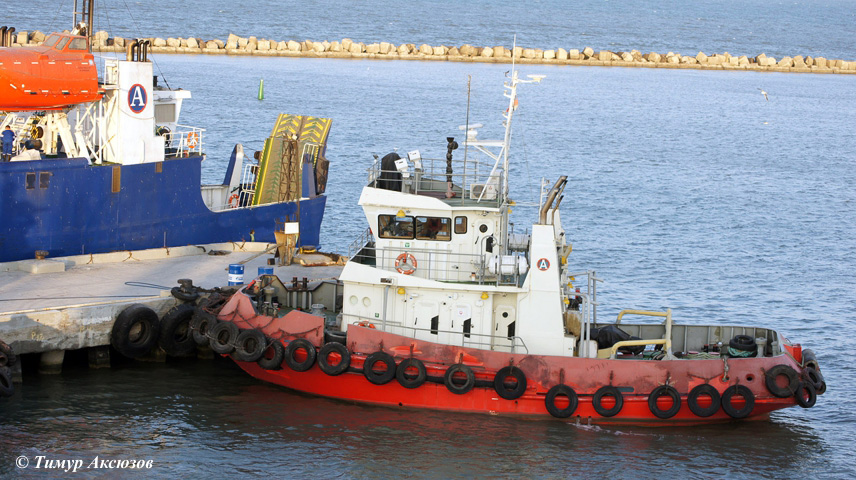

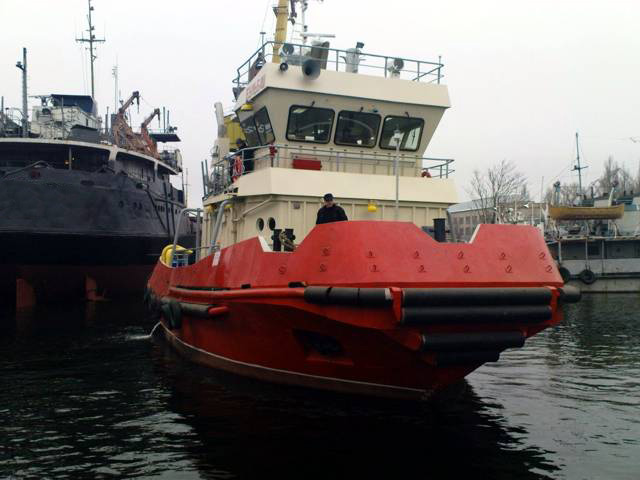

Berthing tug
Purpose - ship-handling tug which works in ports and in limits of raid.
| # | Name | Value |
|---|---|---|
| 1. | Main dimension | Length overall, m | 19.80 |
| Length, m | 18.0 | Breadth overall, m | 7.50 |
| Breadth loadline, m | 7.40 | Middle depth, m | 4.40 |
| Least depth, m | 3.70 | 2. | Draught, m | 3.0 |
| 3. | Displacement (γ = 1.025 t/m³), t | 180 | 4. | Towing force of hook, kN | 160 |
| 5. | RS class | KM  Ice2 R3 Tug |
6. | ME power, kW | 2 x 442 kW |
| 7. | Auxiliary diesel-generators, kW | 2 x 62 | 8. | Crew / berth, pers. | 3 / 5 |
| 9. | Speed, knots | 10 ±0.5 |
