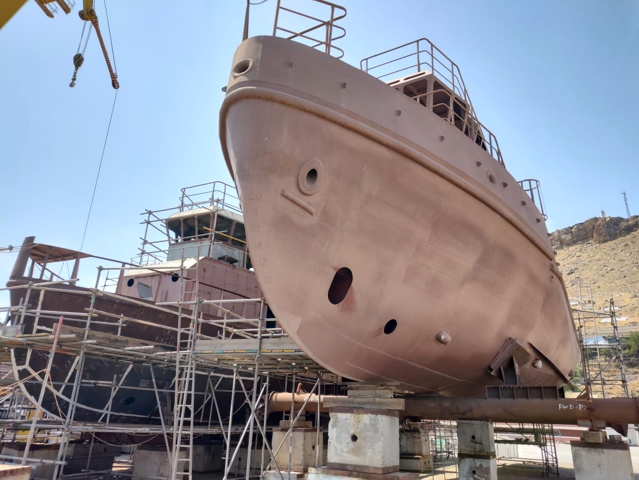

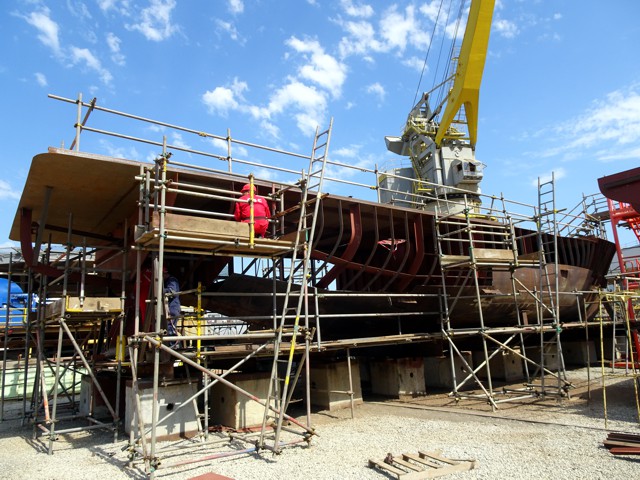

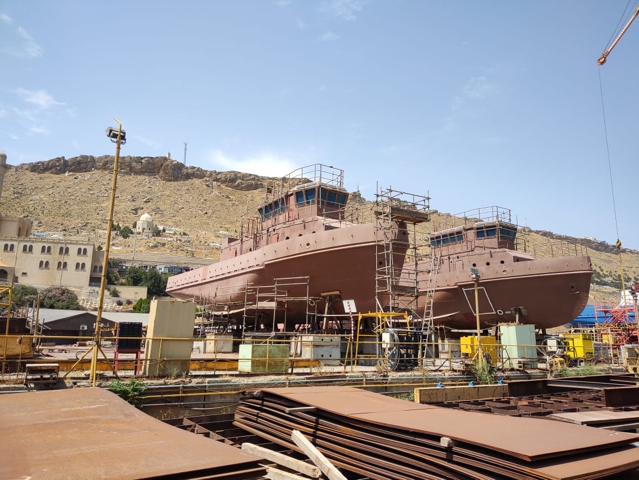

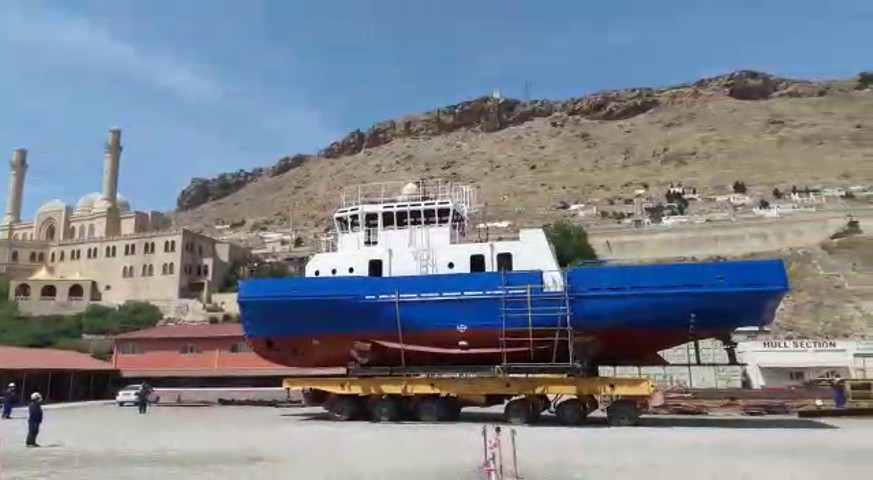

PROJECT WSB01

300 KW support vessel


Purpose - provision of offshore oil and gas facilities with small freight, towing operations, transportation of organized groups of workers.

The vessel will provide the following operation:

  1. towage of non-self-propelled vessels and floating structures;
  2. escorting vessels in the port water area and mooring;
  3. participation in extinguishing fires at facilities;
  4. transportation of industrial personnel (12 people) to fixed offshore platforms;
  5. transportation of deck cargo weighing up to 5 tons.

# Name Value
1. Main dimension
Length overall, m 26.0
Length between PP, m 25.0
Breadth, m 6.60
Depth, m 3.0
L x B x H 26.0 x 6.60 x 3.0 = 515
2. Draught, m 1.60
3. Endurance, days 3
4. Range, nautical miles 860
5. Towing force of hook, t 5
6. Accommodation of industrial personnel salon with 12 semi-soft seats
7. Tanks capacities of general stores, m³
fuel oil 6.0
fresh water 1.0
wash water 1.50
8. RS class KM ° R3 Tug
9. ME power, kW 1 x 313
10. Rudder and propeller complex 1 FPP in rotated nozzle
11. Crew / industrial personnel, pers. 6 / 12
12. Speed, knots 10.0
13. Towng speed, knots 8.0
