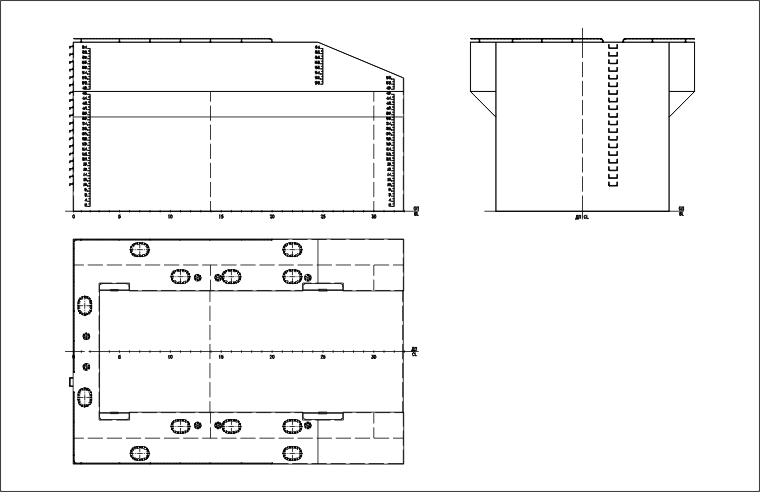

PROJECT P05A
Special technological pontoon

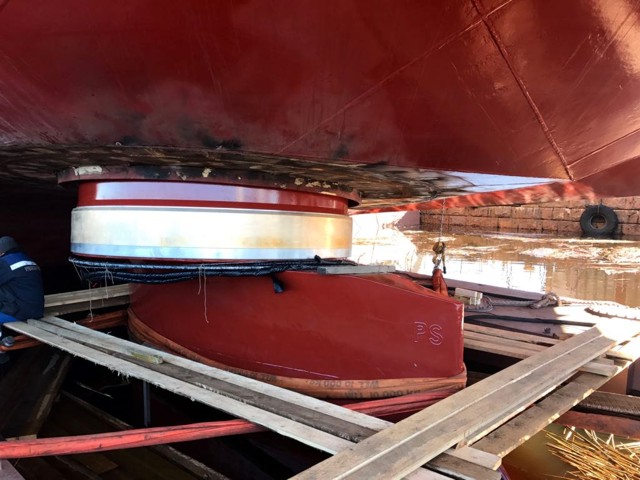

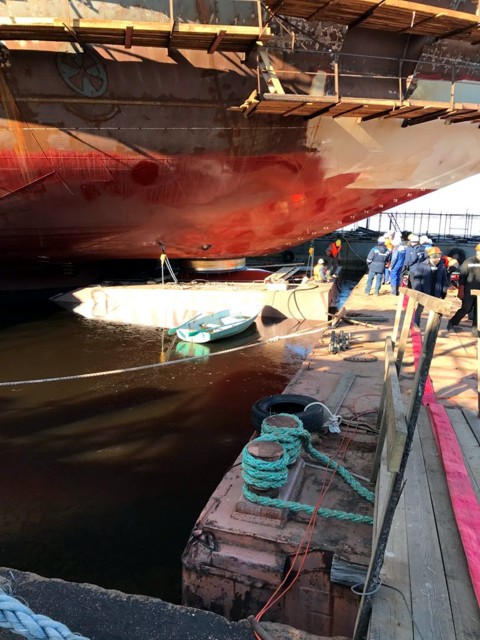

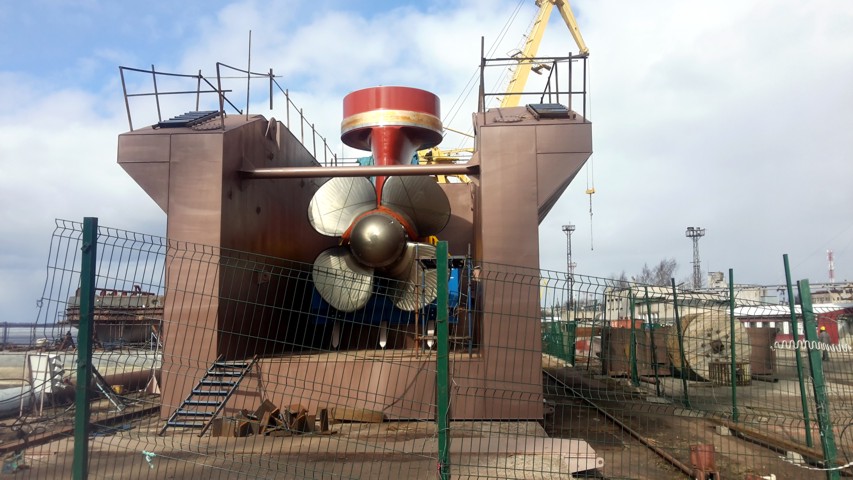

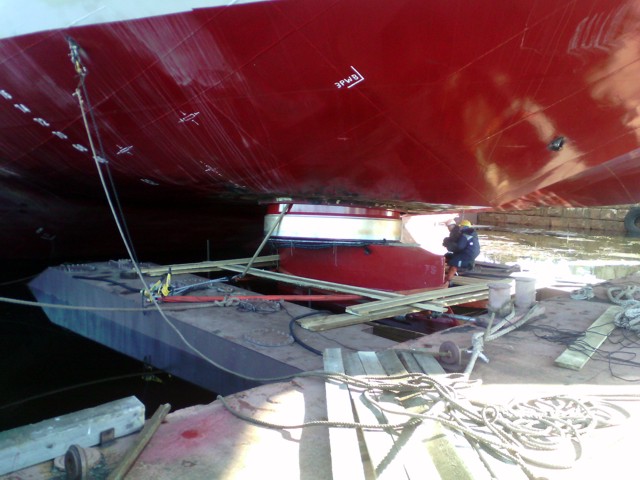

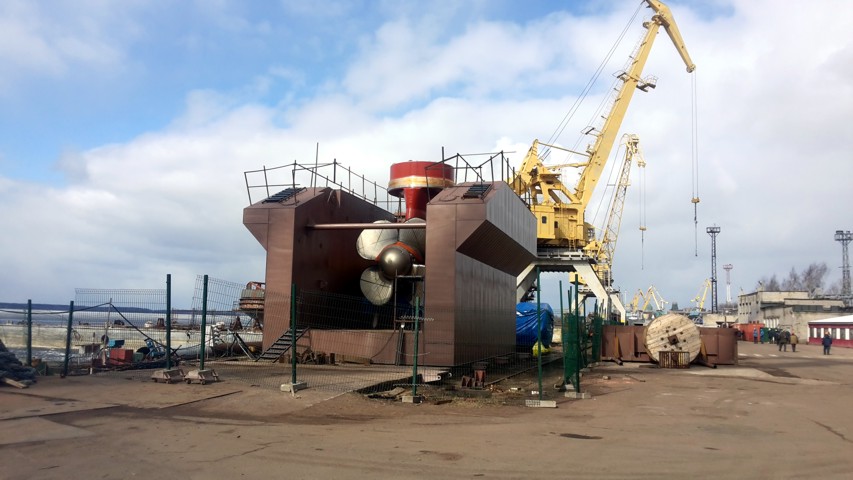

Purpose - installation of propulsion-steering complexes afloat.
| # | Name | Value |
|---|---|---|
| 1. | Main dimension | |
| Length overall, m | 13.14 | |
| Breadth overall, m | 8.84 | |
| Depth, m | 6.63 | |
| L x B x H | 13.14 x 8.84 x 6.63 = 770 | |
| 2. | Freeboard during mounting operations, m | 0.13 |
| 3. | Displacement, t | 340 |
| 4. | Dimension of pontoon-deck (l x b), m | 12.0 x 4.80 |
