PROJECT HSV05.02

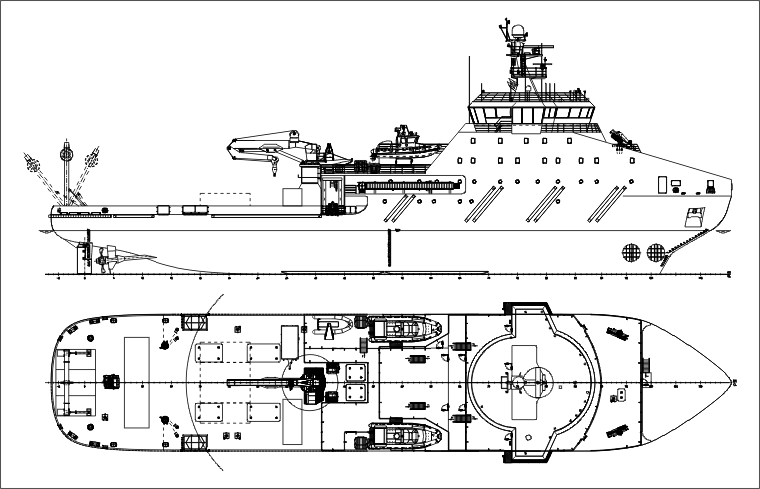

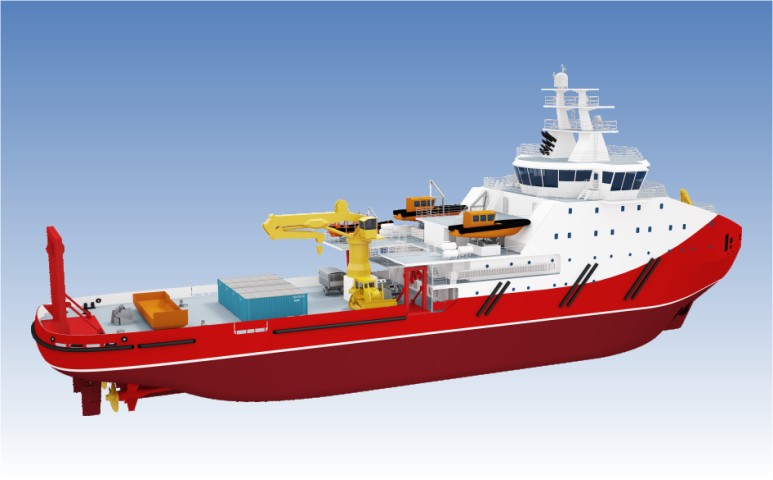

Arctic Hydrographic buoy laying survey vessel with "Arc7" ice class

Main Image

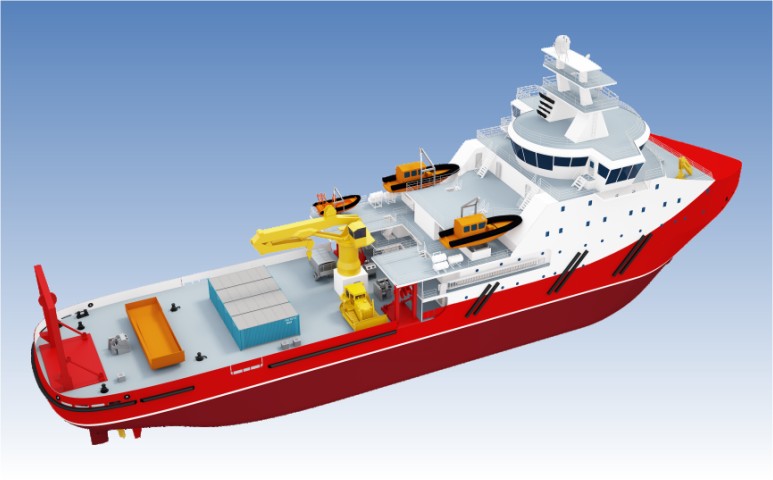

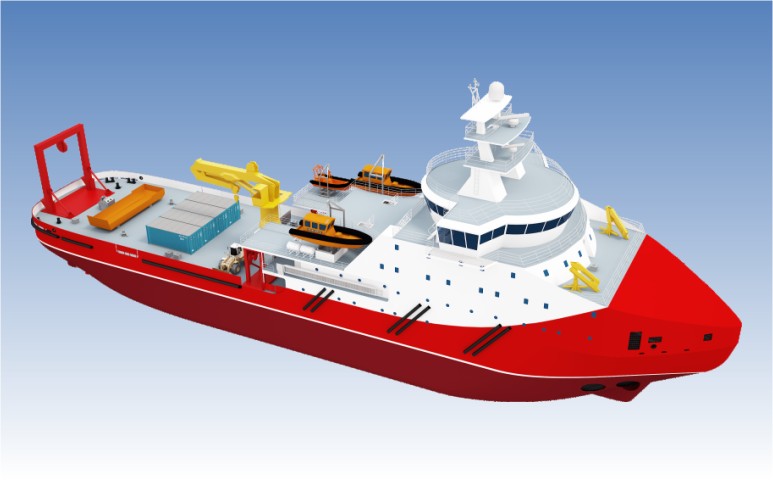

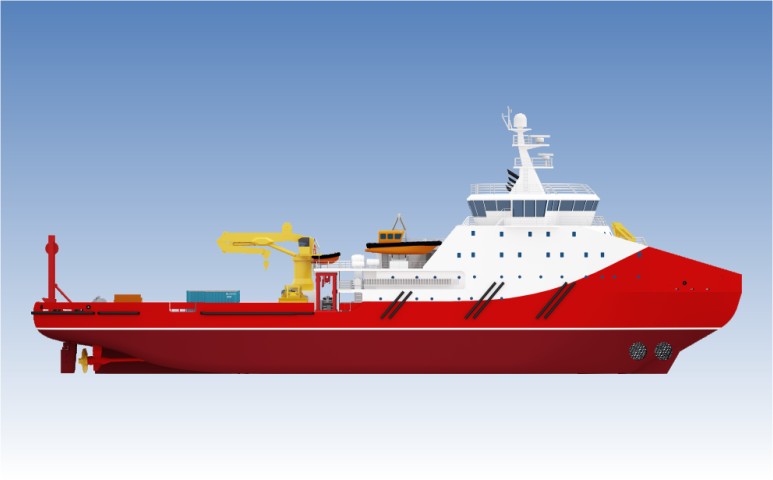

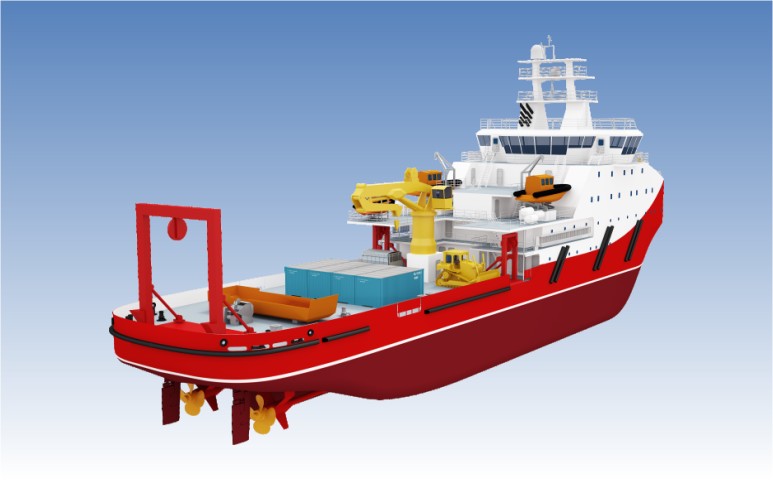

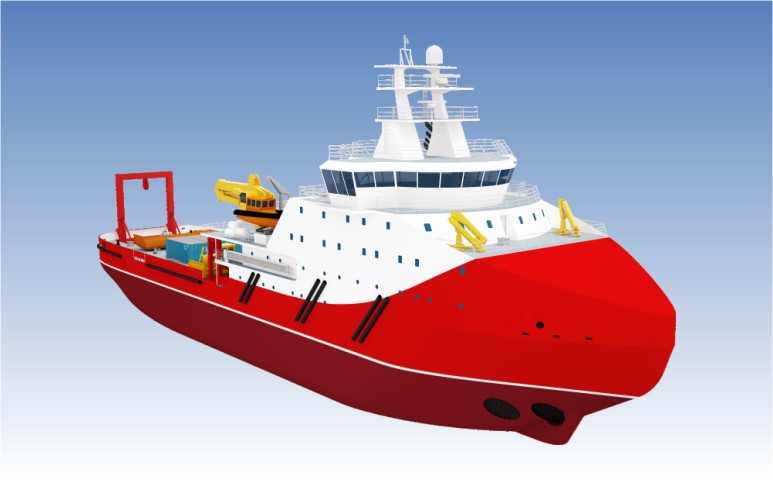

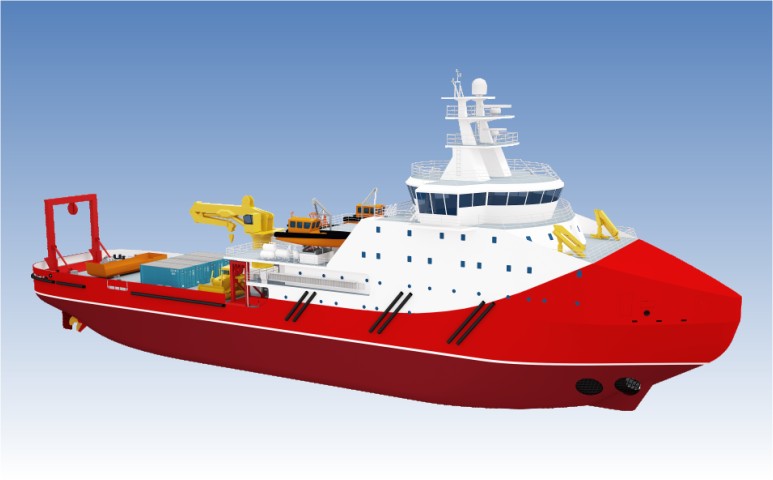

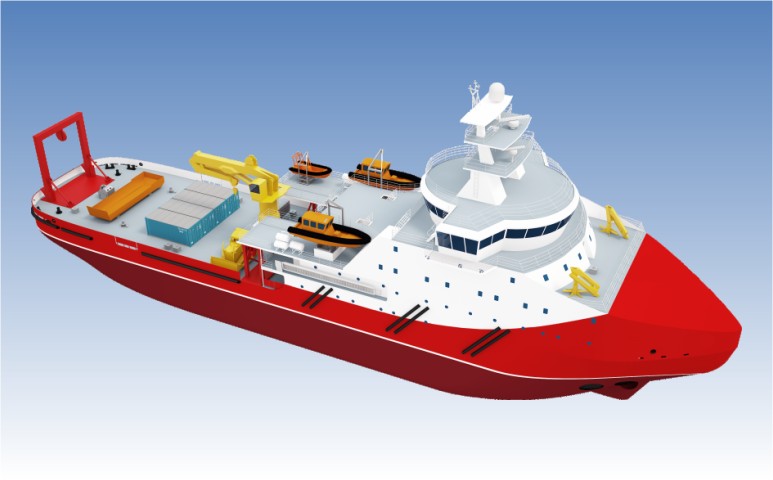

Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 7 Thumbnail 8

Purpose:

  1. complex hydrographic researches and works;
  2. service of aids of navigating;
  3. delivery of specialists, supply and inventory to coastal object of aids of navigating and of radio technical aids of navigating;
  4. and other actions and works in structure of hydrographic supply of trading navigation.

# Name Value
1. Main dimensions
Length overall m 83.0
Length on DWL, m 79.67
Length between PP, m 75.93
Breadth overall (with fenders), m 17.20
Breadth on DWL, m 16.60
Depth, m 7.20
L x B x H 83.0 x 17.20 x 7.20 = 10 289
2. Draught on SWL, m 5.30
3. Deadweight at SWL draught
(γ = 1.025 t/m³) about, t		 1738
4. Range (about), nautical miles 10800
5. Endurance by oil, fresh water and provision stores / by fuel in economical operation, days 90 / 45
6. Cargo hold capacity, m³ 600
7. Area of cargo deck, m² 108
8. Design loads on the cargo deck /
cargo hold's deck, t/m²		 2.5 / 5
9. Container capacity, TEU 4
10. Cargo gears: electro-hydraulic cargo crane about 20 t cargo capacity
with boom of 15;
two electro-hydraulic cargo cranes about 0.98 t cargo capacity
with boom of 10 m
11. Special gears: the working winch of 5 t cargo capacity with Cargo A-frame
with handling of about 8 m;
two bathymetric winches of 1 t cargo capacity (each)
with working depth up to 3000 m with Cargo A-frames;
two special capstans with towing tension not less than 5 t (each) are provided for installation/heaving works of buoys);
special devices are installed on StB and PS for drops
of anchors of weight up to 3 t;
the cargo barge (for cargo transportation
on the unequipped shore)
12. Hydrographic equipment: Two hydrographic crafts equipped with:
• mobile hydrographic complex for operation at depths
up to 400 meters based on multibeam echosounder;
• stationary singlebeam hydrographic measuring echosounder
for operation at depths up to 600 meters;
• calibrating device for singlebeam echosounder
for operation at depths up to 30 meters.
13. RS class KM ° Arc7 ° AUT1-ICS
OMBO EPP Special purpose ship
14. Main power plant 2 x 1960 kW +
2 x 2610 kW
15. Electric propulsion plant, kW 2 x 3100
16. Rudder and propeller complex 2 FPP +
2 streamlined semi-pendant semi-balanced rudders with flaps
17. Bow thrusters, kW 2 x 995
18. Auxiliary engines:
harbor diesel-generator, kW 1 x 450
emergency diesel-generator, kW 1 x 210
19. Auxiliary boiler plant:
thermal boilers, kW 2 x 600
exhaust gas boiler, kW 4 x 300
20. Crew / special stuff, pers. 22 / 30
21. Speed in full load condition on SWL draught / economic speed, knots 12-14 / 8-10
