PROJECT HSV05.01

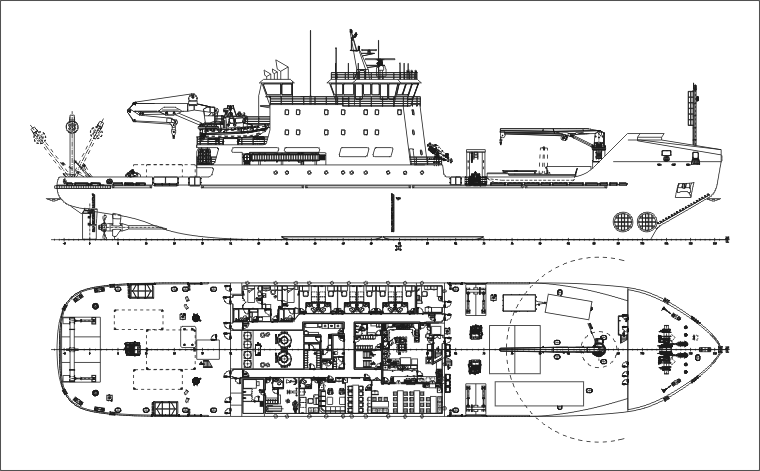

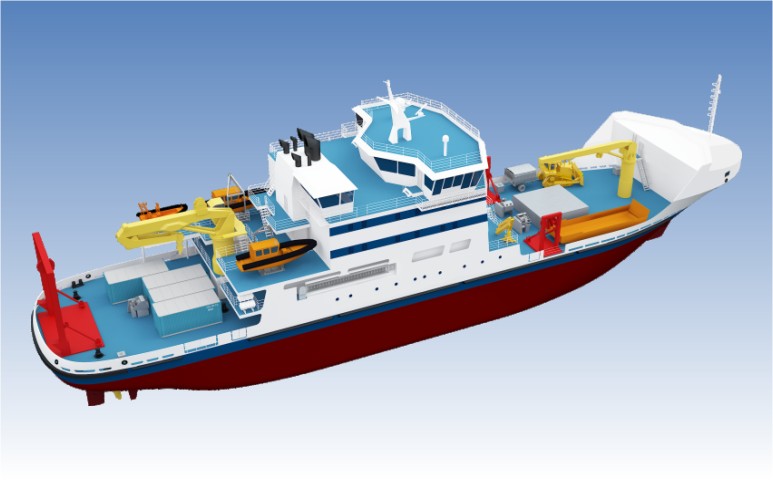

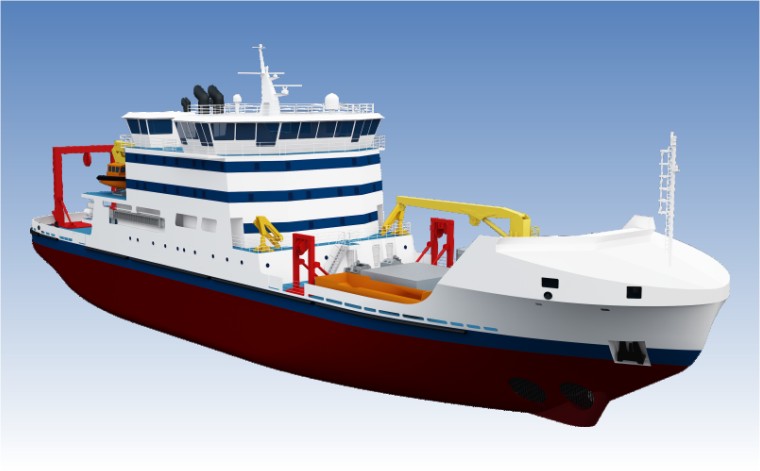

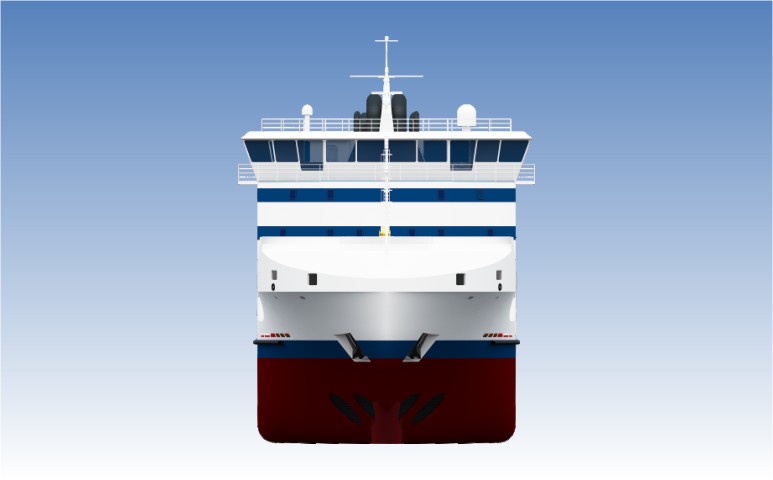

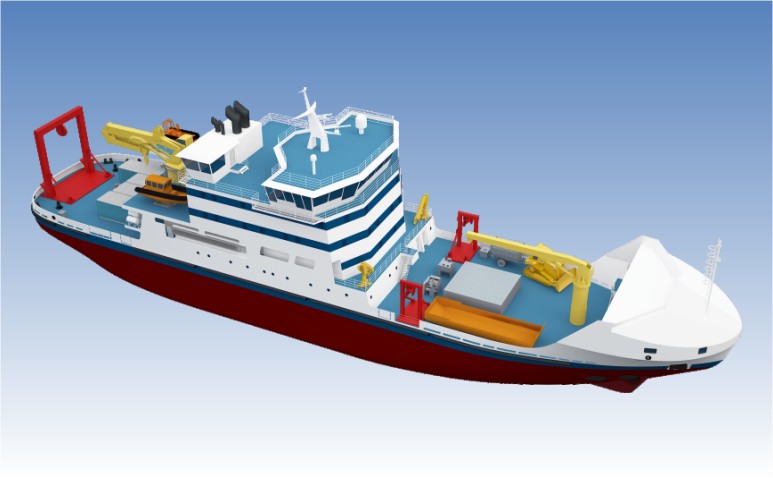

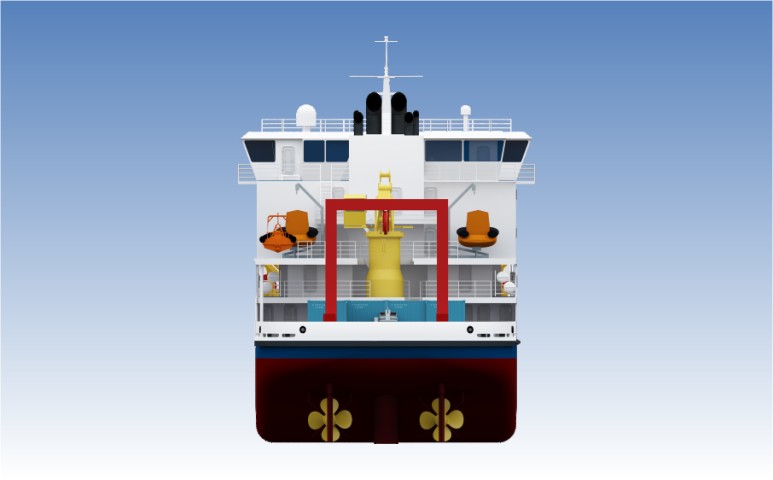

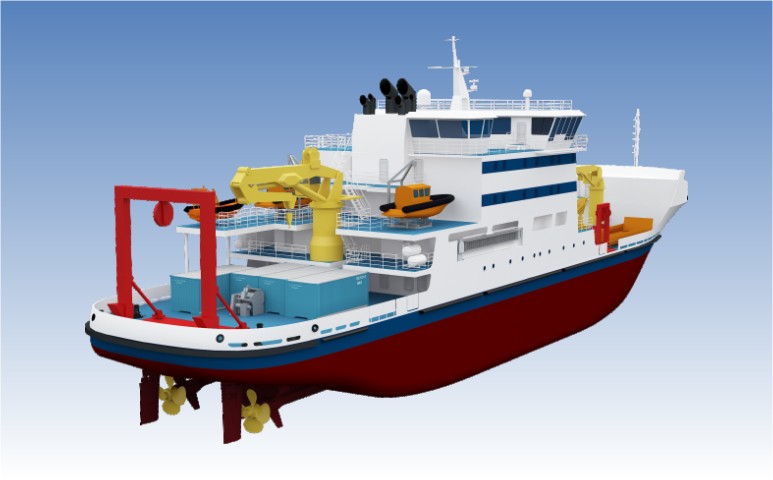

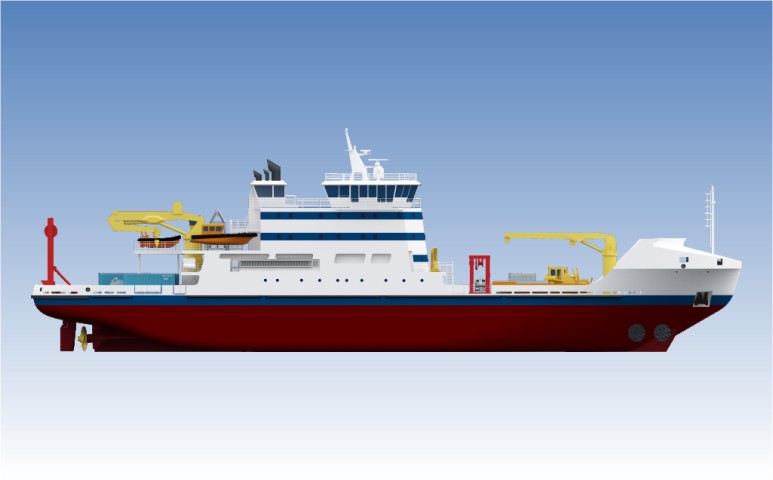

Arctic Hydrographic buoy laying survey vessel with "Arc7" ice class

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 7

Purpose:

  1. complex hydrographic researches and works;
  2. service of aids of navigating;
  3. delivery of specialists, supply and inventory to coastal object of aids of navigating and of radio technical aids of navigating;
  4. and other actions and works in structure of hydrographic supply of trading navigation.

# Name Value
1. Main dimensions
Length overall, m 83.0
Length on DWL, m 80.33
Length between PP, m 76.72
Breadth overall (with fenders) m 17.20
Breadth on DWL, m 16.60
Depth, m 6.70
L x B x H 83.0 x 17.20 x 6.70 = 9 565
2. Draught on SWL, m 5.10
3. Deadweight on SWL draught
(γ = 1.025 t/m³) about, т		 1630
4. Range (about), nautical miles 10800
5. Endurance by oil, fresh water and provision stores / by fuel in economical operation, days 90 / 45
6. Cargo hold capacity, m³ 645
7. Area of fore / aft cargo decks, m² 130 / 110
8. Design loads on the cargo deck /
cargo hold's deck, t/m²		 2.5 / 5
9. Container capacity, TEU 4
10. Cargo gears: electro-hydraulic cargo crane 12 t cargo capacity
with boom of 11.5 m;
electro-hydraulic cargo crane about 20 t cargo capacity
with boom of 15 m;
two electro-hydraulic cargo cranes about 0.98 t cargo capacity with boom of 10 m
11. Special gears: the working winch of 5 t cargo capacity with Cargo A-frame
with handling of about 8 m;
two bathymetric winches of 1 t cargo capacity (each)
with working depth up to 3000 m with Cargo A-frames;
two special capstans with towing tension not less than 5 t (each) are provided for installation/heaving works of buoys;
special devices are installed on StB and PS for drops of anchors
of weight up to 3 t;
the cargo barge (for cargo transportation on the unequipped shore)
12. Hydrographic equipment Two hydrographic crafts equipped with:
• mobile hydrographic complex for operation at depths
up to 400 meters based on multibeam echosounder;
• stationary singlebeam hydrographic measuring echosounder
for operation at depths up to 600 meters;
• calibrating device for singlebeam echosounder
for operation at depths up to 30 meters
13. RS class KM ° Arc7 ° AUT1-ICS OMBO Special purpose ship
14. ME power, kW 2 x 4000
15. Rudder and propeller complex 2 CPP +
2 streamlined semi-pendant semi-balanced rudders with flaps
16. Bow thruster, kW 2 x 995
17. Auxiliary engines:
diesel-generators, kW 2 x 760
shaft-generators, kW 2 x 1200
emergency diesel-generator, kW 1 x 125
18. Crew / special stuff, pers. 22 / 30
19. Speed in full load condition on SWL / economic speed, knots 12-14 / 8-10
