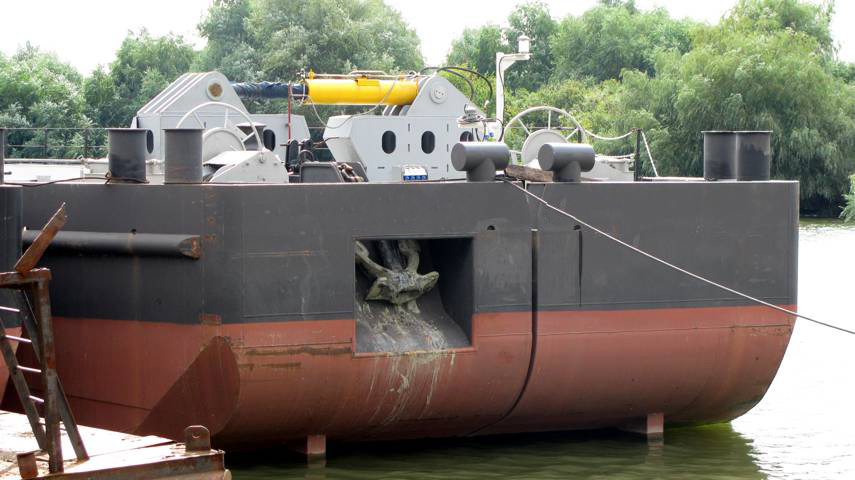

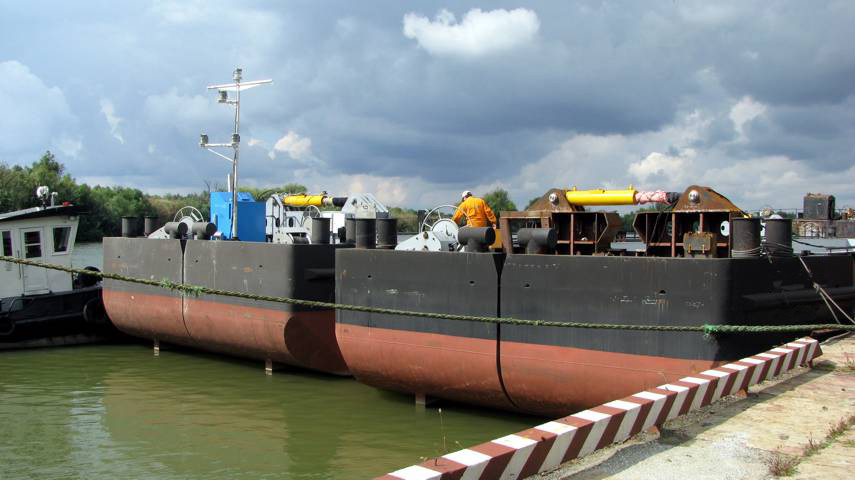

PROJECT HB02

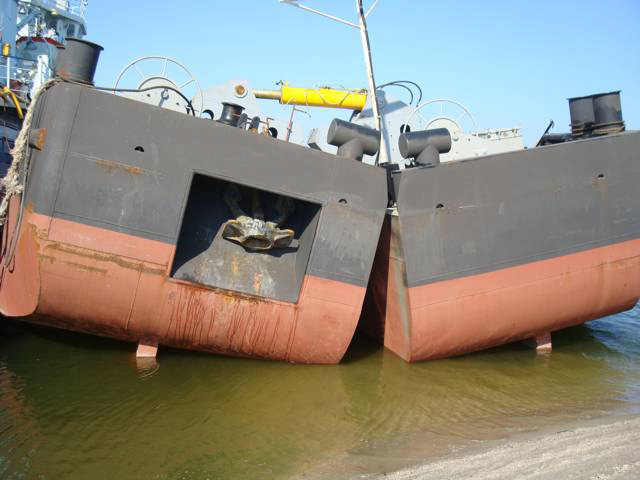

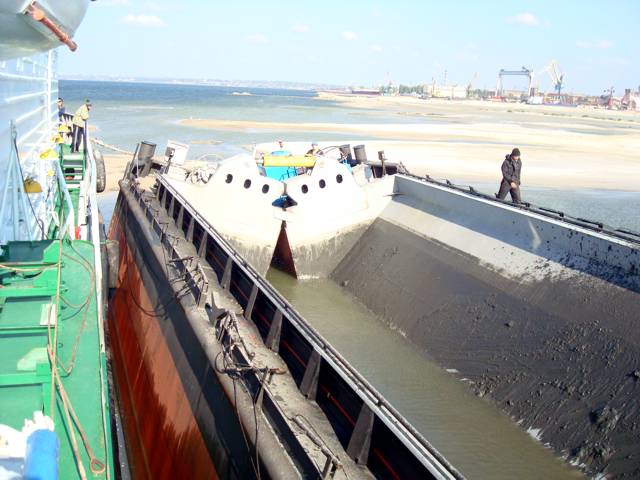

600 DWT non-self-propelled scow with self-opening hull

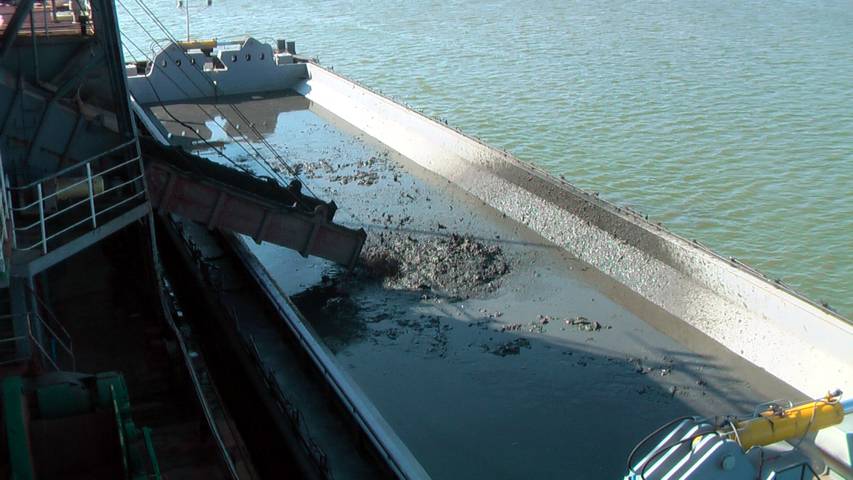

Purpose - receiving pulp from dredger, transportation and unloading of a pulp to spoil bank.
| # | Name | Value |
|---|---|---|
| 1. | Main dimension | |
| Length overall, m | 41.0 | |
| Length by DWL, m | 41.0 | |
| Breadth overall, m | 9.30 | |
| Breadth, m | 9.0 | |
| Depth, m | 3.0 | |
| L x B x H | 41.0 x 9.30 x 3.0 = 1 144 | |
| 2. | Draught, m | 2.15 |
| 3. | Displacement (about), t | 575 |
| 4. | Deadweight (about), t | 600 |
| 5. | Hopper volume, m³ | 500 |
| 6. | Ukrainian Register of shipping class | K  B1 |
| 7. | Auxiliary diesel-generator, kW | 1 x 24 |
