PROJECT FD04

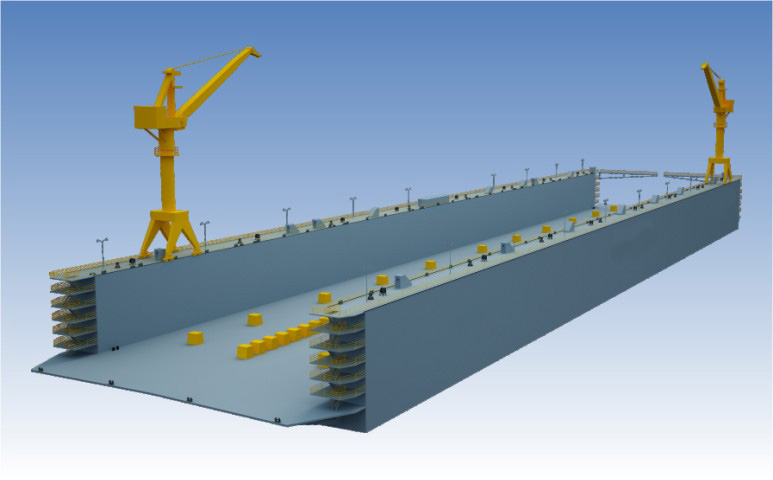

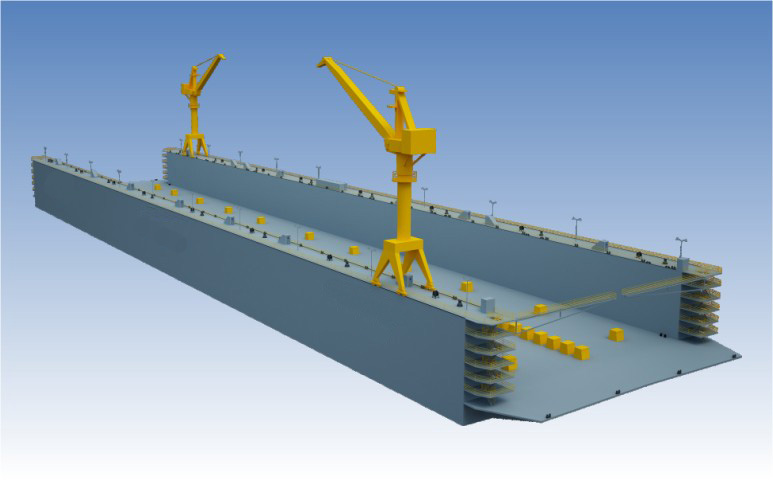

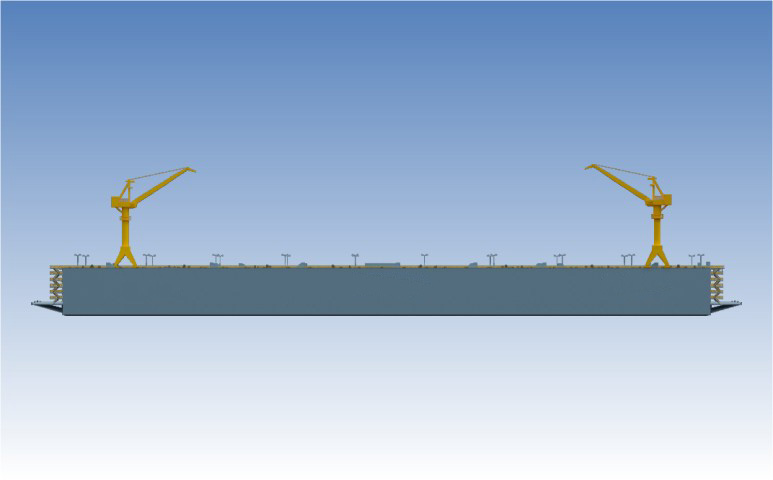

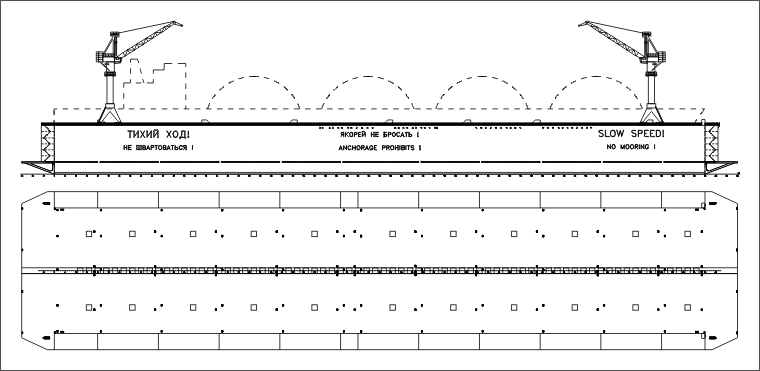

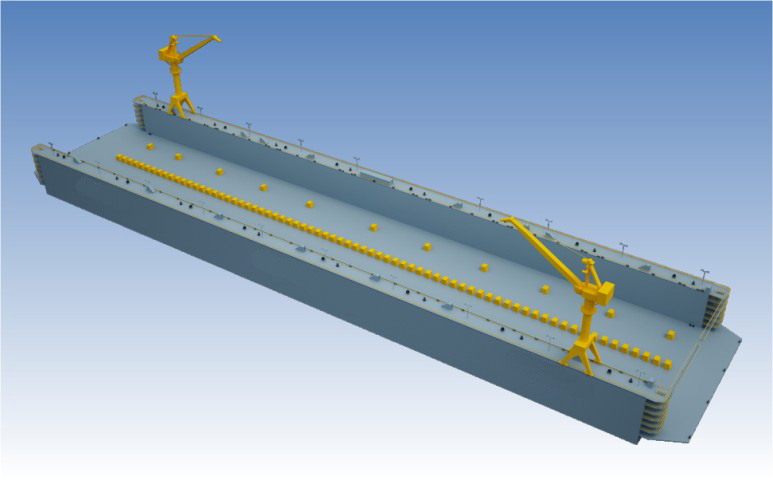

Floating moonlit autonomic dock, capacity 69000 t, non-self-propelled, steel, U-type, with two wingwalls and pontoon

°




Purpose - renewal underwater hull and rudder-propeller complex of the vessels, and also like transport, launching and transfer construction for building or repair of the vessels on the horizontal manufacturing places.




# Name Value
1. Main dimension
Length overall, m 330.0
Length of pontoon deck, m 300.0
Breadth, m 73.0
Breadth of pontoon deck, m 58.0
Breadth of wingwall, m 7.50
Depth, m 22.50
Depth of pontoon at CL, m 6.30
L x B x H 330.0 x 73.0 x 22.50 = 542 025
2. Limiting depth of immersion, m 20.10
3. Deep above keel-block, m 12.0
4. Cargo capacity, t 69000
5. Ballast pumps, m³/h 11 x 6800.0
6. Cargo crane, number / type 2 / electrical dock rotating cranes
7. Capacity of cargo cranes 12.50 t (with boom 32 m)
8. RS class K ° Berth-connected ship Floating dock
9. Auxiliary engines:
diesel-generators, kW 4 x 790
emergency diesel-generator, kW 1 x 67
10. Capacity of auxiliary steam boilers, kg/h 2 x 1500
11. Total places number 50
