PROJECT FD02

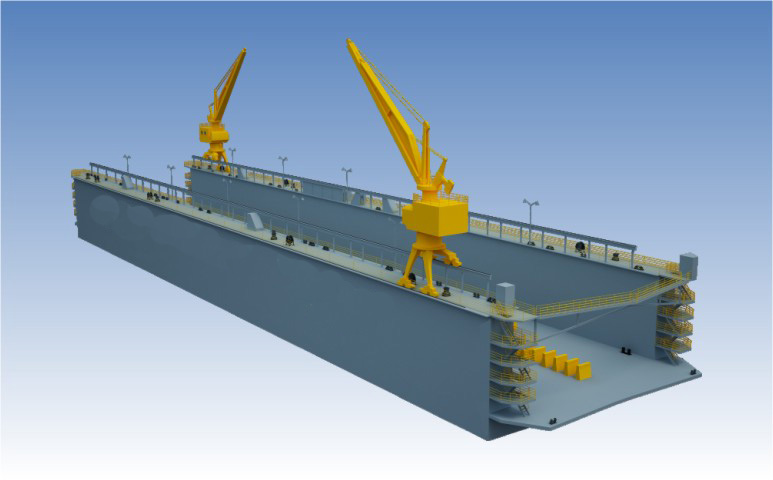

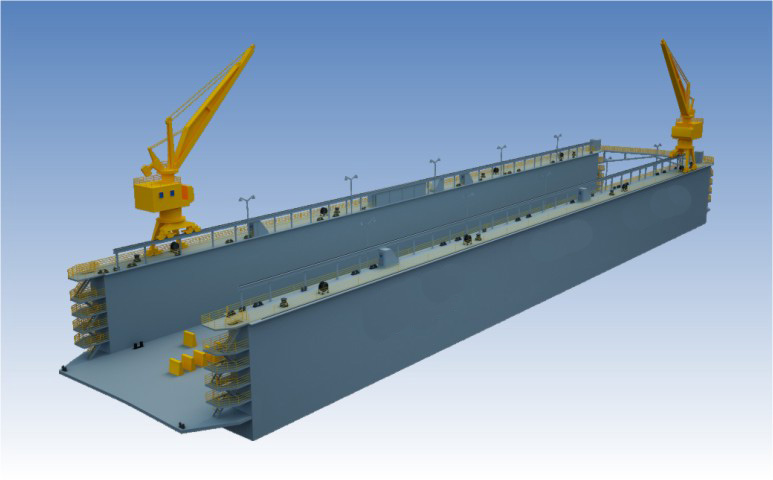

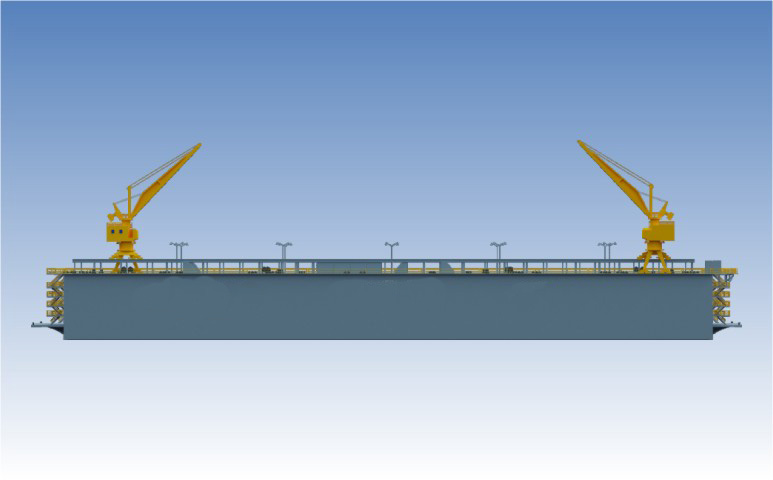

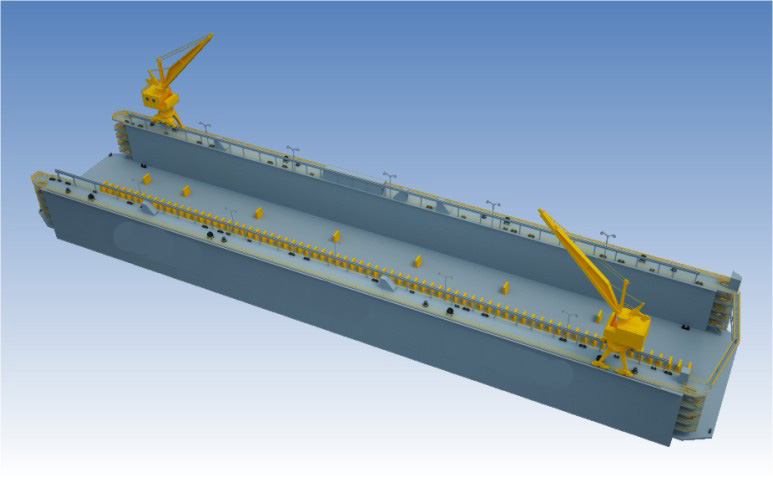

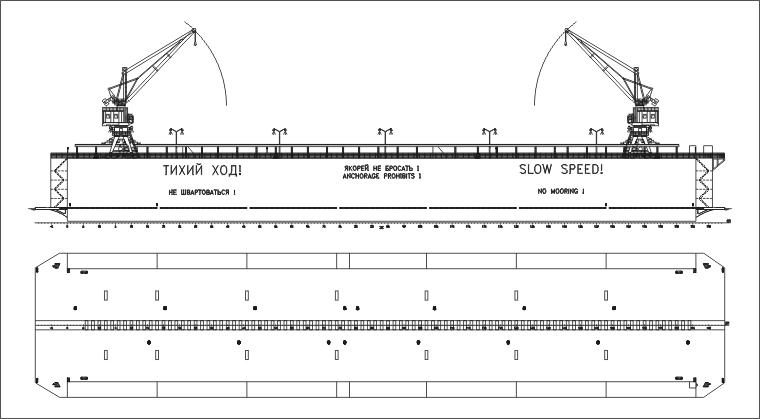

Floating moonlit dock, capacity 9300 t, non-self-propelled, steel, U-type, with two wingwalls and pontoon

°




Purpose - renewal underwater hull and rudder-propeller complex of the vessels, and also like transport, launching and transfer construction for building or repair of the vessels on the horizontal manufacturing places.




# Name Value
1. Main dimension
Length overall, m 150.50
Length of pontoon deck, m 137.20
Breadth, m 31.50
Breadth of pontoon deck, m 24.70
Breadth of wingwall, m 3.40
Depth, m 14.15
Depth of pontoon at CL, m 3.60
L x B x H 150.50 x 31.50 x 14.15 = 67 082
2. Limiting depth of immersion, m 12.32
3. Deep above keel-block, m 7.22
4. Cargo capacity, t 9300
5. Ballast pumps, m³/h 7 x 2200.0
6. Cargo crane, number / type 2 / electrical dock rotating cranes
7. Capacity of cargo cranes 5.0 t (with boom 7.0-15.0 m),
3.20-5.0 t (with boom more then 15.0 m)
8. RS class K ° Berth-connected ship Floating dock
9. Emergency diesel-generator, kW 1 x 67
