PROJECT FD01

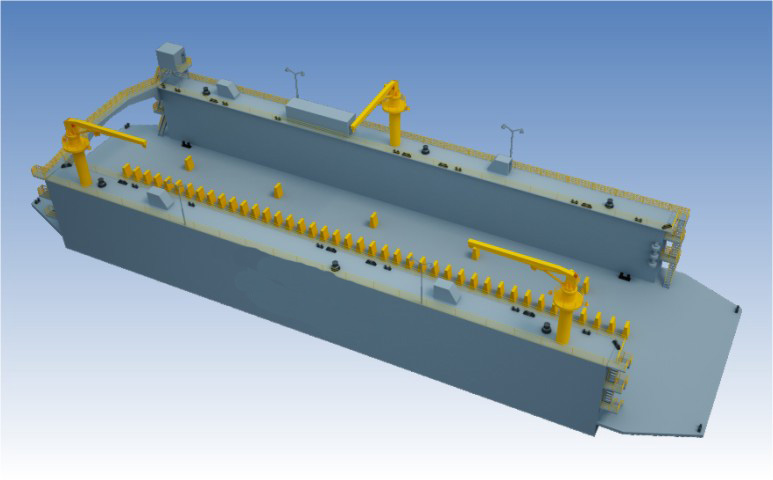

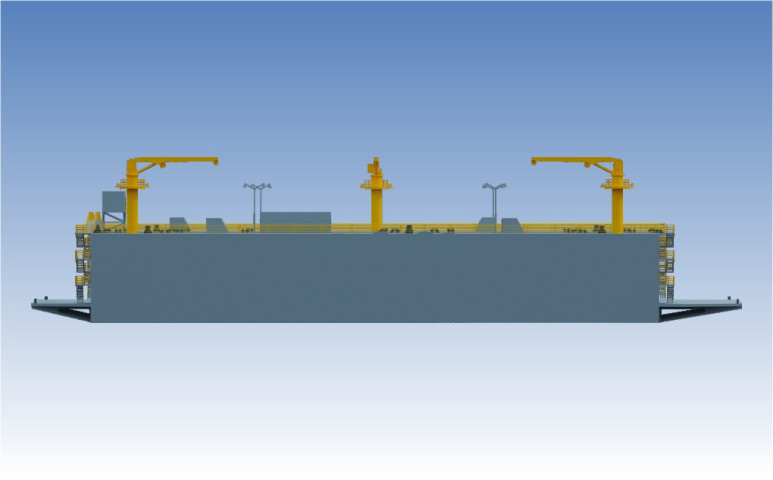

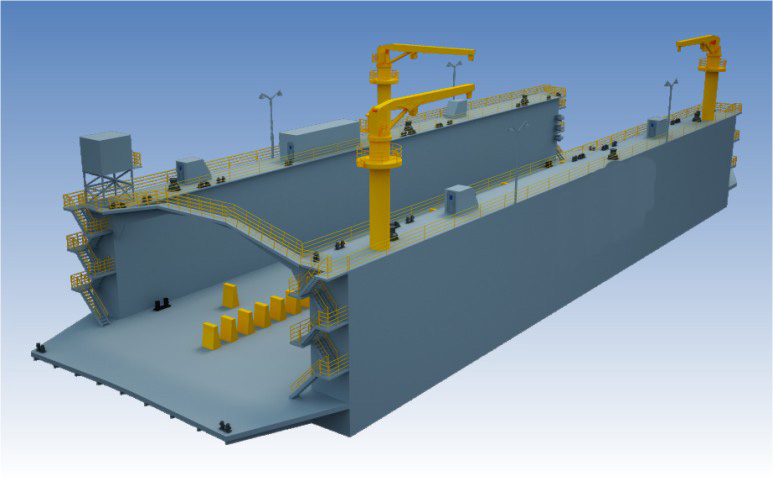

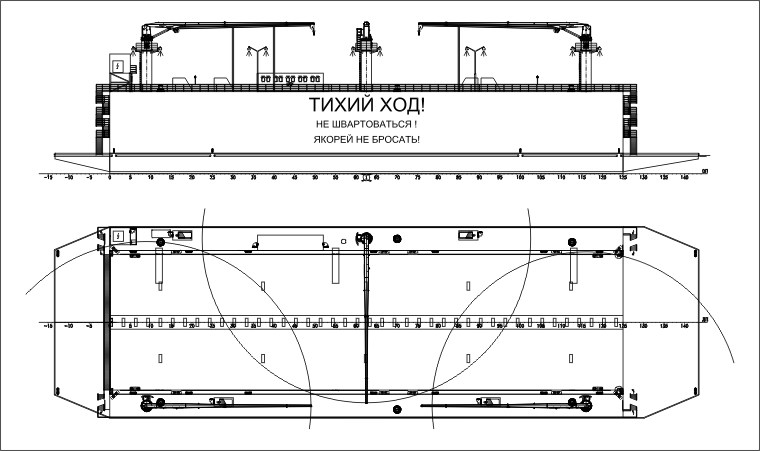

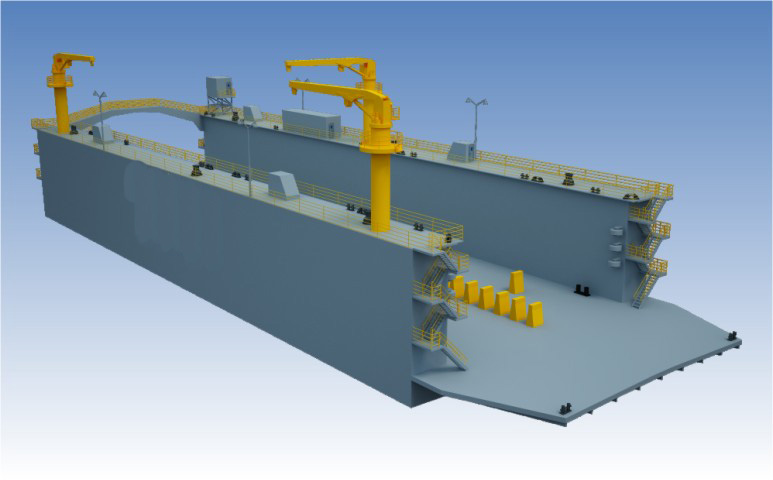

Floating moonlit dock, capacity 3830 t, non-self-propelled, steel, U-type, with two wingwalls and pontoon

°




Purpose - renewal underwater hull and rudder-propeller complex of the vessels, and also like transport, launching and transfer construction for building or repair of the vessels on the horizontal manufacturing places.




# Name Value
1. Main dimension
Length overall, m 94.0
Length of pontoon deck, m 75.0
Breadth, m 27.8
Breadth of pontoon deck, m 21.0
Breadth of wingwall, m 3.40
Depth, m 12.0
Depth of pontoon at CL, m 3.0
L x B x H 94.0 x 27.8 x 12.0 = 31 358
2. Limiting depth of immersion, m 7.50
3. Deep above keel-block, m 2.70
4. Cargo capacity, t 3830.0
7. Ballast pumps, m³/h 5 x 1250.0
8. Cargo crane, number / type 3 / fixed electrical rotating cranes
9. Capacity of cargo cranes 4.60 t (with boom 24 m)
5. RRR class ° R 1.2
6. Emergency diesel-generator, kW 1 x 67.0
