PROJECT CV03

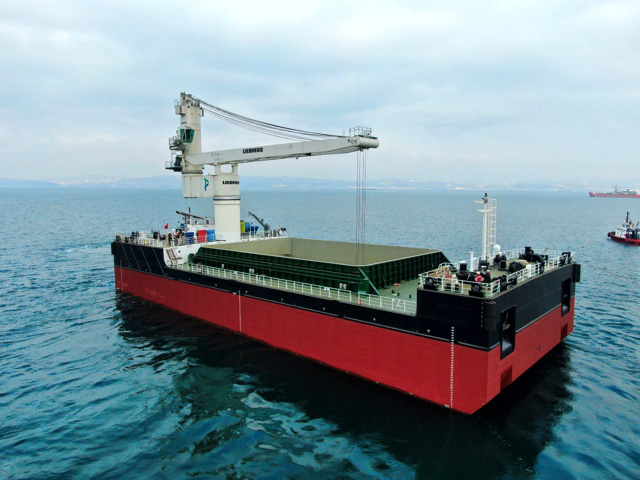

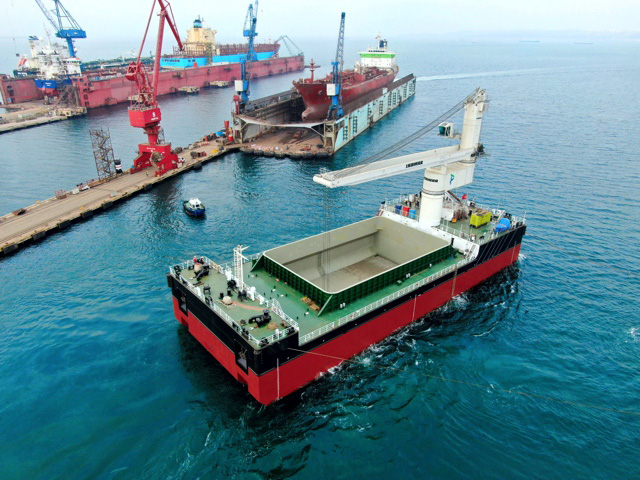

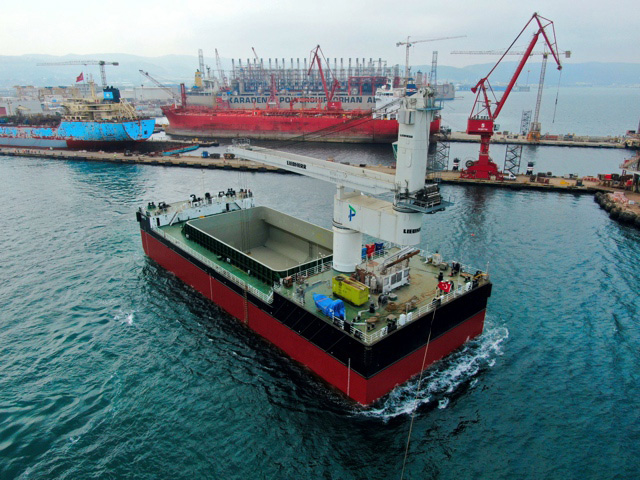

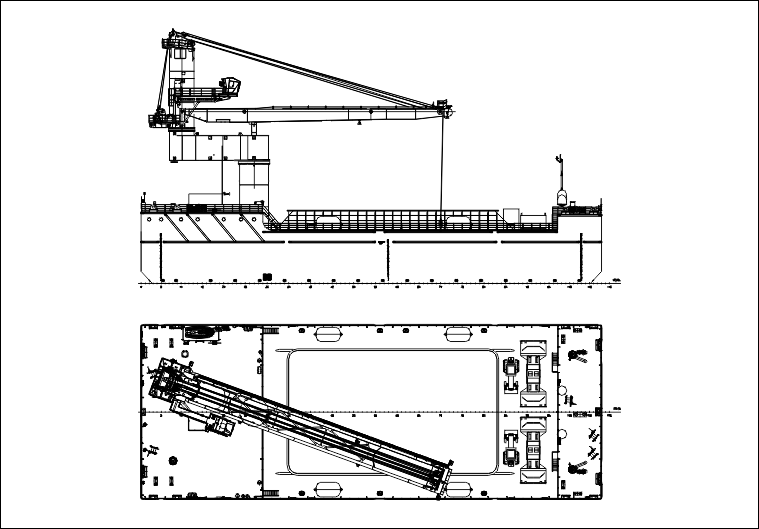

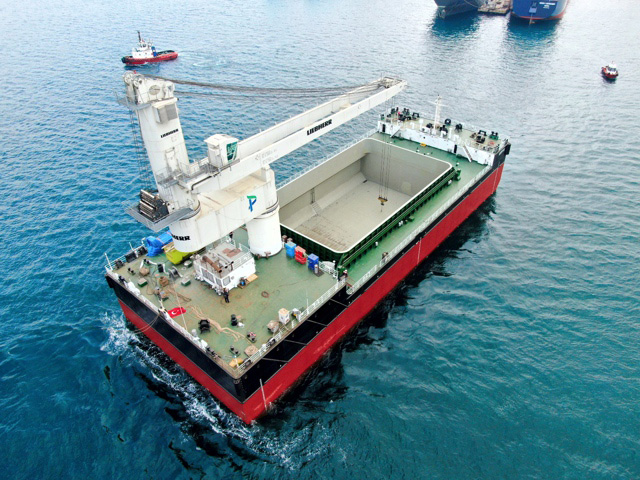

Raid transshipment complex with a crane lifting capacity 35 tons
and a hold with a capacity of 4600 cubic meters

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 7 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14

Purpose - loading, storage and unloading of bulk cargo.

# Name Value
1. Main dimension
Length overall, m 63.86
Hull length, m 63.65
Length of RS rules, m 61.104
Breadth overall (about), m 24.21
Breadth, m 24.0
Depth, m 7.20
L x B x H 63.86 x 24.21 x 7.20 = 11 132
2. Draught on DWL (project) (γ = 1.025 t/m³), m 5.60
3. Deadweight on DWL draught (γ = 1.025 t/m³), t 6980
4. Endurance, days 20

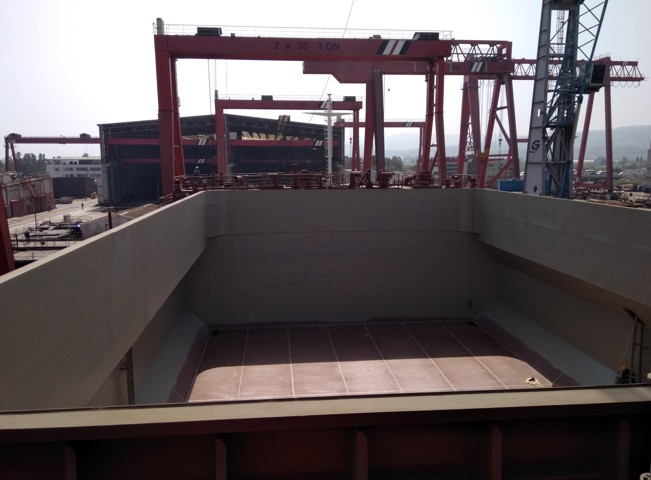

5. Cargo hold capacity (about), m³ 4607

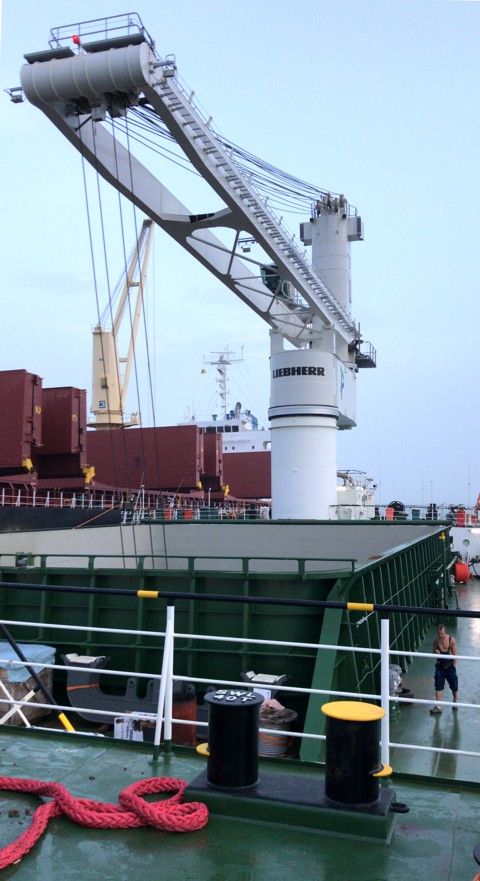

6. Crane lifting capacity 35 t (with boom of 12-30 m)
30 t (with boom of 12-36 m)
7. RS class KE ° R3 Crane vessel
8. Power of DG No.1, ekW 2 x 900
9. Power of DG No.2, ekW 1 x 160
10. Crew and service personal, pers. 21
