PROJECT BLV04

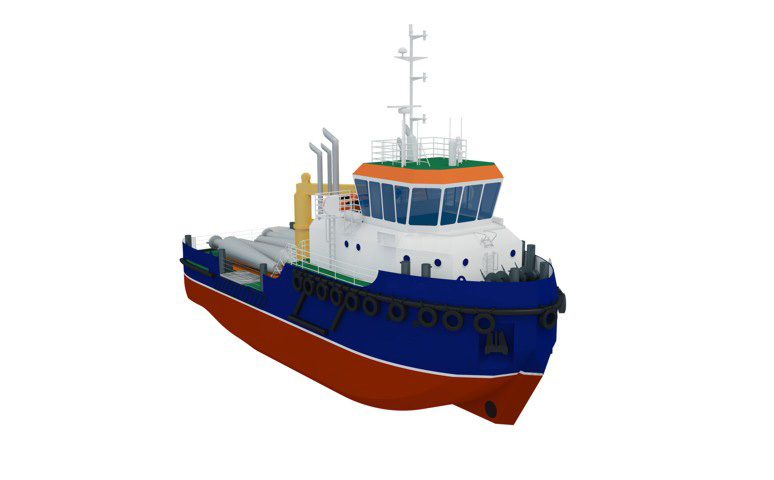

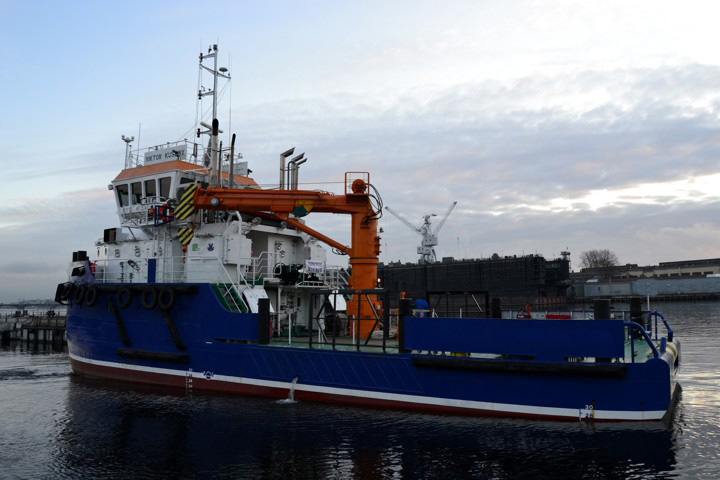

Multipurpose buoy laying vessel

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 7 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18

Purpose:

  1. installation works on approaches and floating means of water area of port of navigating protection;
  2. service of navigating protection of water area of port and entrance channel;
  3. transportation of general cargo on the deck with loading/unloading of cargo with help deck crane;
  4. investigation of the seabed

# Name Value
1. Main dimension
Length overall, m 29.63
Length, m 28.86
Breadth overall, m 9.70
Breadth, m 9.10
Depth at midship, m 3.60
L x B x H 29.63 x 9.70 x 3.60 = 1 034
2. Draught on DWL, m 2.90
3. Endurance, days 5
4. Cargo deck area, m² 70
5. Lifting capacity of cargo crane: 1 x 6 t with radius 12 m
1 x 3 t with radius 15 m
6. Hydrographic equipment: multibeam echosounder with transducer;
dual frequency DGPS receiver with RTK;
fixed and portable water sound velocity measuring equipment
7. RS class KM ° Ice 2 ° R2 AUT3-C
8. ME power, kW 2 x 882
9. Rudder and propeller complex 2 FPP Ø 2 m + balanced rudders after propellers
10. Bow thruster, kW 1 x 120
11. Auxiliary diesel-generators, kW 2 x 144
12. Hot water heater, kW 81.4
13. Crew / special staff, pers. 7 / 4
14. Speed (not less), knots 12.0
