PROJECT BLV01

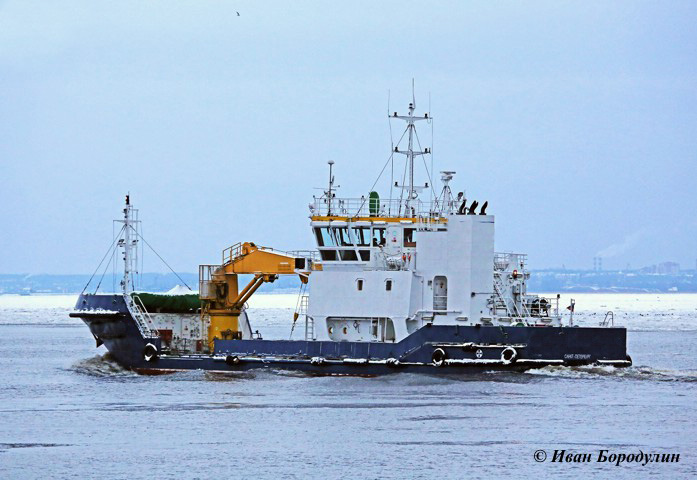

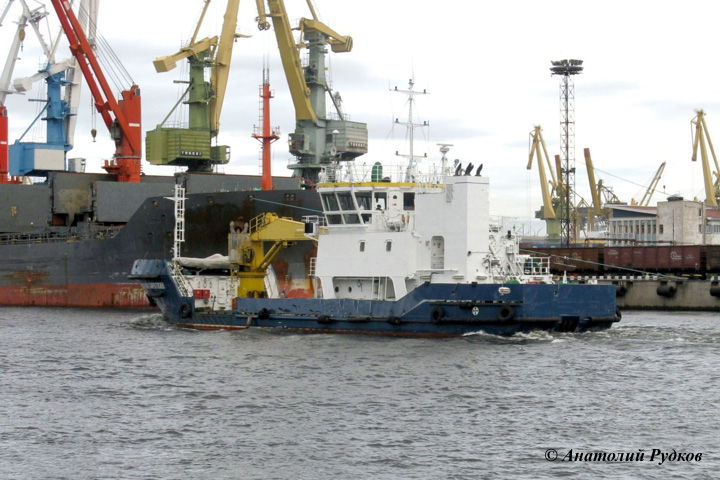

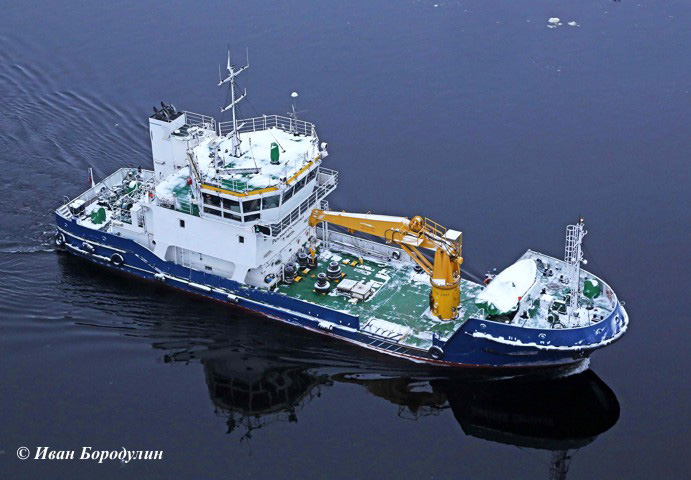

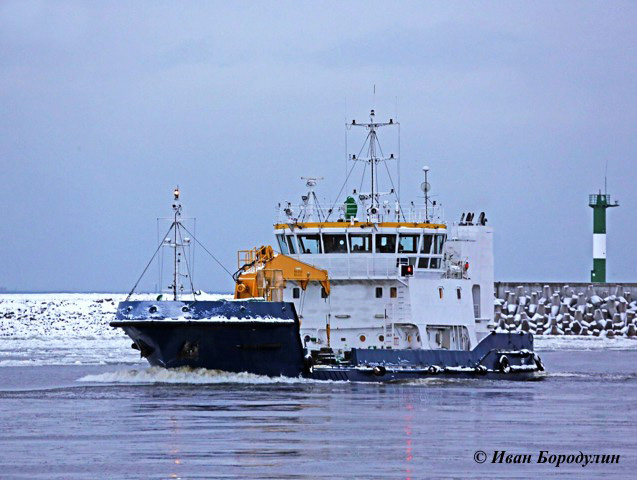

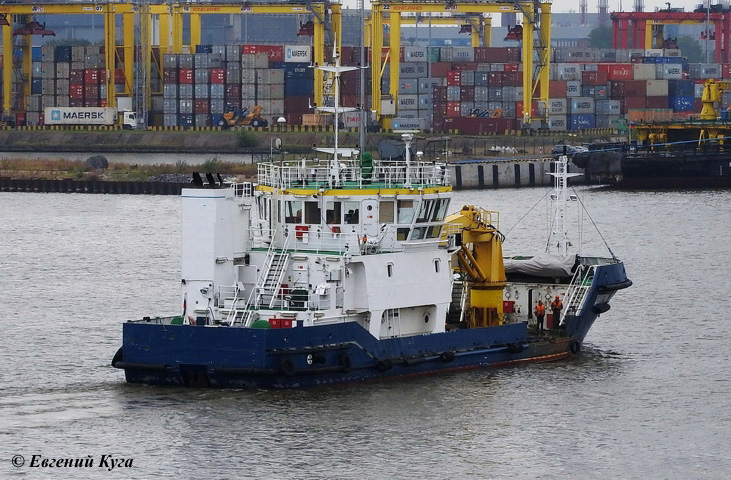

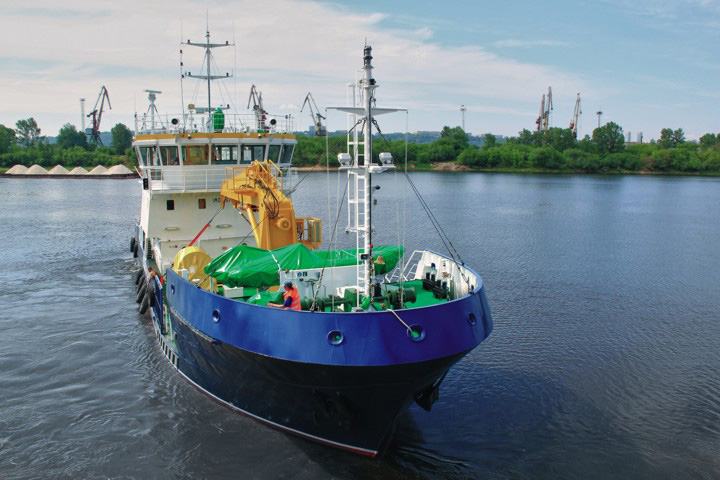

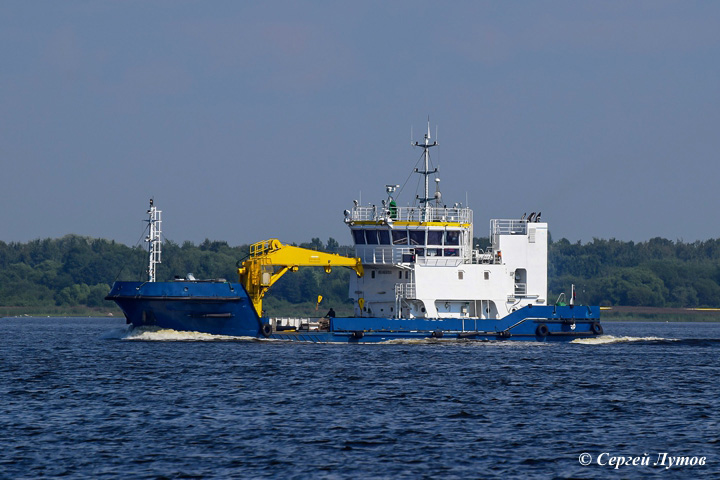

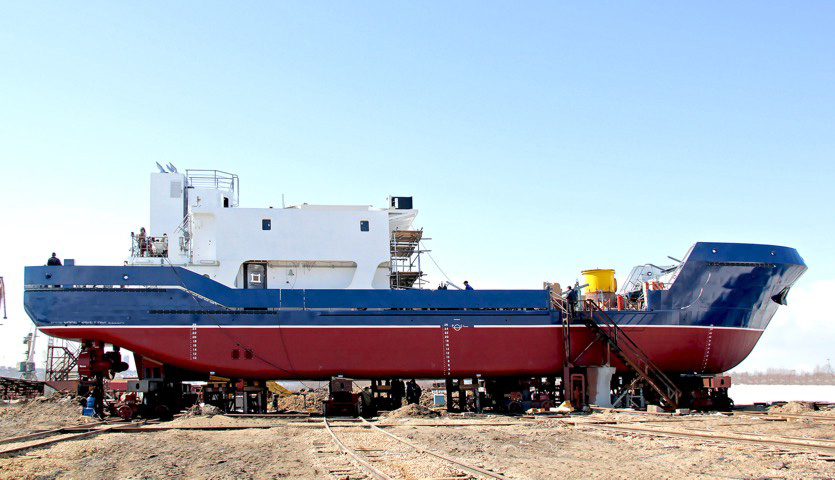

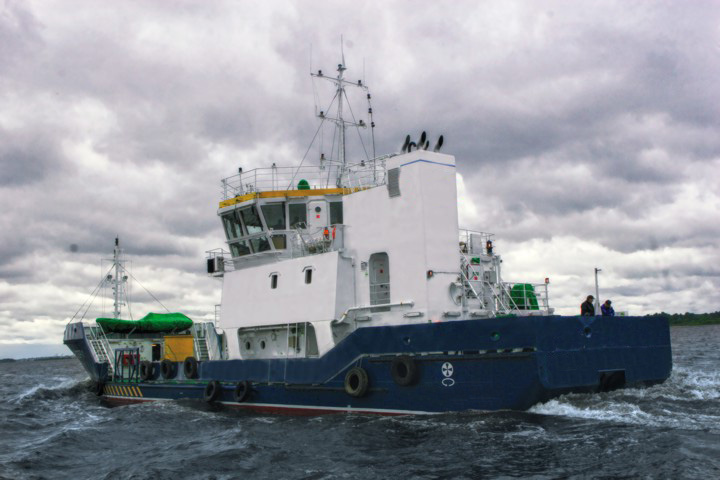

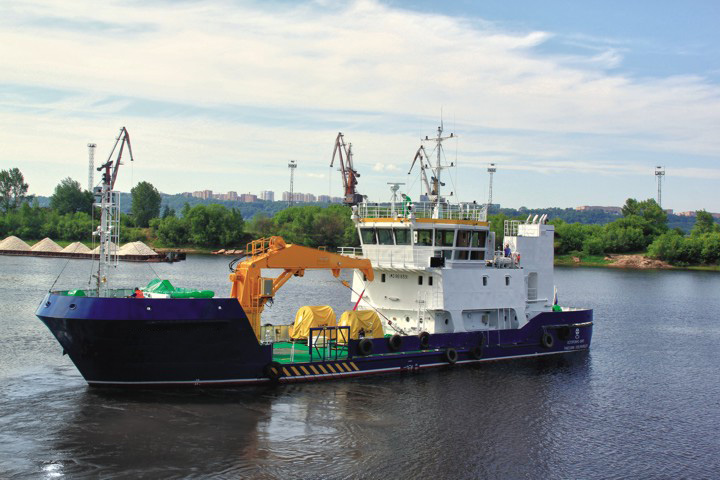

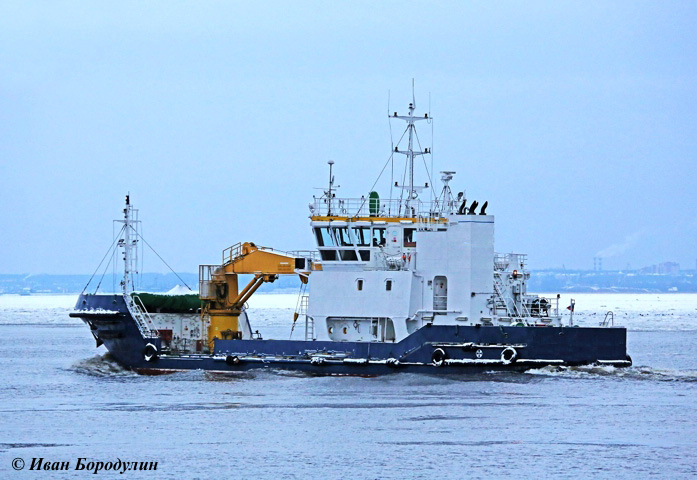

Multipurpose buoy laying vessel

Main Image
Thumbnail 1 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 7 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18 Thumbnail 19 Thumbnail 20 Thumbnail 21

Purpose - installation works on approaches and floating means of water area of port of navigating protection (SNO), their service on water area and demounting, and also intended for performance of the following additional functions:

  1. transportation of general cargoes with loading / unloading by port means or by the ship crane (fastening of general cargoes is made with cable and chain lash);
  2. transportation of bulk cargoes in a hold with loading / unloading by port means or by the ship crane;
  3. harbor unloading of vessels, delivery of these cargoes to the shore and maintenance of a horizontal unloading of the delivered cargoes;
  4. transportation vehicle in weight up to 60 t and loading on an axis up to 15 t. Loading / unloading by port means or roll-on / roll-of through bow ramp (with loading on an axis 10 t or weight of crawler techniques 30 t).
  5. transportation of oil-delivery trucks. Loading - unloading by port means or roll-on / roll-of through bow ramp;
  6. oil spills response service emergency oil and oil product spill (>60°C), including direct gathering of oil from water surface and boom installation;
  7. performance of towing operations (is made with anchor - mooring - towing winch);
  8. inspection of a sea-bottom, search of the sunk subjects, including anchors buoy with side-looking sonar and hydrographic echosounder;
  9. intake from vessels of sewage;
  10. intake from vessels of garbage in containers (2 containers with capacity 10 m³ installed on main deck). Is made with bow crane;
  11. accommodation of pilots and transfer of pilots on vessel (pilots location in special personnel cabins);
  12. inspection of a sea-bottom and damaged objects on depths down to 1000 m.

# Name Value
1. Main dimension
Length overall, m 43.09
Length between PP, m 37.90
Breadth overall, m 10.20
Breadth on DWL, m 9.20
Depth at midship, m 3.30
Air draft at draught d = 2.50, m 10.80
L x B x H 43.09 x 10.20 x 3.30 = 1450
2. Draught on DWL, m 2.50
3. Deadweight at draught d = 2.50 m, t 266
4. Endurance, days 7
5. Hold capacity, m³ 96
6. Oil recovery tank capacity, m³ 56
7. Bollard pull, t 10
8. Lifting capacity of bow cargo crane 8.0 t with boom 10 m
9. Lifting capacity of stern cargo crane 0.85 t with boom 6.5 m
10. RS class KM ° Ice3 R2-RSN AUT3-C
11. ME power, kW 2 x 405
12. Rudder and propeller complex 2 x Rudderpropellers
13. Auxiliary diesel-generators, kW 2 x 130
14. Hot water boiler, kW 81.4
15. Crew / special stuff, pers. 8 / 4
16. Speed, knots 10.0
