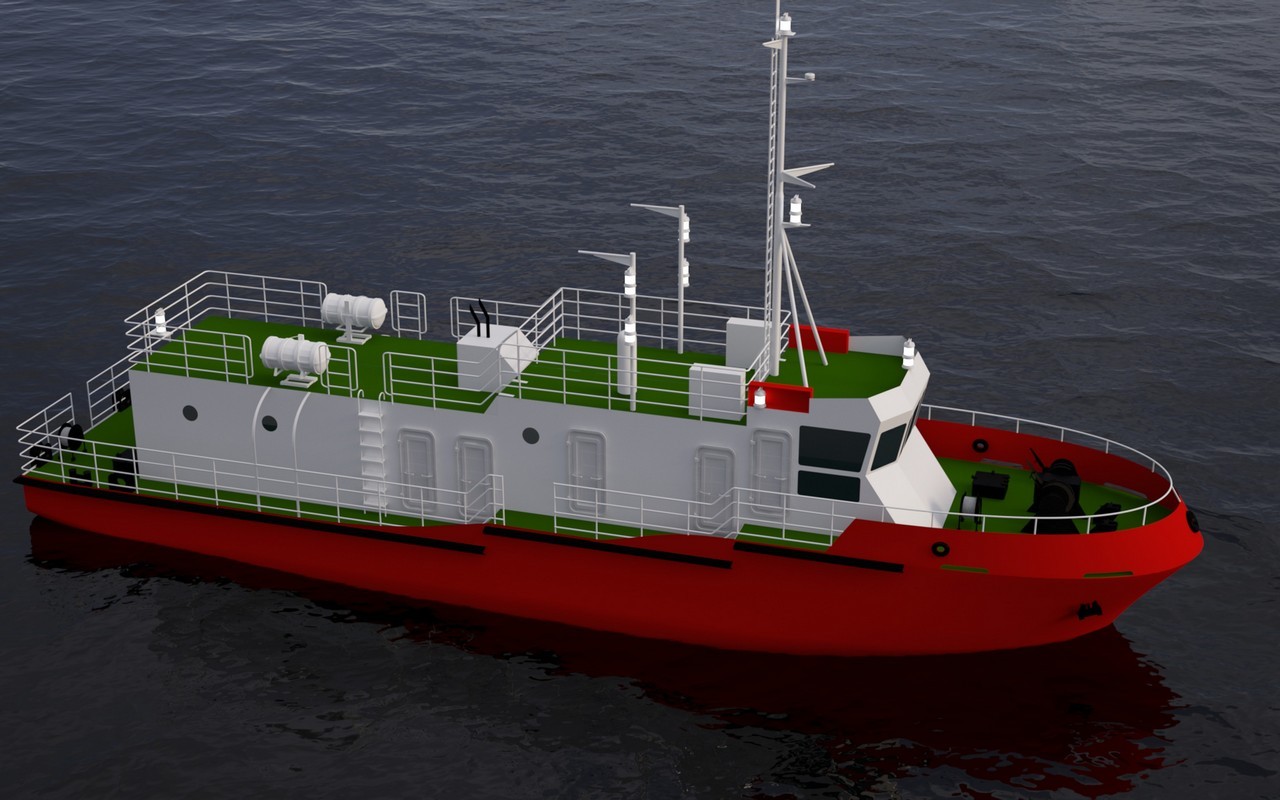

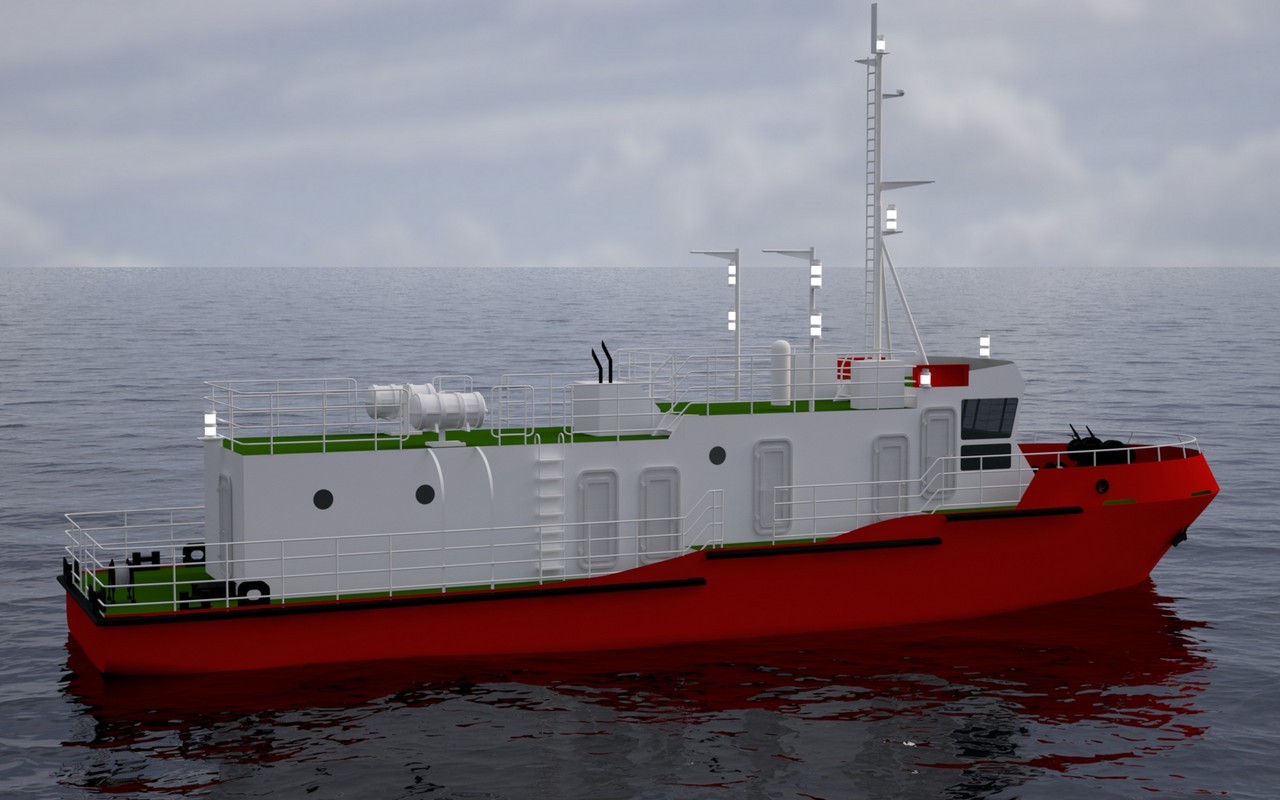

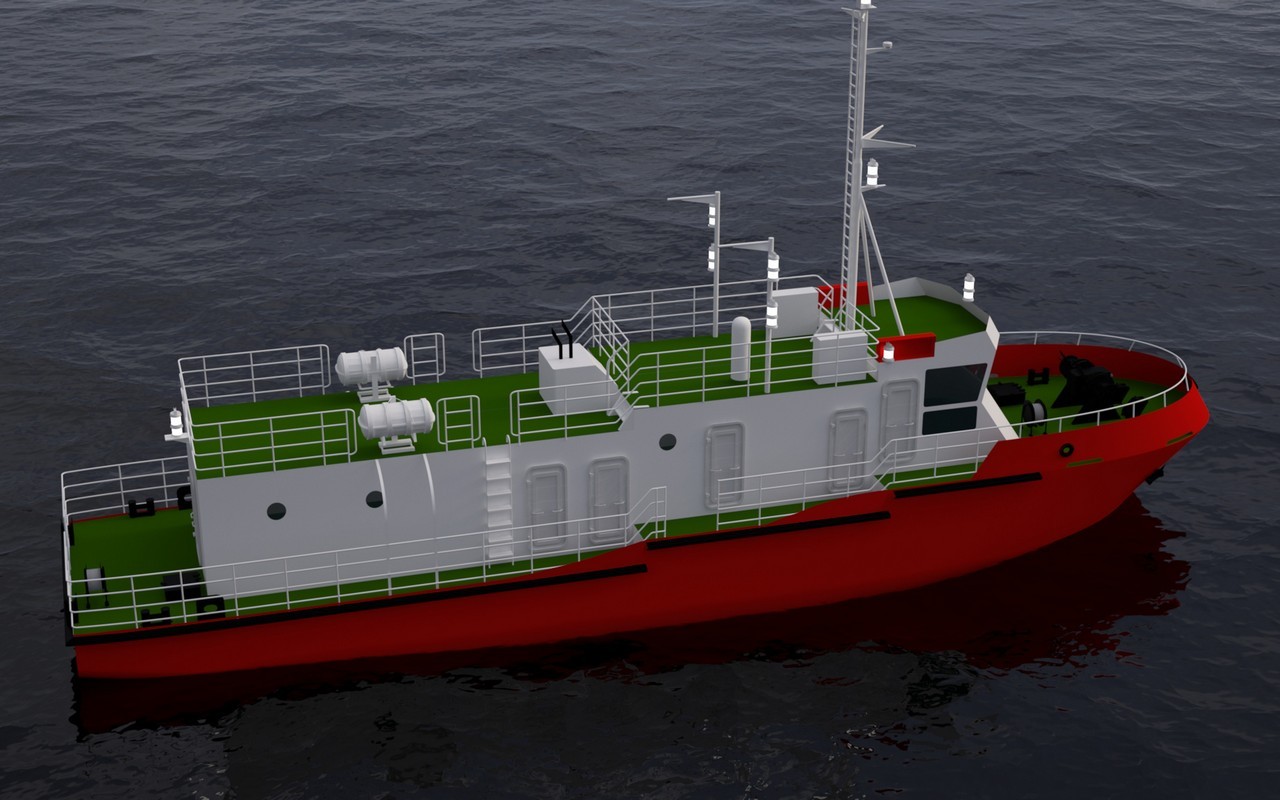

PROJECT SDS14C
Sea diving ship
Type: sea-going diving vessel with a sloping stem and a transom stern end, with a wheelhouse in the middle part, and with the engine room located at the stern and a fixed-pitch propeller (FPP) in a rotating nozzle
Purpose:
- Performing light diving operations at depths of up to 45 meters
- Participation in emergency rescue, ship-lifting and underwater engineering works within the scope of the means installed on the ship
- Inspection of the bottom of water areas, sunken objects, underwater parts of ship hulls and waterside structures
Navigation area: Restricted: harbour, roadstead and coastal navigation in a 20-mile coastal zone with a significant wave height up to 2.0 m with maximum distance from the nearest port of safe anchorage not more than 50 miles.
The operation area – Caspian Sea.
The operation conditions in ice: according to the ice class «Ice Class IE».
| # | Name | Value |
|---|---|---|
| 1. | Main dimension | |
| Length overall, m | 23.84 | |
| Length calculated, m | 22.19 | |
| Breadth, m | 5.00 | |
| Depth, m | 2.14 | |
| 2. | Draught at SLWL, m | 1.20 |
| 3. | Diving crane-beam | 500 kg |
| 4. | ABS class |  A1, DSV AIR, Ⓔ,
Restricted Service (50NM, 2.0m Significant Wave Height), AMS, ABCU, Ice Class IE
|
| 5. | Maximum continuous power of ME, kW | 370 |
| 6. | Propulsion complex | 1 FPP in rotated nozzle |
| 7. | Speed at SLWL draught, knots | 10 |
| 8. | Special staff (divers) / berths, pers. | 3 / 4 |
| 9. | Special staff, when staying onboard not more than 8 hours, pers. | 8 |
| 10. | Crew / berths, pers. | 3 / 4 |
| Quantity | Diving compression complex: | |
|---|---|---|
| 1 | Compression chamber with inner diameter 1300 mm (work pressure – 10 bar, chamber compressed speed – 40-50 m/s), two-chamber, flow-line-decompression, self-ventilated, with BIBS-masks, with water fire-extinguisher system, for 2 divers. |
|
| 1 | Pressure chamber control panel. | |
| 1 | Decompression chamber acclimatization system. | |
| 20 | Air pressure tanks (50 l). | |
| 2 | Electric-driven air compressor KAP 15.1-7.5-HN. | |
| Air panel for 2 divers. | ||
| 2 | Electrical equipment panels for 2 divers (underwater video system for 2 divers, communication devices for 2 divers). |
|
| Emergency batteries. | ||
| 2 | 4-component 140 meter diving hose-cable. | |
| 2 | Diving helmet “KM-37”. | |
| 1 | Diving mask “KMB-28”. | |
| Battery-free communication system with the wheelhouse and diving station. | ||
| 1 | Aluminum diving ladder. | |
| 2 | Boxes for 4-component 140-meter diving hose-cable. | |
| 1 | Removable awning device in the stern of the ship to protect the diving team from the sun. |
