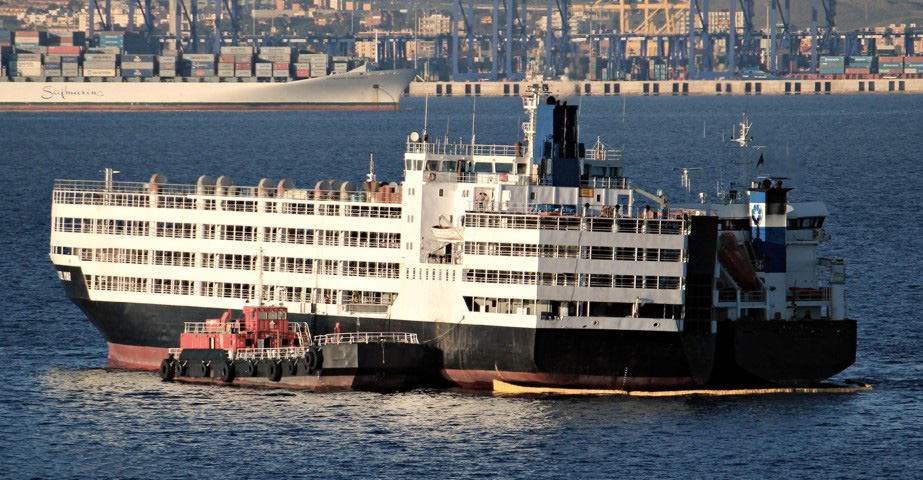

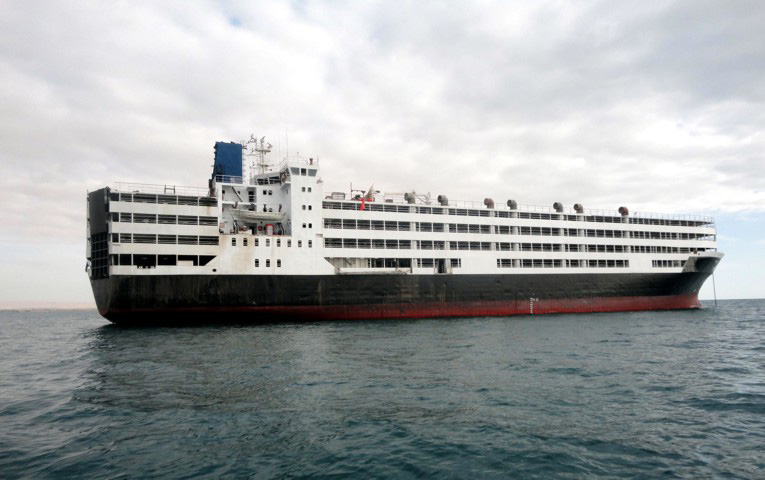

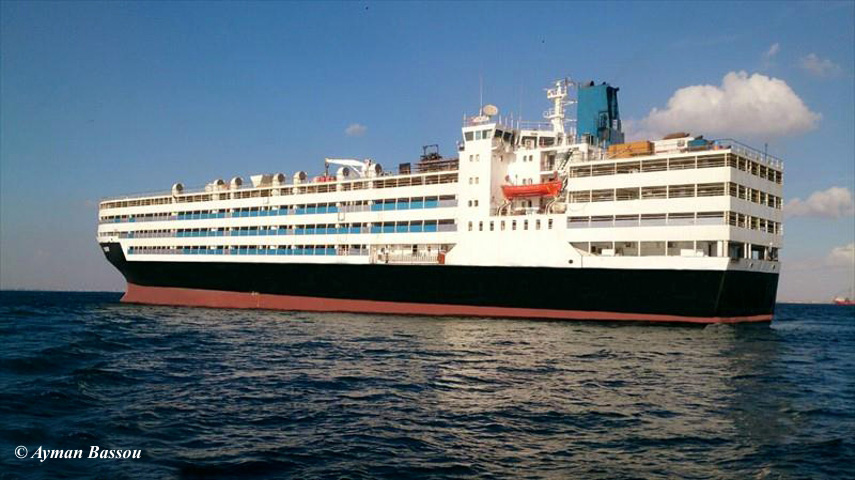

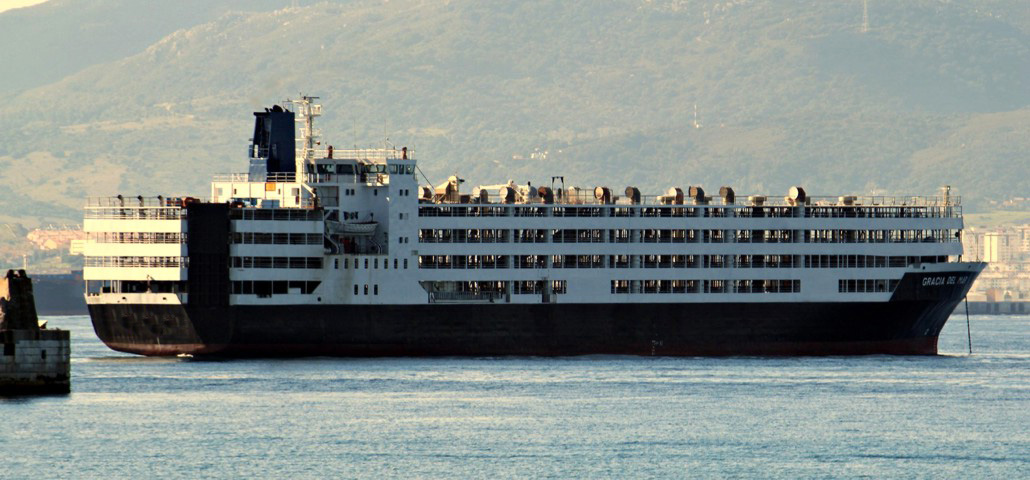

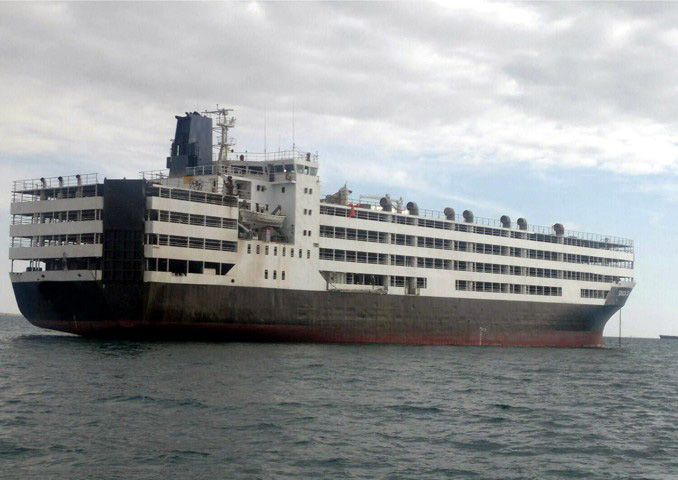

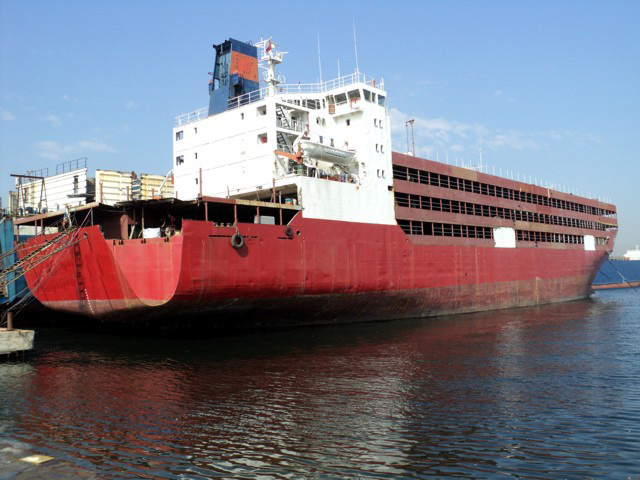

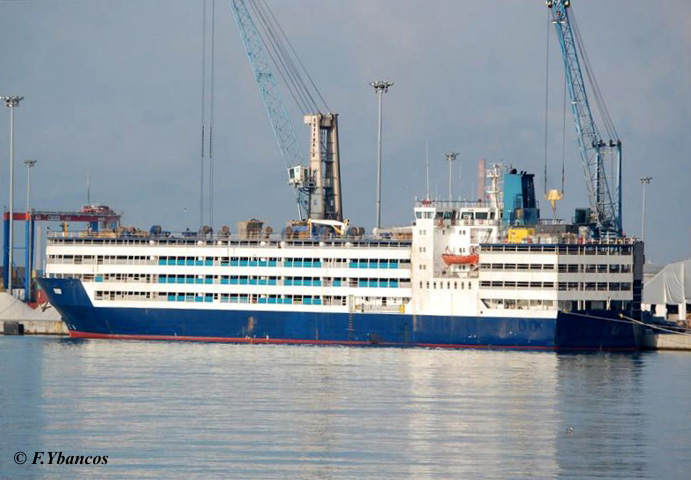

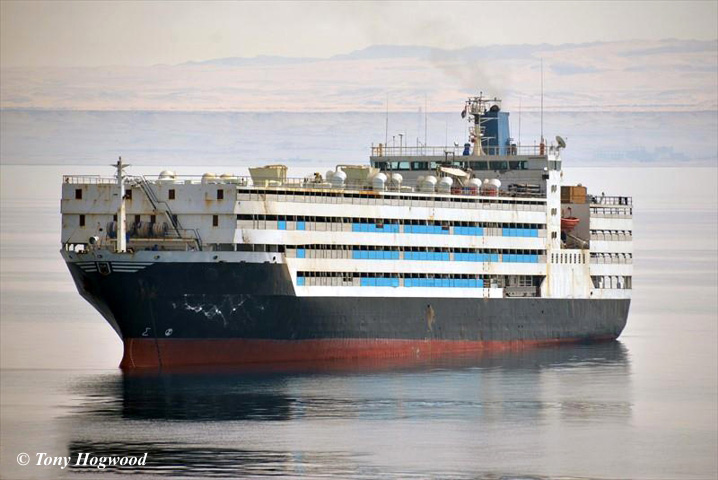

PROJECT LSC02
Livestock carrier of 5175 carrying cattles

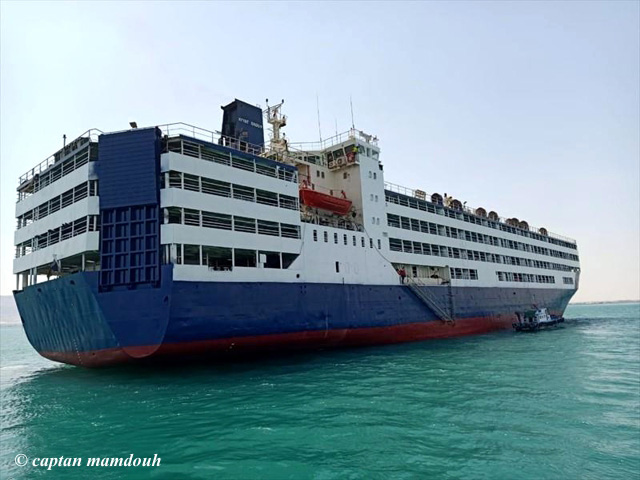

Purpose - carrying of livestock (cattle, sheeps and camels) on 8 decks. Loading and unloading cattles through aft apparel.
| # | Name | Value |
|---|---|---|
| 1. | Main dimension | |
| Length overall, m | 122.77 | |
| Length LLC-66, m | 109.92 | |
| Length between PP, m | 108.0 | |
| Length scantling (according Part II "Hull" RS Rules), m | 110.09 | |
| Breadth scantlings, m | 19.40 | |
| Depth to forecastle deck, m | 15.30 | |
| Depth to the Main deck (Deck №6), m | 12.30 | |
| Depth to freeboard deck, m | 9.02 | |
| 2. | Draught on SWL, m | 8.144 |
| 3. | Deadweight (γ = 1.025 t/m³), t | 6011 |
| 4. | Numbers of cargo decks | 8 |
| 5. | Summary area of cargo decks, m² | 8718 |
| 6. | Number of carrying cattles with average weight 500 kg | 5175 |
| 7. | Capacity of silo compartment, m³ | 2186 |
| 8. | Capacity of fresh water tanks, m³ | 319.2 |
| 9. | Fresh water generator capacity, m³/day | 3 x 120 |
| 10. | Ballast tanks capacity, m³ | 1748 |
| 11. | RS class | KM Livestock carrier |
| 12. | ME power, kW | 1 x 4416 |
| 13. | Crew, pers. | 42 |
| 14. | Service speed, knots | 14.5 |
| 15. | Gross Tonnage | 11649 |
| 16. | Net Tonnage | 6644 |
