PROJECT RPF14

River cargo - passenger vessel for local lines
with possibility of operation in open pack ice thickness 40 cm of passengers capacity 200 persons

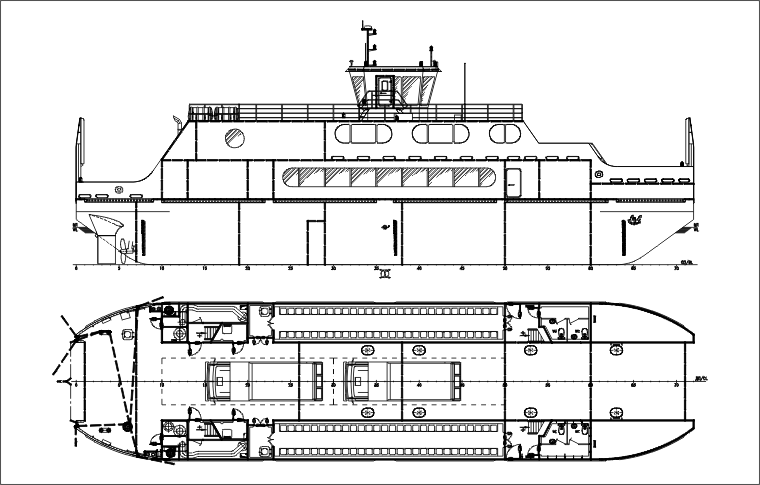

Main Image

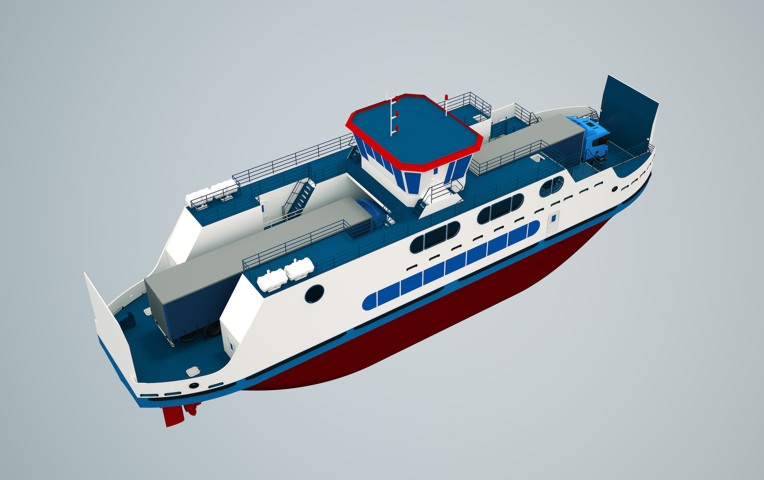

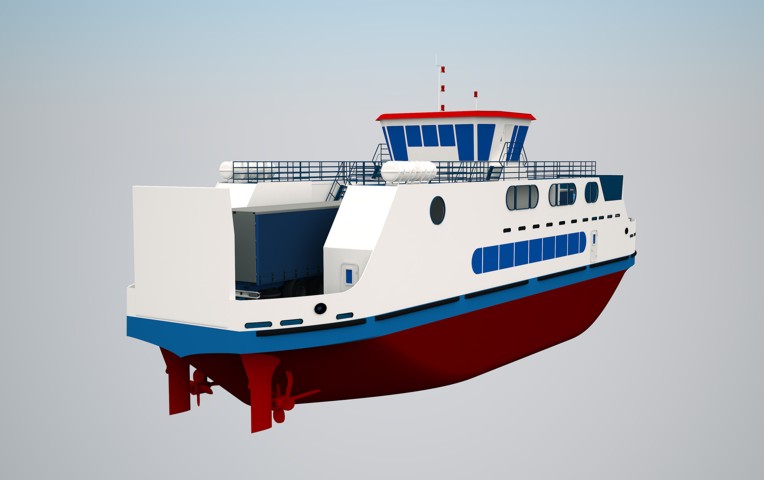

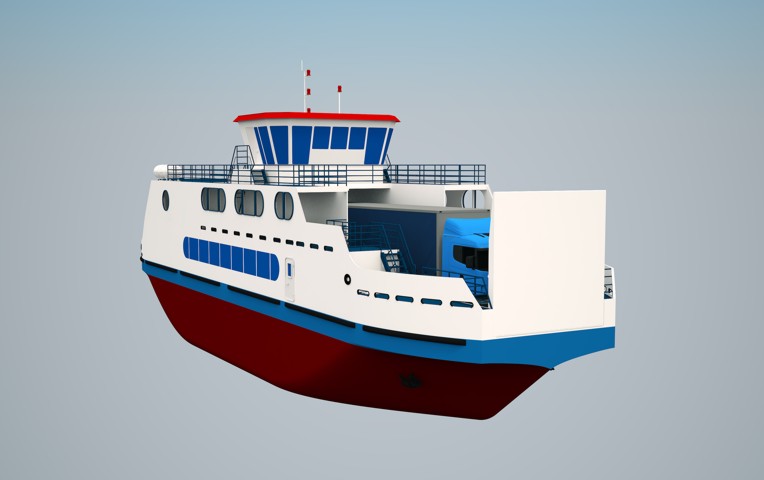

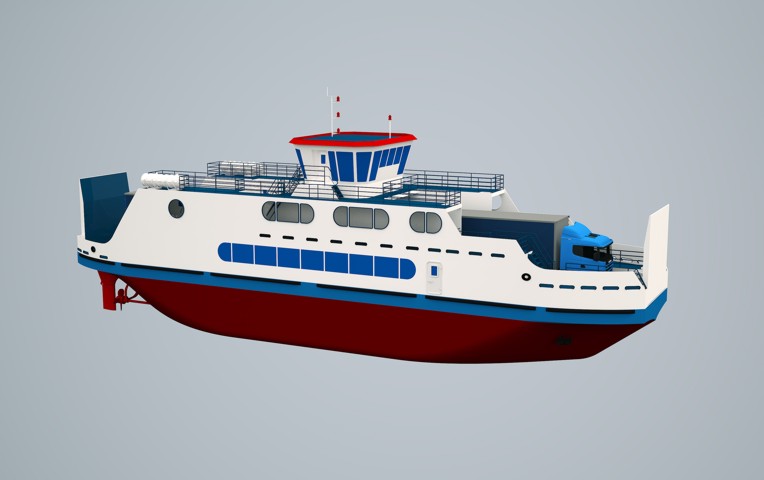

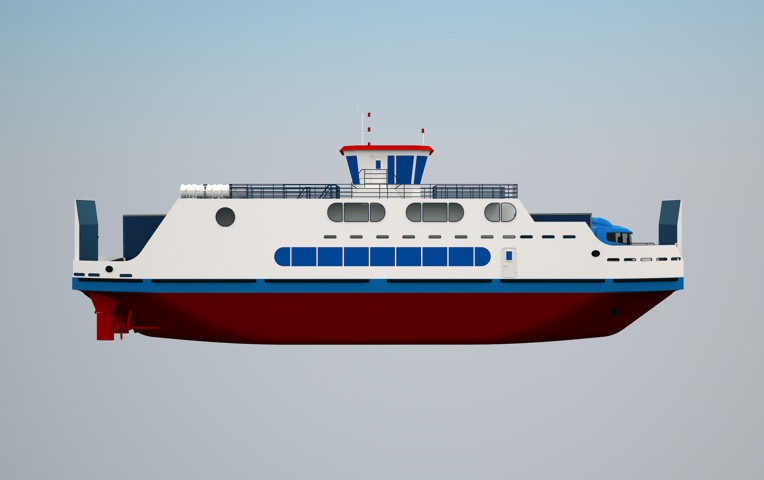

Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5

Purpose - carriage of cars and passengers on inland domestic lines correspond grade of the corresponding category.

# Name Value
1. Main dimension
Length overall, m 39.60
Length by DWL, m 38.22
Breadth overall, m 10.40
Breadth by hull, m 10.0
Depth, m 4.20
L x B x H 39.60 x 10.40 x 4.20 = 1 730
Air draft from BL to an upper edge
of non-removable parts (not greater than), m		 15.70
2. Draught on DWL, m 2.40
3. Deadweight at DWL draught, t 349
4. Endurance:
by fuel stores, days 5
by fresh water stores, filling of sewage water,
oil-mixture water and garbage, days		 2
5. Number of cargo decks 1
6. Area of cargo deck, m² 150
7. Loading capacity for vehicles:
trucks, units 2
private cars, units 7
8. Ramps fore and aft
9. Passenger capacity, pers. 200
10. RRR class P 1,2 (ice 40) A
11. ME power, kW 2 x 479
12. Rudder and propeller complex 2 x FPP +
2 spade rudders
13. Auxiliary engines:
diesel-generators, kW 2 x 180
emergency diesel-generator, kW 1 x 28
14. Inflatable life rafts throw over 4 x 51 pers.
15. Crew, pers. 3
16. Speed, knots 10.8
