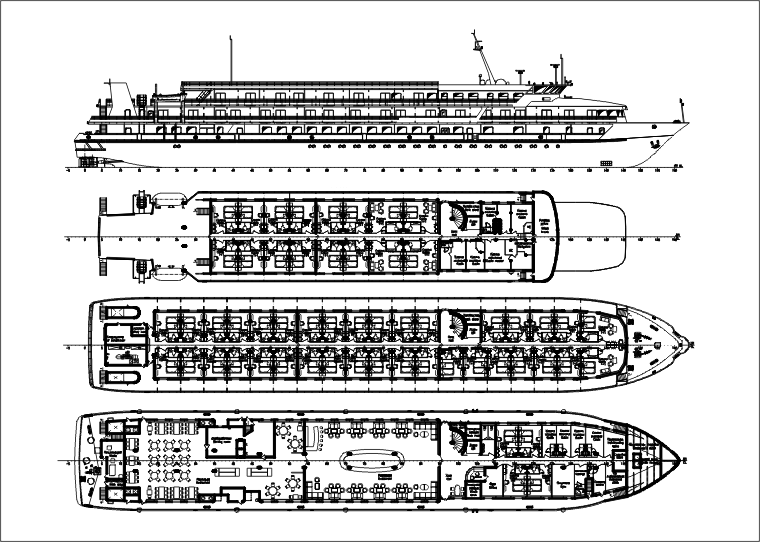

PROJECT PV08

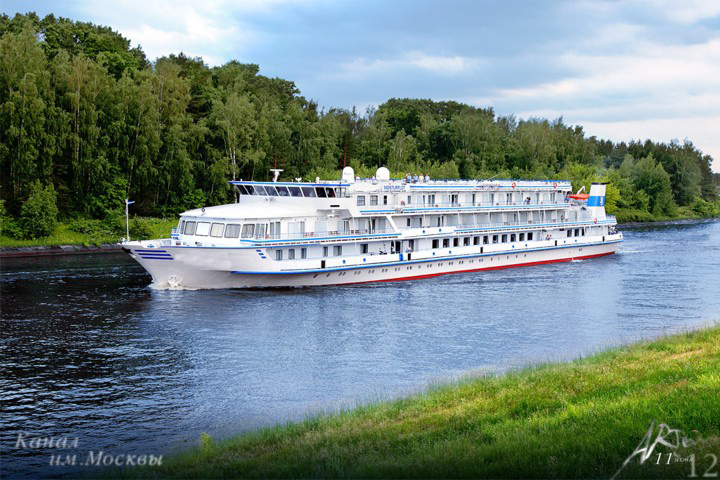

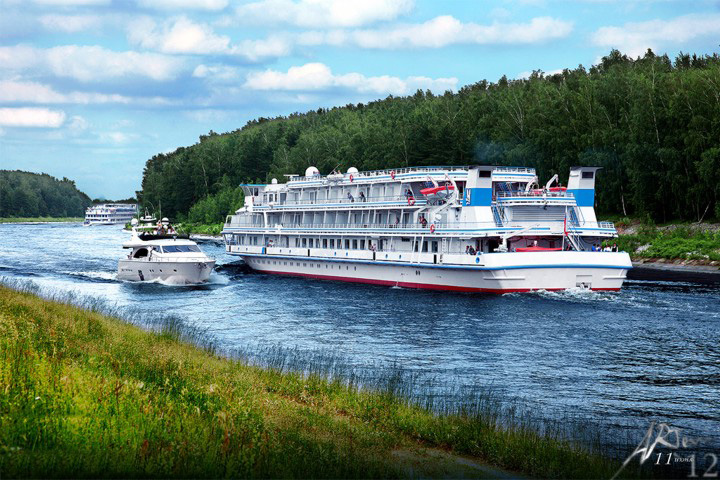

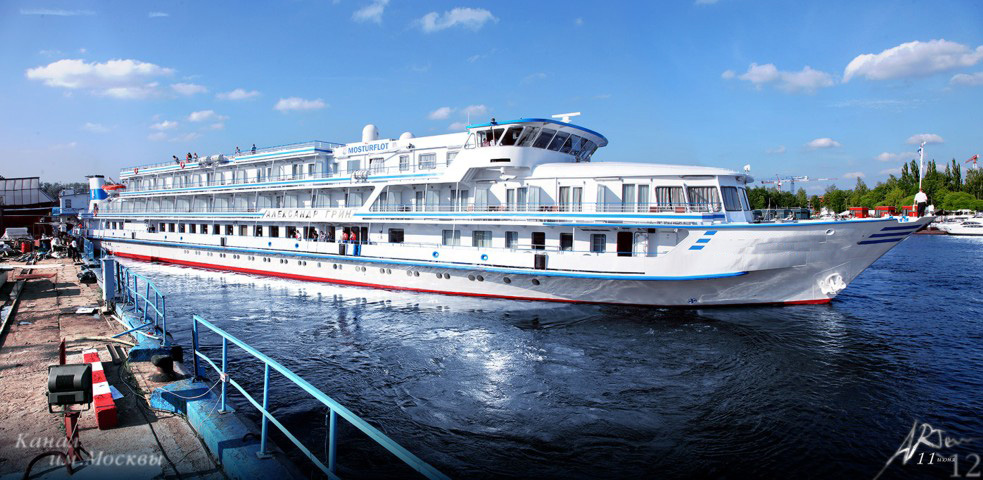

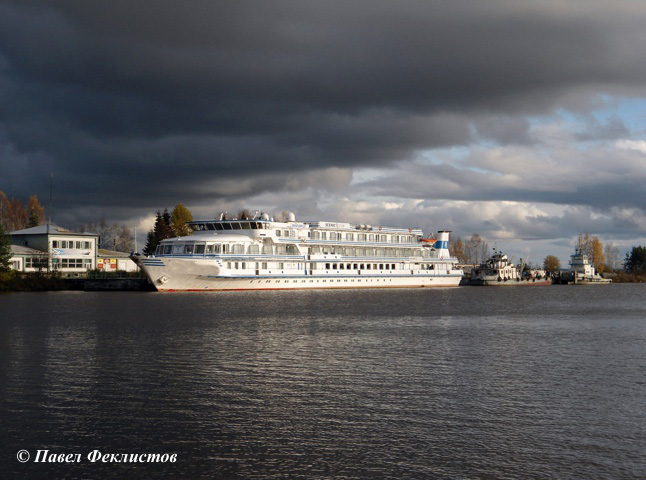

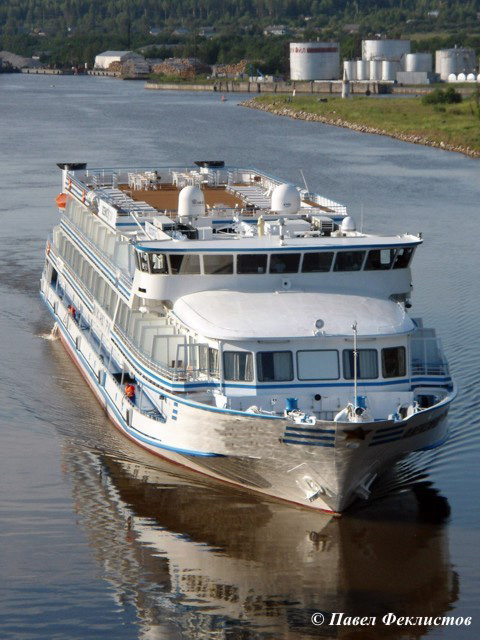

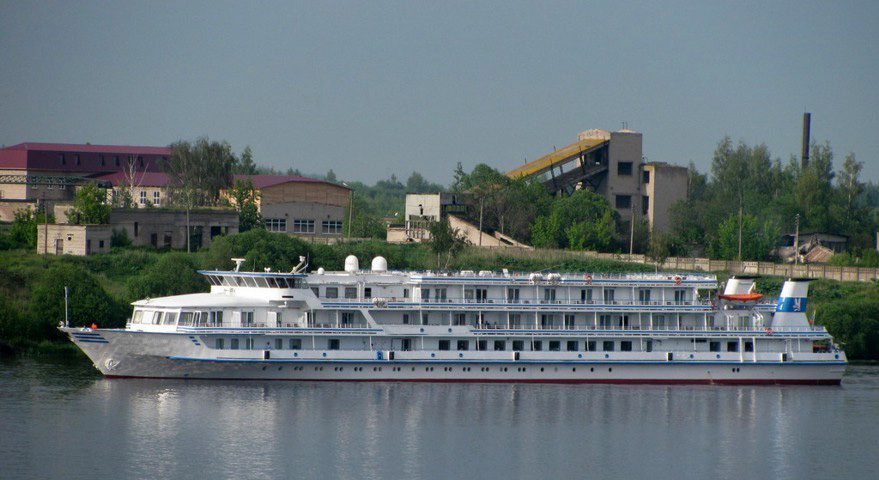

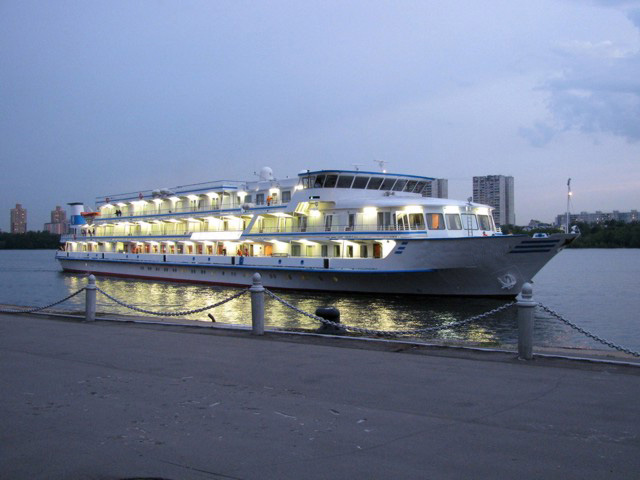

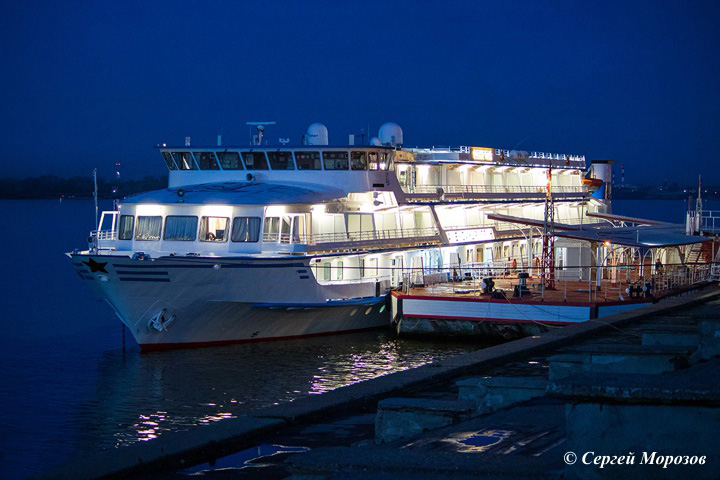

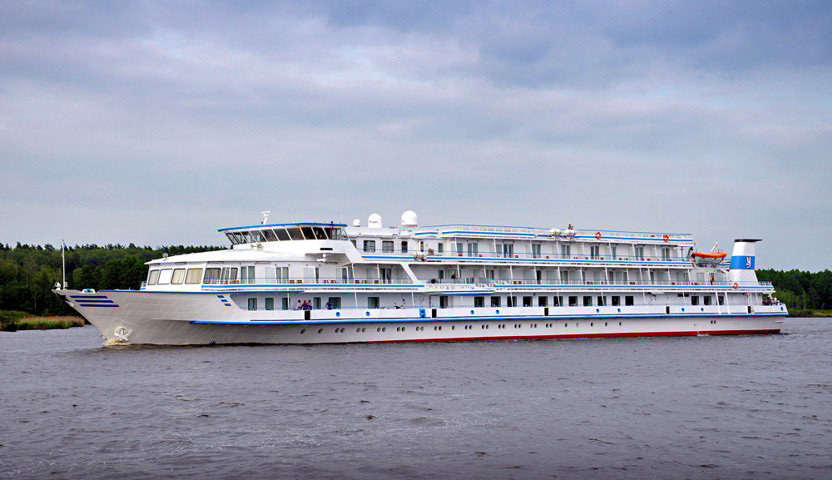

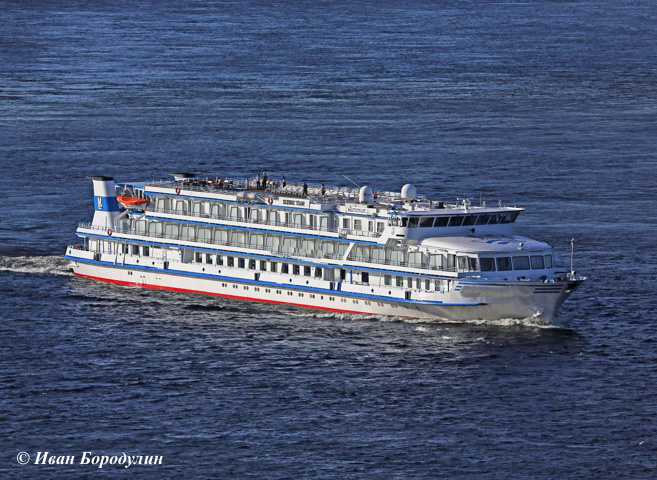

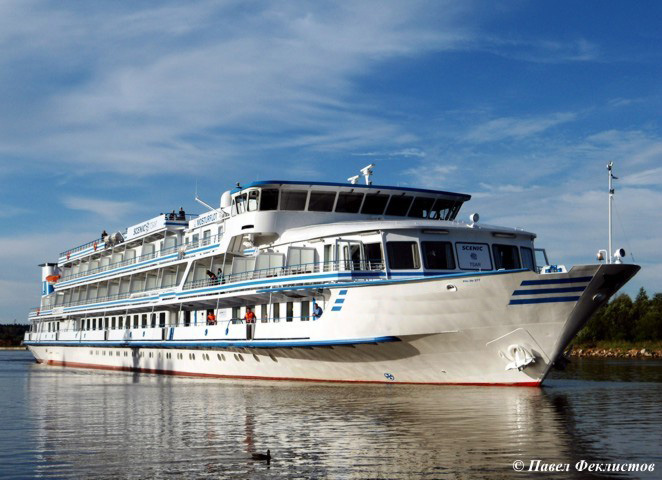

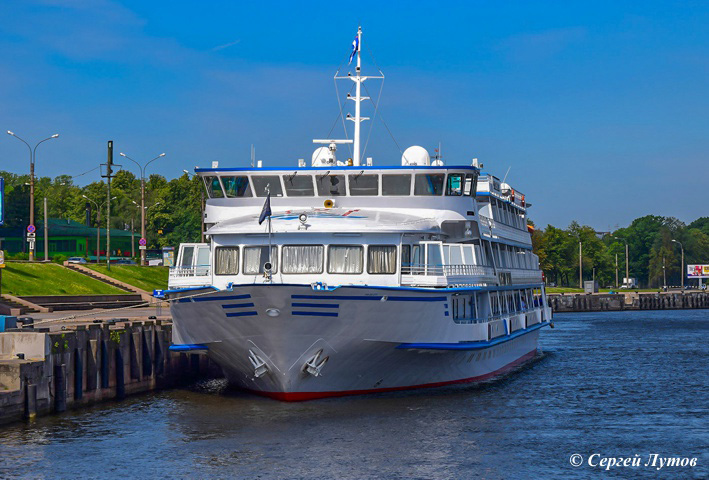

River passenger cruise vessel "Alexandr Grin" type
Purpose - river cruises over internal waterways with transportation of 112 passengers.
|
| Laying of the keel |
Laid down |
Delivery |
Years of construction |
| |
|
1 |
-2012 |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
90.10 |
| Length on DWL, m |
84.15 |
| Breadth overall, m |
14.76 |
| Breadth on DWL, m |
13.50 |
| Depth, m |
4.0 |
| L x B x H |
90.10 x 14.76 x 4.0 = 5 319 |
| 2. |
Draught on DWL |
1.60 |
| 3. |
Draught on LWL (in fresh water), m |
1.70 |
| 4. |
Endurance, days |
5.5 |
| 5. |
Range, nautical miles |
1320 |
| 6. |
Passenger capacity, pers. |
112 |
| 7. |
RRR class |
 M 3.0 |
| 8. |
ME power, kW |
3 x 331 |
| 9. |
Auxiliary engines: |
| diesel-generators, kW |
3 x 300 |
| emergency diesel-generator, kW |
1 x 59 |
| 10. |
Crew, pers. |
45 |
| 11. |
Speed at draft d = 1.70 m, knots |
12.0 |
|
