PROJECT PV07

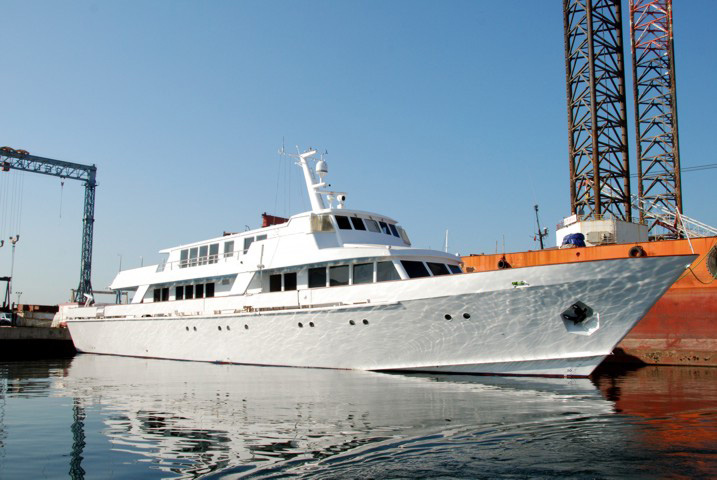

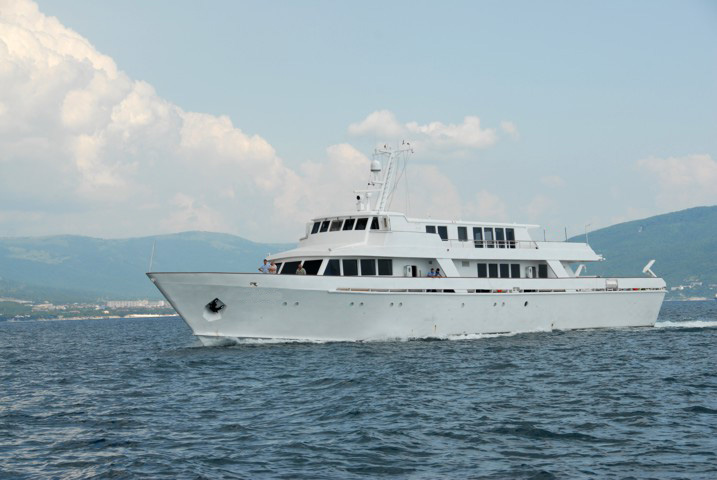

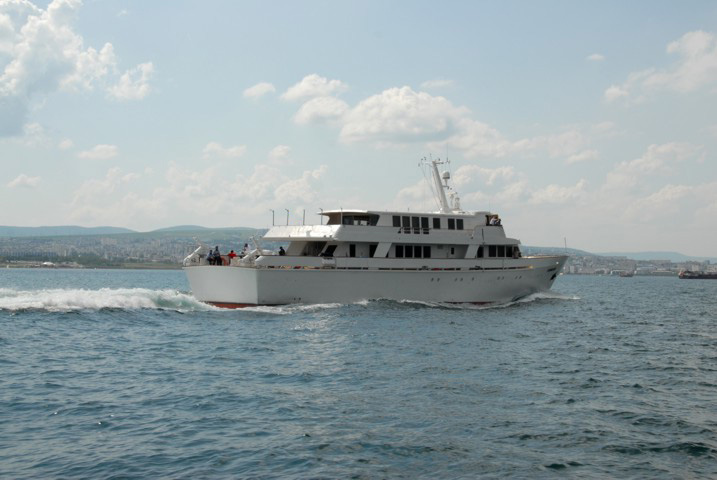

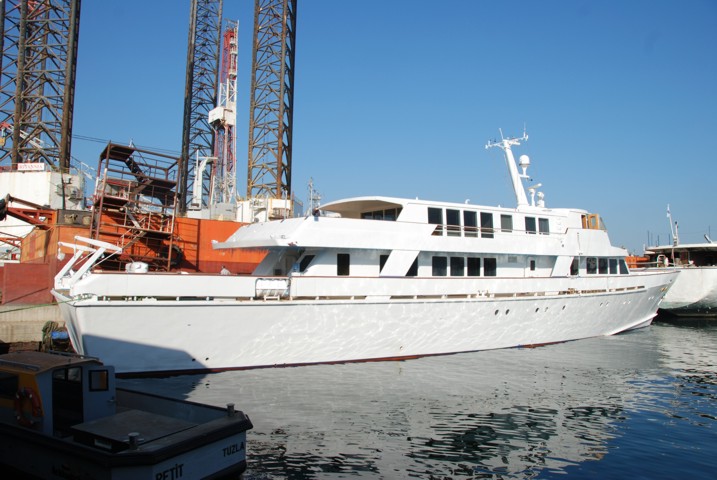

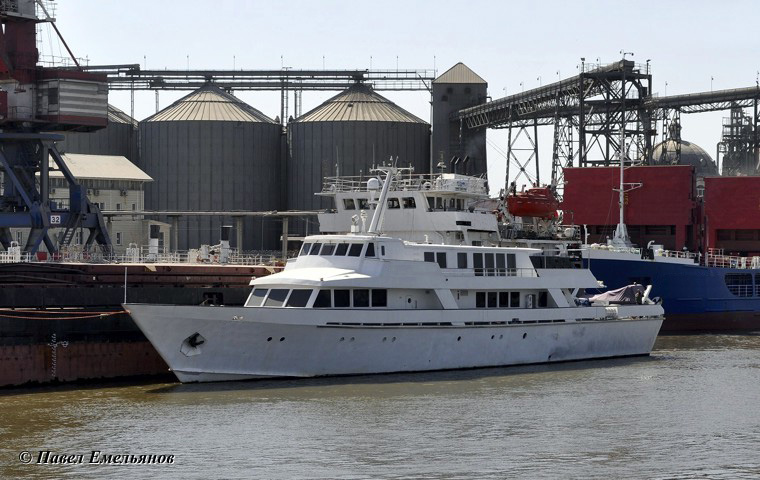

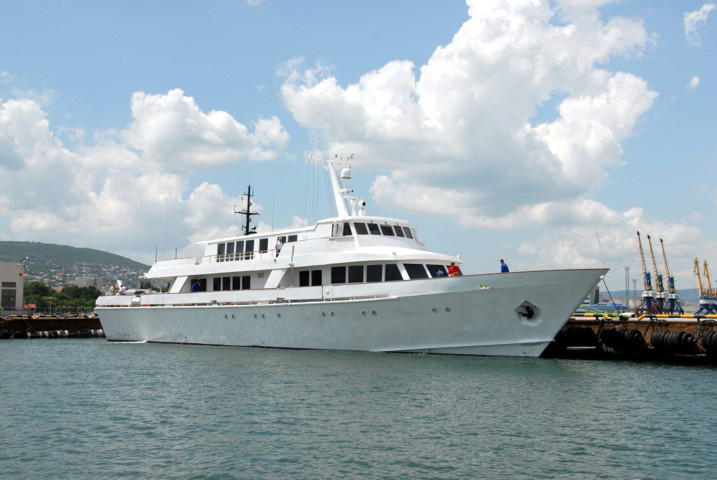

Multi-purpose executive-class running boat "Kavkaz" type

°




Purpose - performance of functions of territorial mobile controls and communication on the Black Sea - Sea of Azov basin, at maintenance of coordination of searching and rescuing on the sea, regional, interdepartmental and international drills, sea patrolling of Black Sea and Sea of Azov harbor waters.



Laying of the keel Laid down Delivery Years of construction
    1 -2013


# Name Value
1. Main dimension
Length overall, m 45.84
Length on DWL, m 40.44
Breadth overall, m 8.94
Breadth on DWL, m 7.24
Depth at midship, m 4.45
Depth (on 12 theoretical frame), m 4.40
L x B x H 45.84 x 8.94 x 4.45 = 1 824
2. Draught on DWL, m 1.80
3. Maximal draught, m 1.86
4. Endurance:
by fuel stores, days 2
by fresh water stores, days 3
by sewage collection tanks
(in areas when any discharge are prohibited), days
4
5. Range with full fuel stores (not less than), nautical miles 1200
6. Numbers of deckhouse tiers 2
7. Numbers of passenger berth 12
8. Number of passenger cabins 7
9. Passenger rooms:
saloon-veranda, open area of deck, m² 44.5
closed area of deck, m² 27.7
bow saloon, m² 31.0
cabinet, m² 6.1
multipurpose dining and conference room, m² 27.8
10. RRR class ° M-SP 3.5
11. ME power, kW 2 x 1343
12. Rudder and propeller complex 2 FPP +
2 spade rudders
13. Bow thruster, kW 1 x 55
14. Auxiliary diesel-generators, kW 2 x 110
15. Rescue boat 1 x 3 pers.
16. Life rafts 2 x 20 pers.
17. Crew, pers. 5
18. Service speed, knots 17.0
