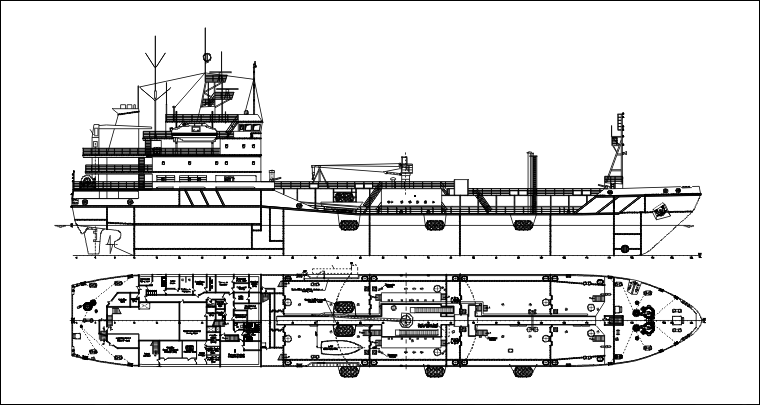

PROJECT ST03
2673 DWT bunkering - tanker (modernization oil - tanker)
							Purpose - the bunkering tanker to supply fuel to ships in the North Atlantic.
| # | Name | Value |
|---|---|---|
| 1. | Main dimensions | |
| Length overall, m | 99.0 | |
| Length between PP, m | 90.0 | |
| Breadth, m | 14.20 | |
| Depth, m | 6.50 | |
| L x B x H | 99.0 x 14.20 x 6.50 = 9 137 | |
| 2. | Draught, m | 4.65 / 4.90 |
| 3. | Deadweight (about), t | 2386 / 2673 |
| 4. | Range of navigation at speed 13 kn., nautical miles | 2500 |
| 5. | Capacity of cargo holds 100% fill up tanks N1-10 (about), m³  |
	3215.61 |
| 6. | Ballast tanks capacity (about), m³ | 1361 |
| 7. | RS class | KM   UL   AUT1 Oil tanker (ESP)(UL   at d < 4.65 m, L2 at 4.65 m < d < 4.9 m) |

| 8. | Maximum continuous rating of ME, kW | 2576 |
| 9. | Rudder and propeller complex | 1 x SRP (Ø 2.85 m) + rudder |
| 10. | Bow thruster of type the "screw in pipe", kW  |
	350 |
| 11. | Stern thruster of type the "Pump Jet", kW  |
	375 |
| 12. | Auxiliary engines: | |
| diesel-generators, kW | 2 x 300 | |
| shaft generator, kW | 1 x 400 | |
| 13. | Crew (at navigation in the high sea), pers. | 14 |
| 14. | Minimum quantity of crew at work of a vessel in quality fueler in Murmansk harbour by watch method, pers  |
	6 |
| 15. | Speed, knots | 13.0 - 13.5 |
 UL
 AUT1 Oil tanker (ESP)
