PROJECT RT18

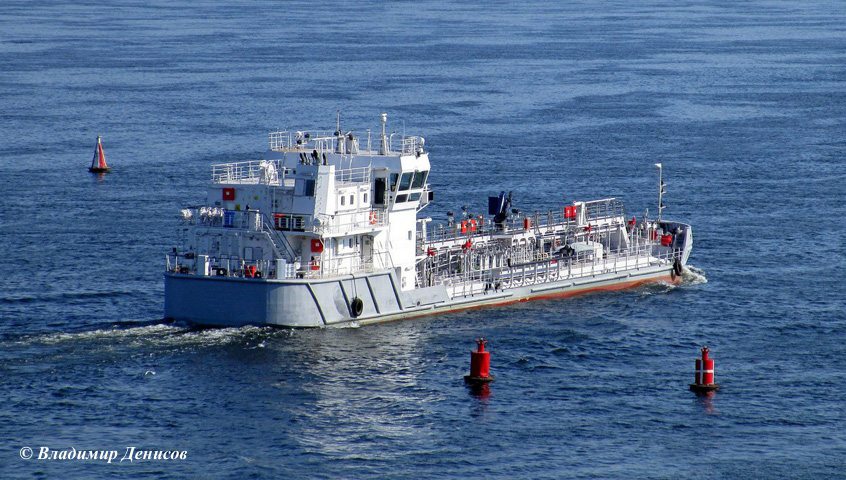

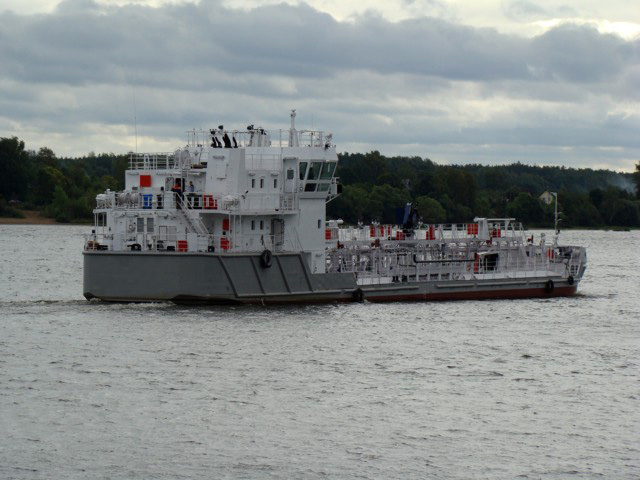

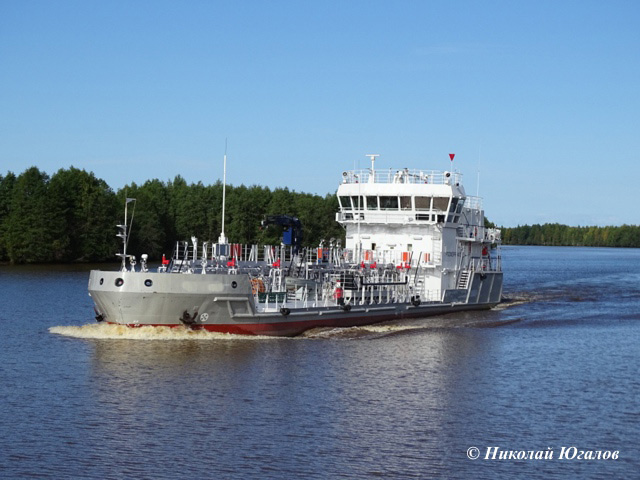

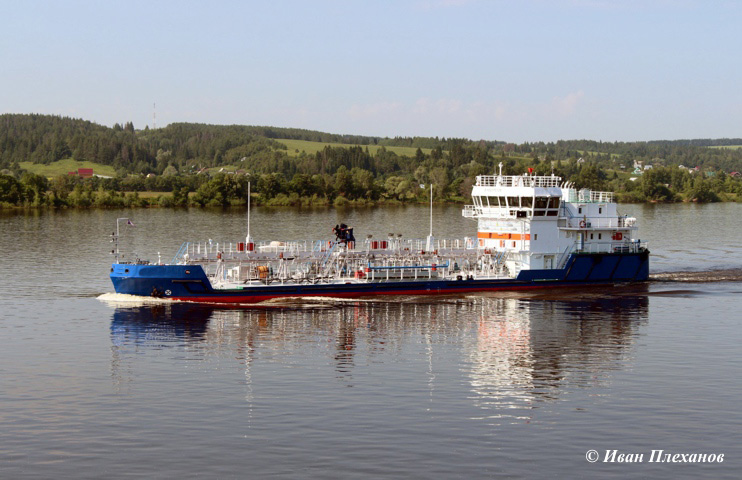

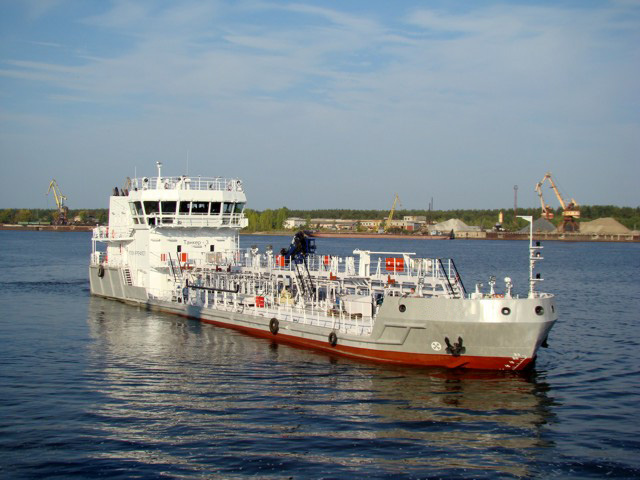

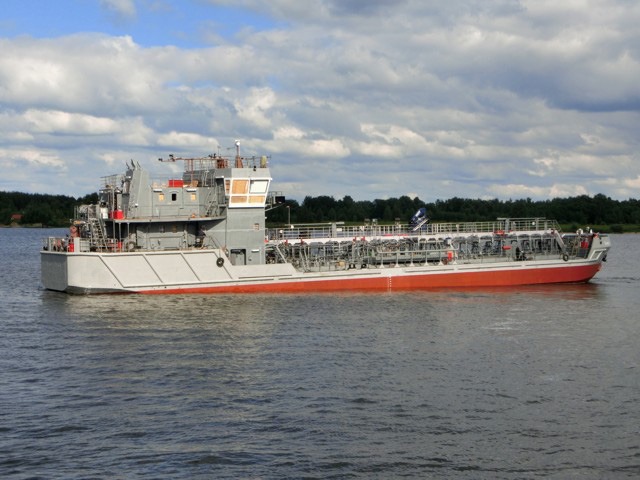

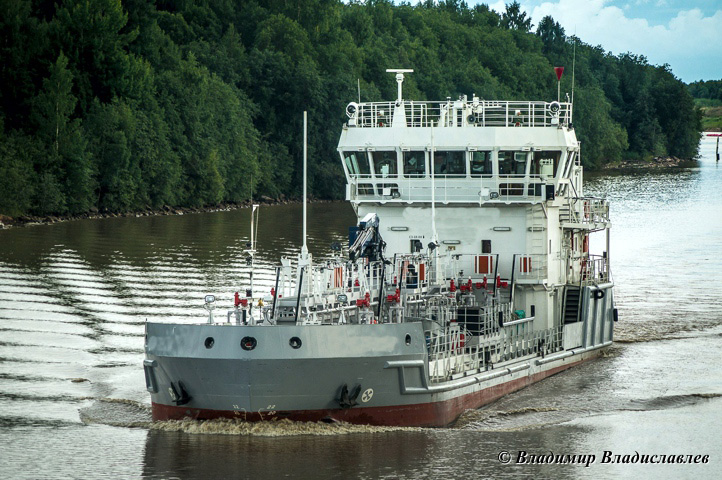

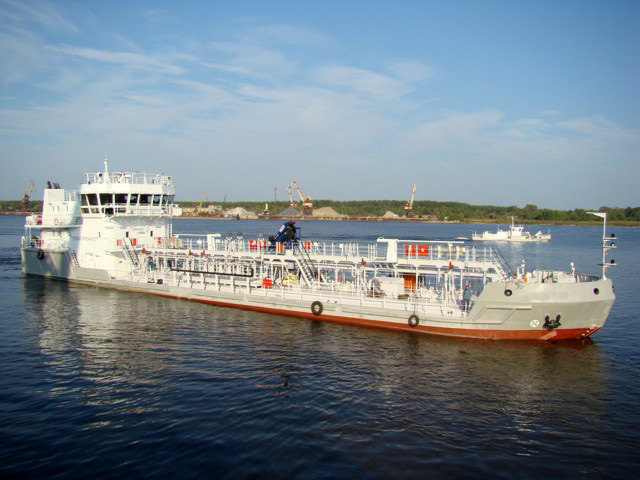

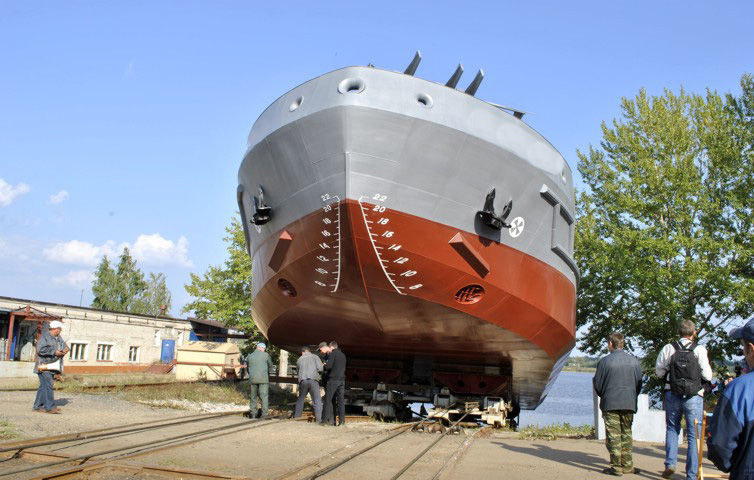

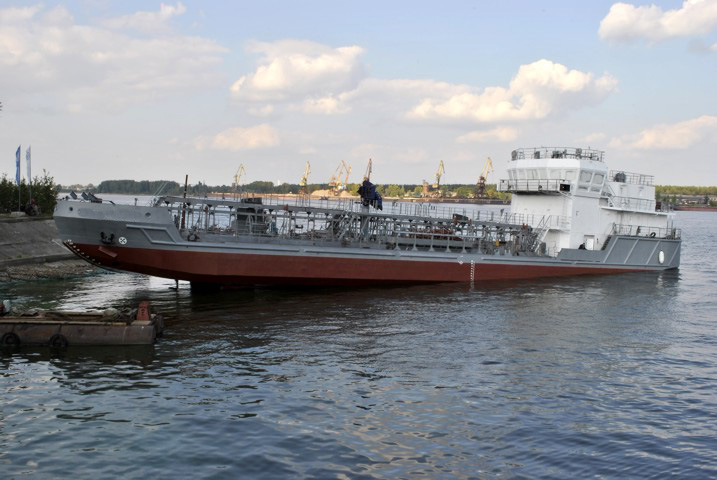

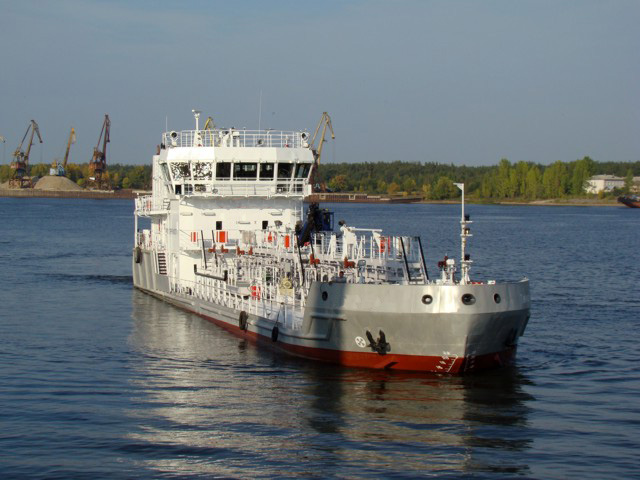

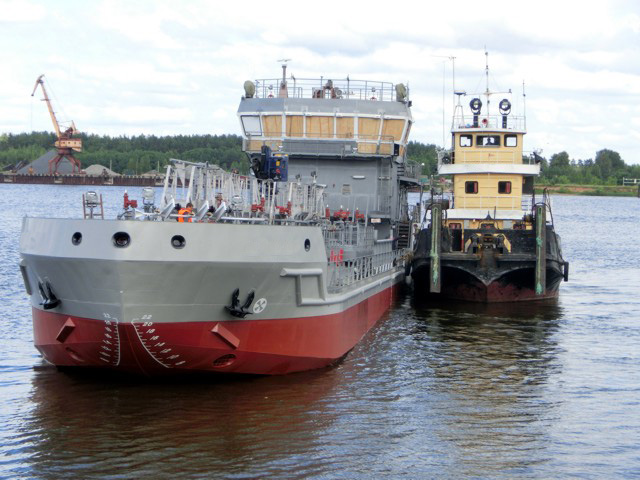

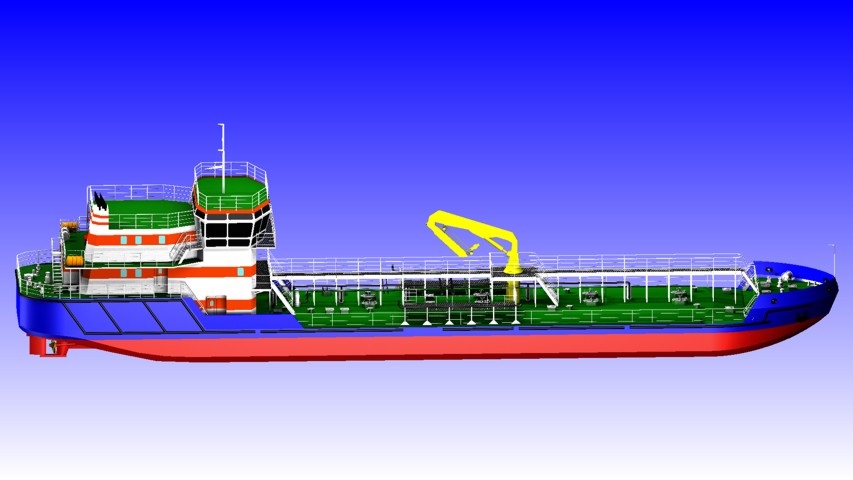

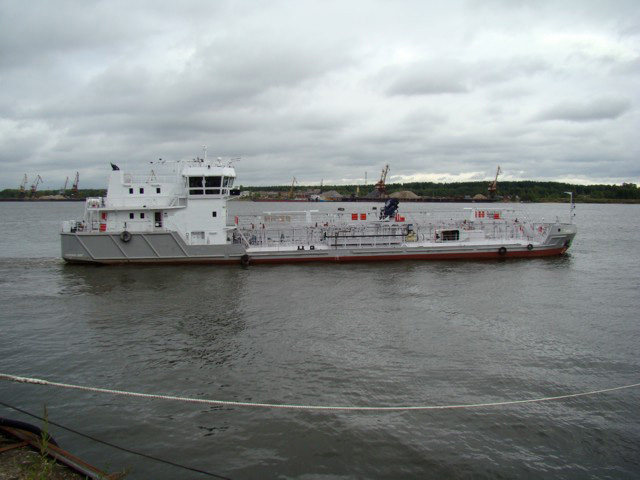

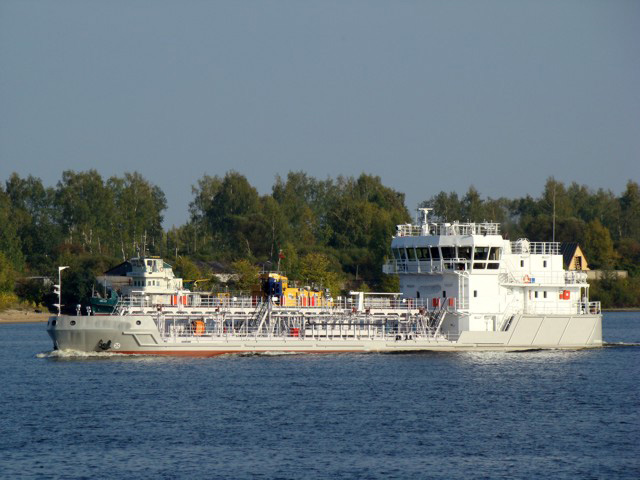

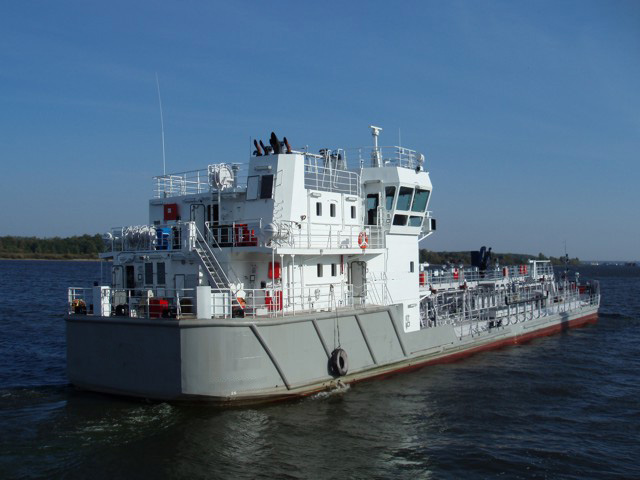

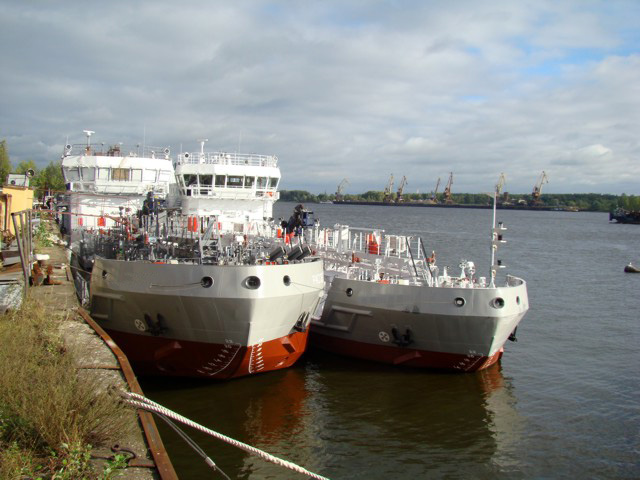

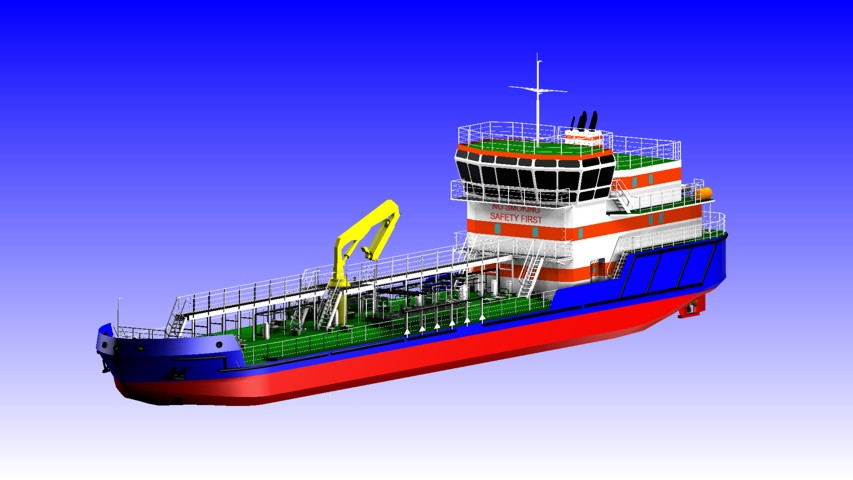

517 DWT bunkering - tanker

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 7 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18 Thumbnail 19 Thumbnail 20 Thumbnail 21

Purpose - intended for reception from a shore or other vessel, transportation, distribution on a shore or another vessel of mineral oil with a flash-point from above 60°C.


# Name Value
1. Main dimension
Length overall, m 61.29
Length between PP, m 59.60
Breadth overall, m 10.42
Breadth scantlings, m 10.0
Depth, m 2.60
L x B x H 61.29 x 10.42 x 2.60 = 1 660
Air draft from BL to an upper edge
of non-removable parts, m		 13.30
2. Draught, m 2.0
3. Deadweight, t 517
4. Endurance, days 15
5. Number of tanks (diesel oil / oil / slop) 12 (8 / 2 /2)
6. Cargo tanks capacity for diesel fuel, m³ 526
7. Cargo tanks capacity for oil, m³ 56
8. Slop tanks capacity, m³ 26
9. Cargo pumps: 4 x 50 m³/h +
2 x 25 m³/h+
1 x 25 m³/h
10. Ballast tanks capacity, m³ 521
11. RRR class O 2.0 (ice 30) A
12. ME power, kW 2 x 221
13. Bow thruster, kW 55
14. Auxiliary engines:
diesel-generators, kW 2 x 100
emergency diesel-generator, kW 1 x 38
15. Crew, pers. 7
16. Speed (about), knots 9
