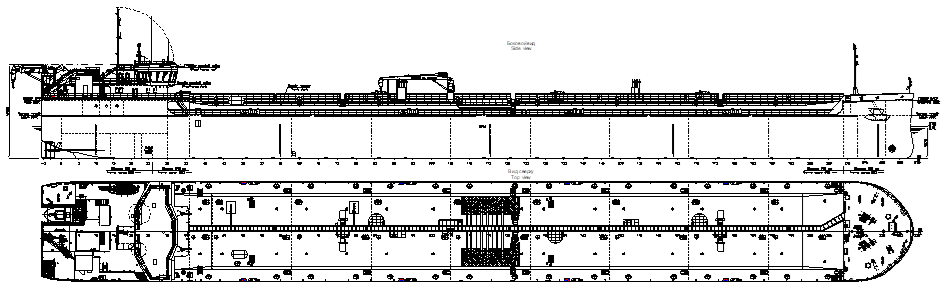

PROJECT RST43C

11053 DWT oil tanker


Purpose - carrying of crude oil and petroleum products with density up to 1.015 t/m³, including gasoline, without restrictions for flash-point, ensuring temperature of carrying cargo up to 60ºС. Providing simultaneous carriage of 2 (two) sorts of cargo.


# Name Value
1. Main dimensions
Length overall, m 149.95
Length between PP, m 147.83
Breadth scantlings / overall, m 17.20 / 17.30
Depth, m 7.50
L x B x H 149.95 x 17.30 x 7.50 = 19 456
2. Draught at SLWL, m 5.59
3. Deadweight, t 11053
4. Endurance, days 20
5. Number of tanks (cargo / slop) 10 (8 / 2)
6. Cargo tanks capacity (98%, including slop tanks), m³ 11 447
7. Number of manifolds / sorts of cargo 2 manifolds at the middle + 1 manifold at the aft StB / 2 sorts
8. Cargo pumps, m³/h 8 x 200
9. Cargo heating coils
10. Tank wash system and cleaning of washing liquid slop tank's pump output 80 m³/h
11. ABS class ° A1, Oil Carrier, , Restricted Service (7.5 m maximum significant wave height, 100 nm from place of refuge), ° AMS, ° ABCU, NOx-Tier III, ESP, CRC, ENVIRO, Ice Class IE, NBLES, VTC, LSC, IHM, UWILD, BWT, PMP, RRDA.
With the following comment: River-sea navigation. At seas with a wave height of 7.0 m with 3% probability, with ships proceeding from the place of refuge up to 100 miles and with an allowable distance between the places of refuge not more than 200 miles.
12. ME power, kW 2 x 1600
13. Rudder and propeller complex 2 x FPP in rotated nozzles
14. Bow thruster, kW 230
15. Auxiliary engines:
Diesel-generators, ekW 3 x 445
Emergency diesel-generator, ekW 1 x 158
16. Steam boilers, t/h 2 x 3.6
17. Crew / berth, pers. 12 / 14 + pilot
18. Speed (at draft d = 5.59 m and 100% MCR), knots 11.0 ±0.3
