PROJECT RST27

7030 / 5428 DWT product - tanker


Purpose - sea and mixed (river-sea) carrying of crude oil and petroleum products, including benzine without restrictions for flash-point, with ensuring temperature of carrying cargo up to 60°C, and vegetable oil. Simultaneous carriage 2 sorts of cargo is provided.

Nominations:
RINA - Royal Institution of Naval Architects

RINA - Royal Institution of Naval Architects


# Name Value
1. Main dimensions
Length overall, m 140.85
Length between PP, m 137.10
Breadth scantlings, m 16.70
Depth, m 6.0
L x B x H 140.85 x 16.70 x 6.0 = 14 113
2. Draught (at sea / in river), m 4.20 / 3.60
3. Deadweight (at sea / in river), t 7030 / 5428
4. Endurance (at sea / in river), days 20 / 12
5. Number of tanks (cargo / slop) 8 (6 / 2)
6. Number of manifolds / sorts of cargo 2 manifolds / 2 sorts
7. Cargo tanks capacity
(including slop tanks), m³
8274
8. Cargo pumps, m³/h 6 x 200
9. Cargo heating coils
10. Tank wash system
and cleaning of washing liquid
slop tank's pump output 80 m³/h
11. RS class KM Ice1 R2 AUT1-ICS OMBO
VCS ECO-S Oil tanker (ESP)
12. ME power, kW 2 x 1200

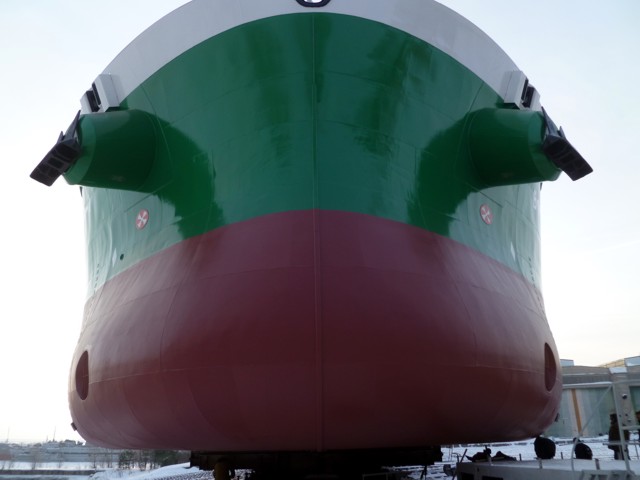

13. Rudder and propeller complex 2 x Rudderpropellers
14. Bow thruster, kW 230
15. Auxiliary engines:
diesel-generators, kW 3 x 292
emergency diesel-generator, kW 1 x 136
16. Thermal boilers, t/h 2 x 2.5
17. Crew / berth, pers. 12 / 14 + pilot
18. Speed (at draft d = 4.20 m and 100% MCR), knots 10.5
