PROJECT RST22

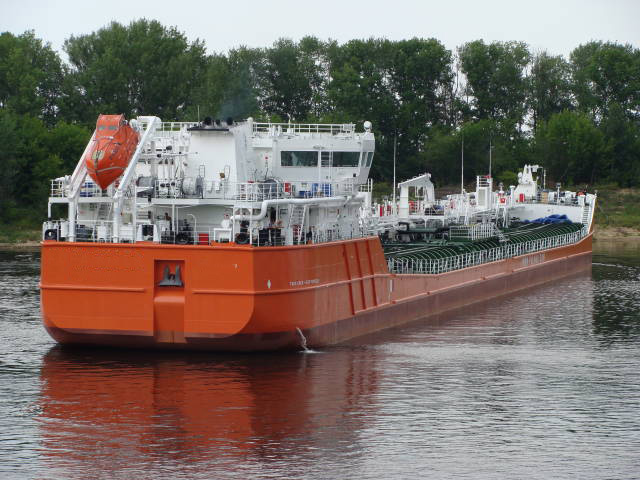

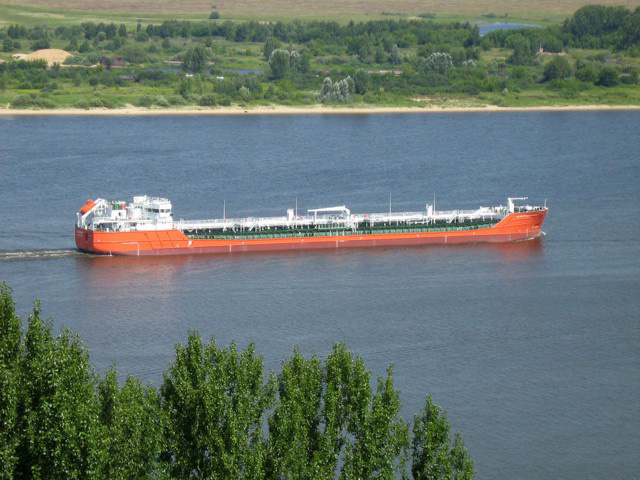

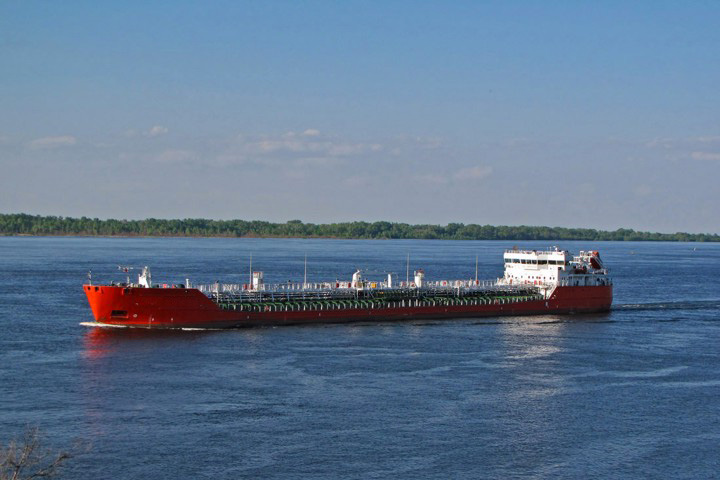

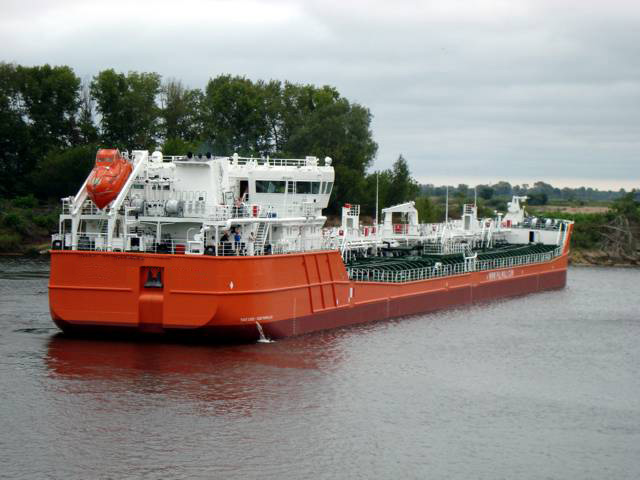

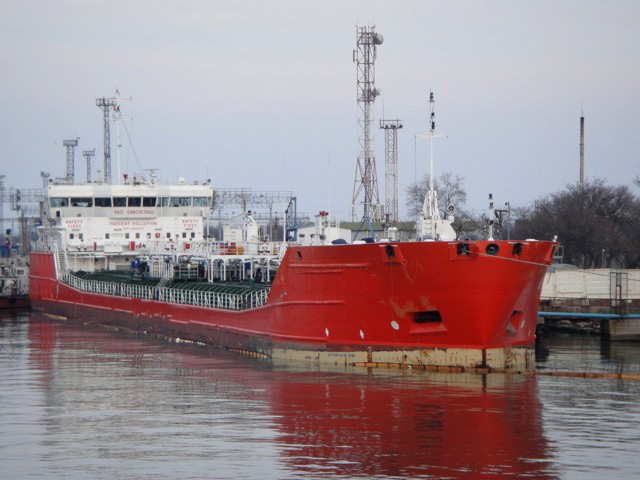

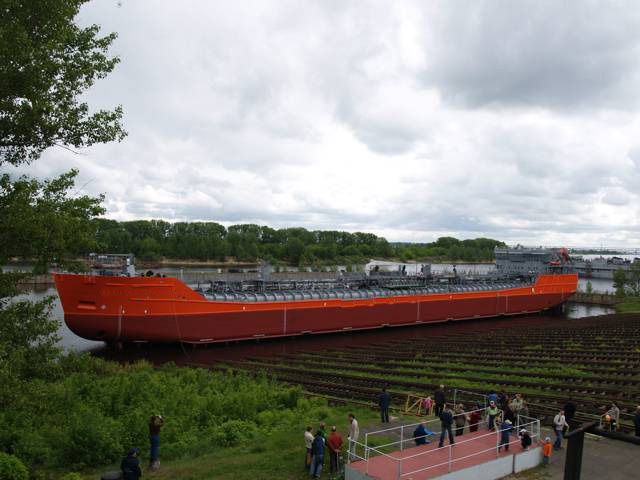

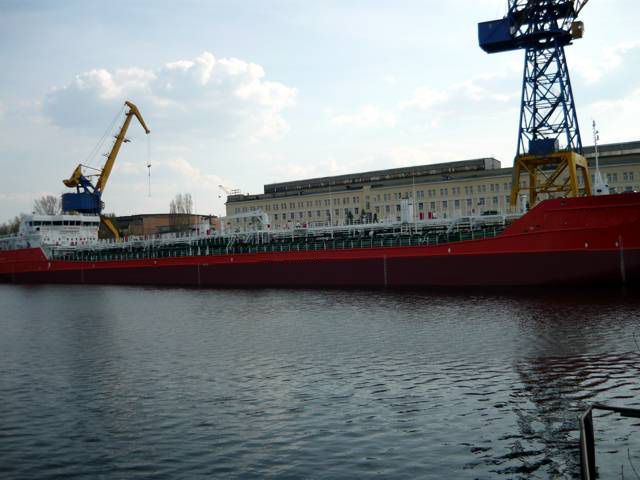

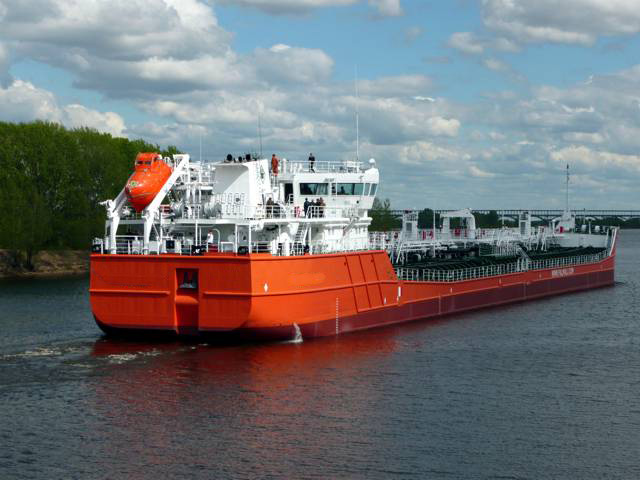

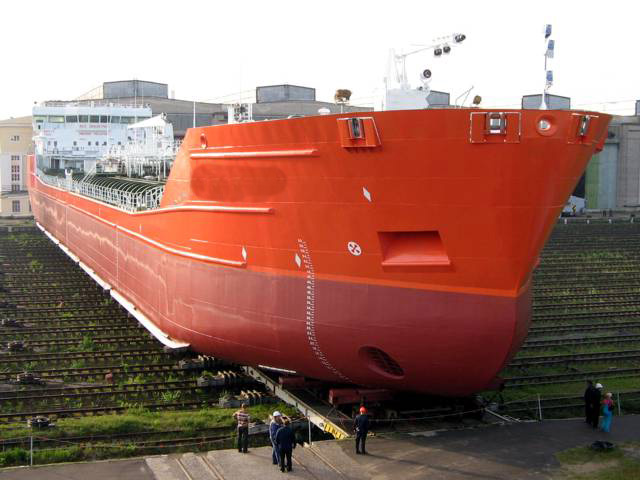

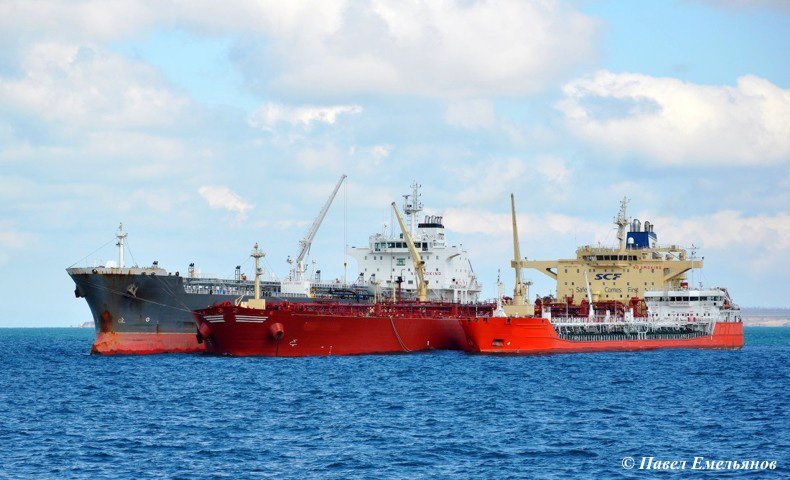

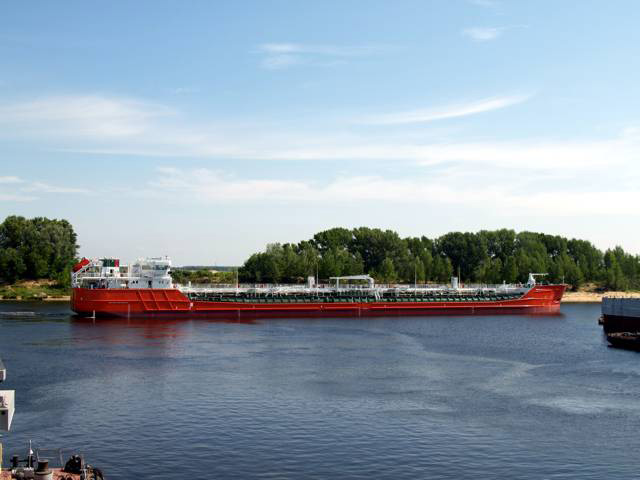

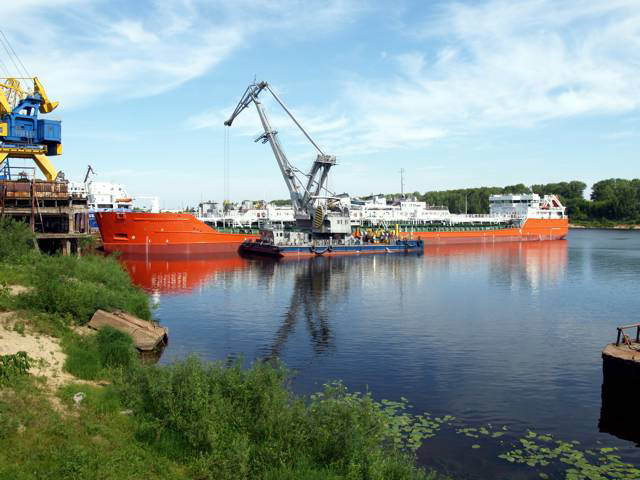

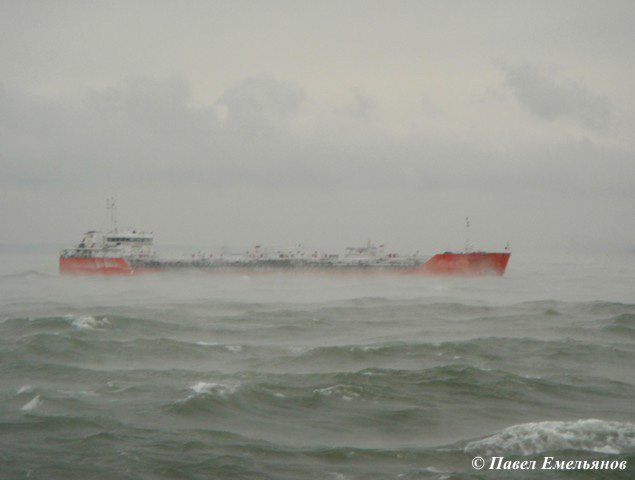

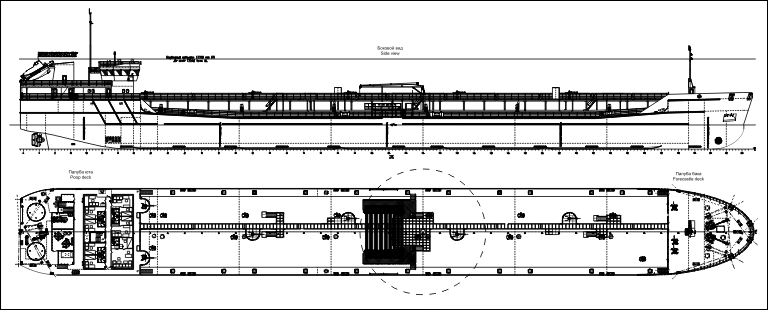

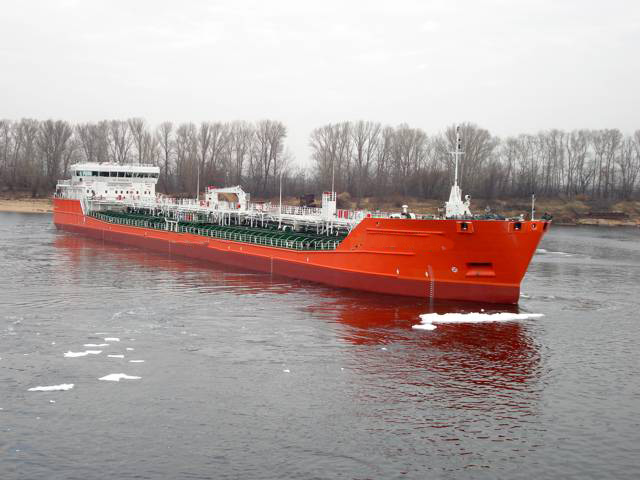

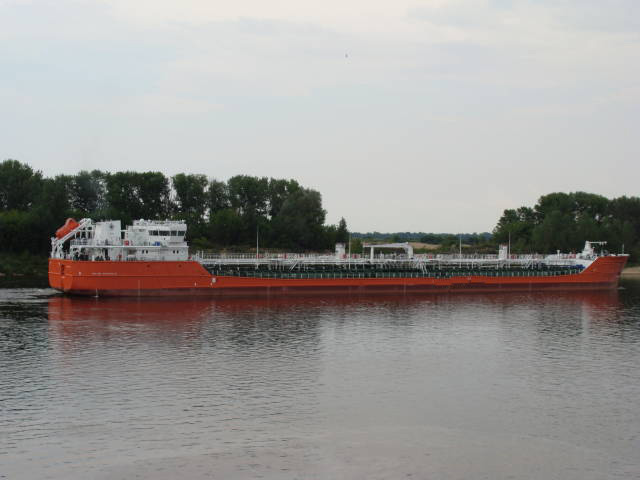

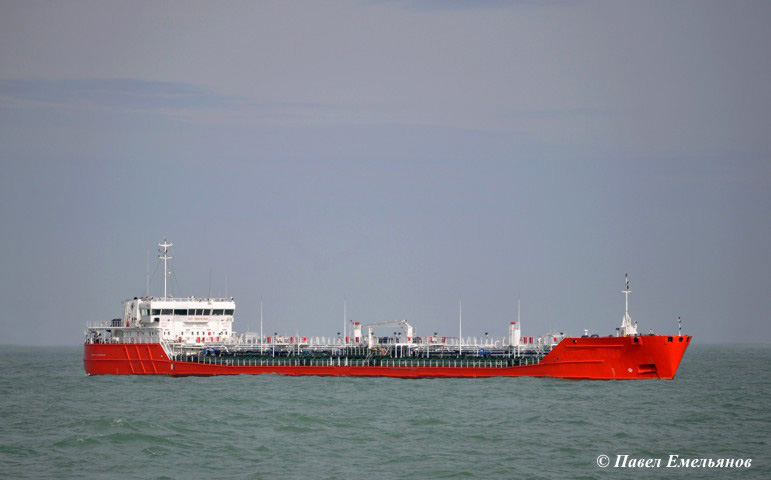

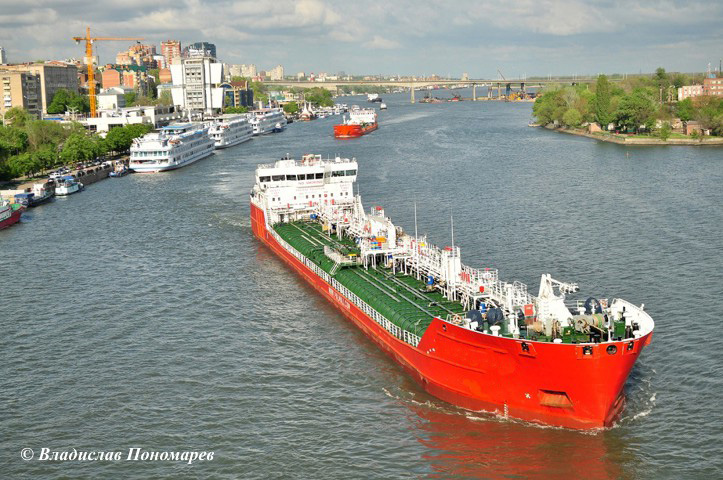

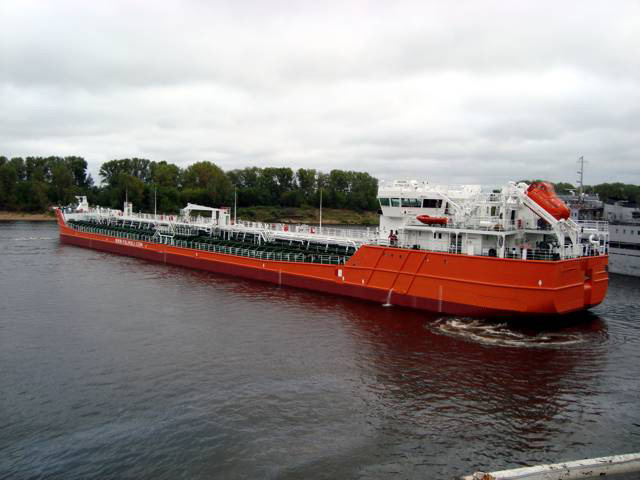

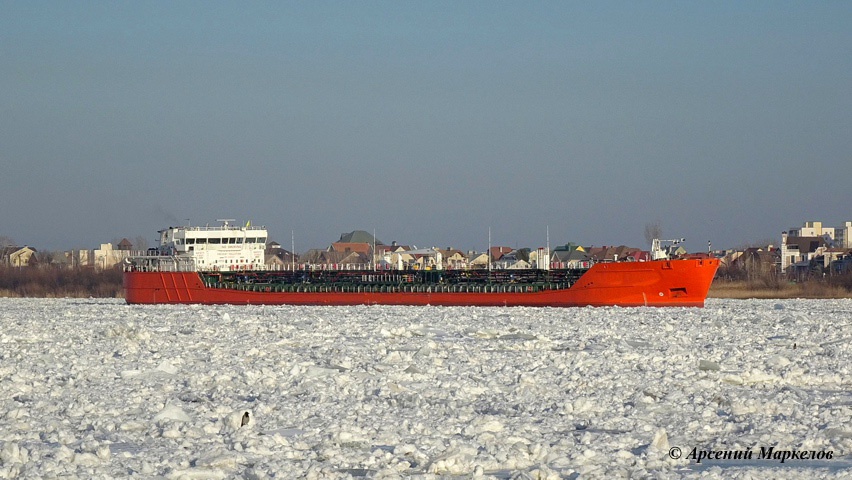

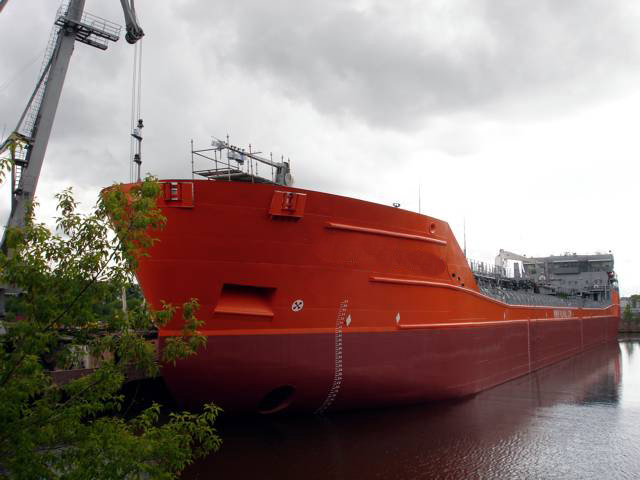

7008 DWT chemical - product tanker IMO2 (ECO PROJECT)

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 7 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18 Thumbnail 19 Thumbnail 20 Thumbnail 21 Thumbnail 22

Purpose - sea and mixed (river-sea) carrying of crude oil and petroleum products, including benzine without restrictions for flash-point, and vegetable oil. Providing simultaneous carriage three sorts of cargo.


# Name Value
1. Main dimensions
Length overall, m 139.95
Length, m 134.50
Breadth overall, m 16.83
Breadth, m 16.60
Depth, m 6.0
Depth of trunk, m 1.0
L x B x H 139.95 x 16.83 x 6.0 = 14 132
Air draft from WL at draught d = 3.0 m, m 14.20
2. Draught (at sea / in river), m 4.60 / 3.60
3. Ballast draft, m 3.12
4. Deadweight (at sea / in river), t 7008 / 4611
5. Endurance (at sea / in river), days 20 / 10
6. Range, nautical miles 4000
7. Cargo carrying capacity (at sea / in river), t 6609 / 4409
8. Number of cargo tanks 6
9. Cargo tanks capacity, m³ 7833
10. Slop tanks capacity, m³ 256
11. Number of manifolds / sorts of cargo 3 manifolds / 3 sorts
12. Cargo pumps, m³/h 6 x 150
13. Tank wash system
and cleaning of washing liquid		 slop tank's pump output 80 m³/h
14. Ballast tanks capacity, m³ 3606
15. RS class KM Ice2 R2 AUT1 ECO-S OMBO
oil/chemical tanker type 2 (vegetable oil) (ESP)
16. ME power, kW 2 x 1200

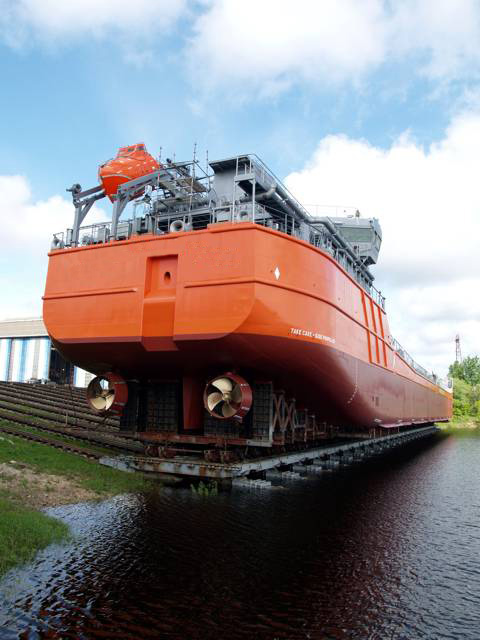

17. Rudder and propeller complex 2 x Rudderpropellers
18. Bow thruster, kW 230
19. Auxiliary engines:
diesel-generators, kW 3 x 292
emergency diesel-generator, kW 1 x 136
20. Boilers:
thermal, t/h 2 x 2.0
exhaust gas, t/h 2 x 0.38
21. Crew / berth, pers. 10 / 14
22. Speed, knots 10.5
