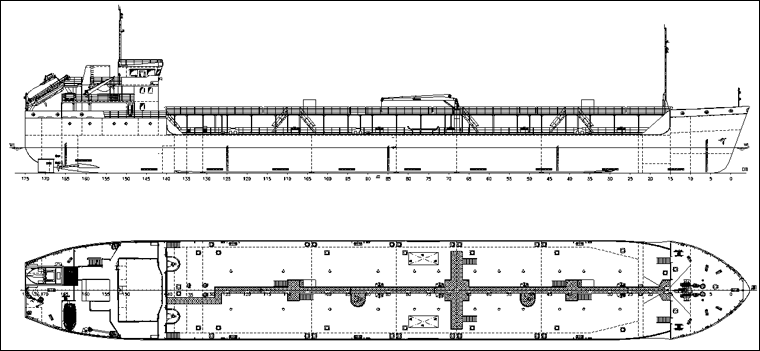

PROJECT RST17
3705 DWT chemical - product tanker IMO3

Purpose - sea and mixed (river-sea) carrying of petroleum products, including benzine without restrictions for flash-point.
# | Name | Value |
---|---|---|
1. | Main dimension | |
Length overall, m | 107.85 | |
Length, m | 105.0 | |
Breadth overall, m | 15.05 | |
Breadth, m | 14.80 | |
Depth, m | 5.70 | |
L x B x H | 107.85 x 15.05 x 5.70 = 9 252 | |
Air draft from WL at draught d = 3.0 m, m | 14.0 | |
2. | Draught (at sea / in river), m | 3.80 / 3.60 |
3. | Ballast draft, m | 3.0 |
4. | Deadweight (at sea / in river), t | 3705 / 3415 |
5. | Endurance, days | 10 |
6. | Range, nautical miles | 2160 |
7. | Cargo carrying capacity (at sea / in river), t | 3549.5 /3259.5 |
8. | Number of cargo tanks | 10 |
9. | Cargo tanks capacity, m³ | 3800 |
10. | Slop tanks capacity, m³ | 140 |
11. | Number of manifolds / sorts of cargo | 1 manifold / 1 sort |
12 | Cargo pumps, m³/h | 2 x 150 |
13. | Tank wash system and cleaning of washing liquid |
slop tank pump output 80 m³/h |
14. | Ballast tanks capacity, m³ | 2020 |
15. | RRR class | ![]() |
16. | ME power, kW | 2 x 515 |
17. | Auxiliary engines: | |
diesel-generators, kW | 3 x 100 | |
emergency diesel-generator, kW | 1 x 60 | |
18. | Crew, pers. | 12 |
19. | Speed, knots | 9 |
