PROJECTS RST14 and RST14.01

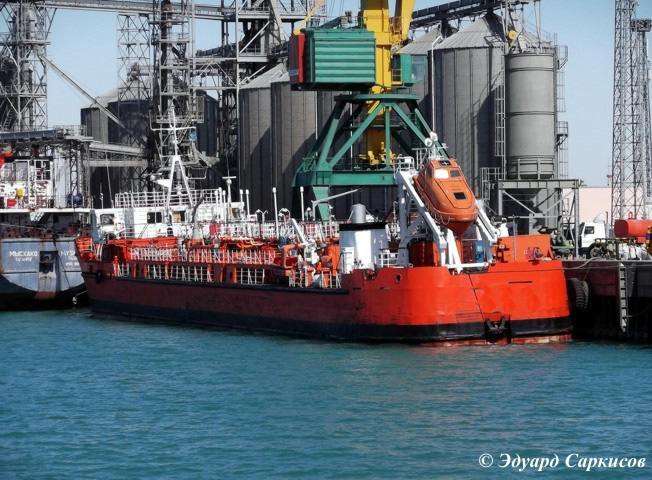

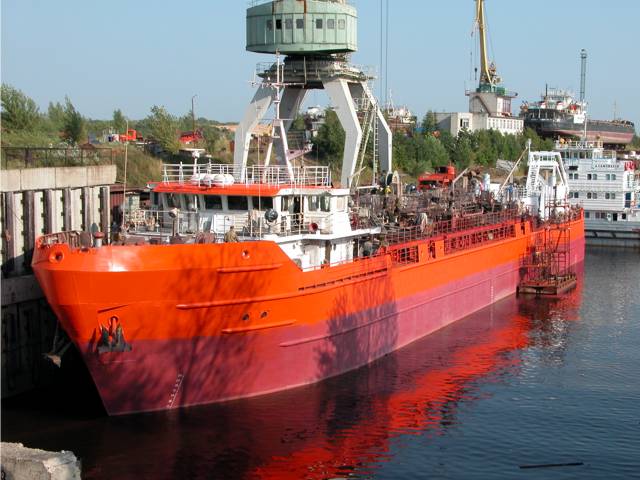

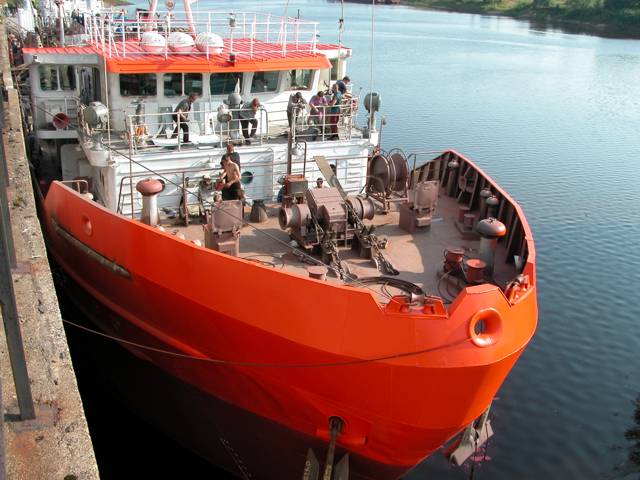

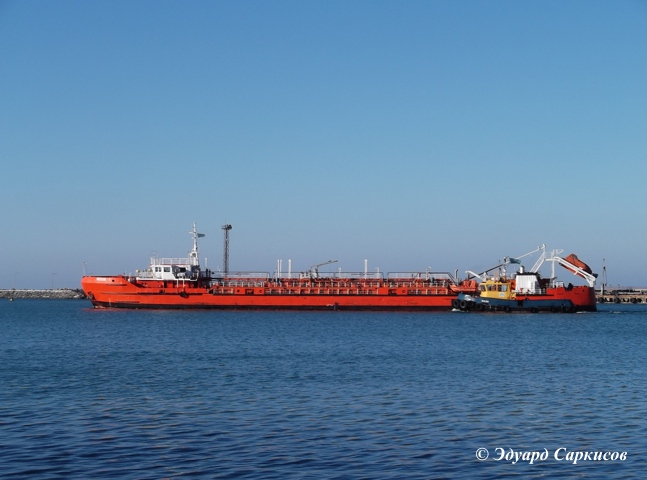

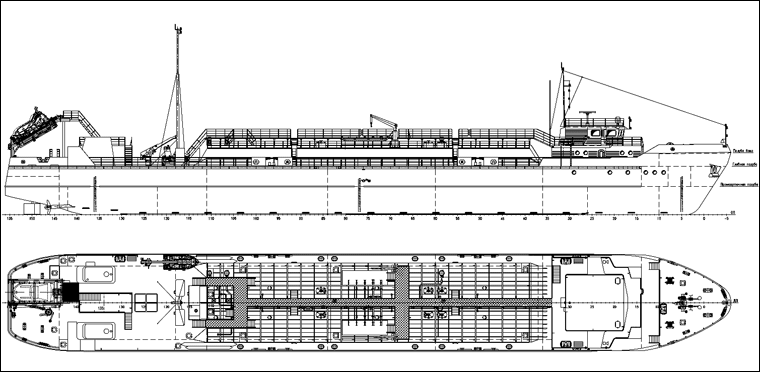

2821 DWT chemical - product tanker

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 7 Thumbnail 8 Thumbnail 9 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14

Purpose - sea and mixed (river-sea) carrying of petroleum products with flash-point >60°C, vegetable oil and some chemical cargoes.


# Name Value
1. Main dimension
Length overall, m 89.12
Length, m 83.60
Breadth overall, m 12.20
Breadth, m 12.0
Depth, m 6.0
Depth of trunk, m 1.24
L x B x H 89.12 x 12.20 x 6.0 = 6 524
Air draft from WL at draught d = 2.50 m, m 12.0
2. Draught (at sea / in river), m 4.18 / 3.60
3. Ballast draft, m 2.50
4. Deadweight (at sea / in river), t 2821 / 2161
5. Endurance, days 10
6. Range, nautical miles 2400
7. Cargo carrying capacity (at sea / in river), t 2432 / 2037
8. Number of cargo tanks 6
9. Cargo tanks capacity, m³ 2236
10. Number of manifolds / sorts of cargo 2 manifolds / 2 sorts
11. Cargo pumps, m³/h 2 x 150
12. Cargo heating coils
13. Tank wash system
and cleaning of washing liquid		 slop tank's pump output 80 m³/h
14. Ballast tanks capacity, m³ 882
15. RS class KM IISP, oil carrier (>60°C) (ESP)
16. ME power, kW 2 x 515
17. Auxiliary engines:
diesel-generators, kW 3 x 100
emergency diesel-generator, kW 1 x 50
18. Boilers:
thermal, t/h 1 x 1.5
exhaust gas, t/h 2 x 0.18
19. Crew, pers. 12
20. Speed, knots 10
