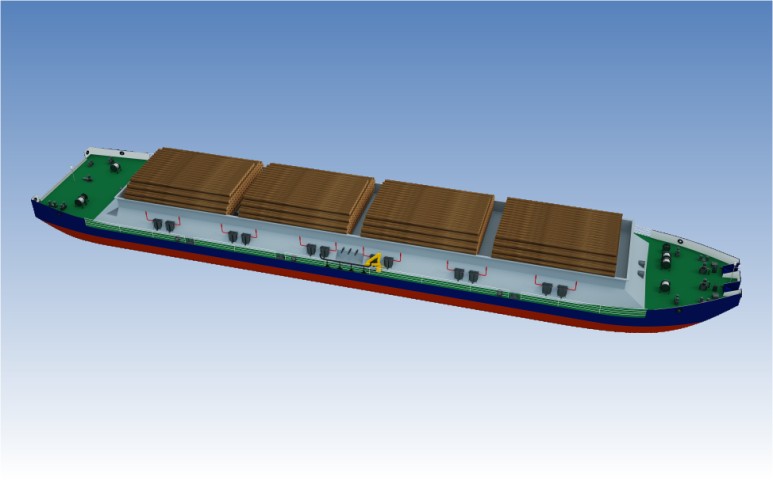

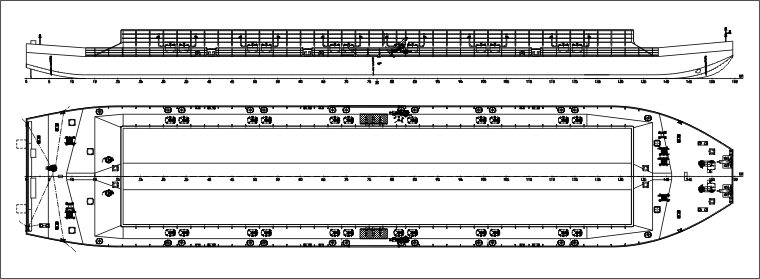

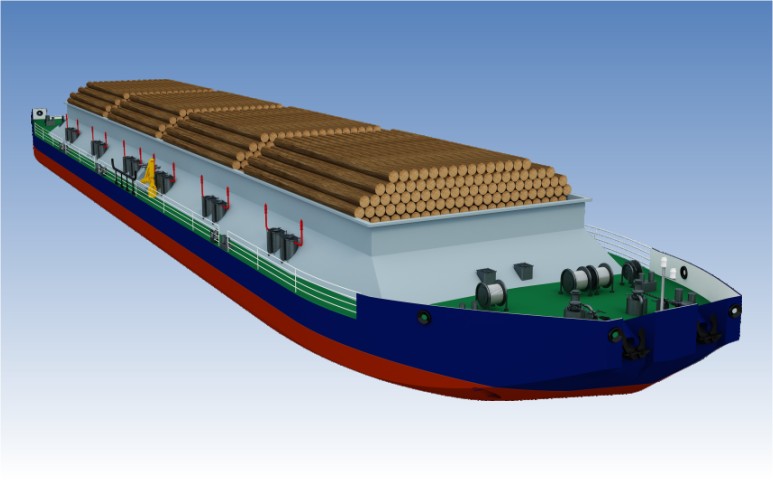

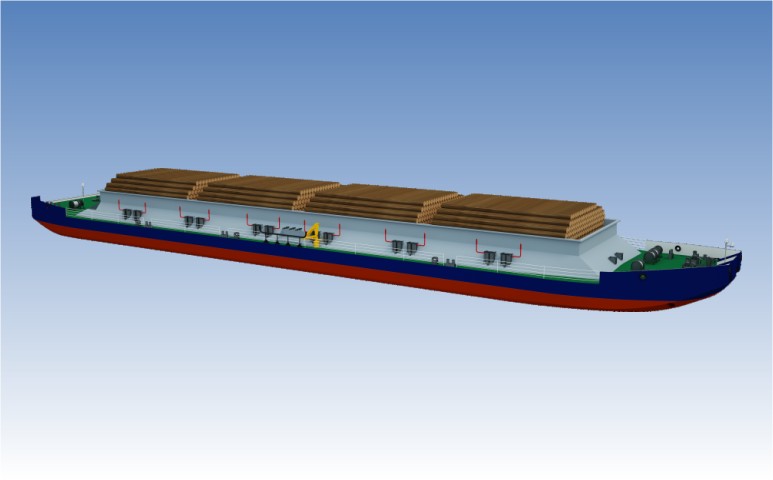

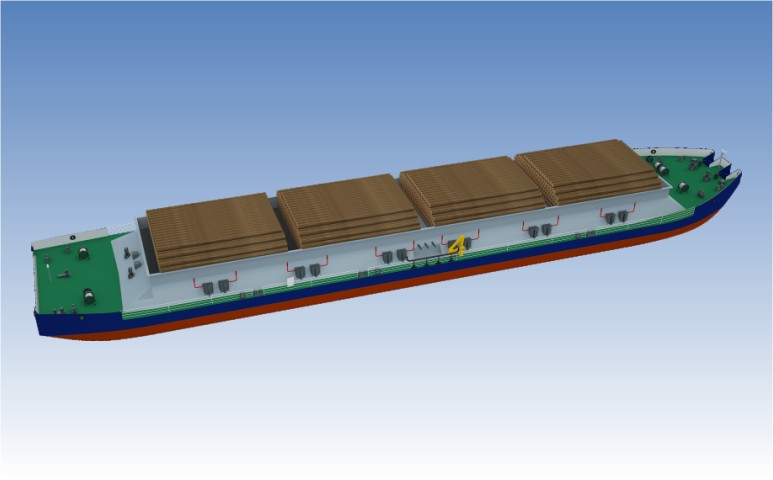

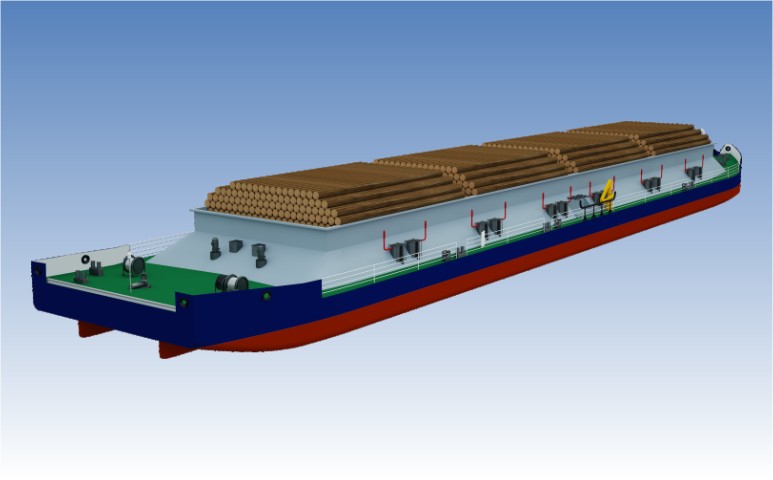

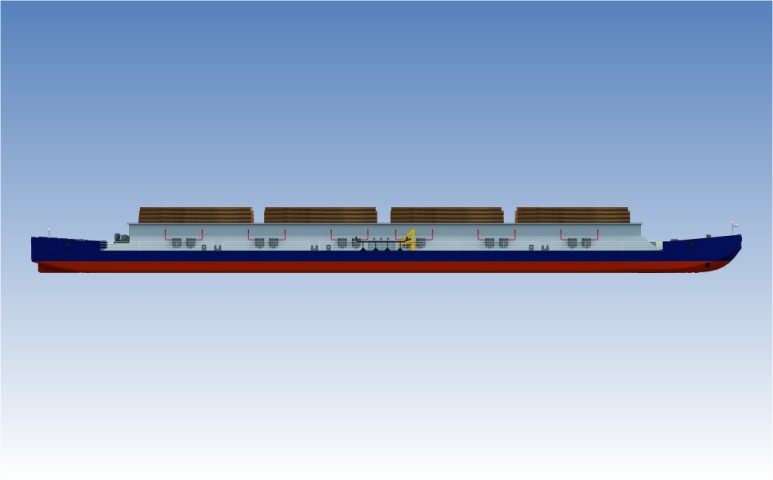

PROJECT ROB21A
Small draught non-self-propelled river combined (dry-cargo vessel / oil tanker)







							Purpose - transportation of the oil cargoes, general and bulk cargoes, which can be wet: steel and steel products, timber (logs and lumber), coil, building materials, large-dimension and heavy-weight cargoes, TEU and FEU containers of international standard.
| # | Name | Value |
|---|---|---|
| 1. | Main dimensions | |
| Length overall by hull, m | 85.0 | |
| Length by DWL, m | 84.40 | |
| Breadth by hull, m | 17.20 | |
| Length by DWL, m | 17.0 | |
| Depth, m | 2.60 | |
| L x B x H | 85.0 x 17.20 x 2.60 = 3 801 | |
| 2. | Draught on DWL, m | 1.80 |
| 3. | Deadweight in river at draught d = 1.40 / 1.60 / 1.80 / 2.0 / 2.15 / 2.35 m (about), t  |
	1188 / 1462 / 1736 / 2009 / 2216 / 2490 |
| 4. | Number of cargo tanks | 14 |
| 5. | Cargo tanks capacity (when filling 98%), m³ | 3257.0 |
| 6. | Area of cargo deck of bunker (about), m² | 709.0 |
| 7. | Cargo bunkers capacity (to level of upper plate coaming) (about), m³  |
	1048.0 |
| 8. | Maximum loads on cargo deck, t/m² | 5.0 |
| 9. | Cargo pumps, m³/h | 2 x 300 |
| 10. | RRR class |   R 1.2 (ice 20) |

| 11. | Bow thruster, kW | 55 |
| 12. | GT | 1799 |
 R 1.2 (ice 20)
