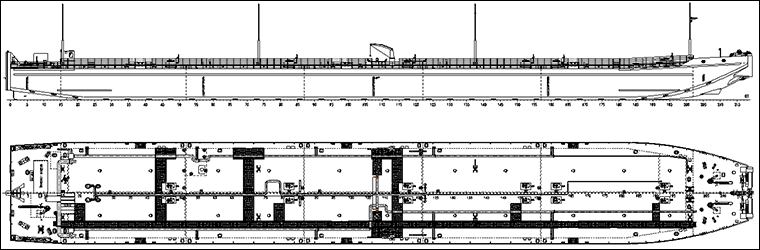

PROJECT 005ROB04
5125 tons cargo capacity non-self-propelled oil tanker

Purpose - sea and mixed (river-sea) carrying of crude oil and petroleum products, including benzine without restrictions for flash-point.
# | Name | Value |
---|---|---|
1. | Main dimensions | |
Length overall, m | 121.80 | |
Length, m | 119.11 | |
Breadth overall, m | 16.80 | |
Breadth, m | 16.50 | |
Depth, m | 5.0 | |
L x B x H | 121.80 x 16.80 x 5.0 = 10 231 | |
Air draft at ballast draft, m | 5.80 | |
2. | Draught on DWL, m | 3.60 |
3. | Ballast draft, m | 2.20 |
4. | Cargo carrying capacity in river at DWL draught, t | 5125 |
5. | Number of tanks (cargo / slop) | 10 / 2 |
6. | Cargo tanks capacity (including slop tanks), m³ |
5780 |
7. | Cargo pumps, m³/h | 2 x 400 |
8. | Ballast tanks capacity, m³ | 1600 |
9. | RRR class | ![]() |
10. | Bow thruster, kW | 257 |
