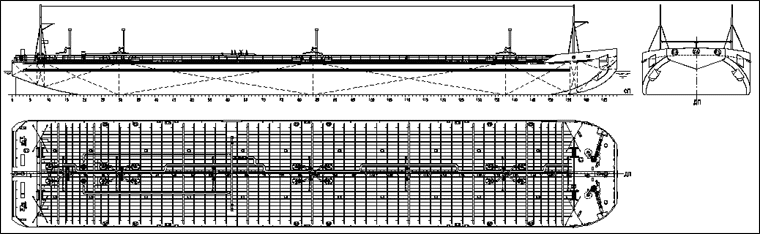

PROJECT 004ROB05

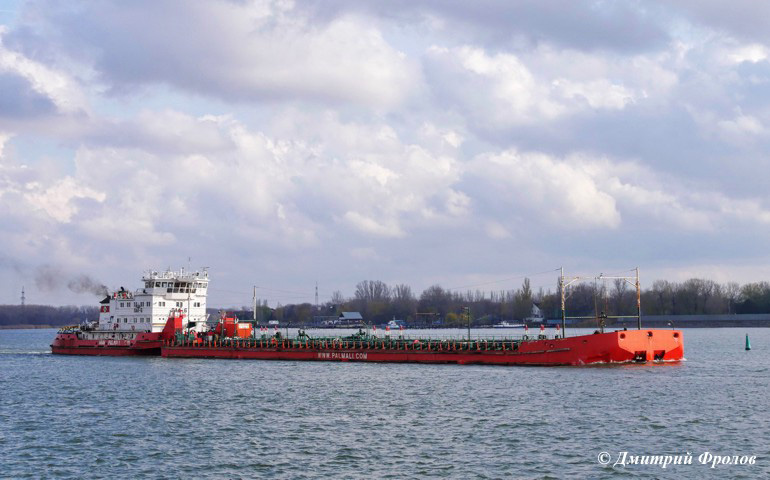

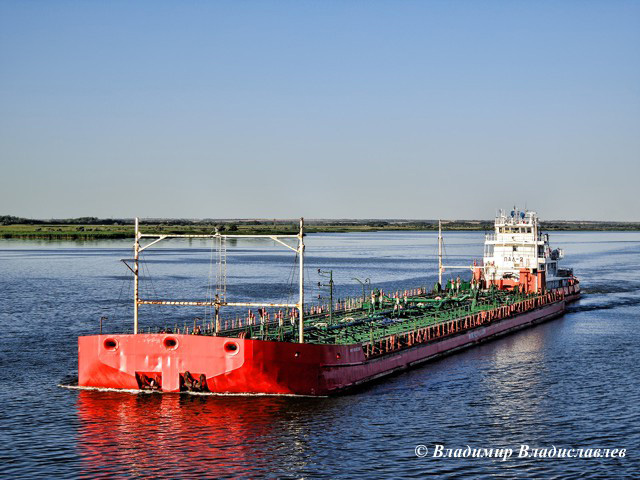

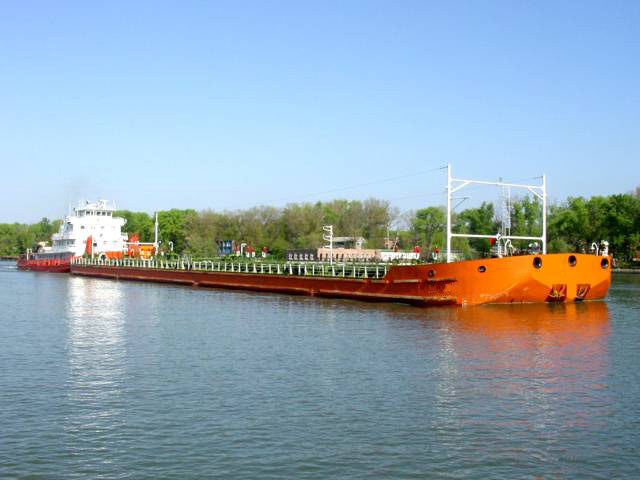

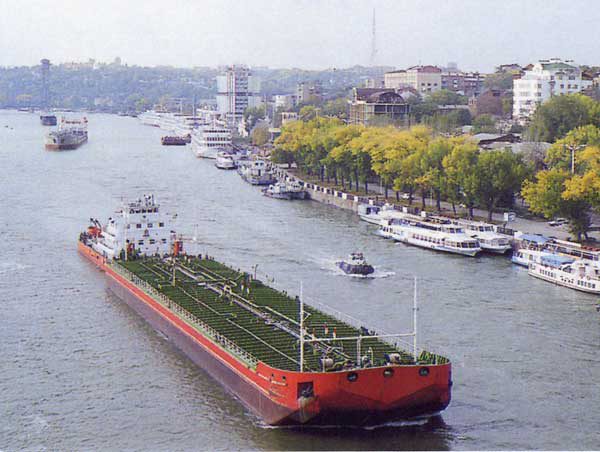

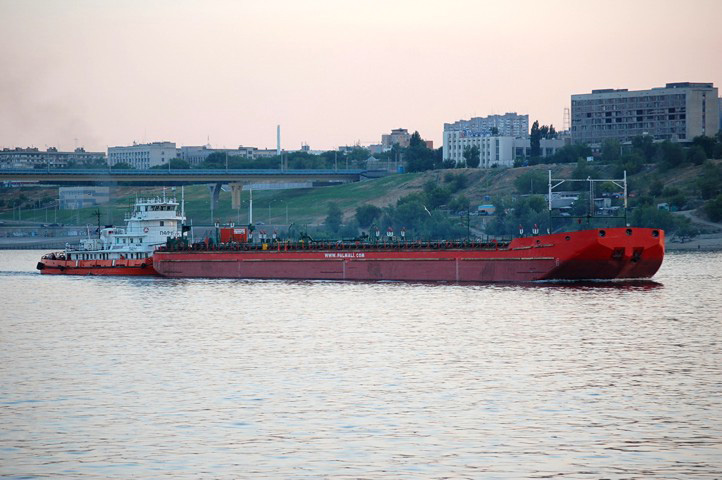

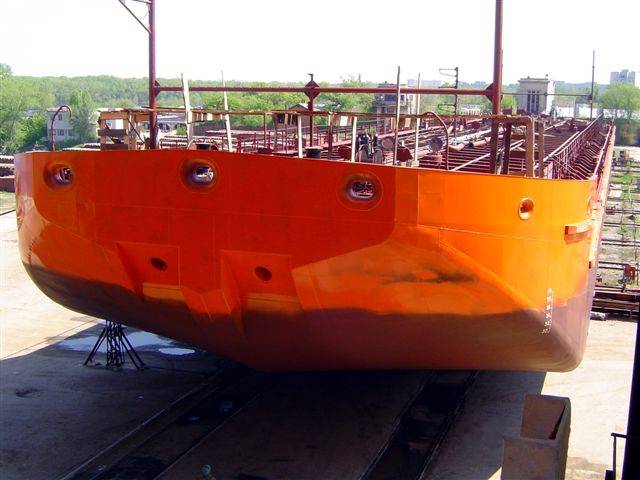

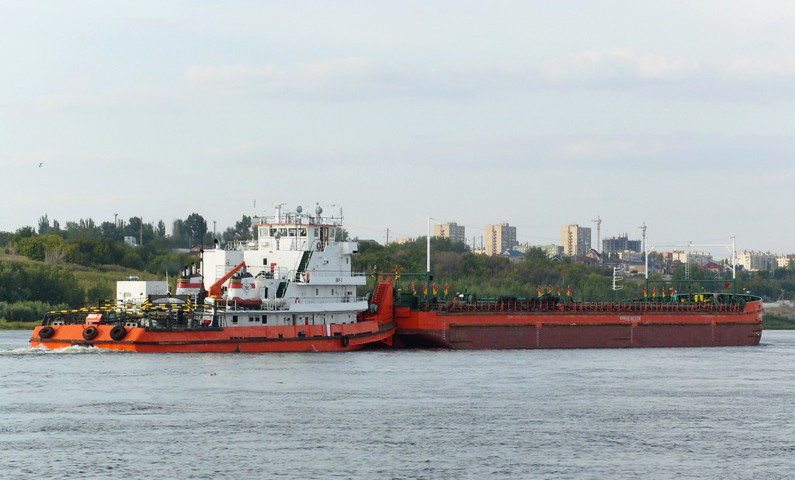

4324 t cargo capacity non-self-propelled oil tanker
Purpose - sea and mixed (river-sea) carrying of the oil-liquid cargoes without restrictions for flash-point, including crude oil & oil products.
| # | Name | Value |
|---|---|---|
| 1. | Main dimensions | |
| Length overall, m | 93.0 | |
| Length, m | 92.58 | |
| Breadth overall, m | 16.70 | |
| Breadth, m | 16.50 | |
| Depth, m | 5.0 | |
| L x B x H | 93.0 x 16.70 x 5.0 = 7 766 | |
| 2. | Draught, m | 3.60 |
| 3. | Ballast draft, m | 1.54 |
| 4. | Cargo carrying capacity, t | 4324 |
| 5. | Number of tanks (cargo / slop) | 12 / 2 |
| 6. | Tanks capacity (cargo / slop), m³ | 4620 (4466 / 154) |
| 7. | Cargo pumps, m³/h | 2 x 300 |
| 8. | Number of ballast tanks | 10 |
| 9. | Ballast tanks capacity, m³ | 1009 |
| 10. | RS class | K  R3-RSN oil carrier (ESP) |
