PROJECT ST184
Crab ship - processor







Purpose - the installation of cage traps for catching crabs of various sizes and the production of frozen at sea products, with the processing of the catch directly on board the vessel. Provides the ability to catch crabs at depths from 20 to 400 m.
# | Name | Value |
---|---|---|
1. | Main dimension | |
Length overall, m | 61.90 | |
Breadth, m | 15.00 | |
Depth, m | 9.25 | |
L x B x H, m | 61.90 x 15.00 x 9.25 = 8 589 | |
2. | Draught from BL, m | 6.50 |
3. | Endurance, days | 50 |
4. | Range, nautical miles | 6000 |

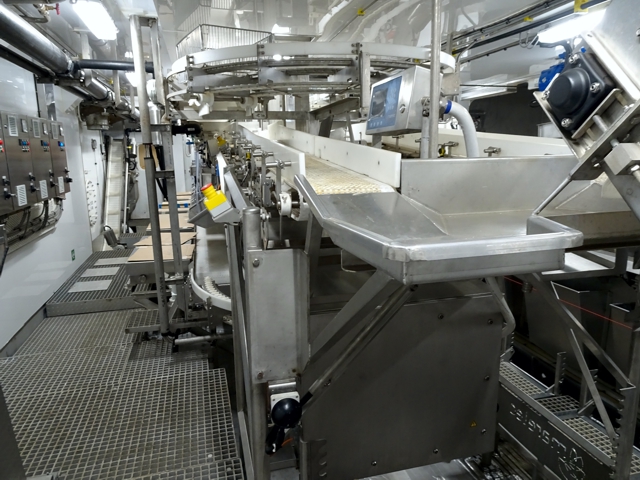

5. | Capacity of the crab processing complex, t/day: | |
snow crab (processing / finished frozen products) | 30 / 20 | |
king crab (processing / finished frozen products) | 60 / 40 | |
6. | Freezer cargo hold capacity, m³ | 1018 |
7. | Cargo-handling equipments (lifting capacity x boom): | |
2 cranes with bampers for work with crab traps | 1.0 t x 20.0 m / 3.0 t x 10.0 m |
|
2 stern booms | 0.99 t each | |
fore crane | 0.99 t x 8 m | |
8. | RS class | KM ![]() |
9. | ME power, kW | 1 x 2555 |
10. | Rudder and propeller complex | 1 CPP + rudder with flap |
11. | Bow thruster, kW | 1 x 600 |
12. | Stern thruster, kW | 1 x 465 |
13. | Auxiliary engines: | |
diesel-generators, kW | 1 x 940 + 1 x 350 |
|
shaft generator, kW | 1700 | |
emergency diesel-generator | 1 x 100 | |
14. | Crew and plant personnel, pers. | 38 |
15. | Speed, knots | 11 |
