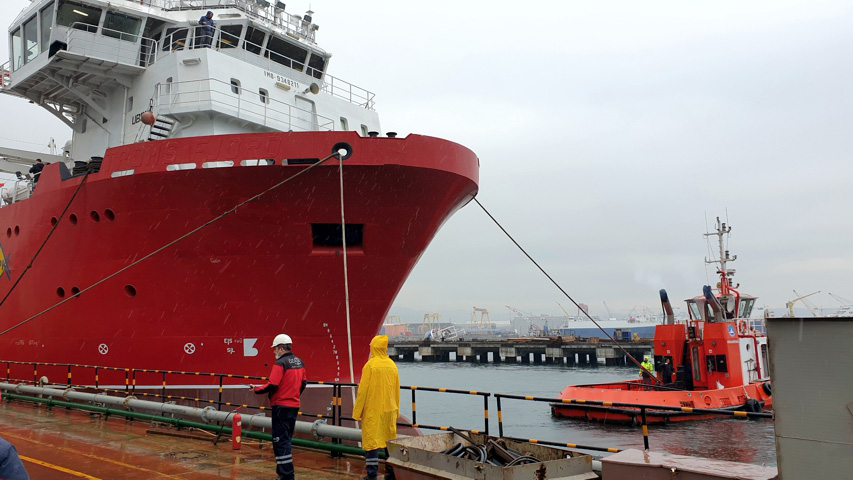

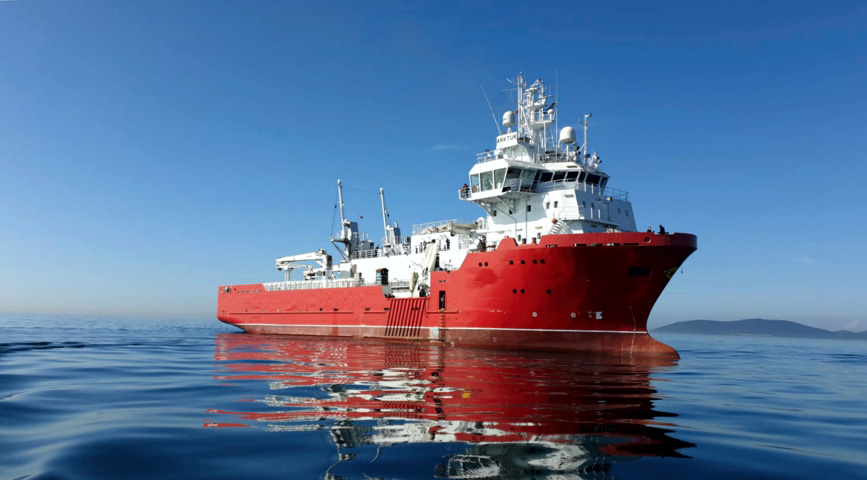

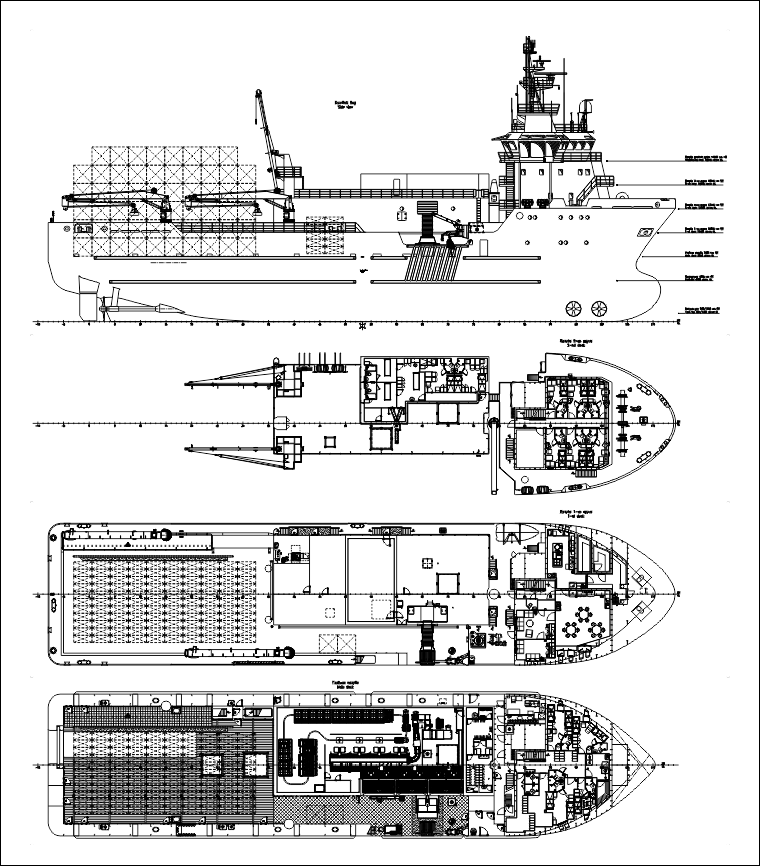

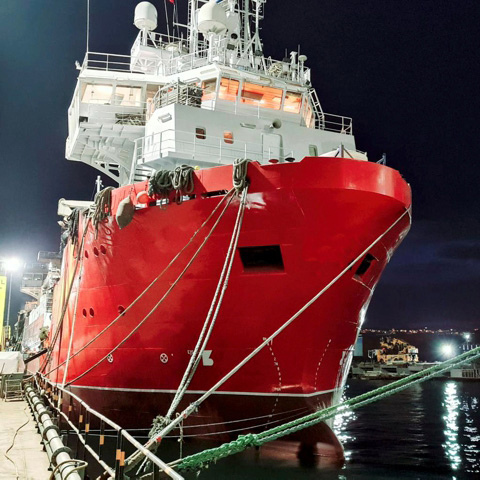

PROJECT KSP02
Crab ship - processor
Purpose:
- Kamchatka and Snow crab harvesting by traps of cone, trapezoid and rectan-gle types;
- processing of caught crab into boiled-frozen products with subsequent storage in the hold;
- storage of finished product in cargo hold and transshipment at sea to refrig-erating transport vessels moored along-side with the help of cargo booms by "on phone" method at sea state up to 4.
| # | Name | Value |
|---|---|---|
| 1. | Main dimension | |
| Length overall, m | 73.40 | |
| Length between PP, m | 64.00 | |
| Breadth, m | 16.60 | |
| Depth to the main deck, m | 7.60 | |
| L x B x H | 73.40 x 16.60 x 7.60 = 9 260 | |
| 2. | Draught, m | 5.90 |
| 3. | Deadweight, t | 2548 |
| 4. | Endurance (about), days | 35 |
| 5. | Range, nautical miles | 6000 |
| 6. | Capacity of the crab processing complex, t/day: | |
| snow crab (processing / finished frozen products) | 30 / 20 | |
| king crab (processing / finished frozen products) | 60 / 40 | |
| 7. | Freezer cargo hold capacity (about), m³ | 1750 |
| 8. | Capacity of the receiving storage bunker for live sorted crab, m³ |
52 |
| 9. | Cargo-handling equipments (lifting capacity x boom): | |
| deck crane | 0.99 t x 12 m | |
| 2 deck cranes | 1.0 t x 20 m, 3.0 t x 11 m | |
| 10. | 2 stern booms loading / unloading (not greater than) | 0.99 t each |
| 11. | RS class | KM  AUT1 (REF) BWM(T) PMS TMS Fishing vessel |
| 12. | ME power, kW | 2 x 2400 |
| 13. | Rudder and propeller complex | 2 CPP + rudders |
| 14. | Bow thruster, kW | 2 x 588 |
| 15. | Auxiliary engines: | |
| diesel-generators, kW | 1 x 277 + 1 x 410 |
|
| shaft generator, kW | 1300 | |
| 16. | Crew and plant personnel, pers. | 40 |
| 17. | Speed (design), knots | 12 |
