PROJECT KSP01

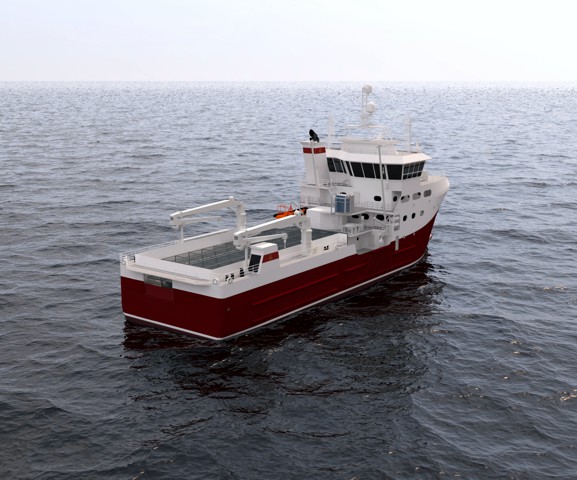

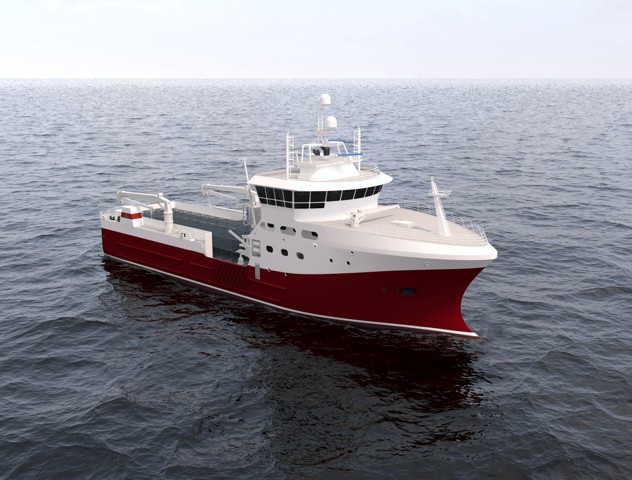

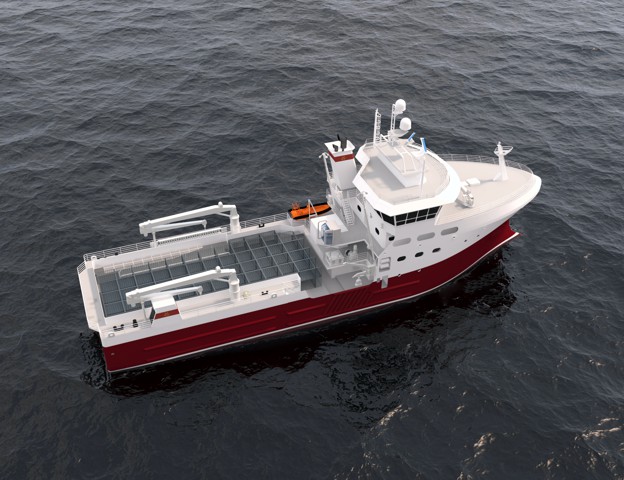

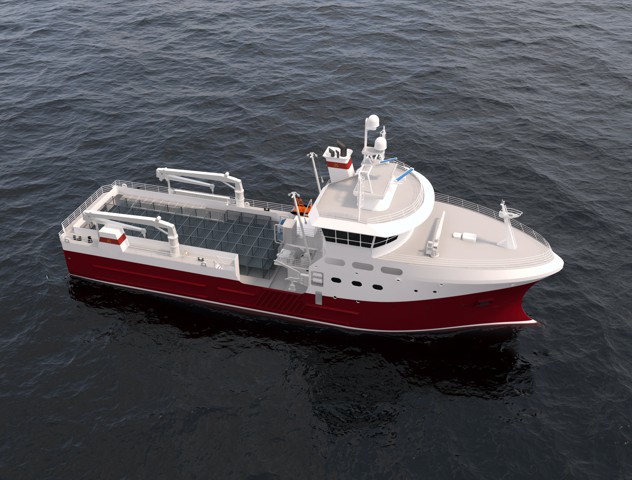

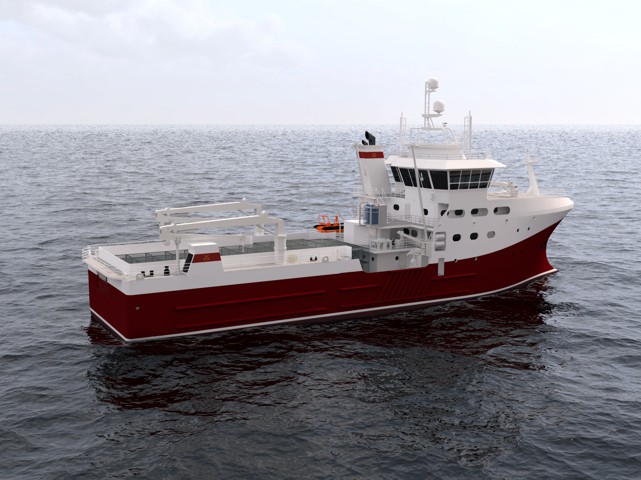

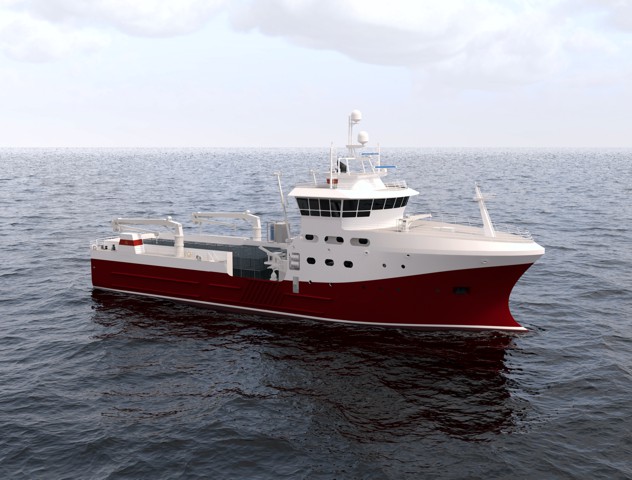

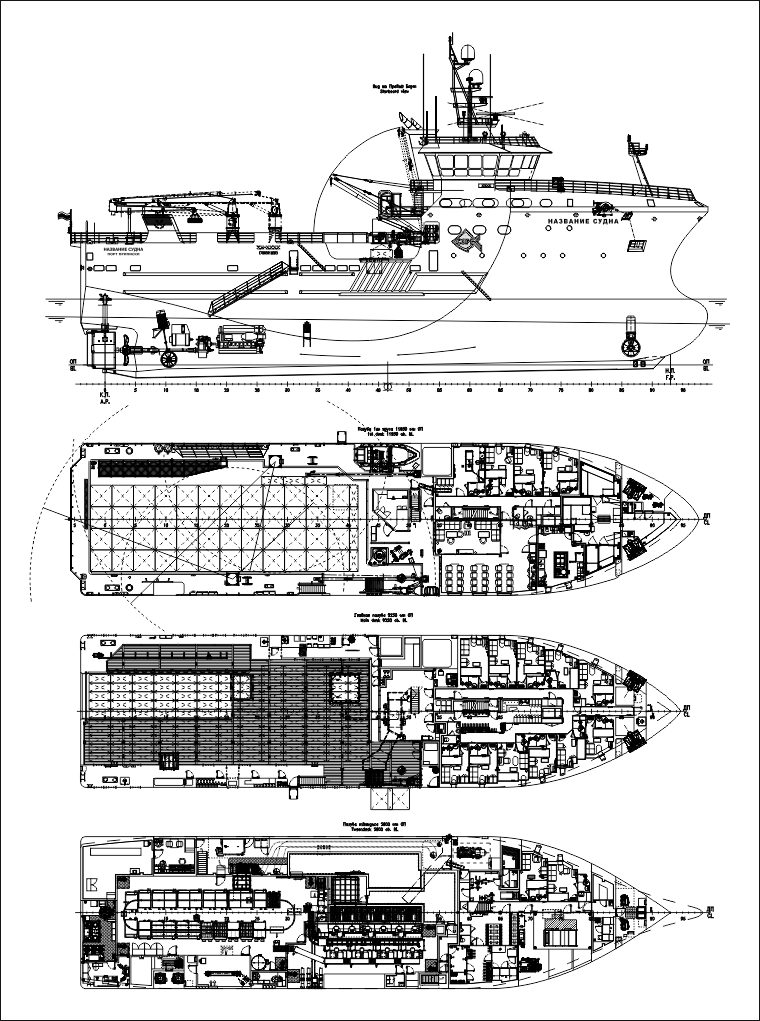

Crab ship - processor "Vaygach" type

°




Назначение - provides the ability to catch various types of crabs of crabs at depths from 20 m to 400 m and production of frozen products at sea directly on board the vessel.



Laying of the keel Laid down Delivery Years of construction
5     2020-


# Name Value
1. Main dimension:
Length overall, m 61.90
Breadth, m 15.00
Depth, m 9.25
2. Draught from BL, m 6.50
3. Endurance, days 50
4. Range, nautical miles 6000
5. Capacity of the crab processing complex, t/day:
opilio crab (processing / finished frozen products) 30 / 20
king crab (processing / finished frozen products) 60 / 40
6. Freezer cargo hold capacity, m³ 1082
7. Cargo-handling equipments (lifting capacity x boom):
2 cranes for work with crab traps 3.0 t x 17.0 m
2 stern booms 2.0 t each
fore crane 0.99 t x 8 m
8. RS class KM ° Ice3 (hull;machinery) AUT1
(REF) BWM(T) PMS TMS Fishing vessel
9. ME power, kW 1 x 2720
10. Rudder and propeller complex 1 CPP + rudder with flaps
11. Bow thruster, kW 1 x 600
12. Stern thruster, kW 1 x 440
13. Auxiliary engines:
diesel-generator, kW 1 x 1155
shaft generator, kW 1700
harbor diesel-generator, kW 1 x 360
emergency diesel-generators, kW 1 x 105
14. Crew and plant personnel, pers. 38
15. Speed, knots 11.0
