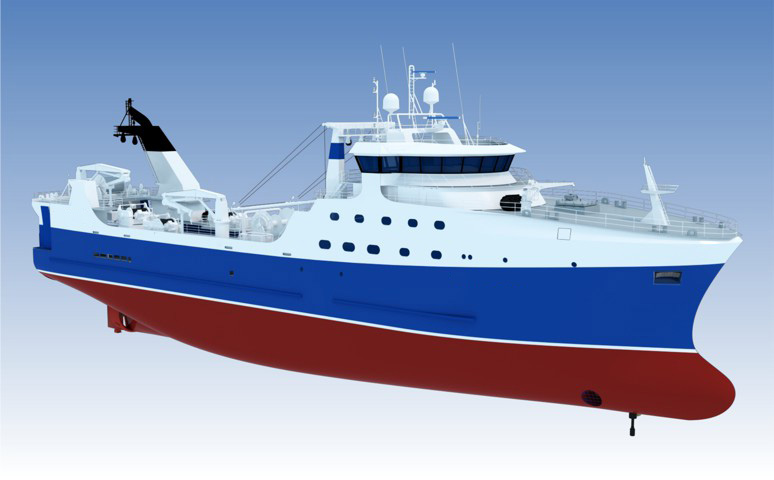

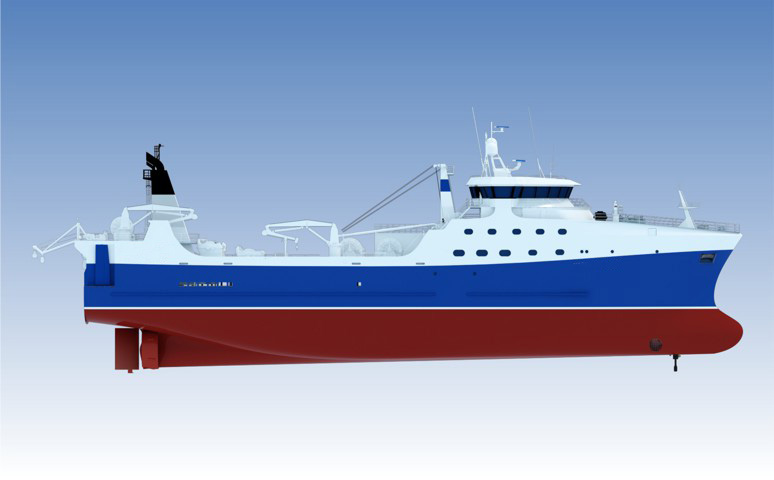

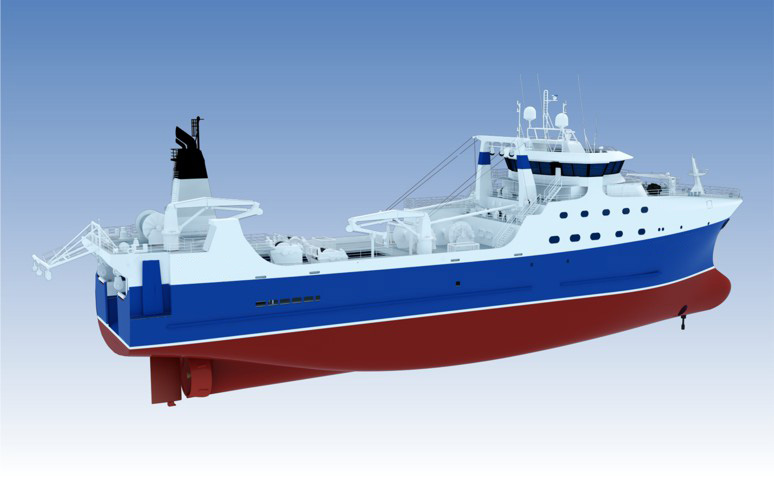

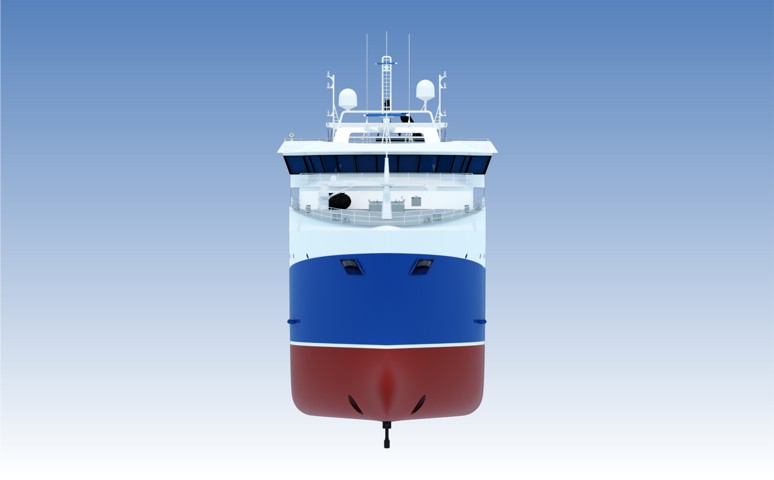

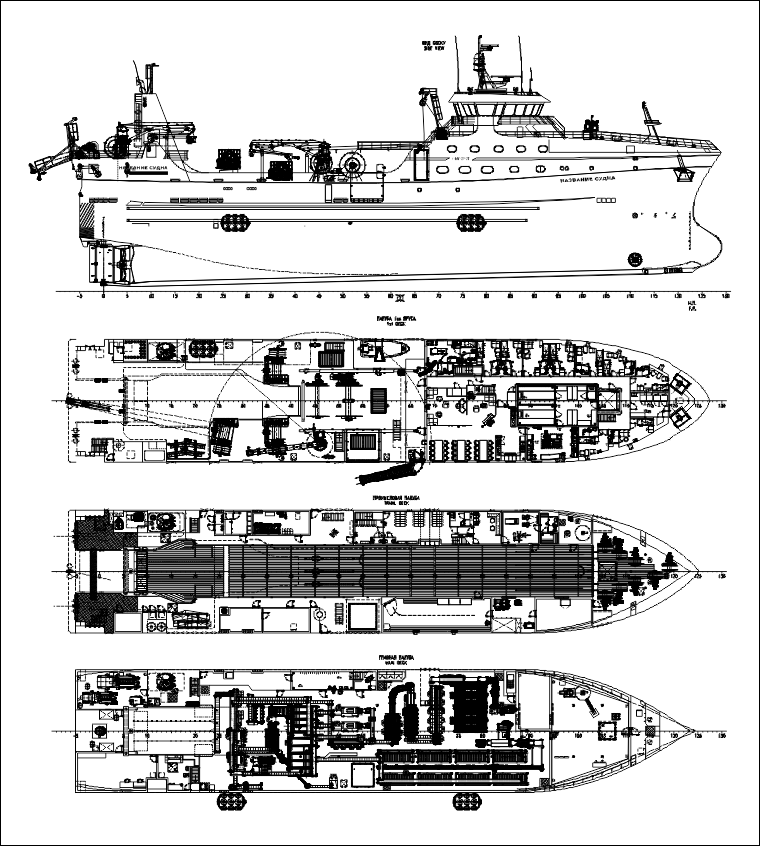

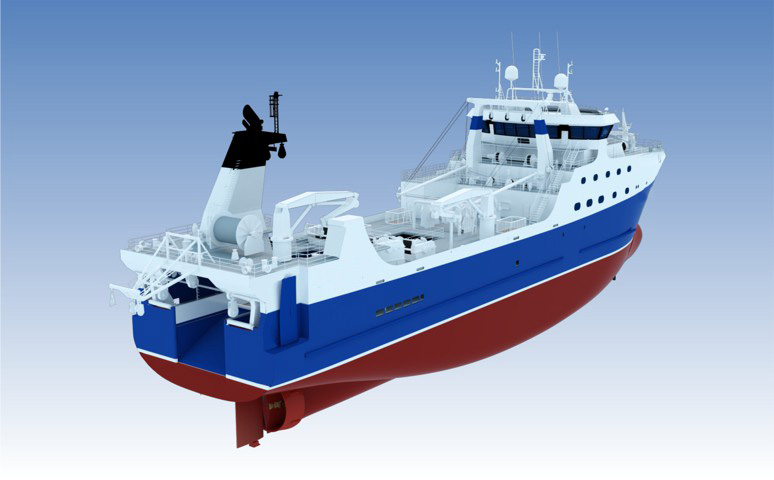

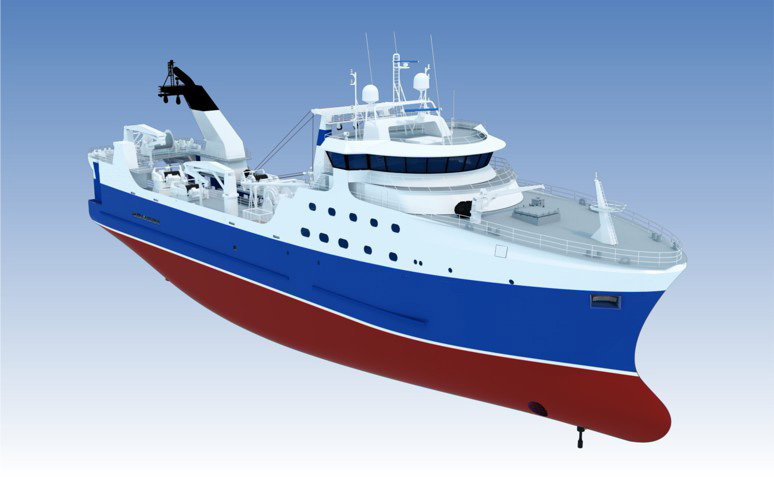

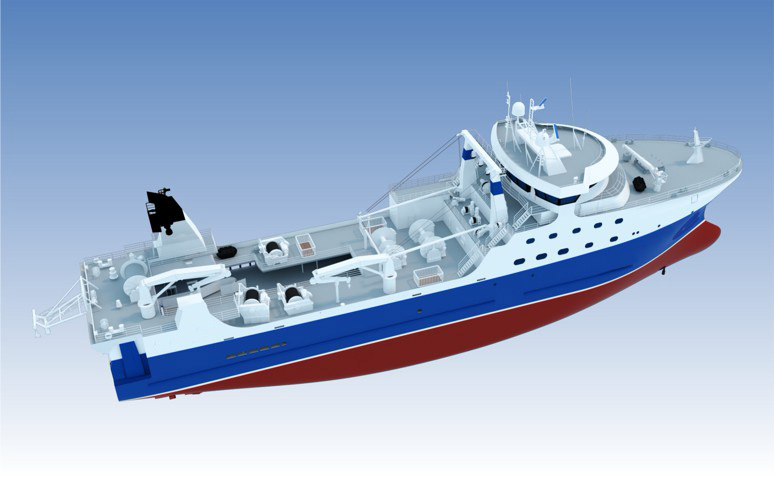

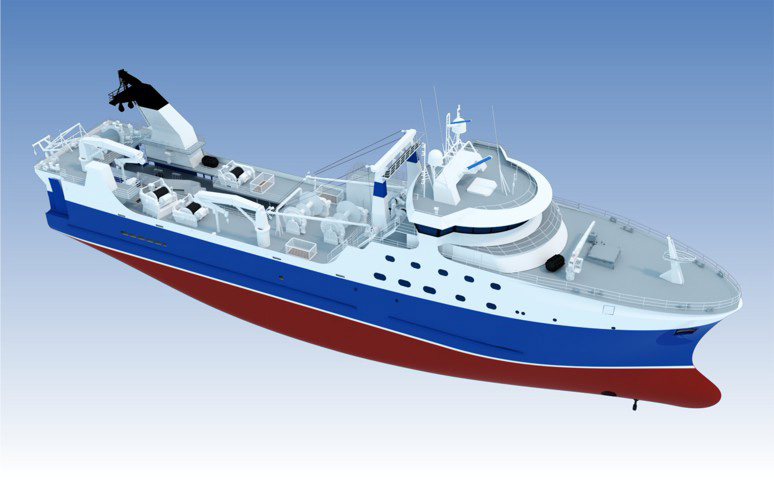

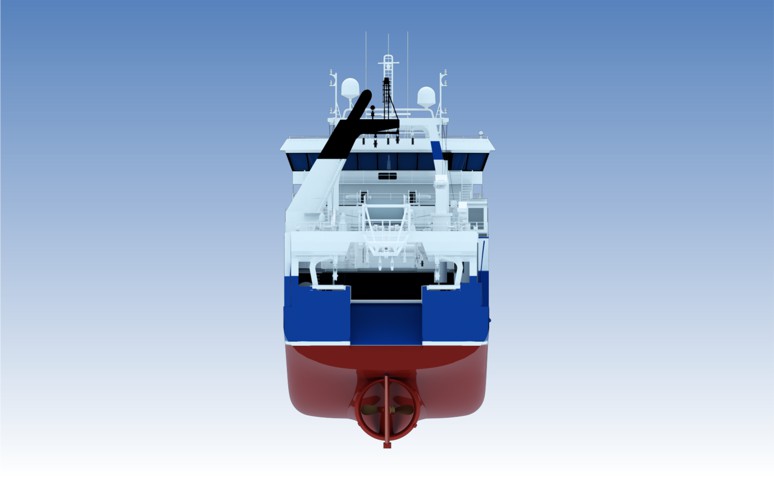

PROJECT KMT02
Chilled stern trawler - processor












Purpose - trawl fishery demersal fish, production at sea: mainly as headed & gutted fish products, fillets, cod roe and liver extraction including fish meal and fish oil.
# | Name | Value |
---|---|---|
1. | Main dimension | |
Length overall, m | 80.40 | |
Breadth, m | 15.40 | |
Depth at main deck, m | 6.15 | |
Depth at trawl deck, m | 9.10 | |
L x B x H | 80.40 x 15.40 x 9.10 = 11 267 | |
2. | Maximum draught, m | 8.90 |
3. | Deadweight (about), t | 2287 |
4. | Endurance, days | 30 |
5. | Freezer cargo holds capacity, m³ | 2050 |
6. | Fish meal and canning cargo holds capacity, m³ | 260 |
7. | Fish-processing plant capacity: | |
by fillet production (minced meat), t/day | 40 | |
by fish meal, fish oil, t/day | 48 | |
by frozen products, t/day | 80 | |
by canned food, conventional cans/day | 4000 | |
8. | RS class | KM ![]() |
9. | ME power, kW | 1 x 4640 |
10. | Rudder and propeller complex | 1 x CPP in non-rotary nozzle + 1 x Becker rudder with flap |
11. | Bow thruster, kW | 1 x 600 |
12. | Auxiliary engines: | |
diesel-generators, kW | 1 x 1000 + 1 x 520 |
|
shaft generator, kW | 3250 | |
emergency diesel-generator, kW | 1 x 110 | |
13. | Crew and plant personnel, pers. | 46 |
14. | Speed, knots | 15 |
