PROJECT KMT01

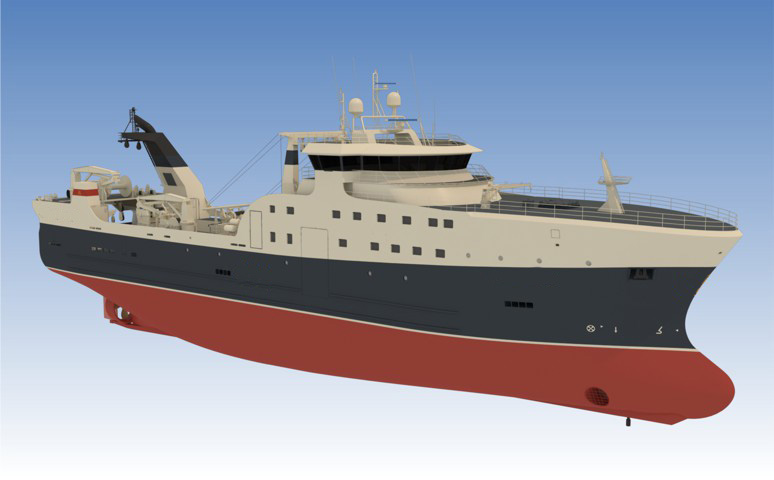

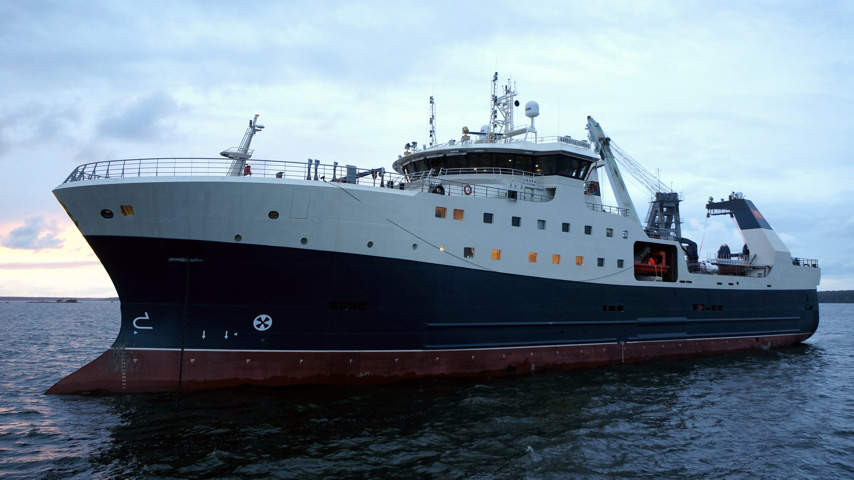

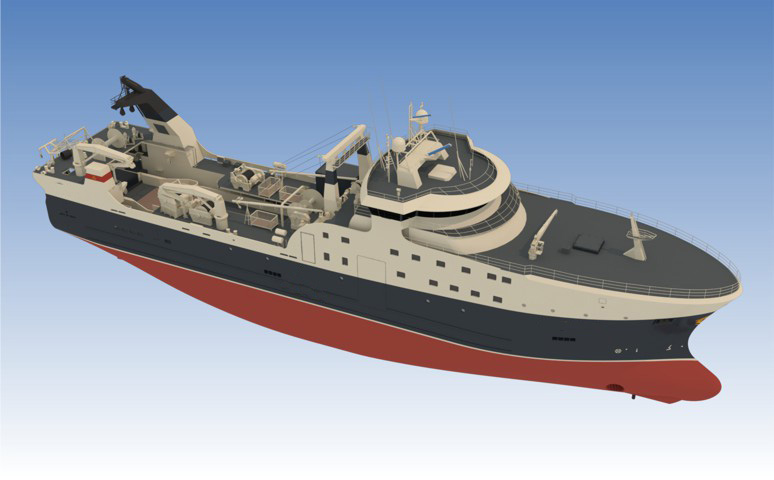

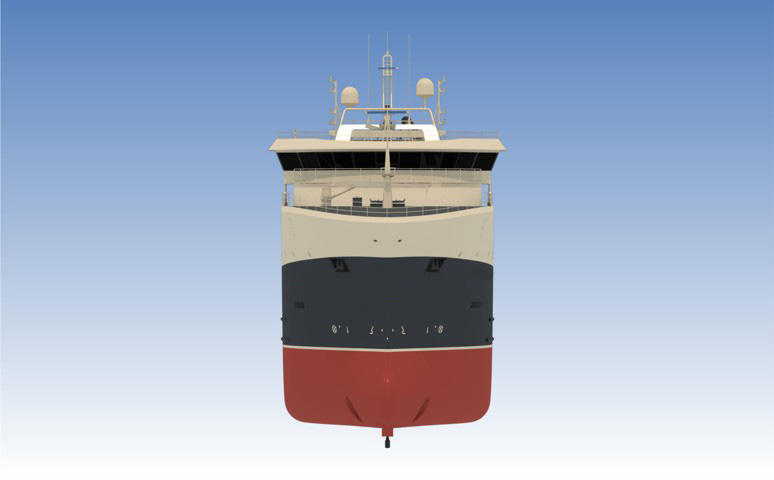

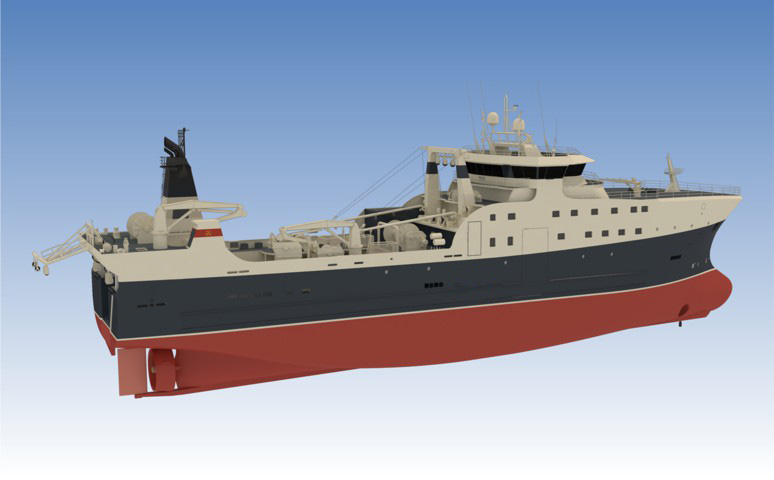

Big chilled stern trawler - processor

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18 Thumbnail 19 Thumbnail 20 Thumbnail 21 Thumbnail 22

Purpose - trawl fishery demersal fish, production at sea: mainly as headed & gutted fish products, fillets, cod roe and liver extraction including fish meal and fish oil.

Nominations:
 Baird Maritime

# Name Value
1. Main dimension
Length overall, m 86.00
Breadth, m 17.00
Depth at main deck, m 6.75
Depth at trawl deck, m 10.10
L x B x H 86.00 x 17.00 x 10.10 = 14 766
2. Maximum draught, m 8.90
3. Deadweight (about), t 2857
4. Endurance, days 30
5. Freezer cargo hold capacity, m³ 2500
6. Fish meal cargo hold capacity, m³ 320
7. Canning cargo hold capacity, m³ 100
8. Refrigeration equipment capacity by processed products, t/day 100
9. Fish-processing plant by raw materials (fillets), t/day 40
10. Fishmeal plant capacity by raw materials
(fish meal + fish oil), t/day		 60
11. Cannery capacity, conditional cans/day 5000
12. Cargo-handling equipments (lifting capacity x boom):
aft crane 6 t x 15 m
midle crane 3 t x 14 m
fore crane 2.5 t x 8 m
13. RS class KM ° Ice 3 AUT1 (REF) Fishing vessel
14. ME power, kW 1 x 6000
15. Bow thruster, kW 1 x 850
16. Auxiliary engines:
diesel-generators, kW 1 x 900 +
1 x 500
shaft generator, kW 3200
emergency diesel-generator, kW 1 x 116
17. Crew and plant personnel, pers. 49
18. Speed, knots 15
