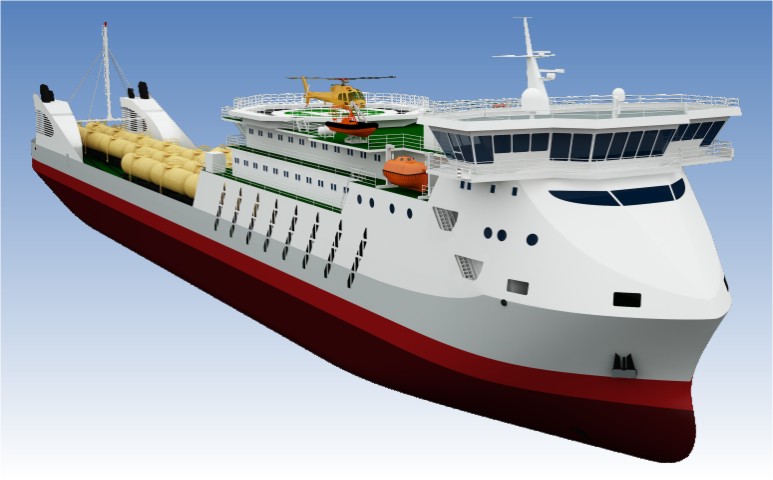

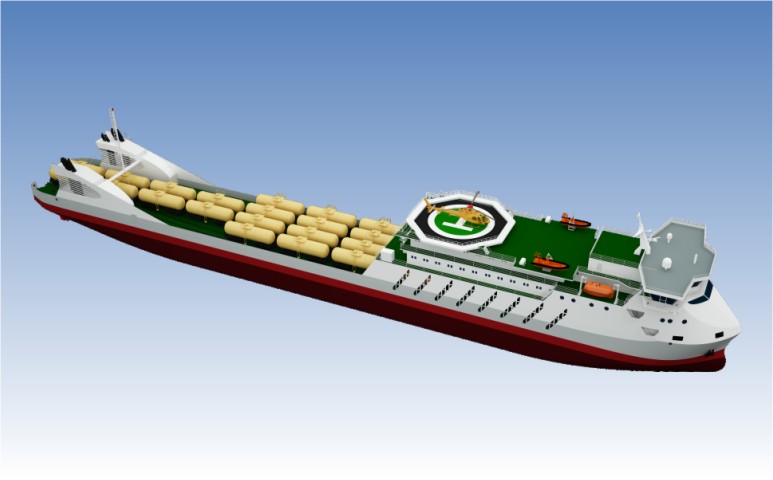

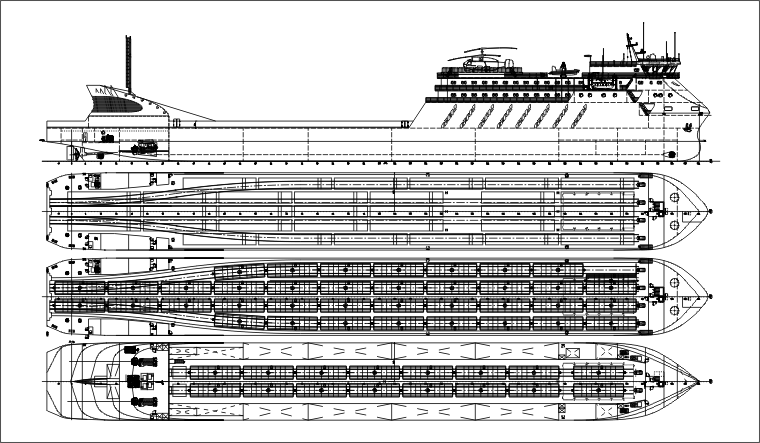

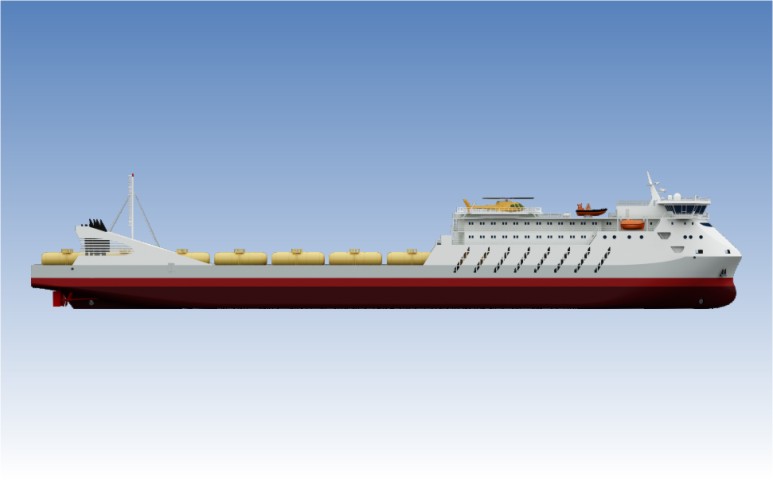

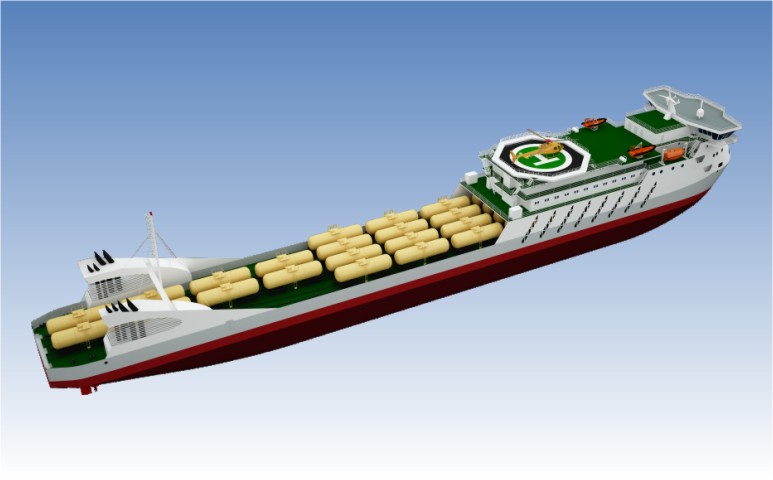

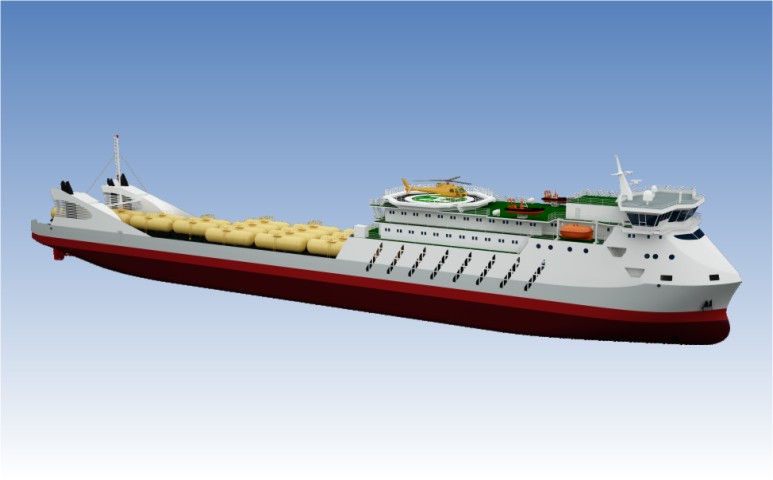

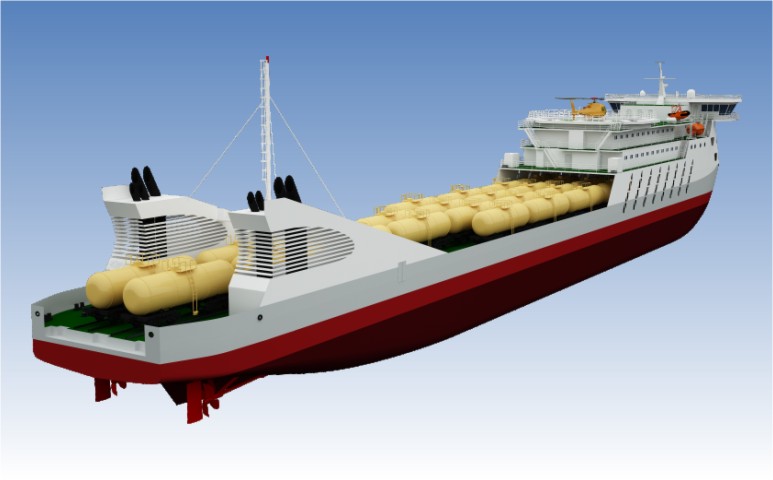

PROJECT CNF18A

Railway train - car - passenger ferry for Caspian Sea
(directions: ports Makhachkala, Olya, Aktau, Turkmenbashi, ports of Iran)


Purpose - transportation of railways trains with gauge of railway 1520 mm, including dangerous cargoes, cargo vehicles, passengers in number of 2 persons for each road train, with the stern cargo handling operations. The vessel intended for transportation of dangerous goods on the open upper deck according to International Maritime Dangerous Goods Code (IMDG Code) and Rules of sea transportation of dangerous cargo.


# Name Value
1. Main dimension
Length overall, m 150.0
Length on SWL, m 147.60
Breadth overall (with fenders), m 17.70
Breadth, m 17.50
Depth, m 7.50
L x B x H 150.0 x 17.70 x 7.50 = 19 913
2. Draught at SWL, m 4.50
3. Deadweight at SWL draught (about), t 5560
4. Range, nautical miles 2500
5. Endurace:
by fuel stores, days 10
by fresh water and provision stores, days 5
by sewage tanks
(in areas where any discharge are prohibited), days
3
6. Number of cargo decks 2
7. Length of rails (upper deck / double bottom), m 460 / 200
8. Loading capacity for railway cars:
cisterns of T-1 gauge with length
between autoreplacers 12020 mm (four-axled), units
54
9. Lane meters 904
10. Loading capacity for vehicles:
trucks with a semitrailers (road train)
length 12-13.5 m, units
50
11. Cargo lift 1 x 188 t
12. Passenger capacity:
general passenger capacity, pers. 100
superior double cabins with lavatory and douche, pers. 4
double (converted in four-berth) cabins
with lavatory and douche, pers.
96
13. Restaurant, places 50
14. Passenger recreation rooms: internet cafe;
bar with playing machine;
dayrooms as a part of passengers halls;
smoking room
15. Additional rooms for passenger service: duty free shop;
block of showers and WC
16. Sports and fitness complex: gym;
sauna with pool
17. Medical block: doctor's consulting room;
hospital (1 berth);
isolation ward (1 berth)
18. Passenger lift 1 x 3 pers.
19. RS class KM Ice2 R1 AUT1-ICSOMBO
ECO HELIDECK Ro-ro passenger ship
20. ME power, kW 4 x 2600
21. Rudder and propeller complex 2 x FPP +
2 suspended rudders
22. Trusters:
bow, kW 1 x 350
stern, kW 1 x 350
23. Auxiliary engines:
diesel-generators, kW 4 x 300
emergency diesel-generator, kW 1 x 300
24. Motorboats:
lifeboats, pers. 2 x 22
speed rescue, pers. 1 x 15
rescue, pers. 1 x 6
25. Evacuation system
with inflatable rafts
2 x 51 pers.
26. Crew and service personal, pers. 30
27. Ship speed in deep still water
for the clean and recently painted hull
at 4.0 m draught and 85% power of ME, knots
14.0
