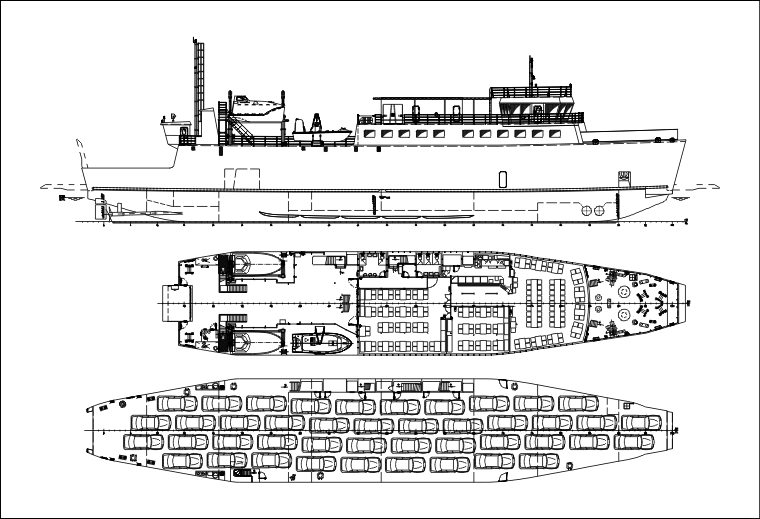

PROJECT CNF12

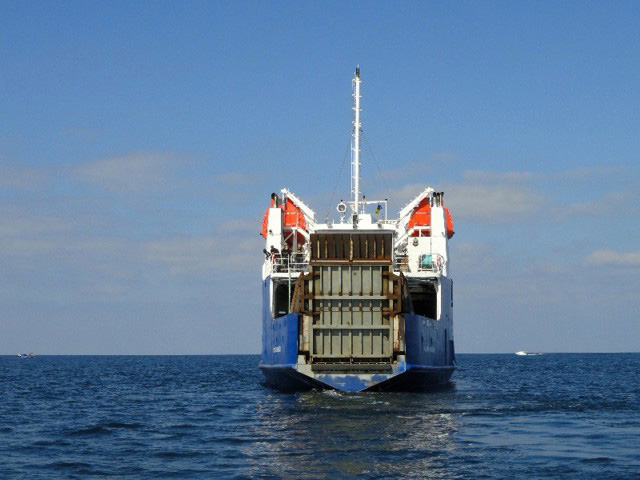

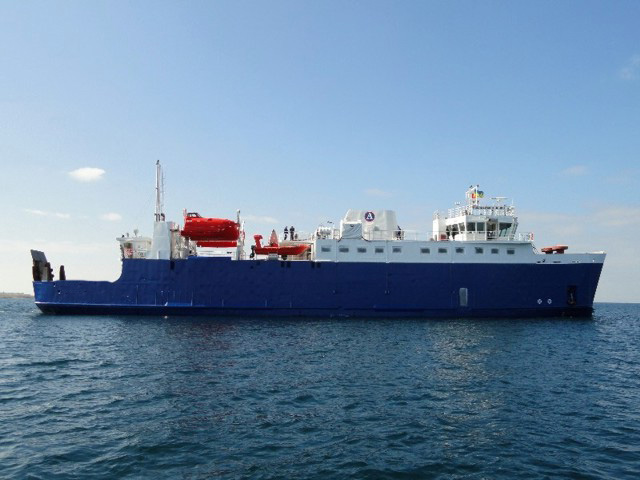

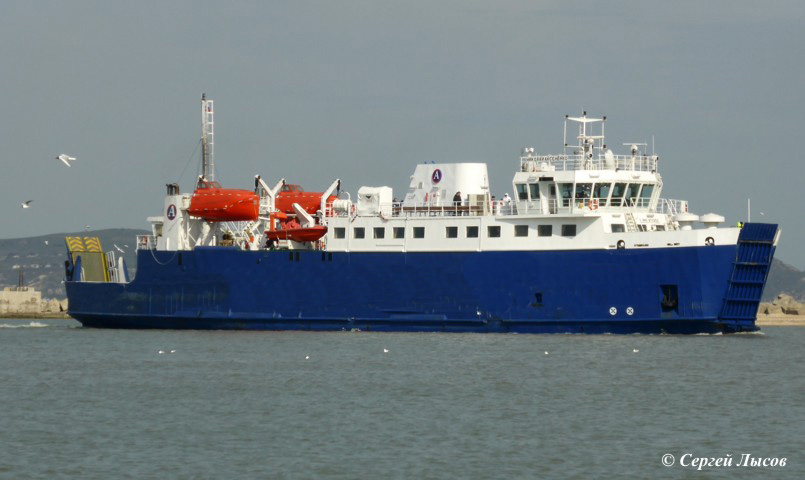

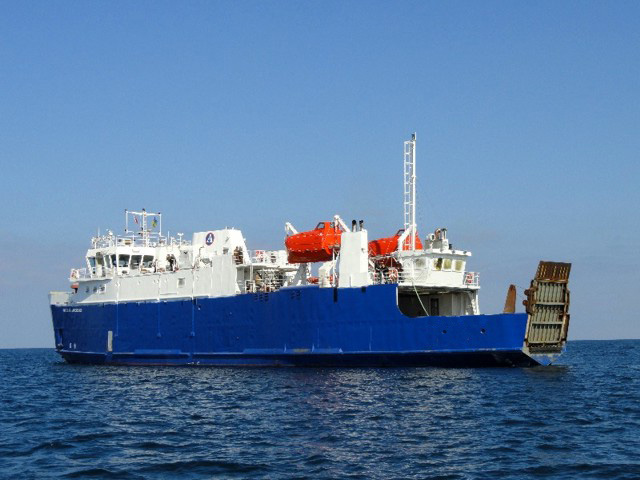

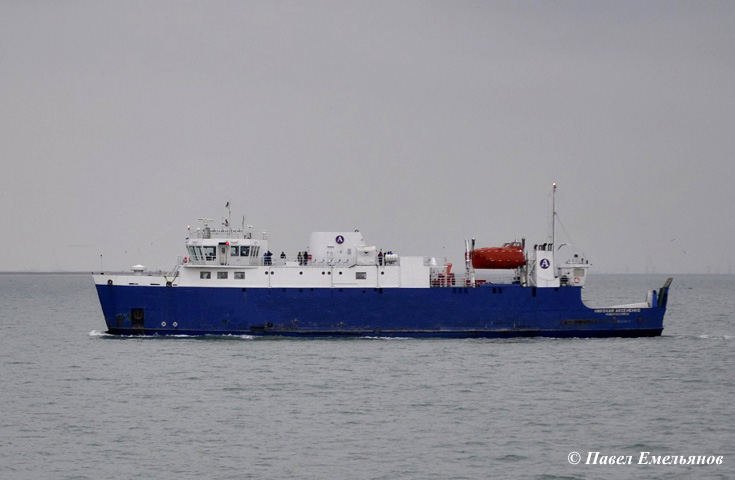

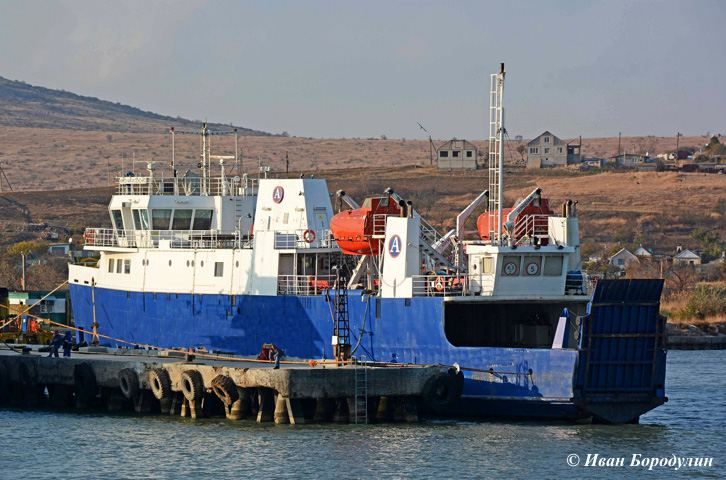

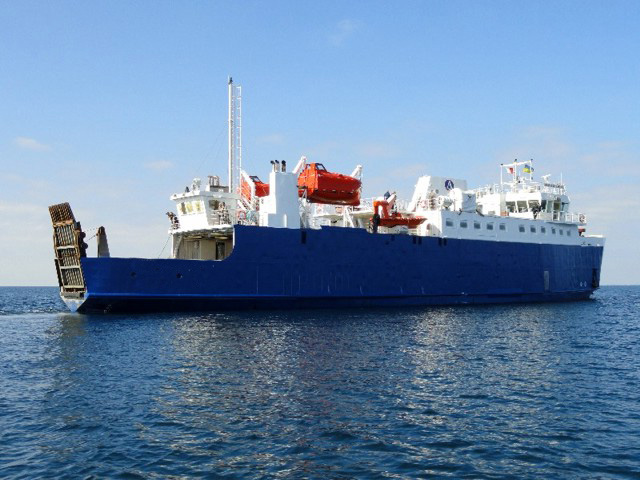

Car - passenger ferry (line port Krym - port Kavkaz)
Purpose - transportation by roll-on/roll off of vehicles with aft and fore plan of cargo operations and passengers.
Comfortable stay of passengers on ferry is provided:
- system of ventilation and air-conditioning;
- in passenger saloon there is TV and the wireless Internet works;
- buffet;
- mother's room and children's area;
- separated WC for women and men;
- lift for handicapped people.
| # | Name | Value |
|---|---|---|
| 1. | Main dimension | |
| Length overall, m | 67.75 | |
| Length between PP, m | 63.15 | |
| Breadth overall, m | 12.0 | |
| Breadth scantlings, m | 11.60 | |
| Depth, m | 3.60 | |
| L x B x H | 67.75 x 12.0 x 3.60 = 2 916 | |
| Draught at SWL, m | 2.695 | |
| 2. | Deadweight Draught on DWL at SWL draught, t | 331 |
| 3. | Endurance, days | 10 |
| 4. | Number of cargo decks | 1 |
| 5. | Loading capacity for vehicles: | |
| trucks, units | 4 | |
| private cars, units | 43 | |
| 6. | Passenger capacity, pers. | 261 |
| 7. | Passengers accommodation: | |
| saloon 1, places | 80 | |
| saloon 2, places | 58 | |
| VIP saloon, places | 30 | |
| open deck with awning, places | 93 | |
| 8. | RRR class |  M-SP 3.5 (Ice 40) |
| 9. | ME power, kW | 2 x 588 |
| 10. | Bow thrusters, kW | 2 x 147 |
| 11. | Auxiliary engines: | |
| diesel-generators, kW | 4 x 180 | |
| emergency diesel-generator, kW | 1 x 160 | |
| 12. | Crew, pers. | 12 |
| 13. | Speed (about), knots | 12.0 |
