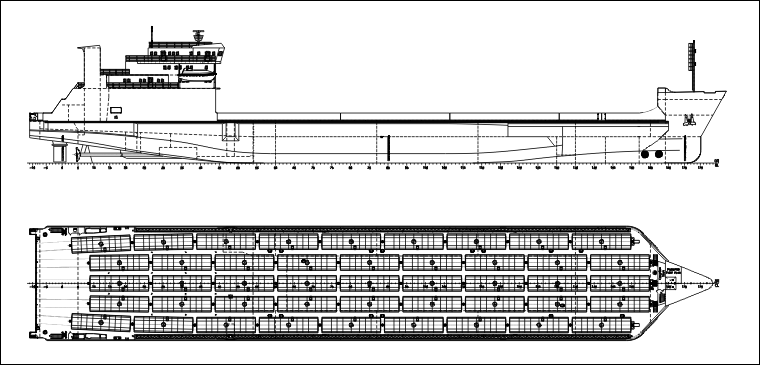

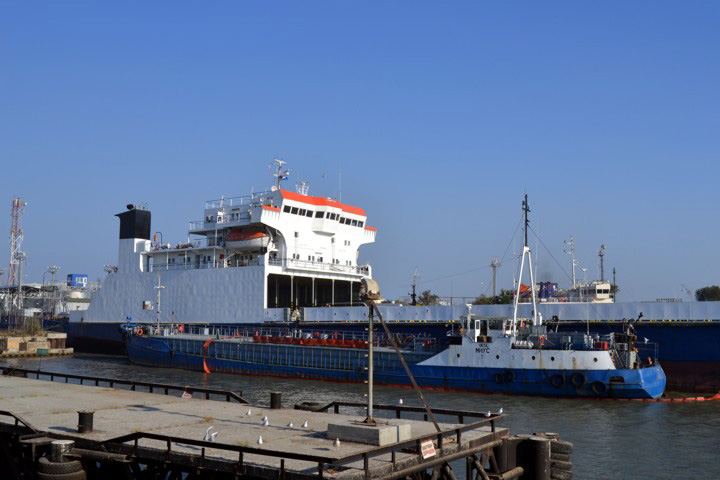

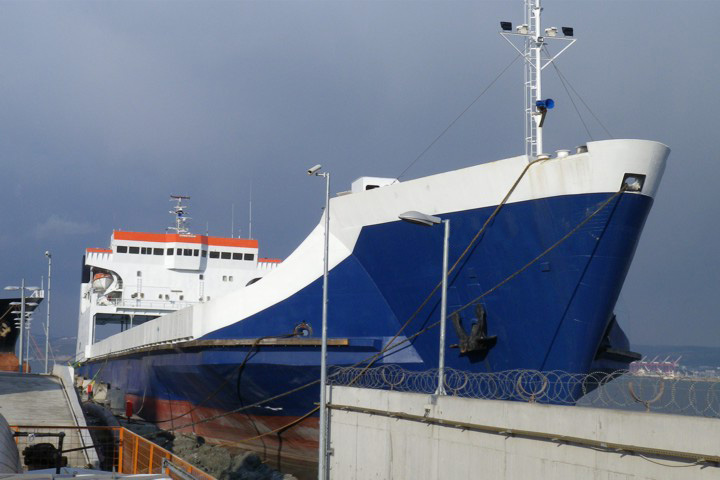

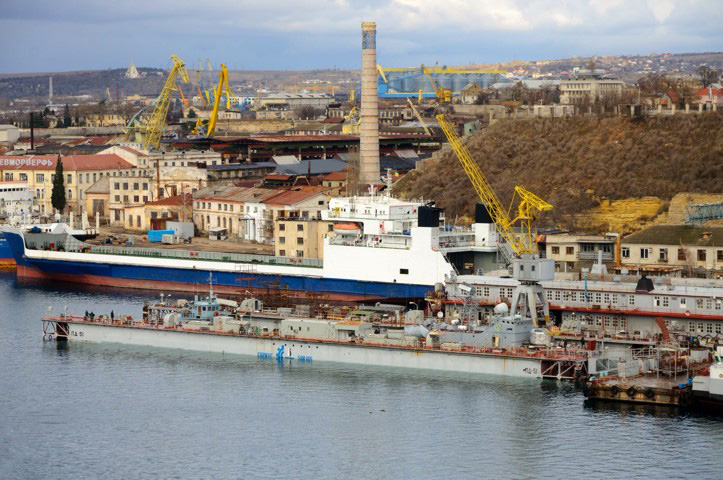

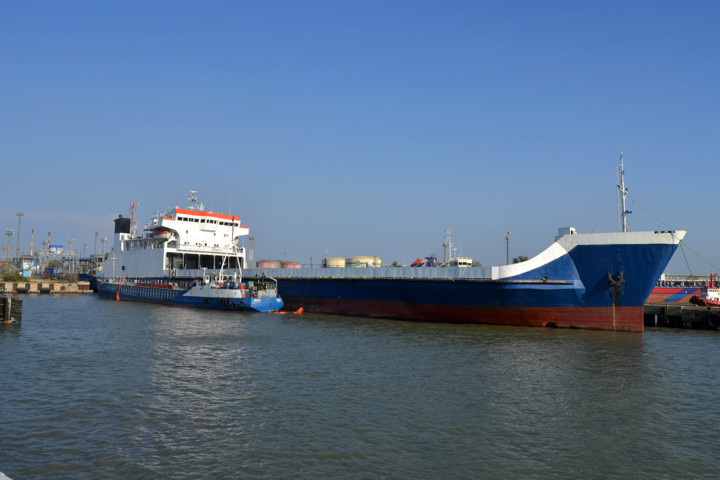

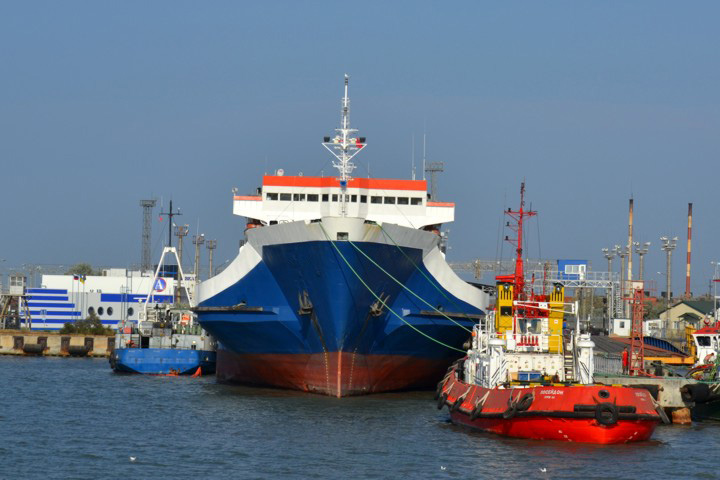

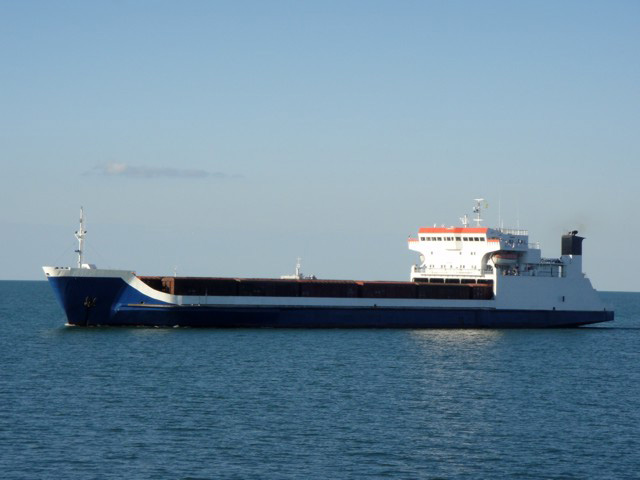

PROJECT CNF10

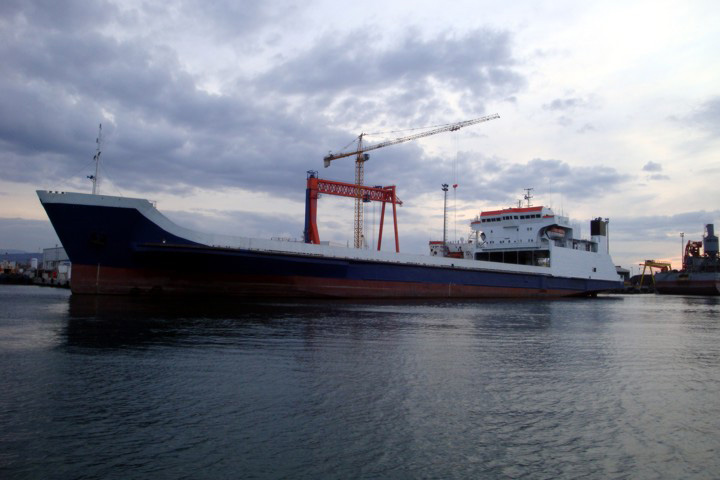

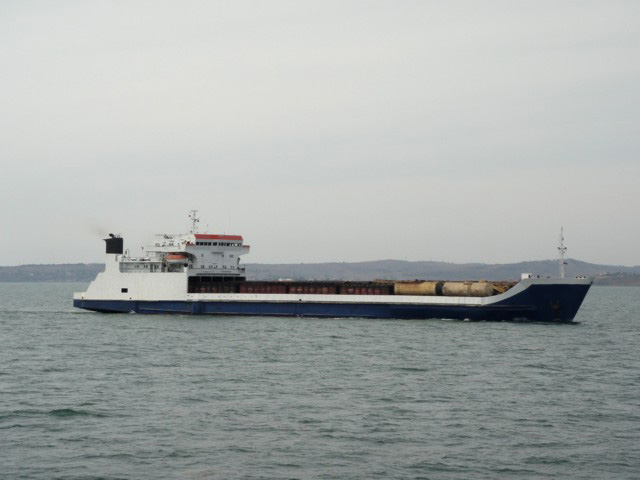

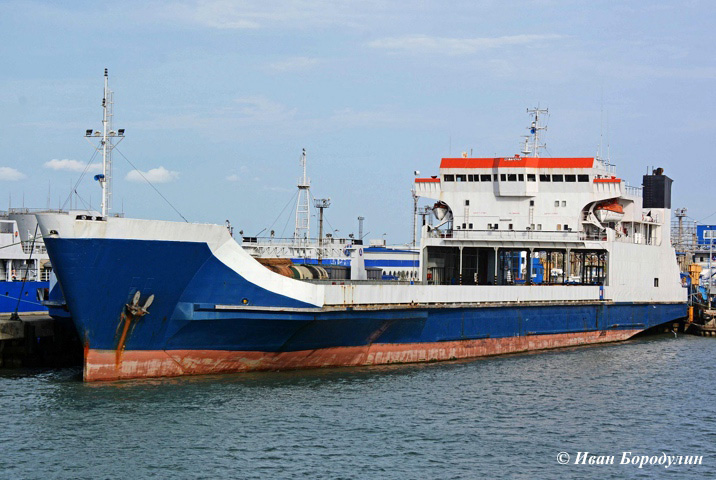

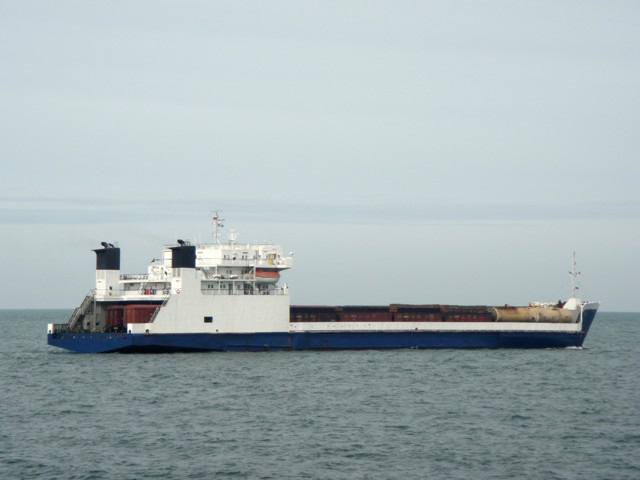

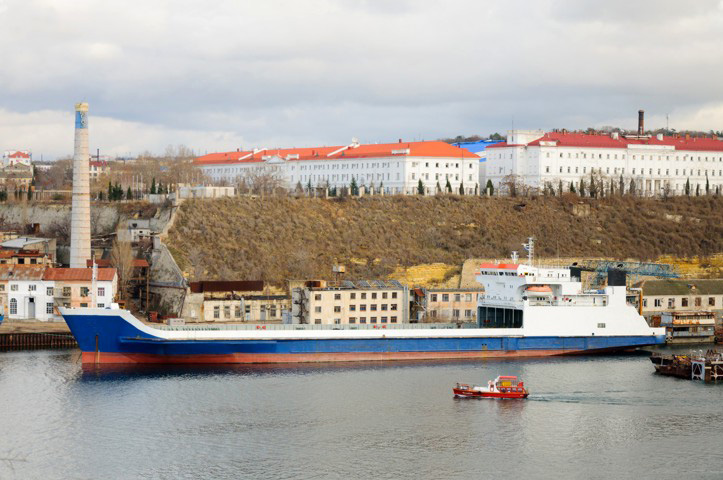

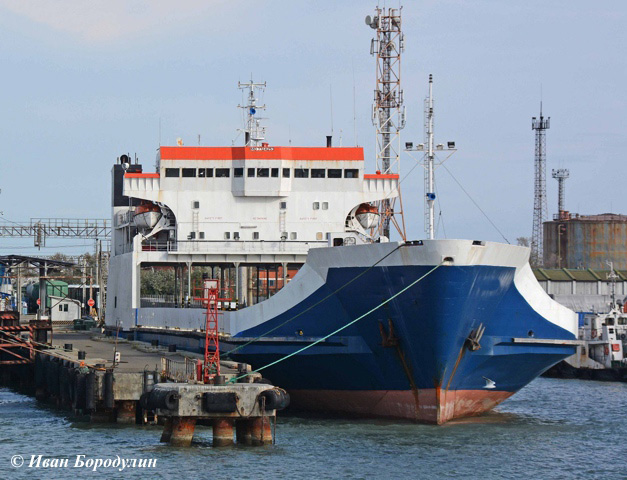

Railway ferry for 45 railway cars for Black Sea















Purpose - carrying of the railway cars and rolling equipment, as well as dangerous goods 1, 2.1, 2.2, 2.3, 3, 4.1, 4.2, 4.3, 5.1, 5.2, 6.1, 8, 9 class and oversize cargo.
# | Name | Value |
---|---|---|
1. | Main dimension | |
Length overall, m | 133.82 | |
Length, m | 122.70 | |
Breadth overall, m | 22.0 | |
Breadth scantlings, m | 21.0 | |
Depth, m | 8.0 | |
L x B x H | 133.82 x 22.0 x 8.0 = 23 553 | |
2. | Draught at SWL, m | 5.0 |
3. | Ballast draft, m | 2.49 |
4. | Deadweight, t | 5238 |
5. | Endurance, days | 10 |

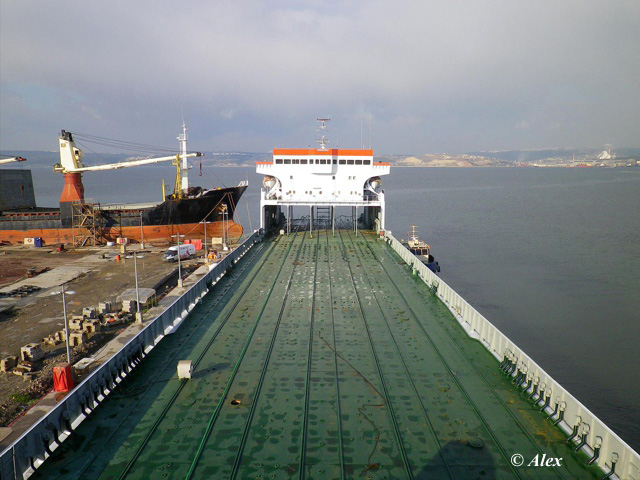

6. | Loading capacity for railway cars: | |
cisterns of T-1 gauge with length between autoreplacers 12020 mm (four-axled), units |
45 | |
7. | Passenger capacity, pers. | 12 |
8. | RS class | KM ![]() |
9. | ME power, kW | 2 x 3310 |
10. | Bow thrusters | 1 x 367 kW + 1 x 588 kW |
11. | Crew / berth, pers. | 15 / 16 |
12. | Speed (about), knots | 12.0 |
