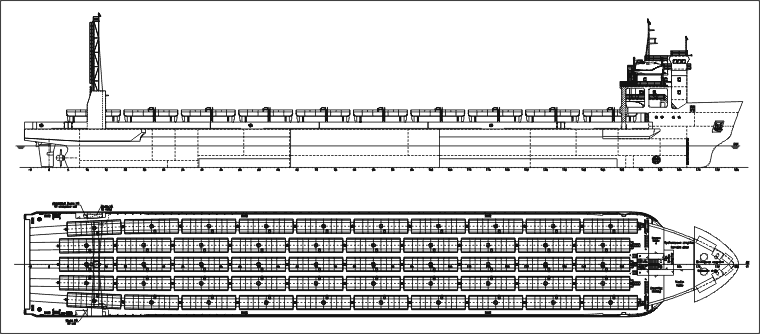

PROJECT CNF09

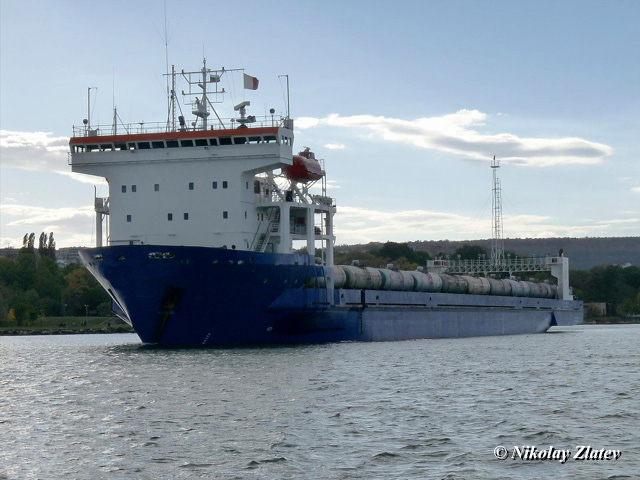

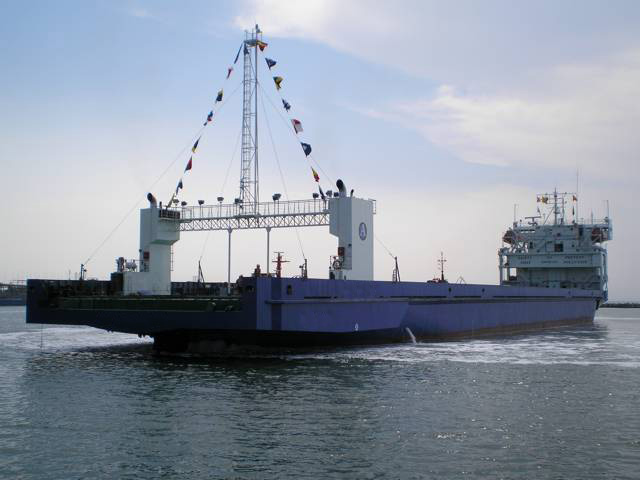

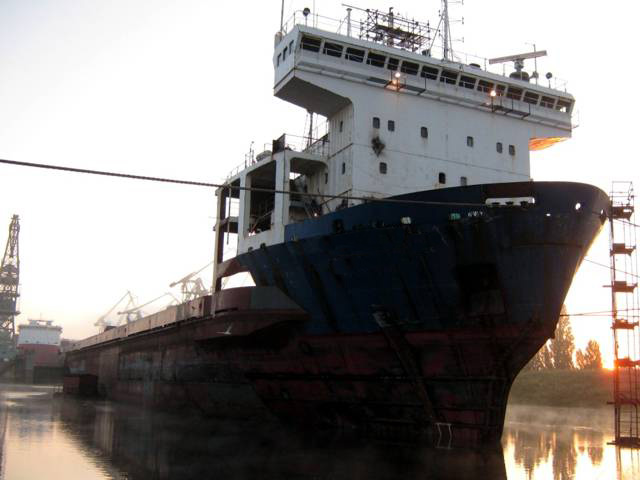

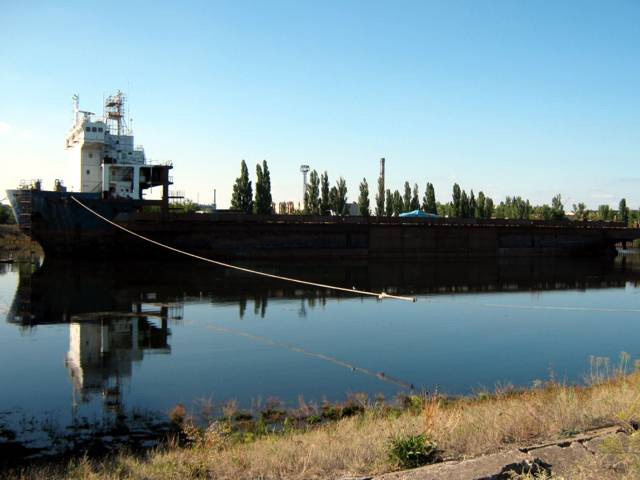

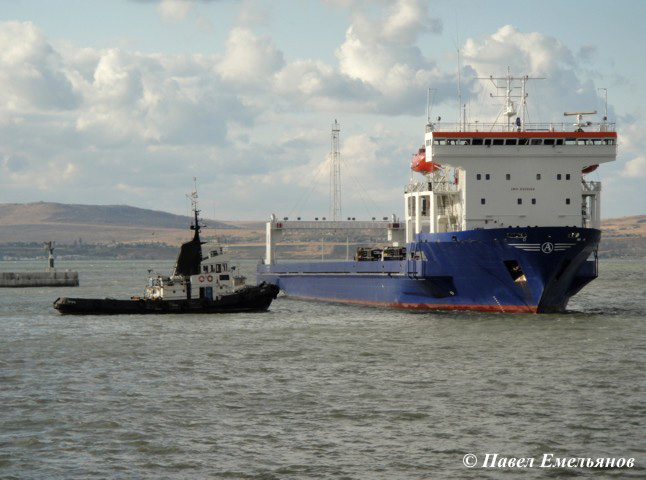

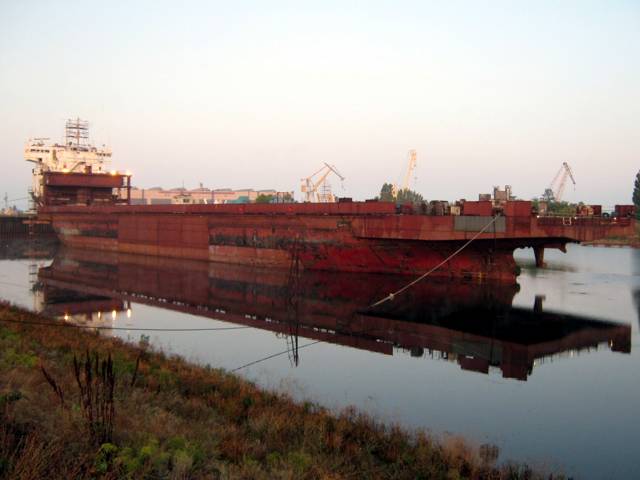

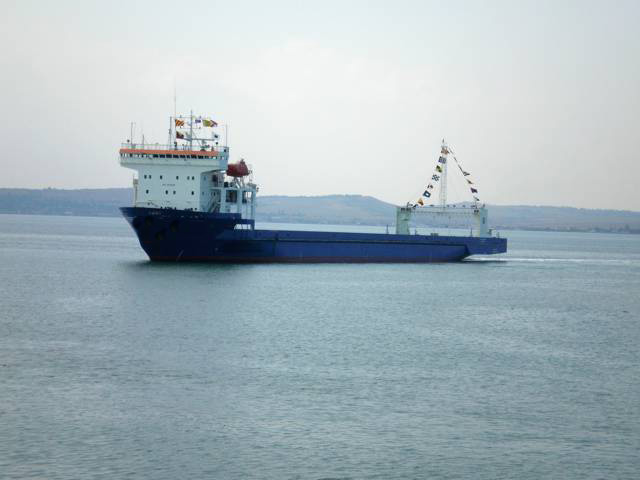

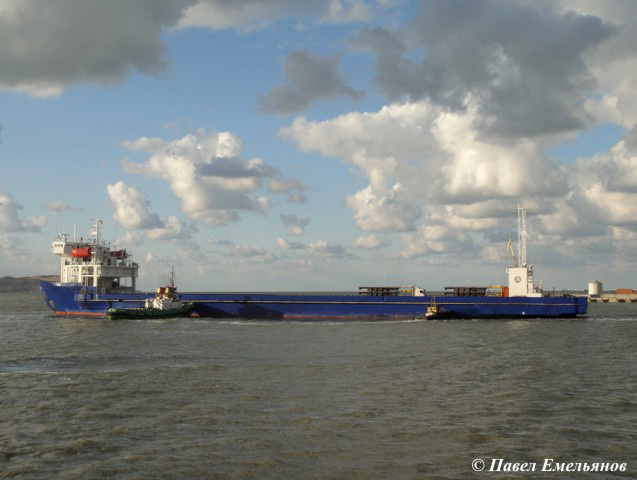

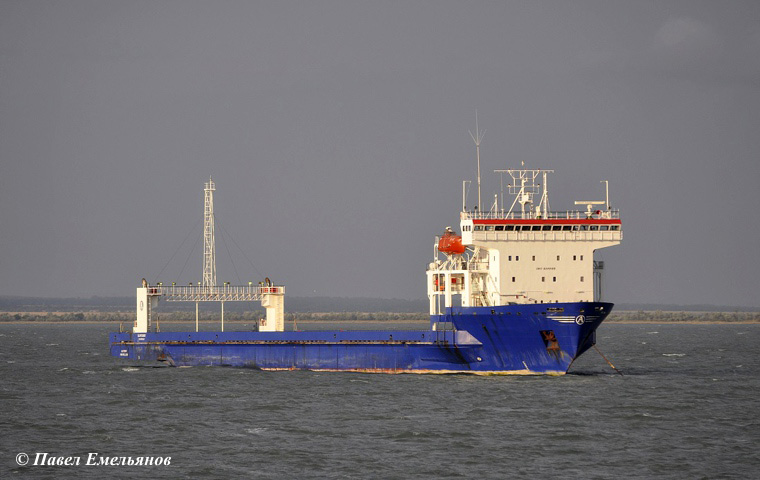

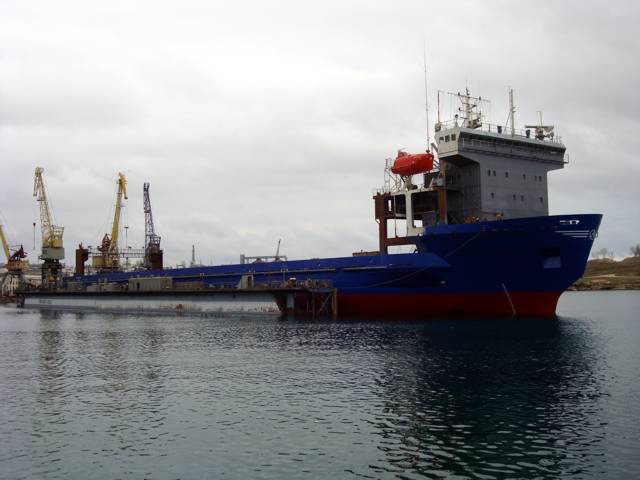

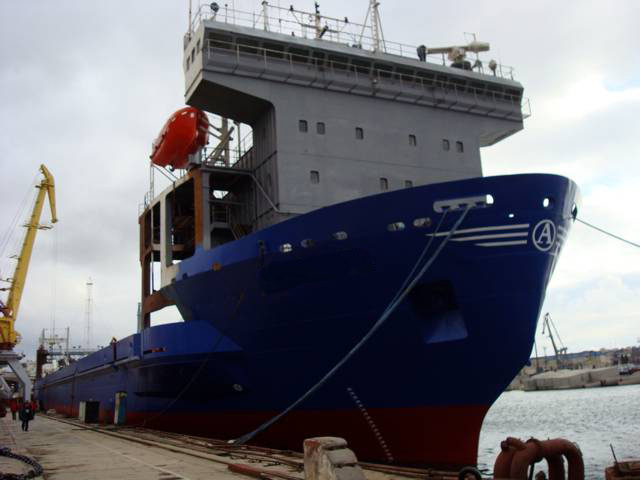

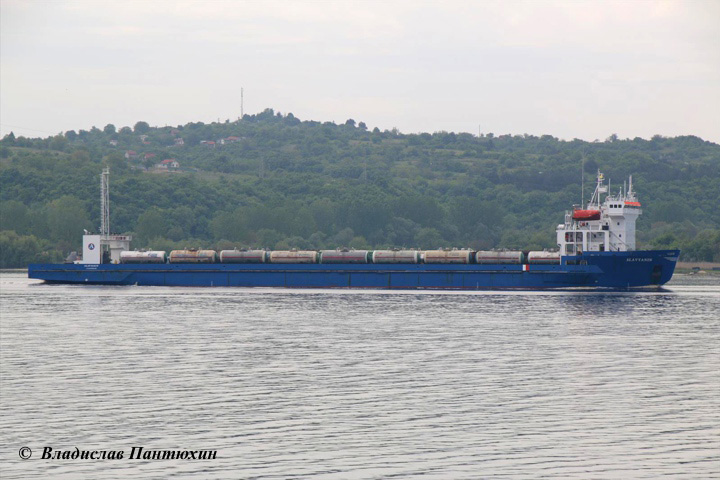

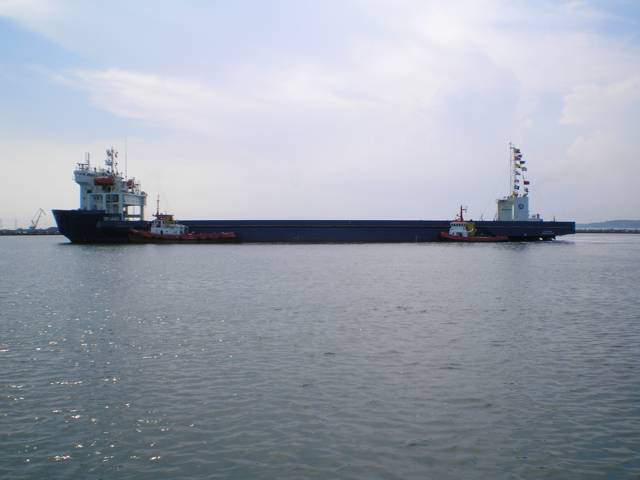

Railway ferry for 50 railway cars (line port Kavkaz - port of Poti)
Purpose - carrying of the railway trains and vehicles.
|
Laying of the keel |
Laid down |
Delivery |
Years of construction |
|
|
1 |
2007-2010 |
# |
Name |
Value |
1. |
Main dimension |
Length overall, m |
149.95 |
Length, m |
139.94 |
Breadth overall, m |
22.0 |
Breadth scantlings, m |
21.0 |
Depth, m |
8.0 |
L x B x H |
150.20 x 22.0 x 8.0 = 26 435 |
Draught at SWL, m |
4.50 |
2. |
Deadweight, t |
6437 |
3. |
Loading capacity for railway cars: |
cisterns of T-1 gauge with length between autoreplacers 12020 mm (four-axled), weight 88 t, units |
50 |
freight cars of T-1 gauge with length between autoreplacers 14730 mm (four-axled), units |
40 |
gondola wagon of T-1 gauge with length between autoreplacers 13920 mm (four-axled), units |
45 |
passenger cars of T-1 gauge with length between autoreplacers 24540 mm (four-axled), units |
25 |
4. |
Shipping Register of Ukraine class |
KM Ice 2 R2 RO-RO ship INF 2 |
5. |
ME power, kW |
5500 |
6. |
Thrusters: |
bow, kW |
440 |
stern, kW |
200 |
7. |
Crew / berth, pers. |
16 / 29 |
8. |
Speed (about), knots |
12.0 |
|
