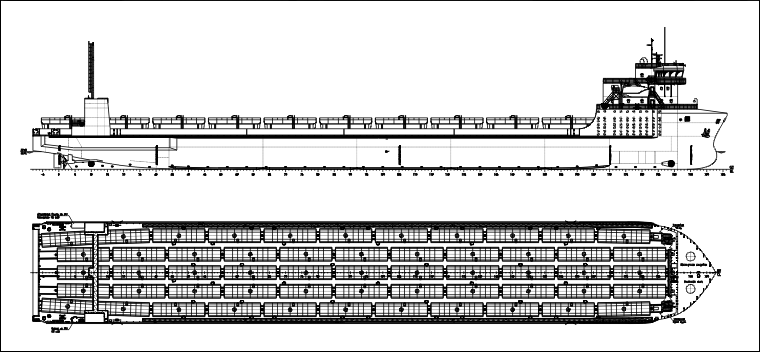

PROJECT CNF08

Railway ferry for 55 railway cars for Black Sea


Purpose - carrying of the railway trains and vehicles.


# Name Value
1. Main dimension
Length overall, m 149.99
Length, m 142.0
Breadth overall, m 22.0
Breadth scantlings, m 21.0
Depth, m 7.15
L x B x H 149.99 x 22.0 x 7.15 = 23 593
Air draft from BL to an upper edge
of non-removable parts, m
28.35
2. Draught at SWL, m 3.80
3. Ballast draft, m 3.23
4. Deadweight (about), t 6087
5. Endurance, days 15
6. Number of cargo decks 1
7. Loading capacity for railway cars:
cisterns of T-1 gauge with length between
autoreplacers 12020 mm (four-axled), weight 98 t, units
55
8. Cargo carrying capacity (cisterns), t 5390
9. Passenger capacity, pers. 12
10. RS class KM Ice1 R1 AUT1-C Ro-ro ship
11. ME power, kW 2 x 2040
12. Thrusters:
bow, kW 350
stern, kW 350
13. Crew / berth, pers. 15 / 18
14. Speed (about), knots 12.0
