PROJECT CNF06

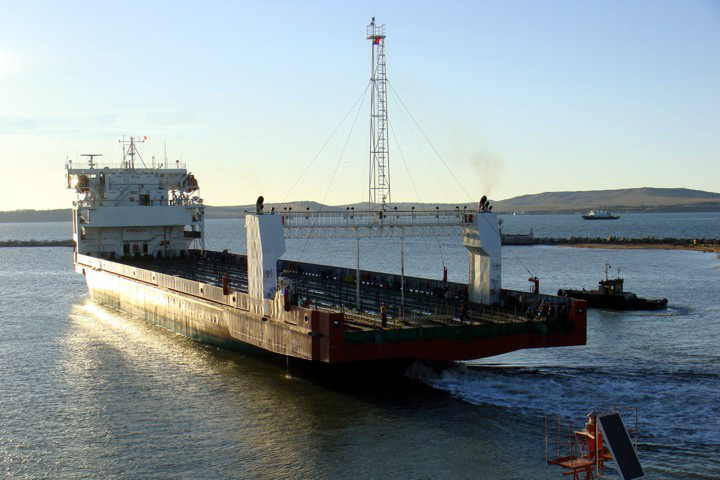

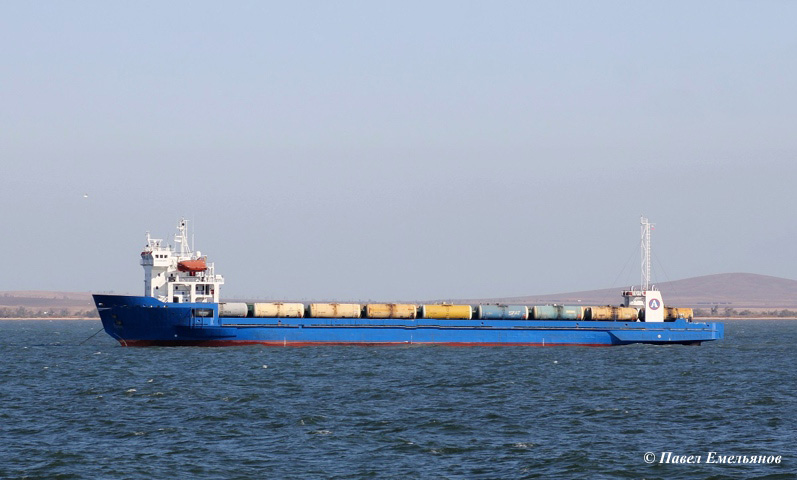

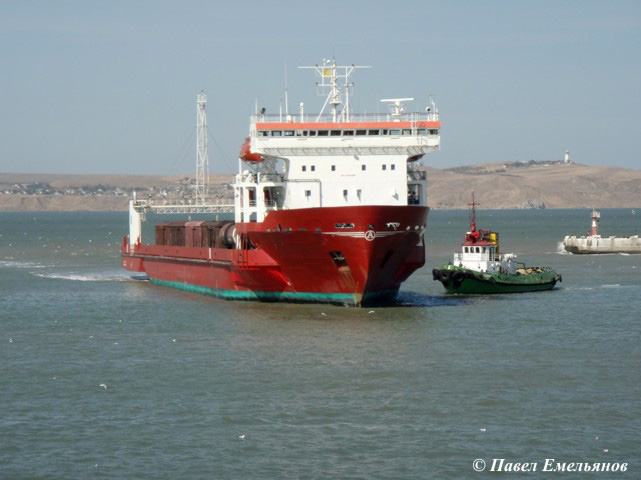

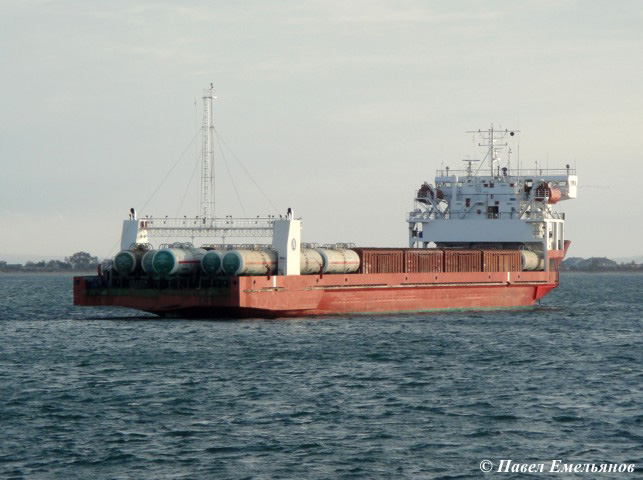

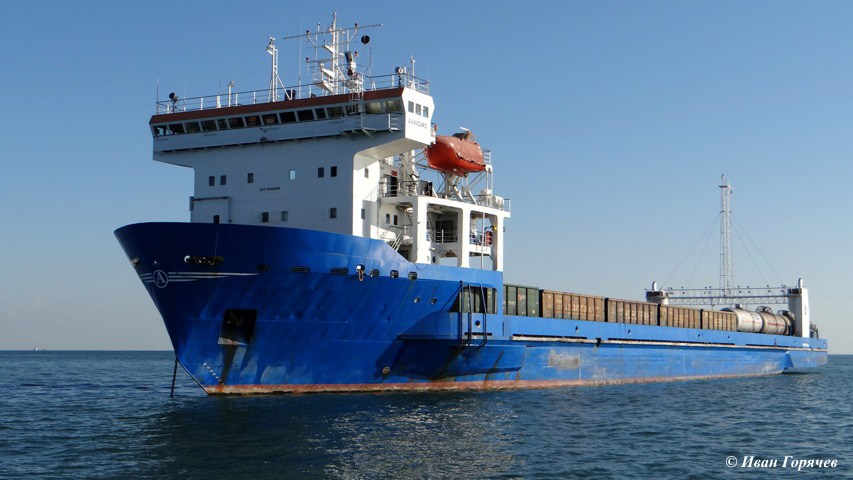

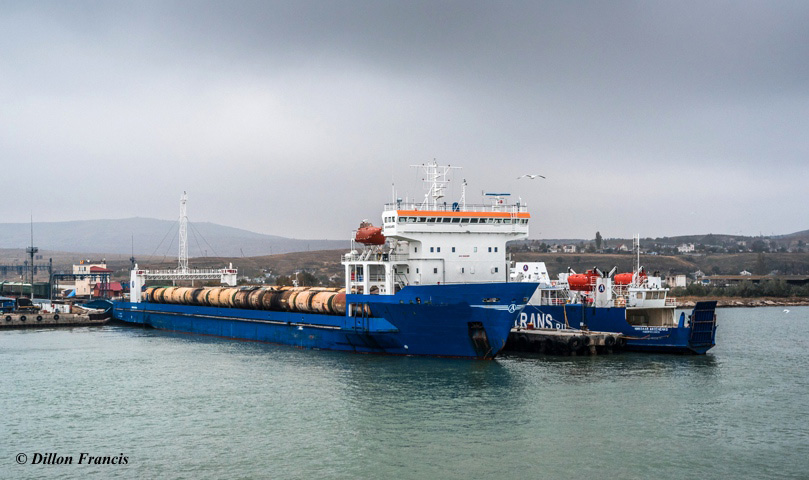

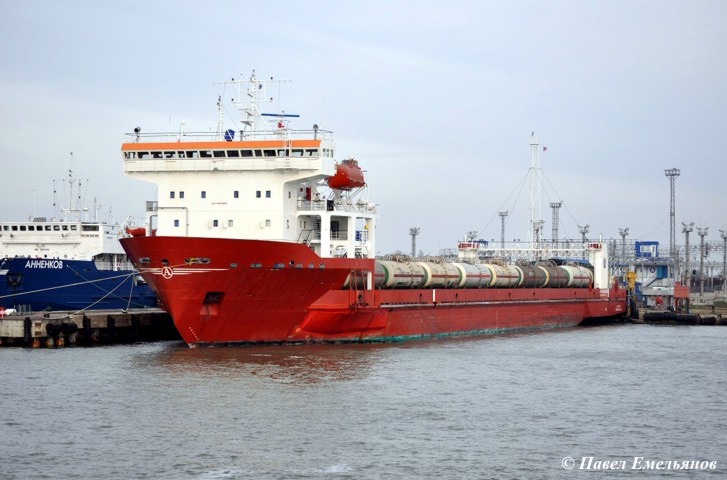

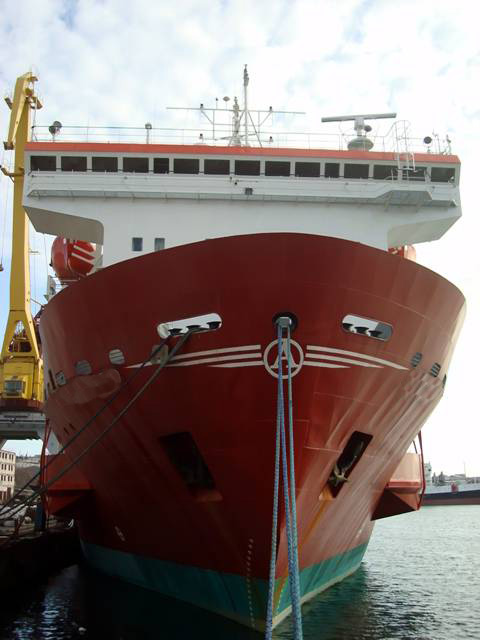

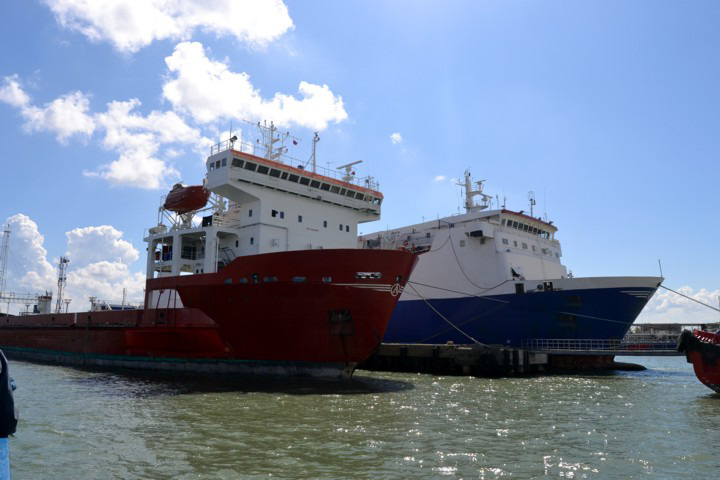

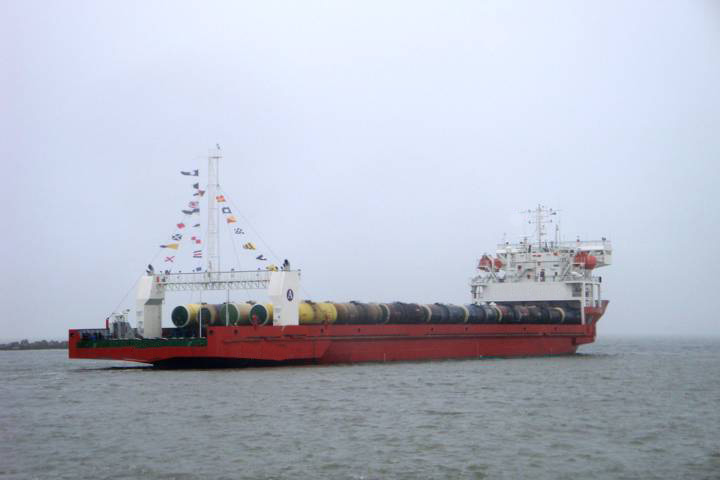

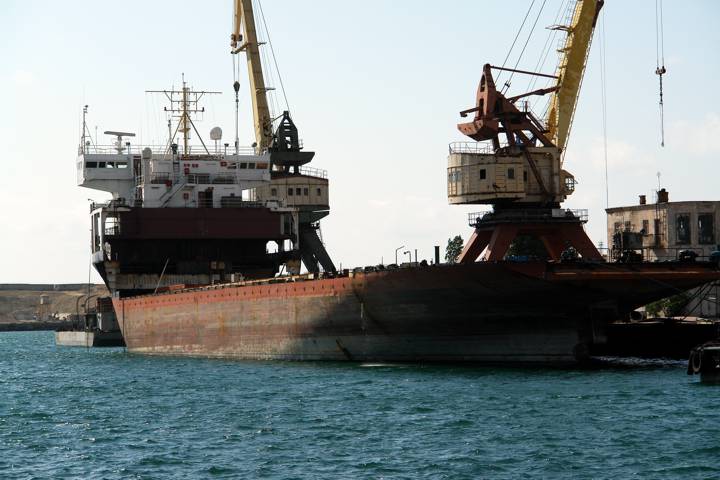

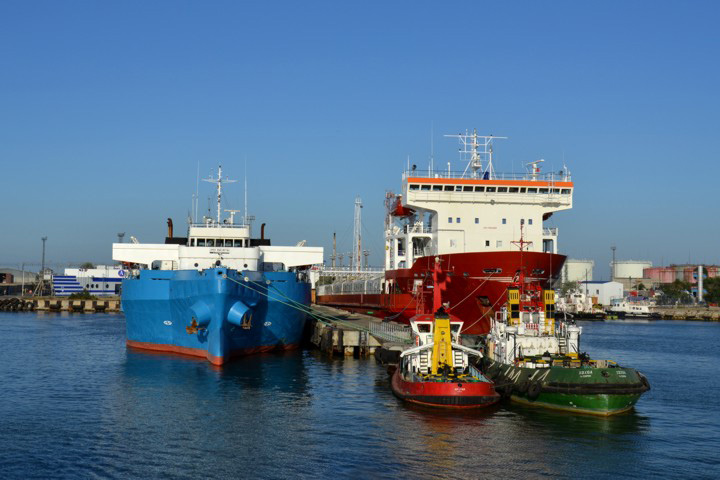

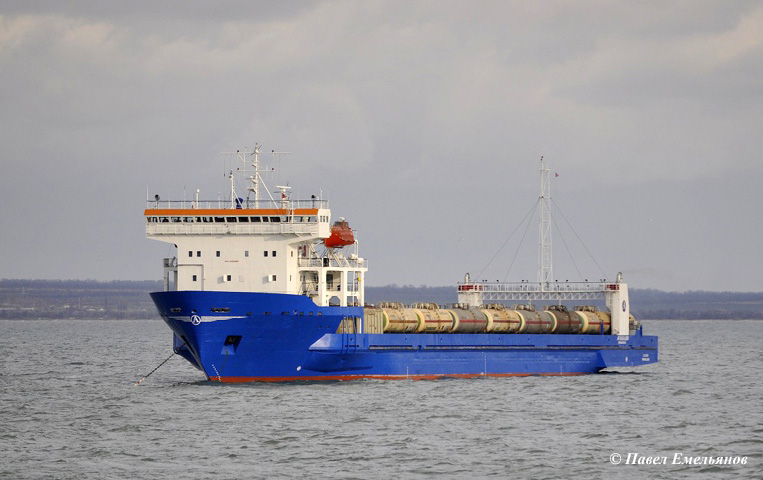

Railway ferry for 45 railway cars
Purpose - carrying of the railway trains, vehicles and containers.
|
| Laying of the keel |
Laid down |
Delivery |
Years of construction |
| |
|
1 |
2007-2009 |
| # |
Name |
Value |
| 1. |
Main dimension |
| Length overall, m |
133.67 |
| Length, m |
123.58 |
| Breadth overall, m |
22.0 |
| Breadth scantlings, m |
21.0 |
| Depth, m |
8.0 |
| L x B x H |
133.67 x 22.0 x 8.0 = 23 526 |
| 2. |
Draught at SWL, m |
4.80 |
| 3. |
Deadweight at SWL draught, t |
5698 |
| 4. |

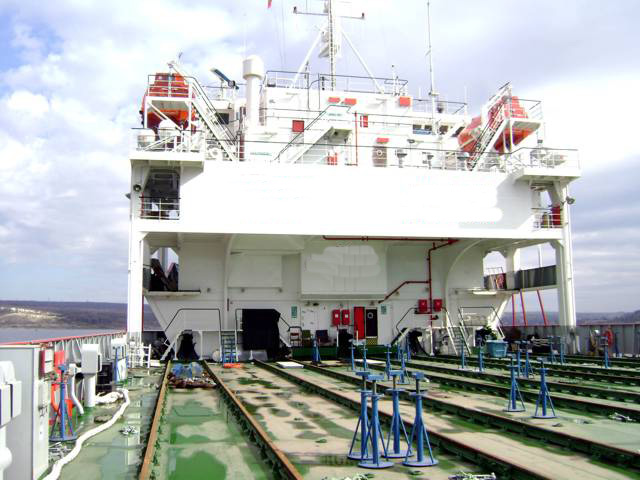

Number of cargo decks |
1 |
| 5. |
Loading capacity for railway cars: |
cisterns of T-1 gauge with length between
autoreplacers 12020 mm (four-axled), weight 88 t, units |
45 |
freight cars of T-1 gauge with length between
autoreplacers 14730 mm (four-axled), units |
33 |
passenger cars of T-1 gauge with length between
autoreplacers 24540 mm (four-axled), units |
20 |
| railcars of T-1 gauge (octo-axled), units |
10 |
| 6. |
RS class |
KM  L1 R1 Ro-Ro ship |
| 7. |
ME power, kW |
2 x 2200 |
| 8. |
Bow thruster, kW |
1 x 441 |
| 9. |
Crew / berth, pers. |
16 / 17 |
| 10. |
Speed (about), knots |
12.0 |
|
