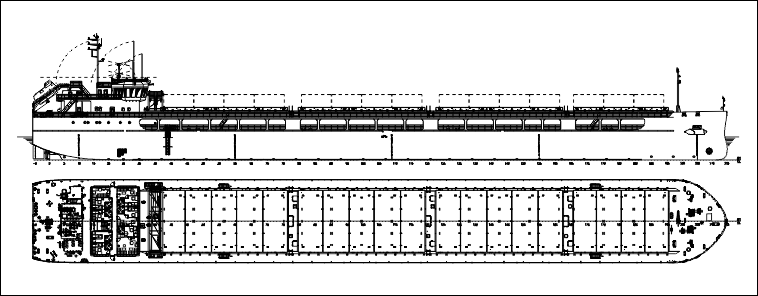

PROJECT RSD79
8011 / 5201 DWT multipurpose river-sea dry-cargo vessel

Purpose - sea and mixed (river-sea) carrying of the general and bulk cargoes (including grain), TEU and FEU in holds and on hatch covers, packaged lumber, timber, scrap-metal, bunched and rolled steel, large-dimension and heavy-weight cargoes, coil, hazardous cargoes of classes 1, 2, 3, 4, 5, 6.1, 8, 9 in accordance with IMDG Code and category "B" cargoes from IMSBC Code.
# | Name | Value |
---|---|---|
1. | Main dimension | |
Length overall, m | 141.0 | |
Length on RS Rules, m | 136.33 | |
Length conventional, m | 138.88 | |
Breadth overall, m | 16.98 | |
Breadth scantlings, m | 16.90 | |
Depth, m | 6.0 | |
L x B x H | 141.0 x 16.98 x 6.0 = 14 365 | |
2. | Draught (at sea / in river), m | 4.70 / 3.60 |
3. | Deadweight (at sea / in river) (about), t | 8011 / 5201 |
4. | Endurance (at sea / in river), days | 20 / 12 |
5. | Number of cargo holds | 4 |
6. | Cargo holds capacity, m³ | 11154 |
7. | Ballast tanks capacity, m³ | 4669 |
8. | RS class | KM ![]() CONT(deck, cargo holds Nos.1,2,3,4) DG(bulk,pack) |
9. | ME power, kW | 2 x 1200 |
10. | Rudder and propeller complex | 2 FPP in nozzles + 2 pendant high-performance rudders (with flaps) |
11. | Bow thruster, kW | 230 |
12. | Auxiliary engines: | |
diesel-generators, kW | 2 x 332 | |
emergency diesel-generator, kW | 1 x 90 | |
13. | Crew / berth, pers. | 11 / 14 |
14. | Speed (at draft d = 4.7 m and 100% MCR), knots | 10.0 |
