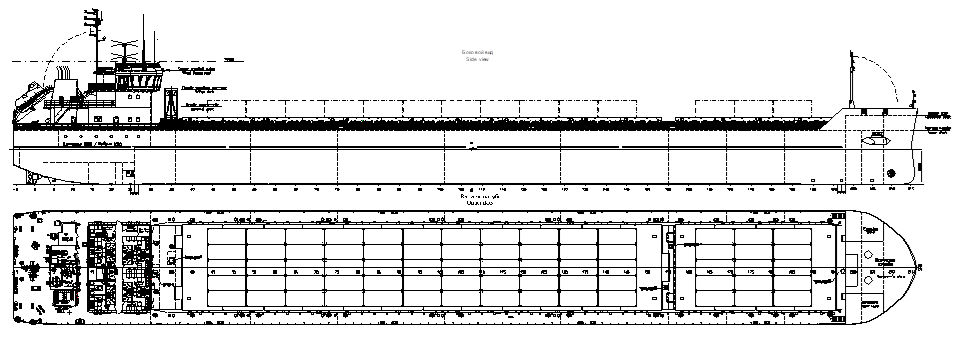

PROJECT RSD74
10830 / 5600 DWT multipurpose dry-cargo vessel
							Purpose - sea and mixed (river-sea) carrying of the general and bulk cargoes (including grain), TEU and FEU in holds and on hatch covers (include refrigerating), packaged lumber, timber, scrap-metal, bunched and rolled steel, large-dimension and heavy-weight cargoes, coil, hazardous cargoes of classes 1, 2, 3, 4, 5, 6.1, 8, 9 in accordance with IMDG Code and category “B” cargoes from IMSBC Code.
| # | Name | Value |
|---|---|---|
| 1. | Main dimension | |
| Length overall, m | 142.00 | |
| Length conventional, m | 137.86 | |
| Breadth overall, m | 18.08 | |
| Breadth scantlings, m | 18.00 | |
| Depth, m | 8.60 | |
| L x B x H, m | 142.00 x 18.08 x 8.60 = 22 079 | |
| 2. | Draught (at sea / in river), m | 5.60 / 3.60 |
| 3. | Deadweight (at sea / in river) (about), t | 10830 / 5600 |
| 4. | Container capacity (holds/deck), TEU | 310 (240 / 70) |
| 5. | Endurance (at sea / in river), days | 20 / 12 |
| 6. | Number of cargo holds | 2 |
| 7. | Cargo holds’ capacity, m³ | 12 000 |
| 8. | Cargo holds’ dimensions, m: | |
| hold No.1 | 27.90 x 13.20 x 8.78 | |
| hold No.2 | 77.35 x 13.20 x 8.78 | |
| 9. | Type of cargo holds’ hatch covers | Lift-away with gantry crane |
| 10. | RINA class |
		C   HULL   MACH General cargo ship – double side-skin, equipped for carriage of containers Special navigation AUT-UMS ICE CLASS IC LASHING BWM(T) COAT-WBT MLCDESIGN
		DANGEROUS GOODS NOx-Tier III
     |
| 11. | ME power, kW | 2 x 1600 |
| 12. | Rudder and propeller complex | 2 x rudder-propellers (FPP) |
| 13. | Bow thruster, kW | 1 x 250 |
| 14. | Auxiliary engines: | |
| diesel-generators, ekW | 2 x 332 | |
| emergency diesel-generator, ekW | 1 x 90 | |
| 15. | Crew / berth, pers. | 11 / 14 + pilot |
| 16. | Speed (at draft d = 5.60 m and 100% MCR), knots | 10.5 ±0.3 |
