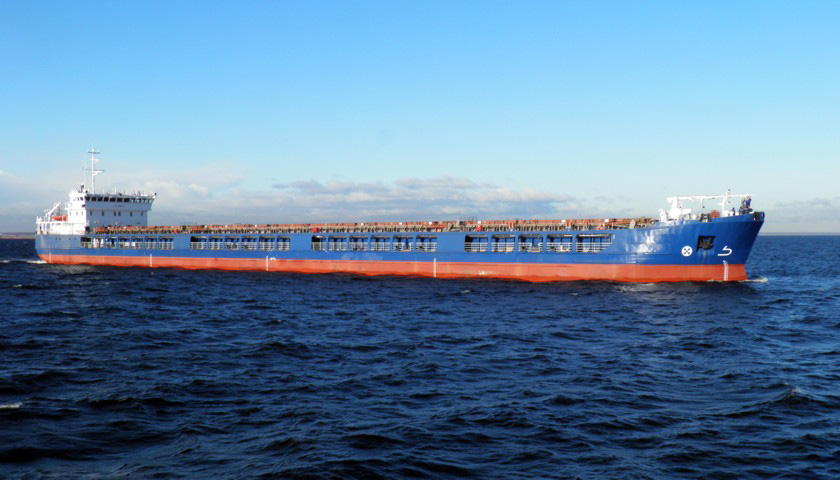

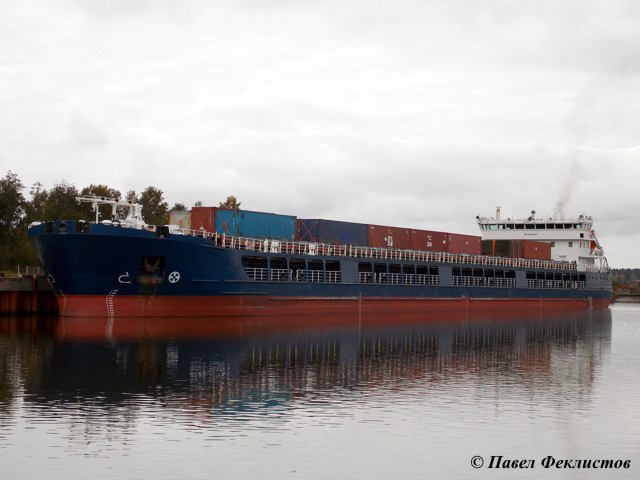

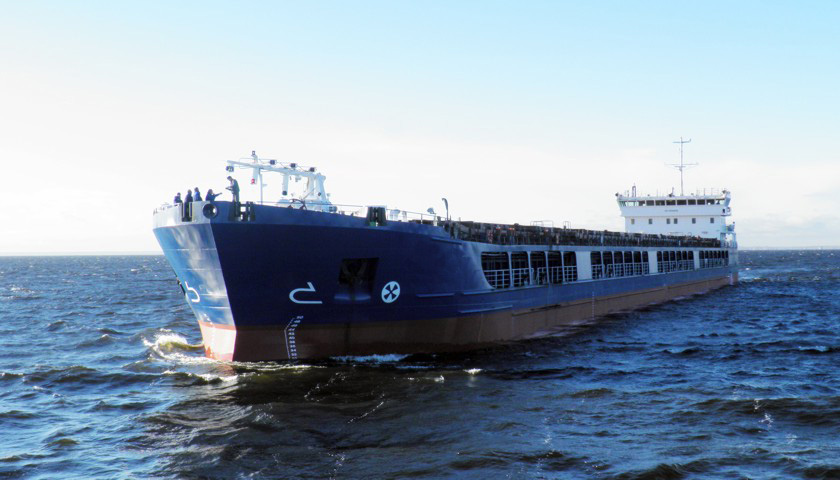

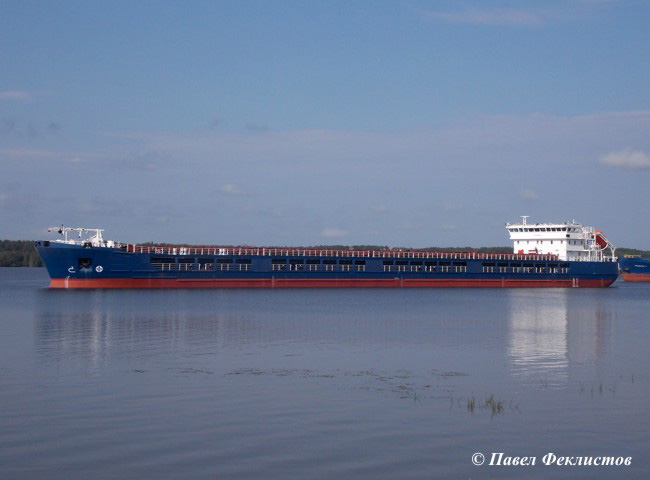

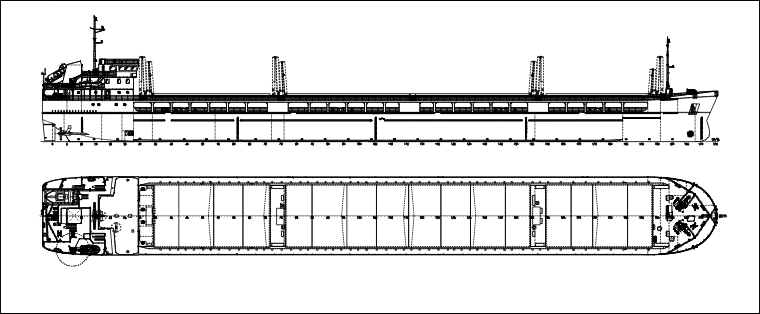

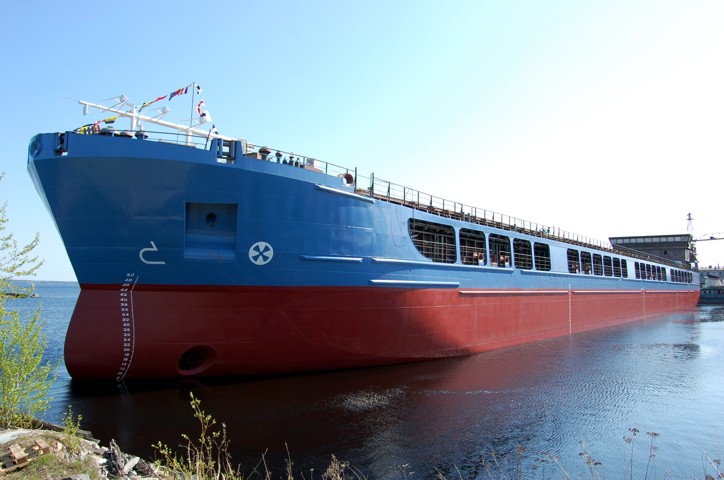

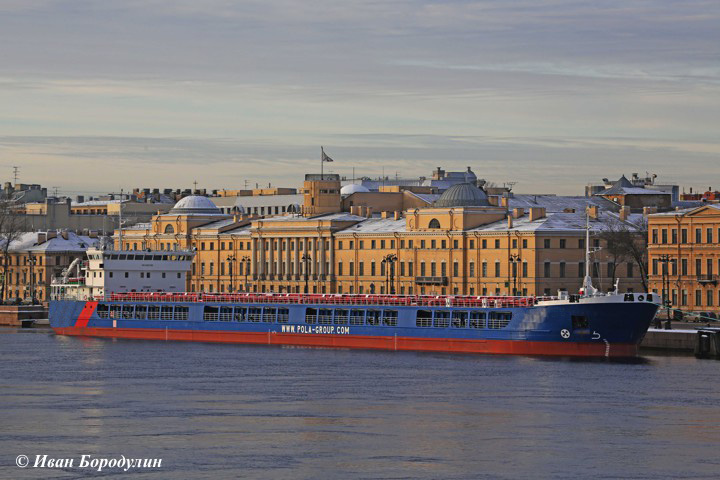

PROJECT RSD49

7143 / 4507 DWT multipurpose river-sea dry-cargo vessel


Purpose - sea and mixed (river-sea) carrying of the general and bulk cargoes, including steel, grain, timber, coal, large-dimension and heavy-weight cargoes and dangerous cargoes of classes 1.4S, 2, 3, 4, 5, 6.1, 8, 9 by IC IMDG and Appendix B of the BC Code.

Nominations:
RINA - Royal Institution of Naval Architects

# Name Value
1. Main dimension
Length overall, m 139.95
Length between PP, m 135.74
Breadth, m 16.50
Depth, m 6.0
L x B x H 139.95 x 16.50 x 6.0 = 13 855
2. Draught (at sea / in river), m 4.70 / 3.60
3. Deadweight (at sea / in river), t 7143 / 4507
4. Endurance, days 20
5. Range, nautical miles 4000
6. Number of cargo holds 3
7. Cargo holds capacity, m³ 10921
8. Ballast tanks capacity, m³ 3959
9. RS class KM Ice2 R2 AUT1-C
10. ME power, kW 2 x 1200
11. Rudder and propeller complex 2 FPP + 2 rudders
12. Bow thruster, kW 200
13. Auxiliary engines:
diesel-generators, kW 2 x 292
emergency diesel-generator, kW 1 x 90
14. Crew / berth, pers. 10 / 13
15. Speed (at draft d = 4.7 m and 85% MCR), knots 11.5
