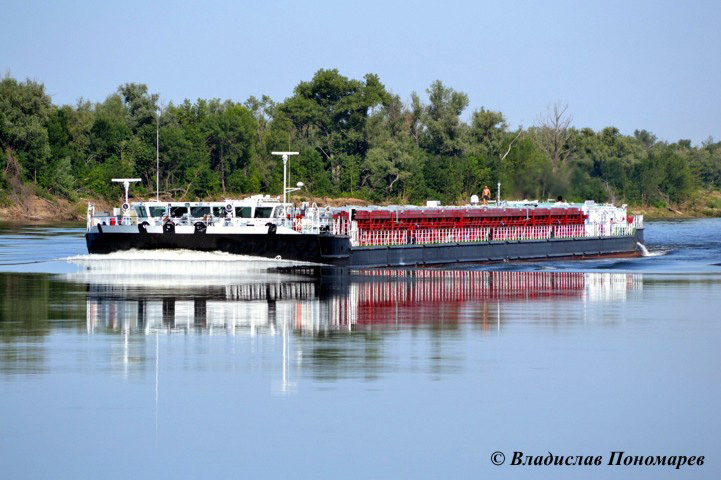

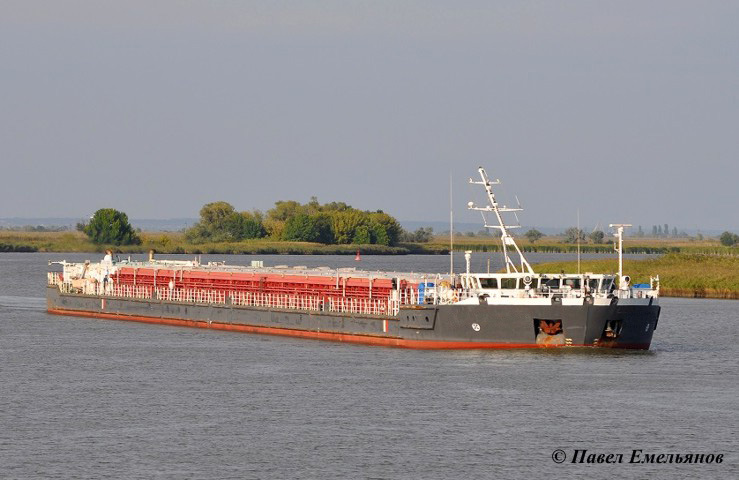

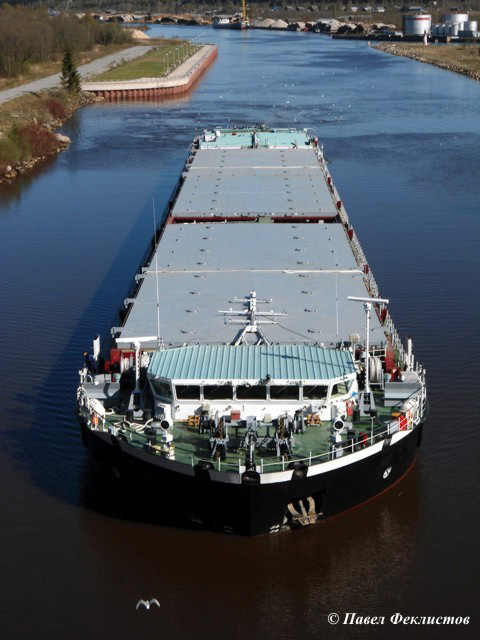

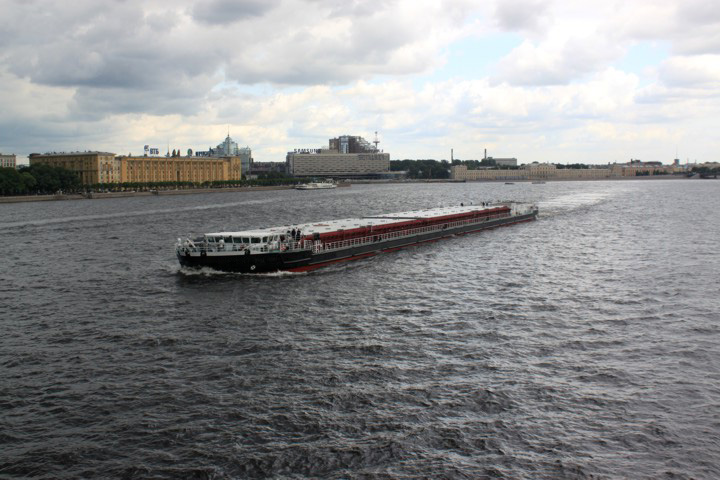

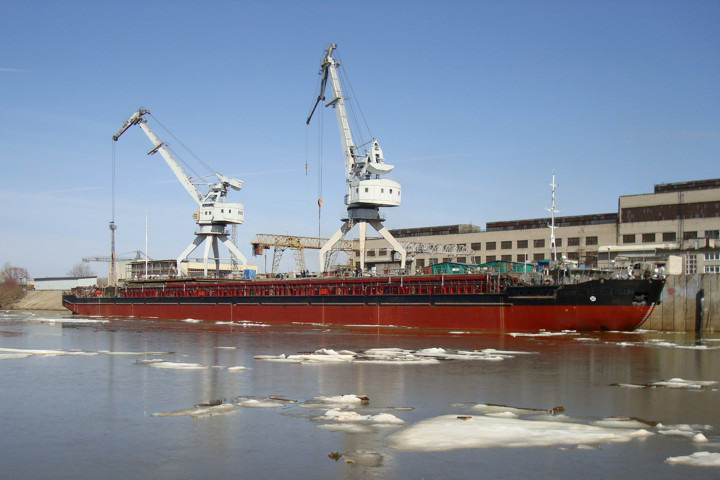

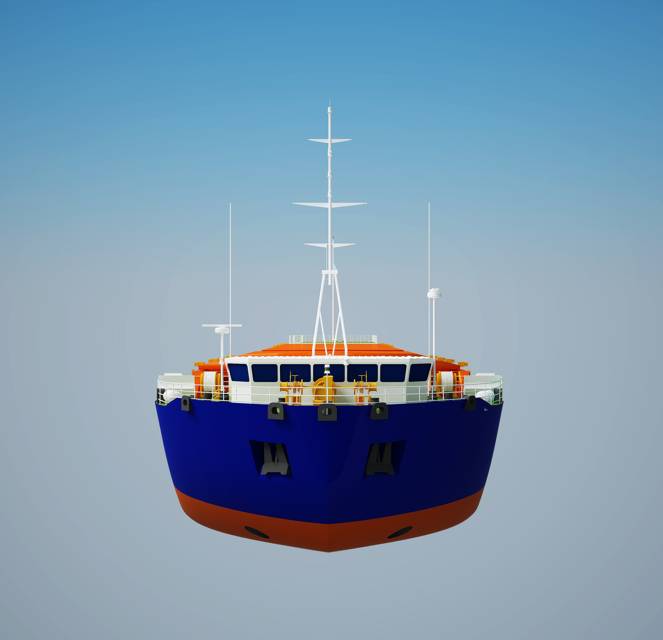

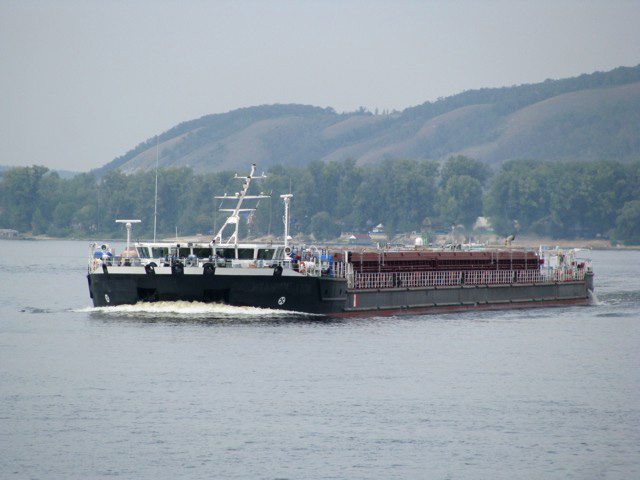

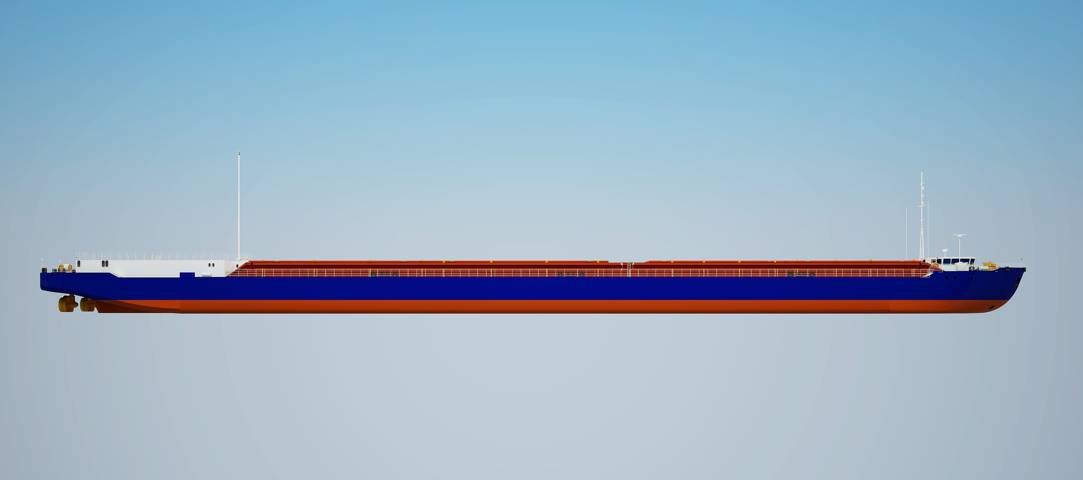

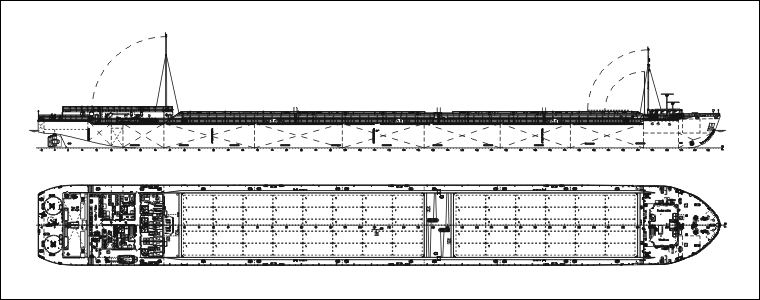

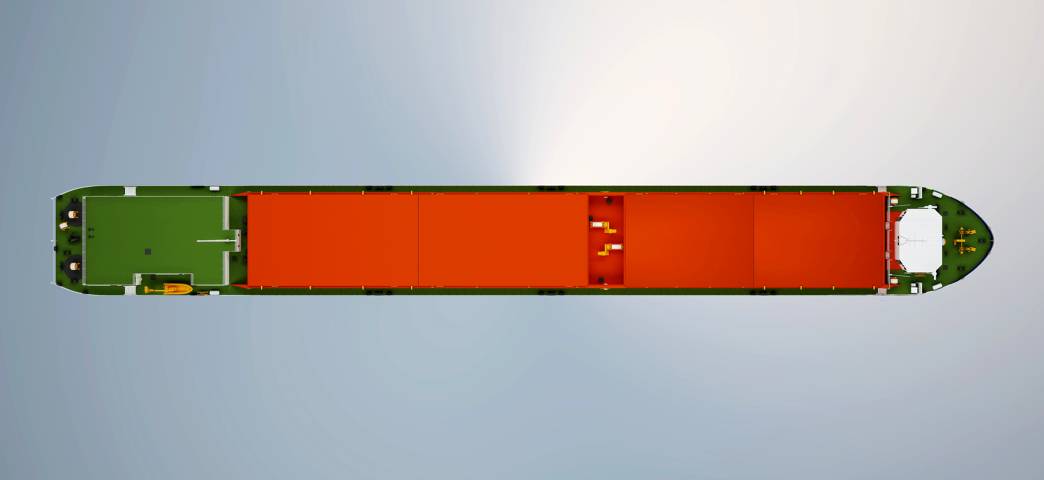

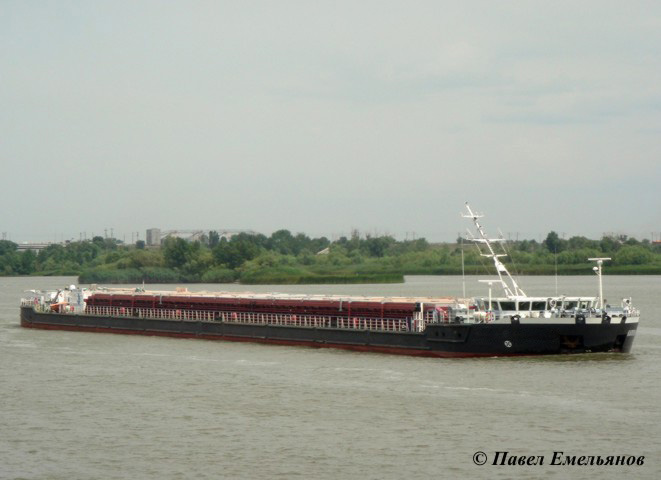

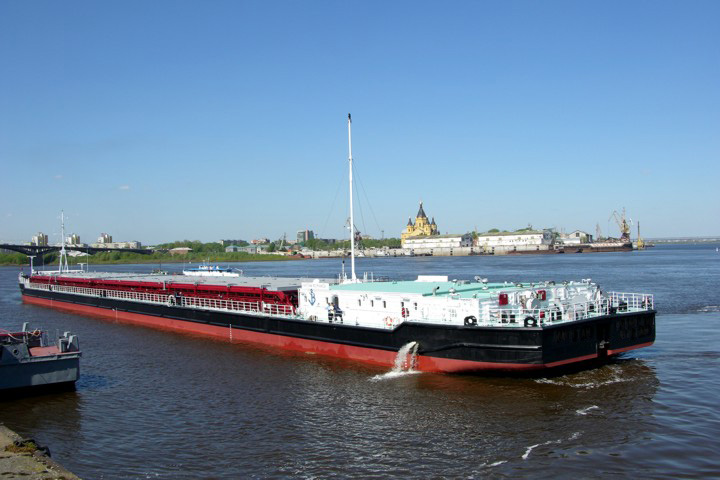

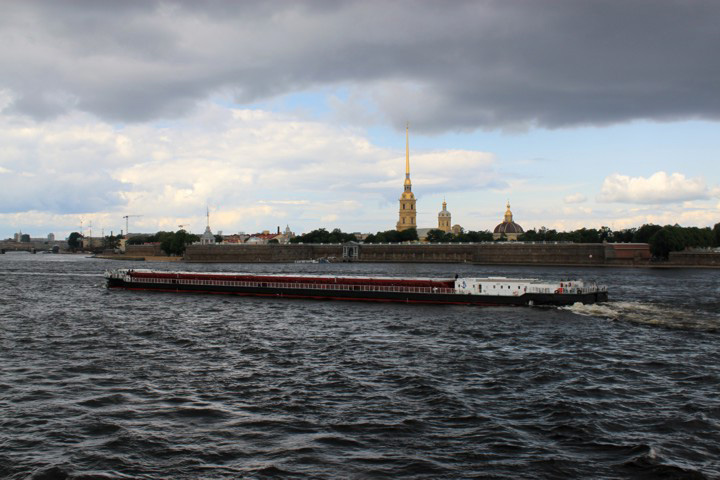

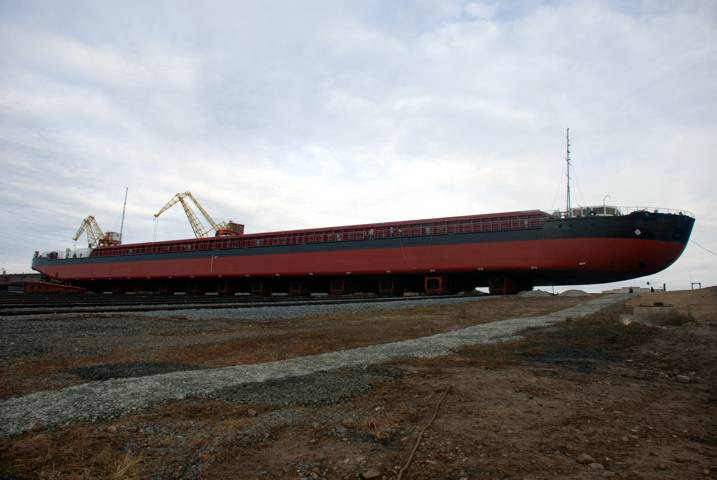

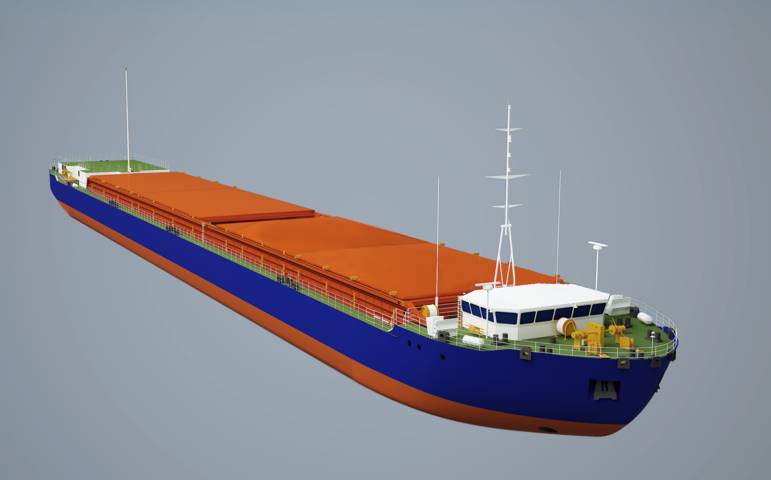

PROJECT RSD44
5716 / 5698 DWT multipurpose river-sea dry-cargo vessel





















Purpose - carrying of the general and bulk cargoes, including TEU and FEU up to 9'6'' height in holds, steel, scrap, grain, timber, logs and carving woods, potash and mineral fertilizer, niter, sulphur, coal, building materials, paper, large-dimension cargoes.
# | Name | Value |
---|---|---|
1. | Main dimension | |
Length overall, m | 139.97 | |
Length by DWL, m | 138.90 | |
Breadth overall, m | 16.80 | |
Breadth, m | 16.50 | |
Depth to the main deck, m | 5.0 | |
Height of cargo holds coaming, m | 2.205 | |
L x B x H | 139.99 x 16.80 x 5.0 = 11 757 | |
2. | Draught (at sea / in river), m | 3.595 / 3.60 |
3. | Deadweight (at sea / in river), t | 5716 / 5698 |
4. | Number of cargo holds | 2 |
5. | Cargo holds dimension (l x b x h), m | N1 37.80 x 13.20 x 6.22 N2 49.80 x 13.20 x 6.22 |
6. | Cargo holds capacity, m³ | 7086 |
7. | Container capacity: | |
TEU | 140 | |
FEU | 73 | |
8. | RRR class | ![]() |
9. | ME power, kW | 2 x 1200 |

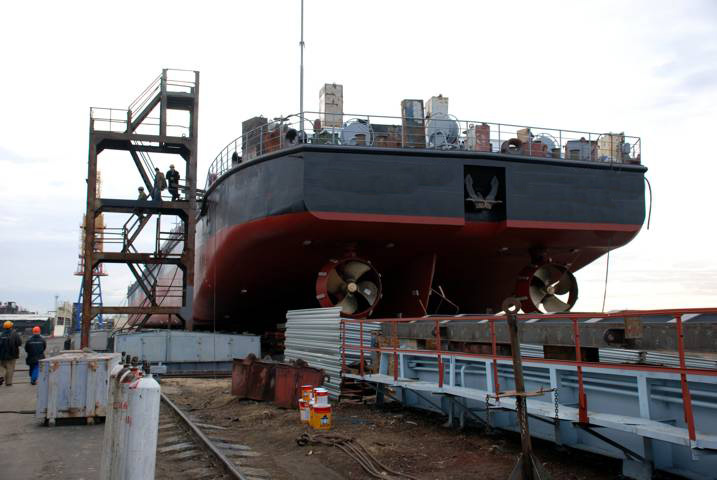

10. | Rudder and propeller complex | 2 x Rudderpropellers |
11. | Bow thruster, kW | 120 |
12. | Auxiliary engines: | |
diesel-generators, kW | 2 x 184 | |
emergency diesel-generator, kW | 1 x 62 | |
13. | Crew / berth, pers. | 9 / 16 |
14. | Speed, knots | 12.0 |
