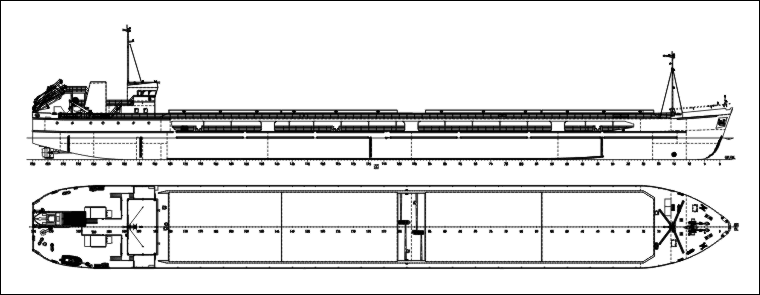

PROJECT RSD41
6089 / 4512 DWT multipurpose river-sea dry-cargo vessel




Purpose - sea and mixed (river-sea) carrying of the general and bulk cargoes including steel, timber, grain, and some dangerous goods.
# | Name | Value |
---|---|---|
1. | Main dimension | |
Length overall, m | 138.80 | |
Length between PP, m | 135.0 | |
Breadth overall, m | 16.75 | |
Breadth scantlings, m | 16.50 | |
Depth, m | 5.50 | |
L x B x H | 138.30 x 16.75 x 5.50 = 12 741 | |
2. | Draught (at sea / in river), m | 4.25 / 3.60 |
3. | Deadweight (at sea / in river) (about), t | 6089 / 4512 |
4. | Endurance (at sea / in river), days | 20 / 15 |
5. | Range, nautical miles | 3600 |
6. | Number of cargo holds | 4 |
7. | Cargo holds capacity, m³ | 9854 |
8. | Ballast tanks capacity, m³ | 3118 |
9. | RRR class | ![]() |
10. | ME power, kW | 2 x 883 |
11. | Rudder and propeller complex | 2 FPP + 2 nozzles with stabilizers |
12. | Bow thruster, kW | 72 |
13. | Auxiliary engines: | |
diesel-generators | 2 x 100 kW + 1 x 50 kW |
|
emergency diesel-generator, kW | 1 x 75 | |
14. | Crew / berth, pers. | 12 / 16 |
15. | Speed, knots | 10.0 |
