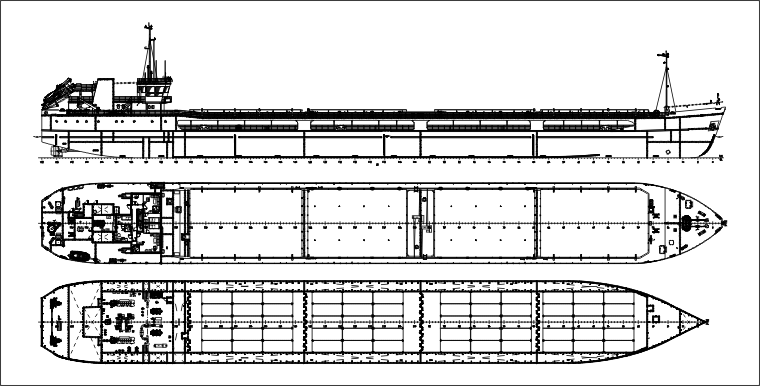

PROJECT RSD35
6192 / 4508 DWT dry-cargo vessel class

Purpose - sea and mixed (river-sea) carrying of general and bulk, grain, containers TEU / FEU in the holds and some dangerous goods.
# | Name | Value |
---|---|---|
1. | Main dimension | |
Length overall, m | 137.70 | |
Length between PP, m | 135.0 | |
Breadth overall, m | 16.52 | |
Breadth, m | 16.50 | |
Depth, m | 5.50 | |
L x B x H | 137.70 x 16.52 x 5.50 = 12 511 | |
Air draft from WL at draught d = 3.0 m, m | 13.20 | |
2. | Draught (at sea / in river), m | 4.30 / 3.60 |
3. | Ballast draft, m | 2.98 |
4. | Deadweight (at sea / in river), t | 6192 / 4508 |
5. | Endurance, days | 15 |
6. | Range, nautical miles | 3600 |
7. | Number of cargo holds | 4 |
8. | Cargo holds capacity, m³ | 9536 |
9. | Container capacity: | |
TEU | 180 | |
FEU | 60 | |
10. | Ballast tanks capacity, m³ | 3023 |
11. | Stowage factor, m³/t: | |
at draft d = 4.3 m (at sea) | 1.66 | |
at draft d = 3.6 m (in river) | 2.23 | |
12. | RRR class | ![]() |
13. | ME power, kW | 2 x 810 |
14. | Rudder and propeller complex | 2 FPP + 2 nozzles |
15. | Bow thruster, kW | 72 |
16. | Auxiliary engines: | |
diesel-generators, kW | 2 x 150 | |
harbor diesel-generator, kW | 1 x 50 | |
emergency diesel-generator, kW | 1 x 75 | |
17. | Crew / berth, pers. | 9 / 11 |
18. | Speed, knots | 10.20 |
